Installation Procedure

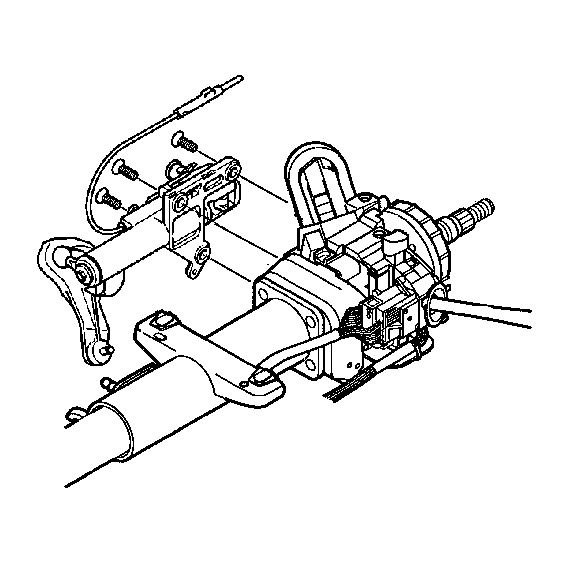

Fig 1: View Of Linear Shift Assembly And Retaining Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Secure the linear shift assembly to the steering column assembly with the 3 flat head tapping screws.
Move the linear shift assembly out of the PARK position to install the lower socket tapping screw.

Tighten: Tighten the 3 TORX® screws to 10 N.m (89 lb in).

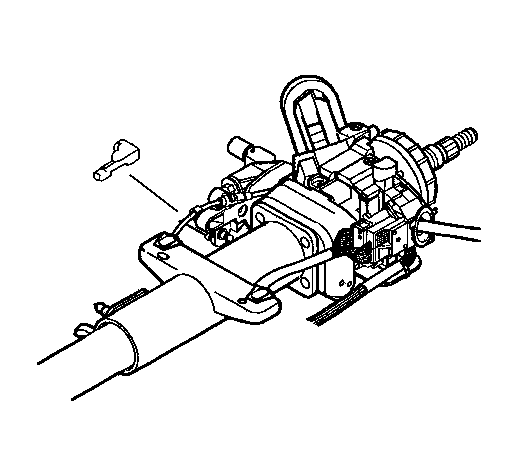

Fig 2: View Of Automatic Transmission Shift Lock Control Actuator

Courtesy of GENERAL MOTORS CORP.

Fig 3: View Of Park Position Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Slide the park position switch assembly onto the linear shift assembly.
Connect the automatic transmission shift lock control connector onto the park position switch assembly.

Fig 4: Identifying Park Lock Cable At Ignition Lock Cylinder

Courtesy of GENERAL MOTORS CORP.

Connect the park lock cable assembly (1) to the ignition lock cylinder case in the following way:
1. Place the steering column lock cylinder set into the off position.
2. Place the shift lever clevis into the park position.
3. Press the locking tab on the end of the park lock cable assembly (1) into the slot in the ignition lock cylinder case.
Install the shift lever. Refer to Shift Lever Replacement (With Tow/Haul Switch) or Shift Lever Replacement (Without Tow/Haul Switch) .
Install the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement .
Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
