Installation Procedure

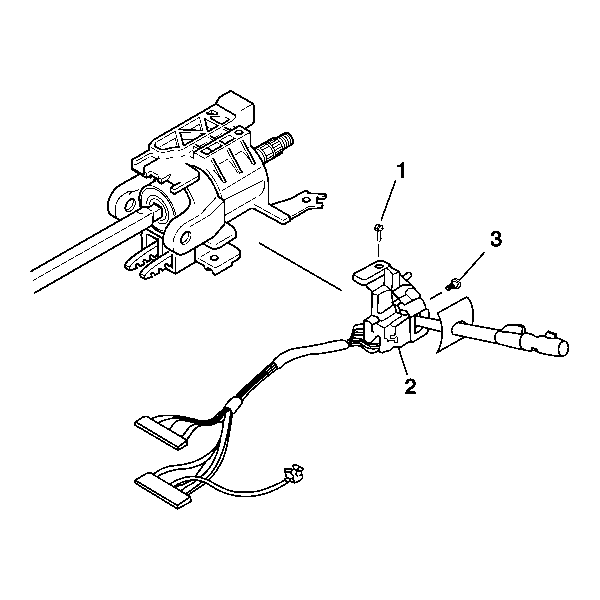

- Install the turn signal and multifunction switch assembly (2) onto the steering column tilt head assembly.
- Screw the 2 pan head tapping screws (1) and (3) into the turn signal and multifunction assembly (2).
Tighten
- Tighten the top pan head tapping screw (1) to 3 N.m (27 lb in).
- Tighten the side pan head tapping screw (3) to 7 N.m (62 lb in).

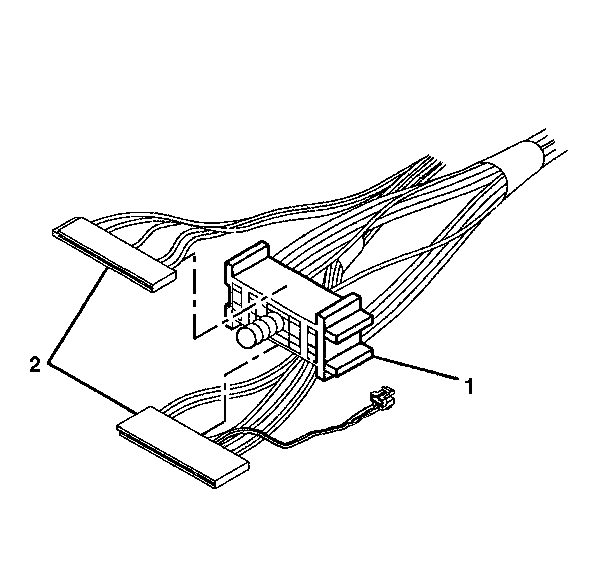

- Slide the 2 connectors (2) of the turn signal and multifunction switch assembly into the bulkhead connector (1).
- Connect the turn signal and multifunction switch assembly connector to the SIR coil connector.

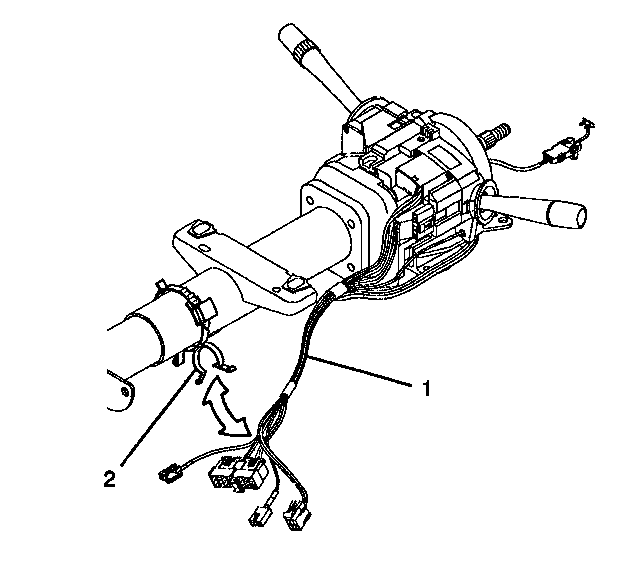

- Install the wire harness assembly (1) into the wire harness strap (2).
- Install the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement .
- Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
IMPORTANT:
Be sure that the electrical contact of the turn signal and multifunction switch assembly (2) rests on the turn signal cancel cam assembly.
IMPORTANT:
The abrasion sleeve must be installed back onto the steering column wire harness assembly. The ignition lock cylinder case wires and connector must be hanging out of the middle of the abrasion sleeve.
