Escalade EXT
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Navigation Systems
>>
Schematic and Routing Diagrams
>>
Navigation System Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Navigation System Schematics

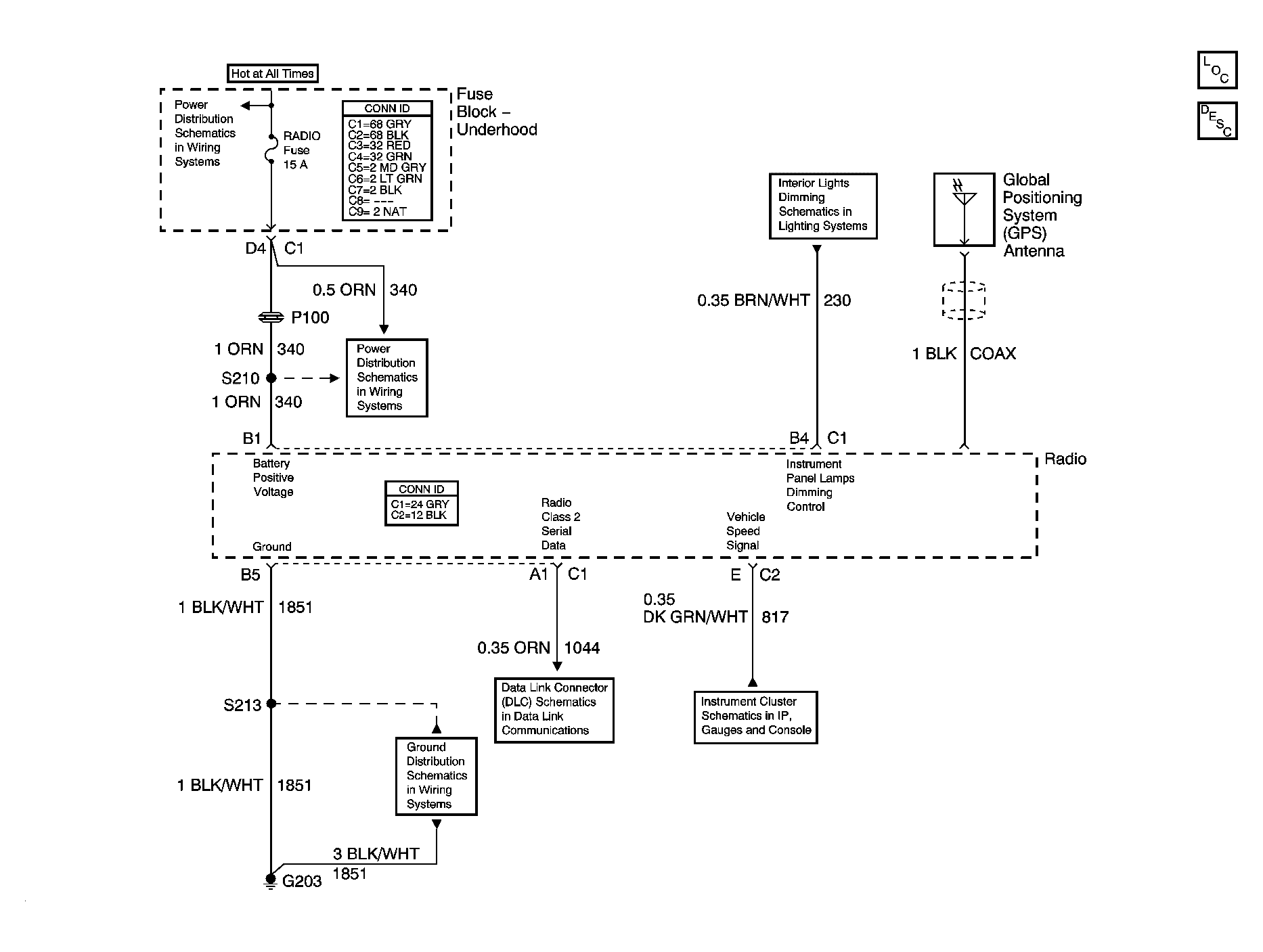

Fig 1: Navigation System Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
