Cigar Lighter Connector End Views

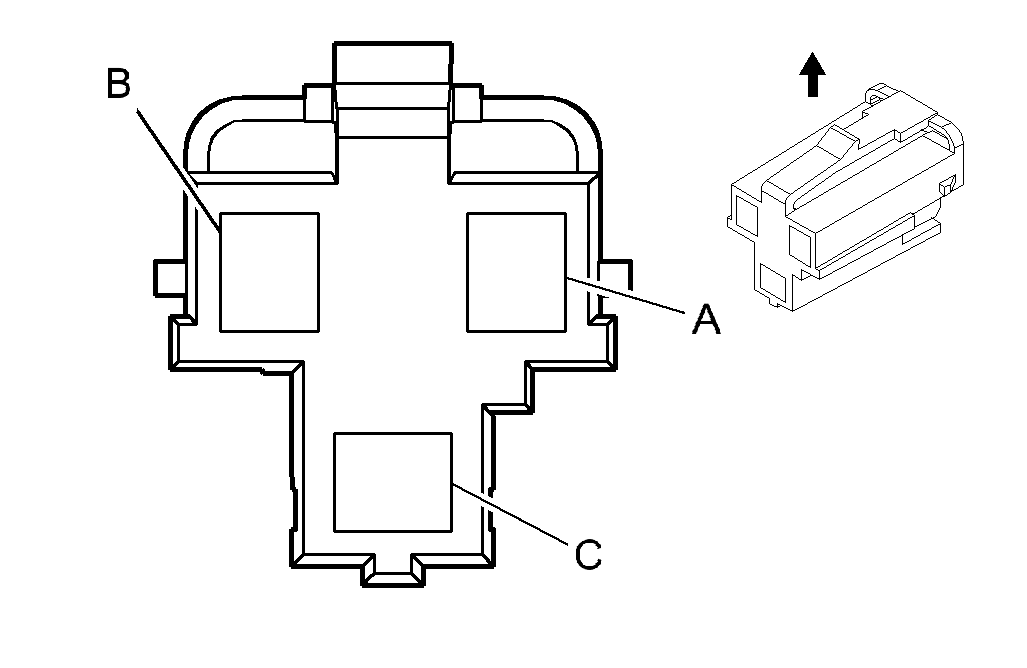

Cigar Lighter (UQ7)

GM365964Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176445
  • 3-Way F Metri-Pack 280 Series Flexlock (NAT)
Pin Wire Color Circuit No. Function
A ORN 640 Battery Positive Voltage
B - - Not Used
C BLK 1050 Ground
Cigar Lighter (Except UQ7)

GM362748Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176445
  • 3-Way F Metri-Pack 280 Series (GRY)
Pin Wire Color Circuit No. Function
A ORN 640 Battery Positive Voltage
B - - Not Used
C BLK 1050 Ground
