Seat Front Vertical Motor Connector End Views

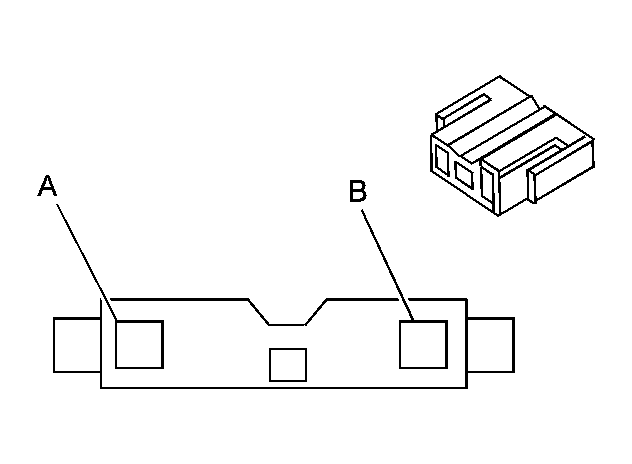

Seat Front Vertical Motor - Driver

GM1073782Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052109
  • 2-Way F M/P 280 Series (BLK)
Pin Wire Color Circuit No. Function
A BLK 287 Driver Seat Front Vertical Motor Down Control
B RED 286 Driver Seat Front Vertical Motor Up Control
Seat Front Vertical Motor - Front Passenger

GM1073782Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052109
  • 2-Way F M/P 280 Series (BLK)
Pin Wire Color Circuit No. Function
A RED 1518 Power Seat Front Vertical Up Switch Signal
B BLK 1520 Power Seat Front Vertical Down Switch Signal
