Engine Electrical Connectors

Generator (w/ SBA)

GM697046Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186568
  • 4-Way F Metri-pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A DK BLU 5668 Engine On Signal
B BRN 25 Charge Indicator Control
C GRY 23 Generator Field Duty Cycle Signal
D - - Not Used
Generator (w/o SBA)

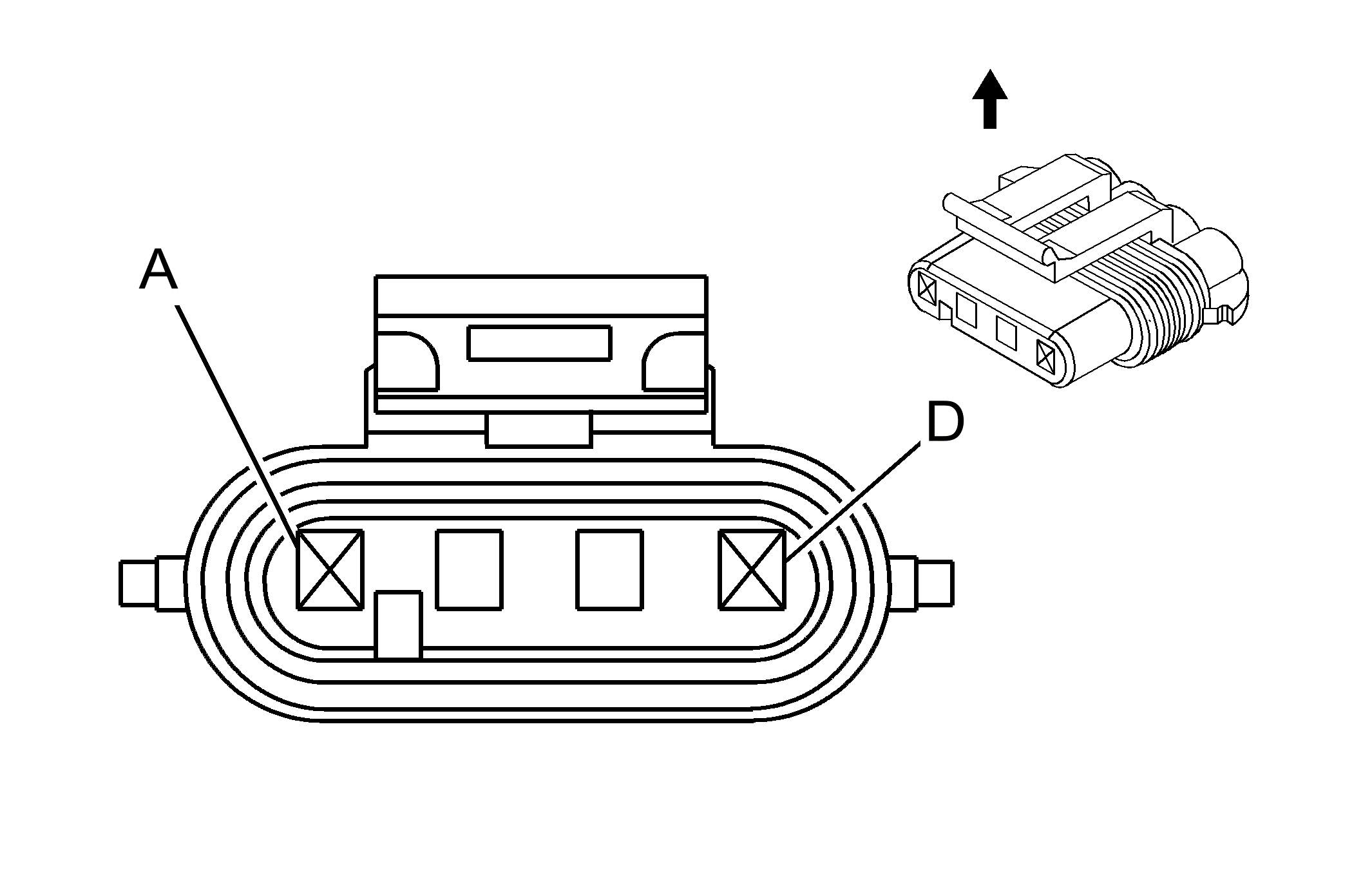

GM647991Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15355066
  • 2-Way F Metri-pack 150 Series Sealed (BGE)
Pin Wire Color Circuit No. Function
B BRN 25 Charge Indicator Control
C GRY 23 Generator Field Duty Cycle Signal
