Installation Procedure

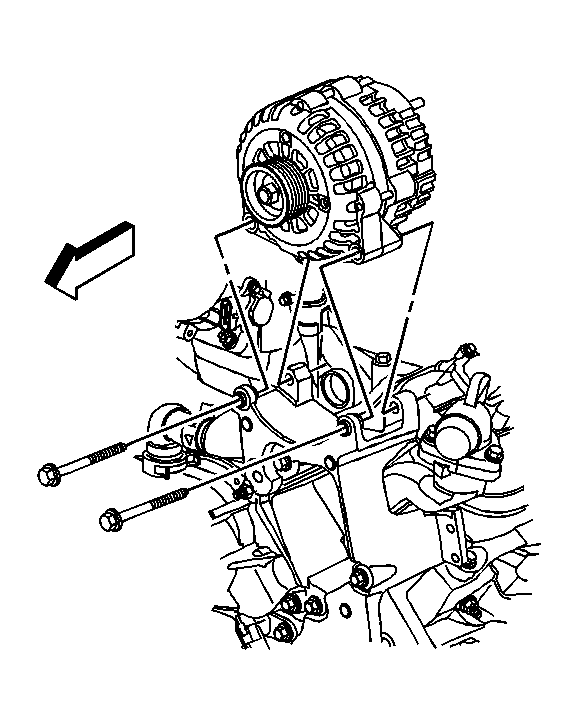

    Fig 1: View Of Generator & Bolts (8.1L)
    GM751563Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the generator.
  2. Install the generator bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

    3. Fig 2: View Of Generator Cable & Nut
    GM395686Courtesy of GENERAL MOTORS CORP.
  3. Install the generator cable to the generator, perform the following:
    1. Install the generator cable.
    2. Install the generator cable nut to the terminal.

      Tighten:  Tighten the nut to 9 N.m (80 lb in).

    3. Slide the boot over the terminal stud.

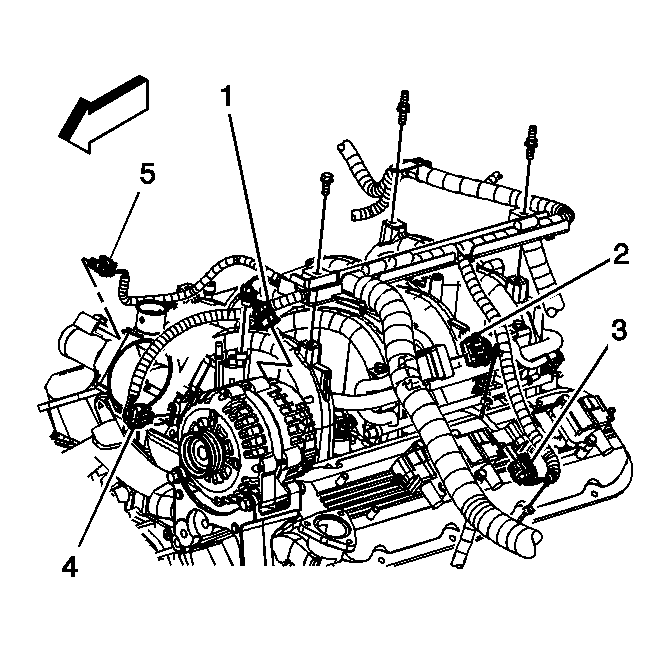

    4. Fig 3: View Of Generator Electrical Connector (8.1L)
    GM750525Courtesy of GENERAL MOTORS CORP.
  4. Connect the generator electrical connector (1).
  5. Install the drive belt. Refer to Drive Belt Replacement - Accessory in Engine Mechanical - 8.1 L.
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
