Engine Oil Level Switch Connector End Views

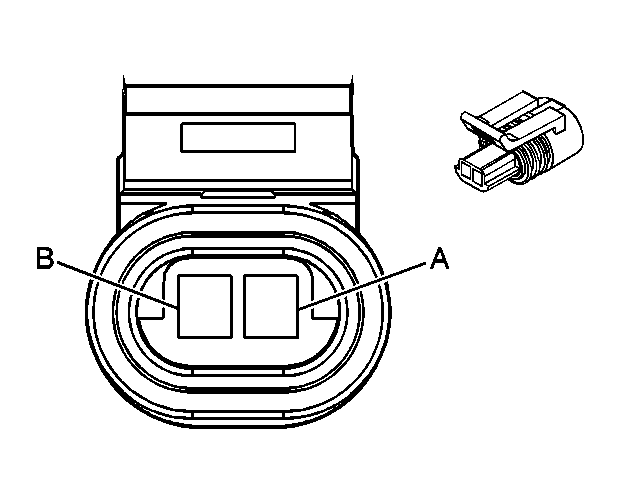

Engine Oil Level Switch (8.1L)

GM655791Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15324478
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A BRN 1174 Oil Level Switch Signal
B BLK/WHT 451 Ground
Engine Oil Level Switch (Except 8.1L)

GM635009Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052641
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A BRN 1174 Oil Level Switch Signal
B BLK/WHT 451 Ground
