Installation Procedure

Fig 1: View Of Left Exhaust Heat Shield & Nuts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the exhaust heat shield (1, 3) to the dash panel studs.
Install the exhaust heat shield nuts.
Tighten: Tighten the nuts to 9 N.m (80 lb in).

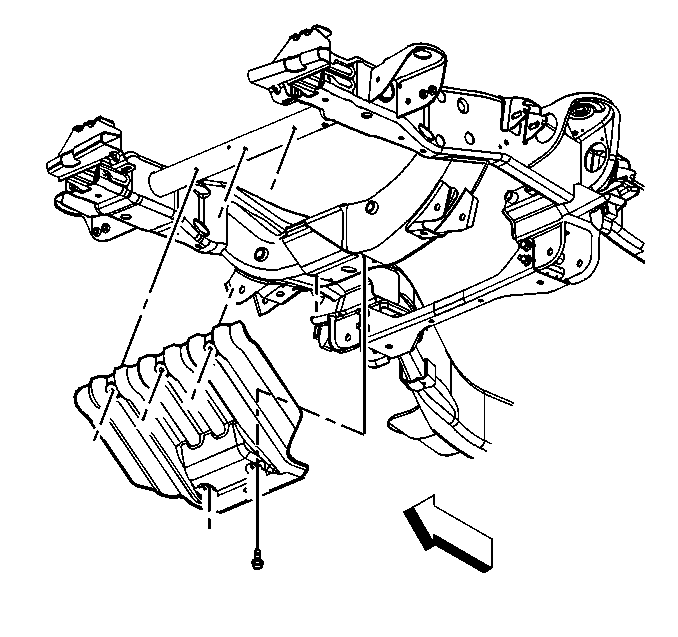

Fig 2: Identifying Engine Shield And Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

Install the engine shield and bolts, if necessary.
Tighten: Tighten the bolts to 20 N.m (15 lb ft).
Lower the vehicle.
