Installation Procedure

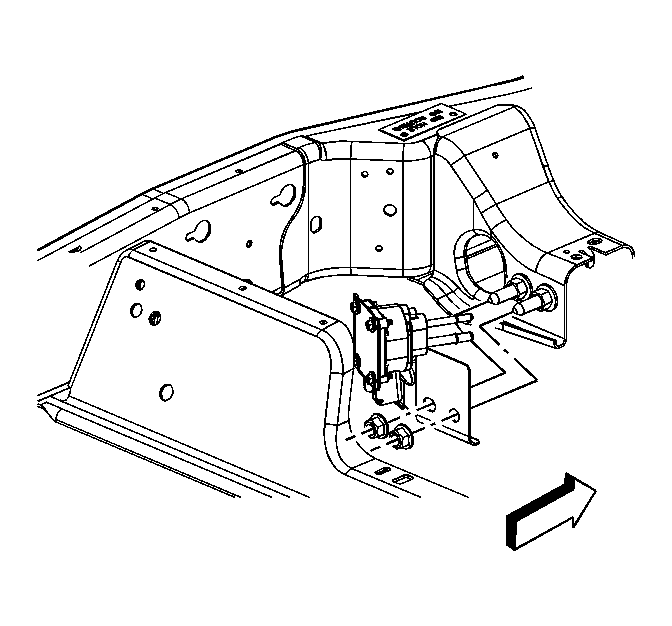

Fig 1: View Of Fuel Composition Sensor, Bracket & Bracket Nuts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

If required, install the fuel composition sensor to the bracket and install the bolts.
Tighten: Tighten bolts to 10 N.m (89 lb in).
Install the fuel composition sensor.
Install the fuel composition sensor bracket nuts.
Tighten: Tighten nuts to 17 N.m (13 lb ft).

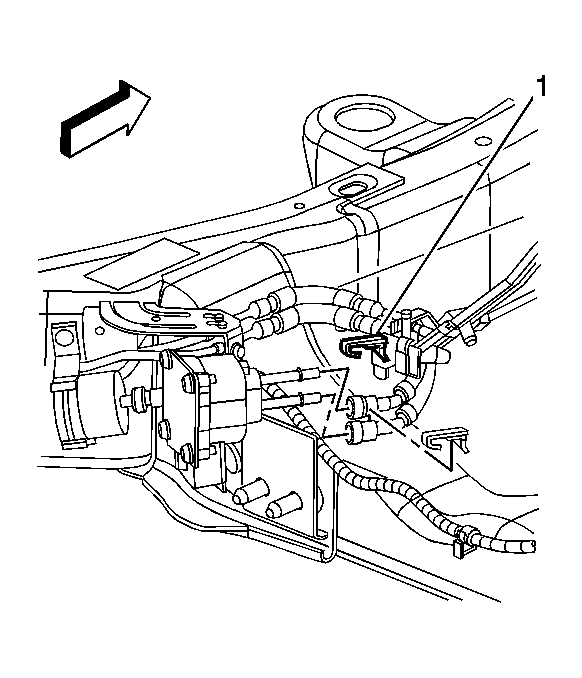

Fig 2: View Of Fuel Line Retainers

Courtesy of GENERAL MOTORS CORP.

Connect the fuel composition sensor fuel lines. Refer to Quick Connect Fitting(s) Service (Metal Collar) .
Install the fuel line retainers (1).

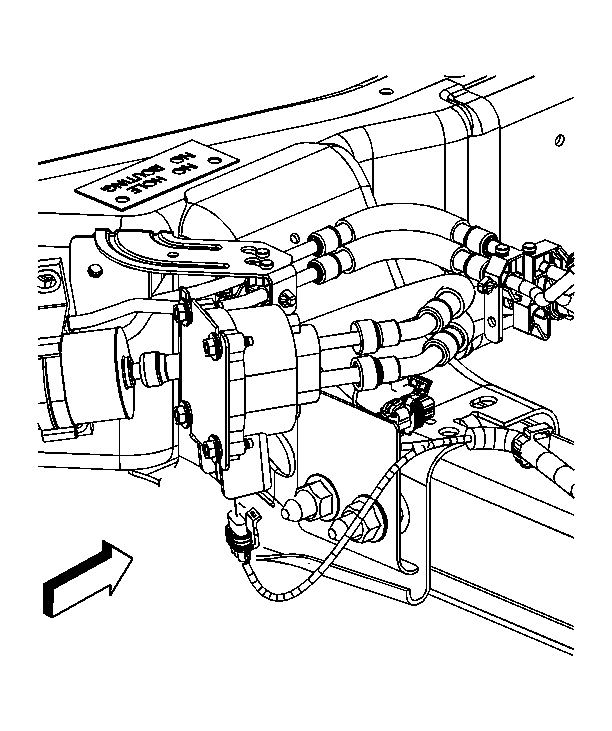

Fig 3: View Of Fuel Composition Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the fuel composition sensor electrical connector.
If equipped, install the transfer case shield. Refer to one of the following:
- Transfer Case Shield Replacement in Transfer Case BW 4481 - NR3
- Transfer Case Shield Replacement in Transfer Case BW 4482 - NR4
- Transfer Case Shield Replacement in Transfer Case NVG 246 - NP8
Lower the vehicle.
Use the following procedure in order to inspect for leaks:
- Turn the ignition ON, with the engine OFF, for 2 seconds.
- Turn the ignition OFF for 10 seconds.
- Turn the ignition ON, with the engine OFF.
- Inspect for fuel leaks.
