Removal Procedure

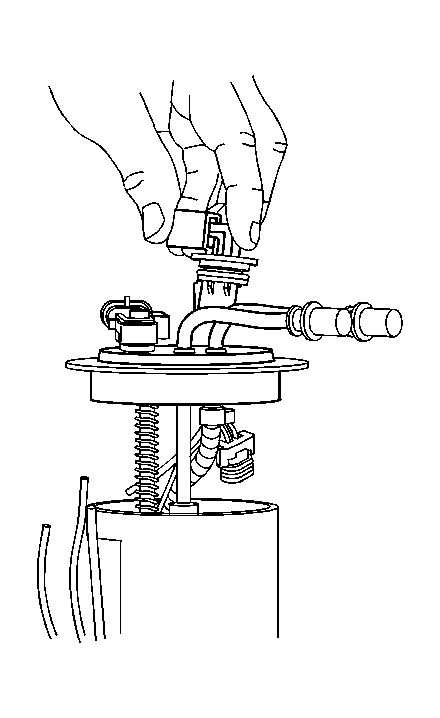

Fig 1: View Of Fuel Pump Electrical Connector (5.3L (L59) Engine)

Courtesy of GENERAL MOTORS CORP.

Remove the sending unit. Refer to Fuel Sender Assembly Replacement (4.8L and 5.3L Engines) or Fuel Sender Assembly Replacement (5.3L (L59) Engine) or Fuel Sender Assembly Replacement (6.0L Engine - Dual Tanks - Front) or Fuel Sender Assembly Replacement (6.0L Engine - Dual Tanks - Rear) .
Disconnect the fuel pump electrical connector.
Cut the existing fuel level sensor wiring.

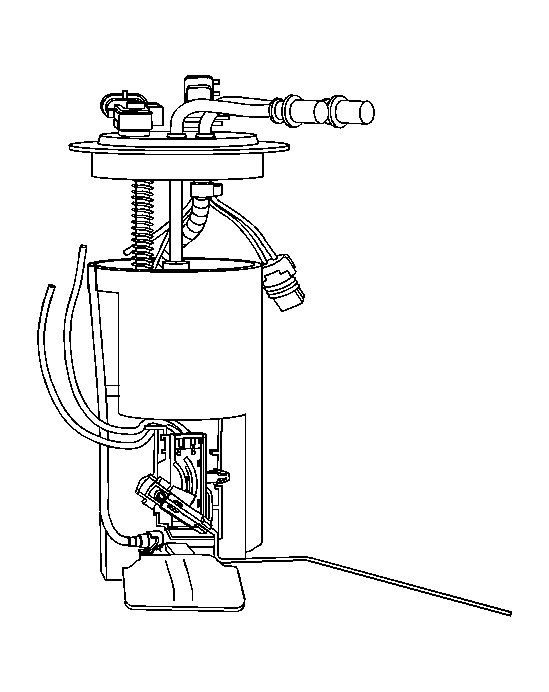

Fig 2: Removing Fuel Level Sensor (5.3L (L59) Engine)

Courtesy of GENERAL MOTORS CORP.

Squeeze the locking tabs together to remove the fuel level sensor from the fuel sender assembly.

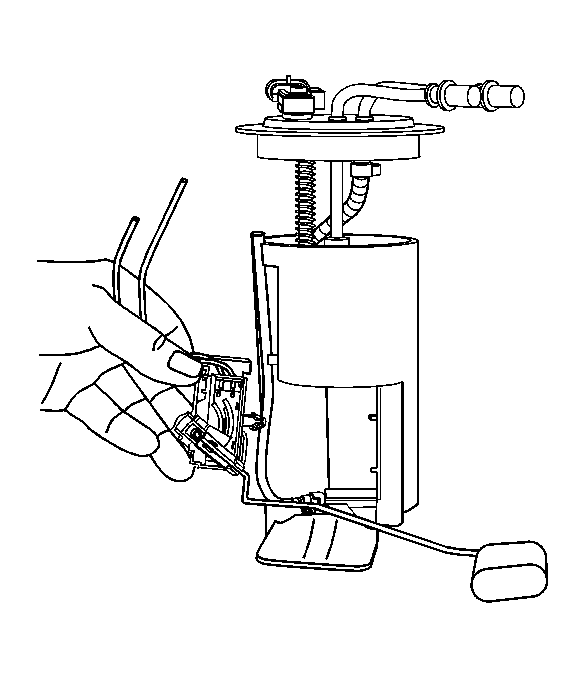

Fig 3: Removing Wiring Harness From Fuel Sender Assembly (5.3L (L59) Engine)

Courtesy of GENERAL MOTORS CORP.

Using a screwdriver to release the locking tabs, remove the wiring harness from the fuel sender assembly.
