Installation Procedure

IMPORTANT: Lightly coat the MAP sensor seal with clean engine oil before installing the sensor.

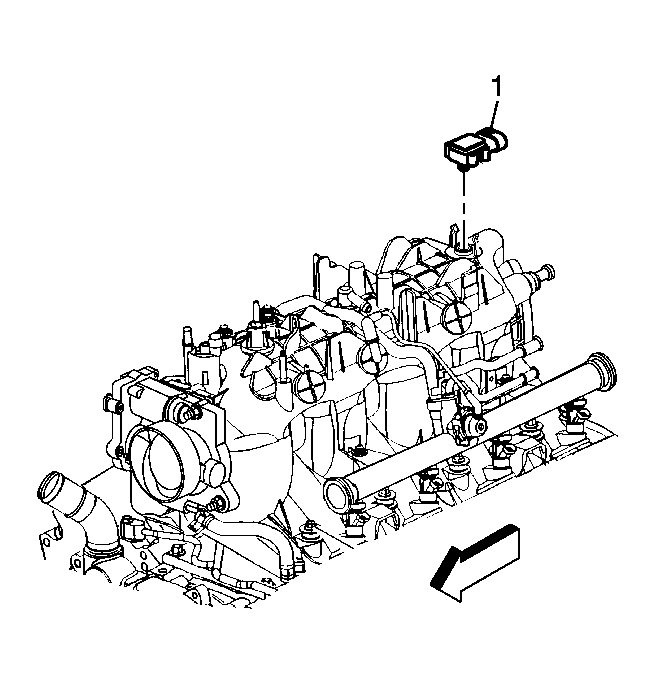

    Fig 1: View Of Manifold Absolute Pressure (MAP) Sensor
    GM863068Courtesy of GENERAL MOTORS CORP.
  1. Install the MAP sensor (1).

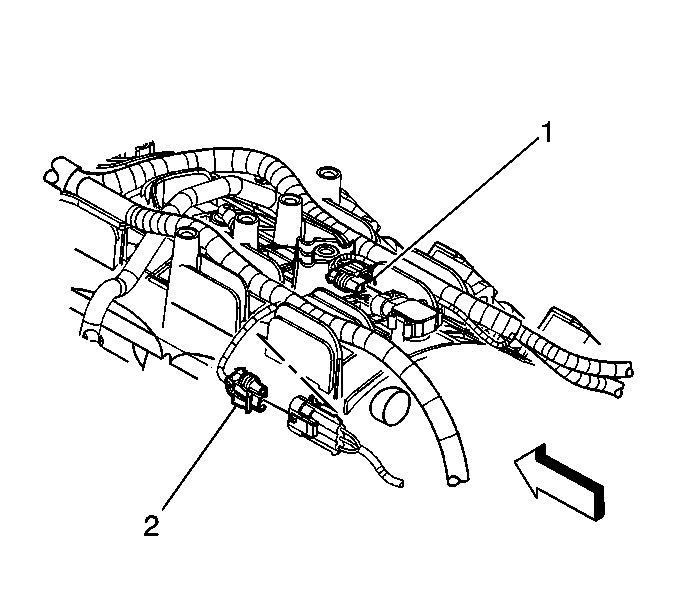

    2. Fig 2: View Of MAP Sensor & Knock Sensor Electrical Connectors
    GM679510Courtesy of GENERAL MOTORS CORP.
  2. Connect the MAP sensor electrical connector (1).
  3. Install the engine sight shield. Refer to Engine Sight Shield Replacement (4.8L, 5.3L, and 6.0L (RPO LQ4)) or Engine Sight Shield Replacement (6.0L (RPO LQ9)) in Engine Mechanical-4.8L, 5.3L, and 6.0L.
