Section 189 (On-Board Diagnostic [Engine Control System])
>>
DTC P0571: Brake Switch Circuit Problem
>>
Diagnostic procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic procedure
WARNING:
This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

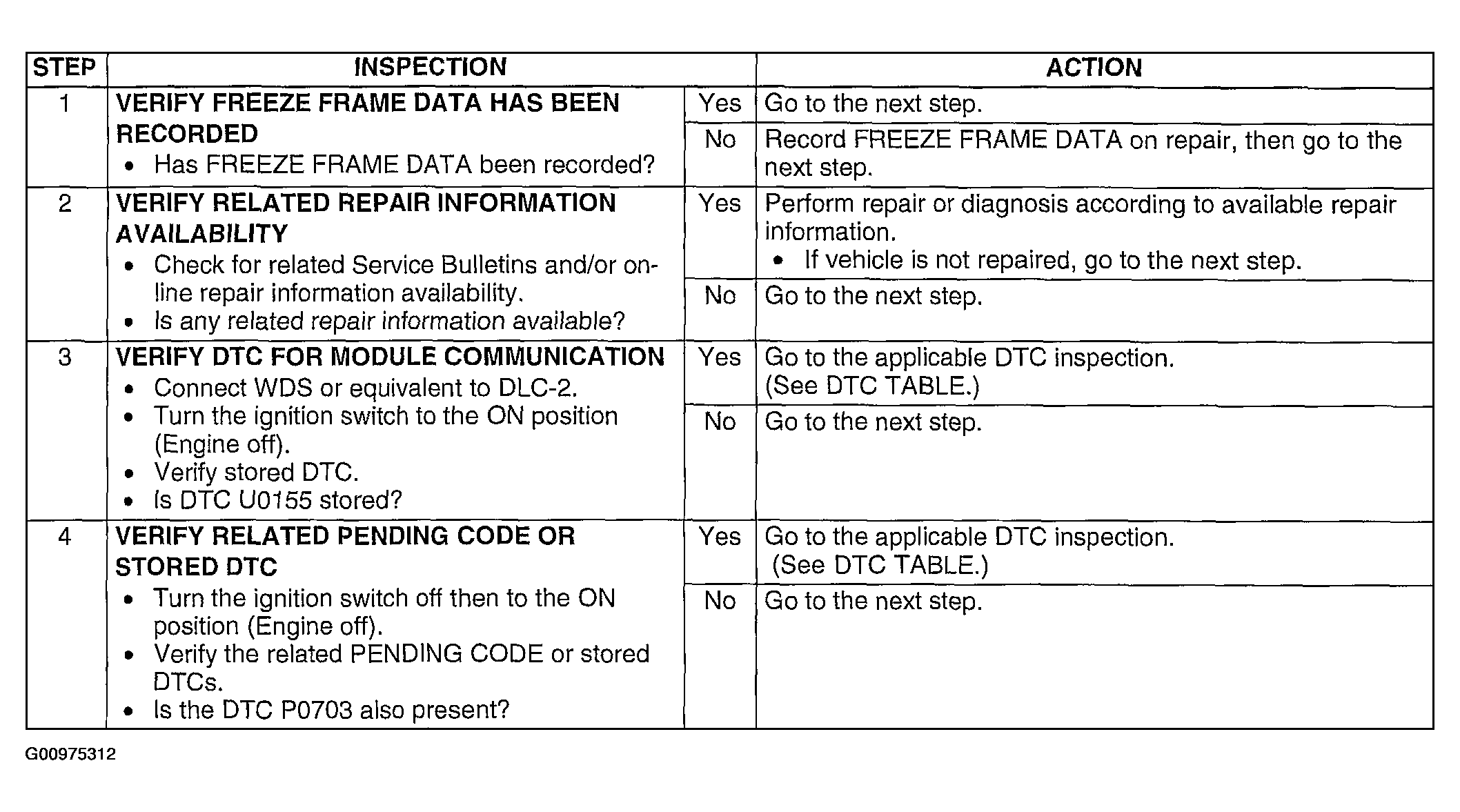

Fig 1: DTC P0571: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

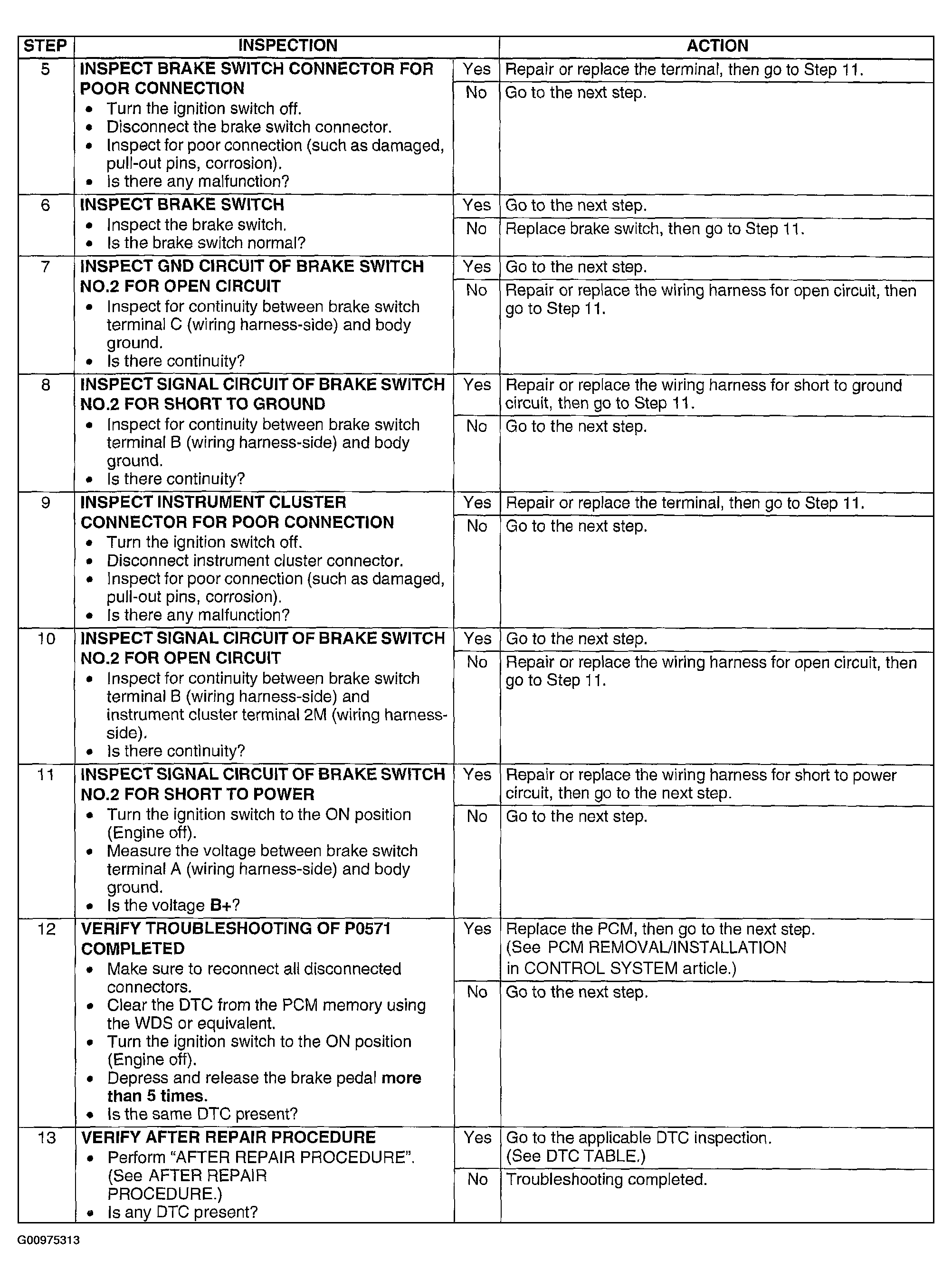

Fig 2: DTC P0571: Diagnostic Procedure Chart (Steps 5-13)
Courtesy of MAZDA MOTORS CORP.
