Door Lock-Link Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Inspect for continuity between the door lock-link switch terminals.
- If not as specified, replace the front door latch and lock actuator.

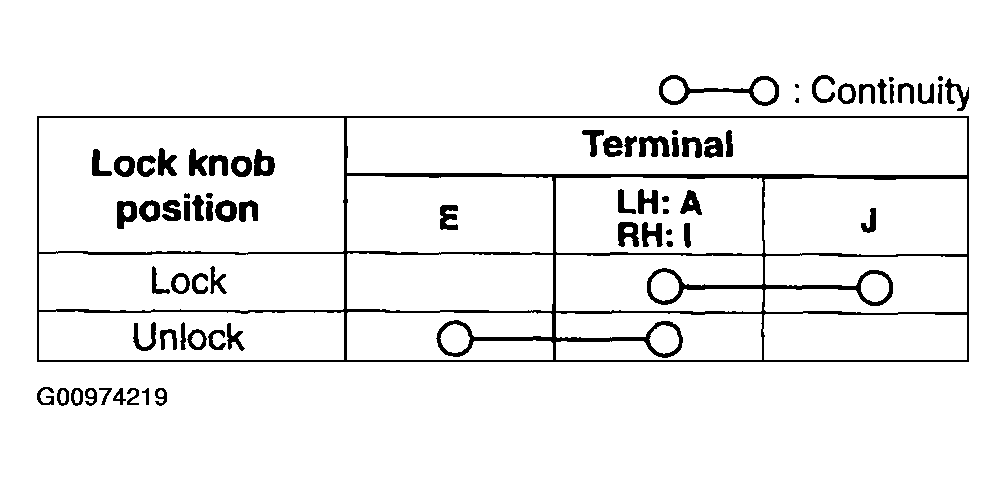

Fig 1: Door Lock-Link Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

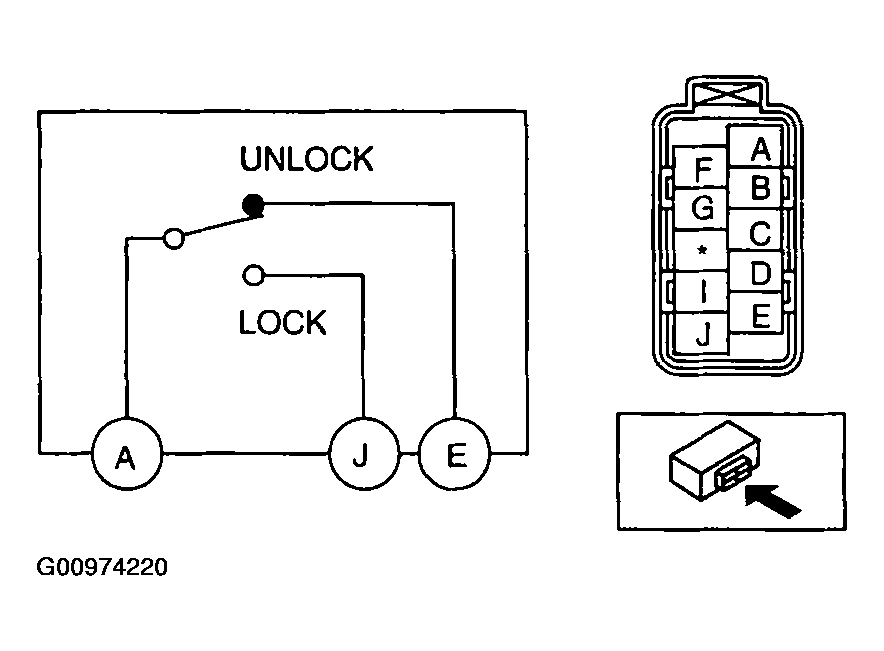

Fig 2: Identifying Door Lock-Link Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
