Front Door Key Cylinder Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Inspect for continuity between the front door key cylinder switch terminals.
- If not as specified, replace the front door latch and lock actuator.

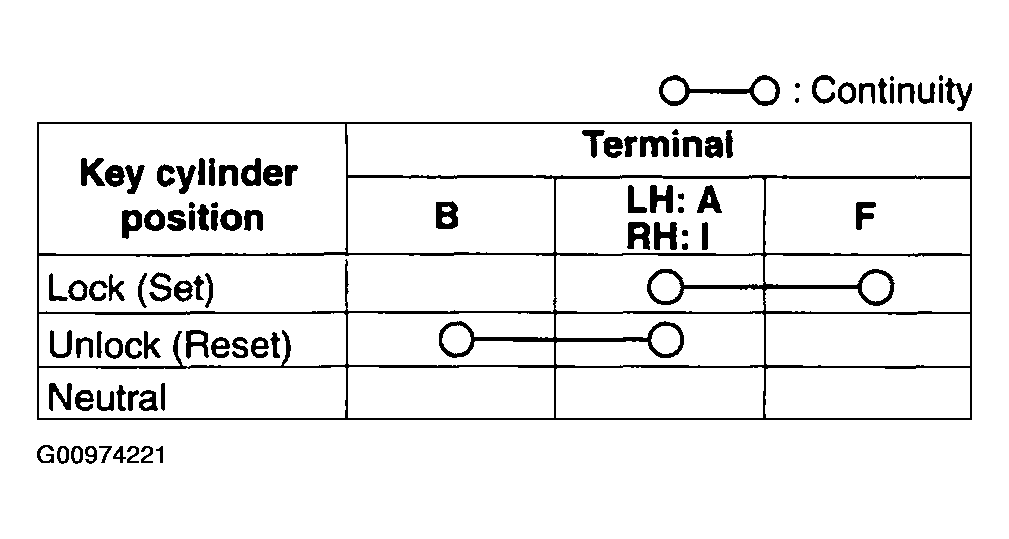

Fig 1: Front Door Key Cylinder Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

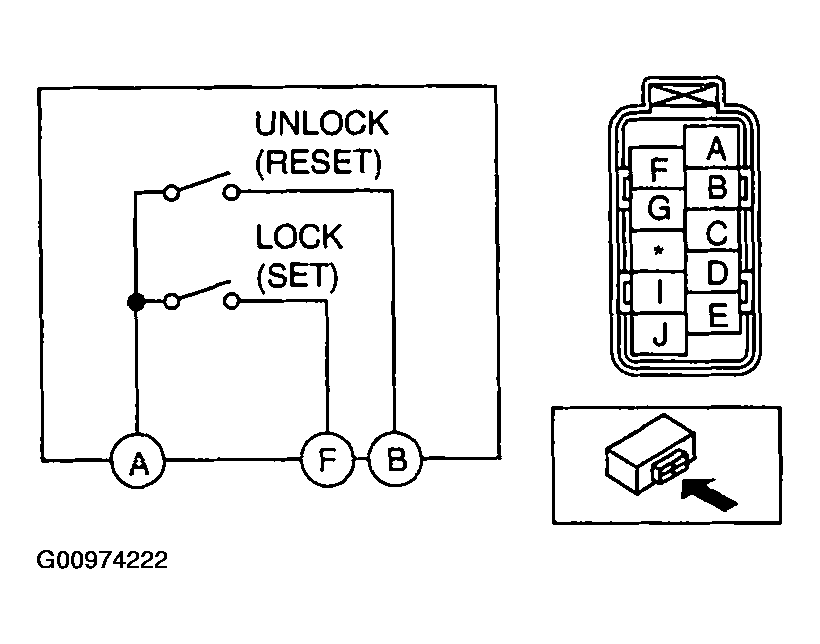

Fig 2: Identifying Front Door Key Cylinder Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
