Hood Latch Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

When inspecting the latch, press the latch lever using a Flathead screwdriver or a similar tool.

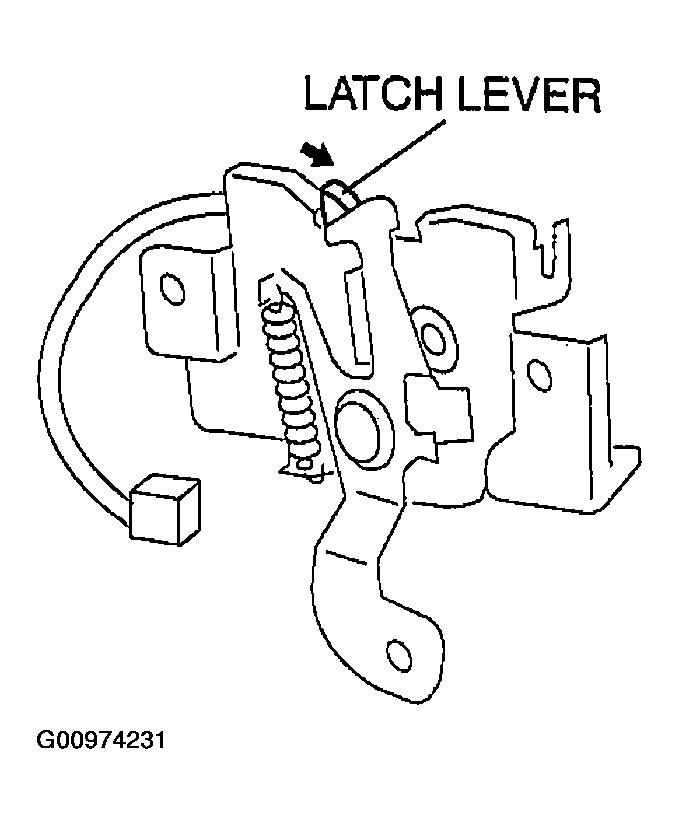

Fig 1: Locating Latch Lever
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity between the hood latch switch terminals.
- If not as specified, replace the hood latch.

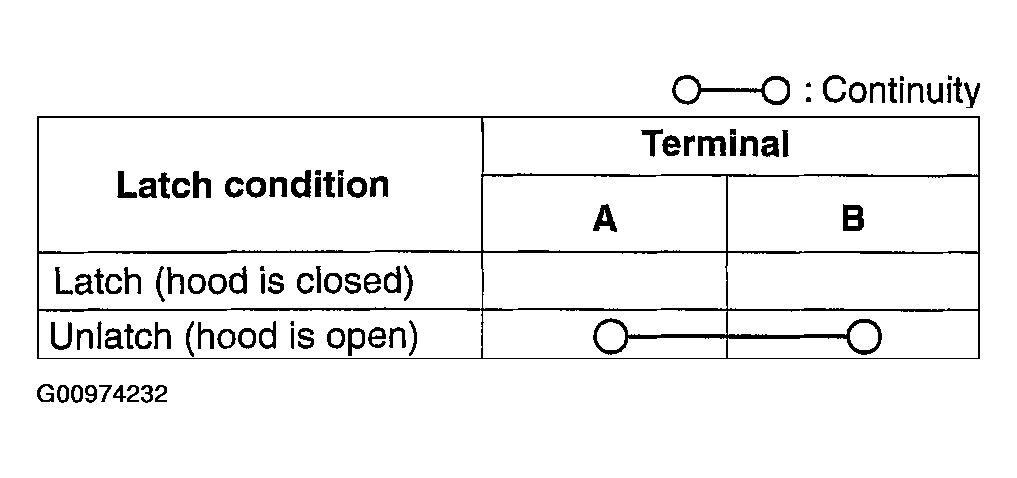

Fig 2: Hood Latch Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

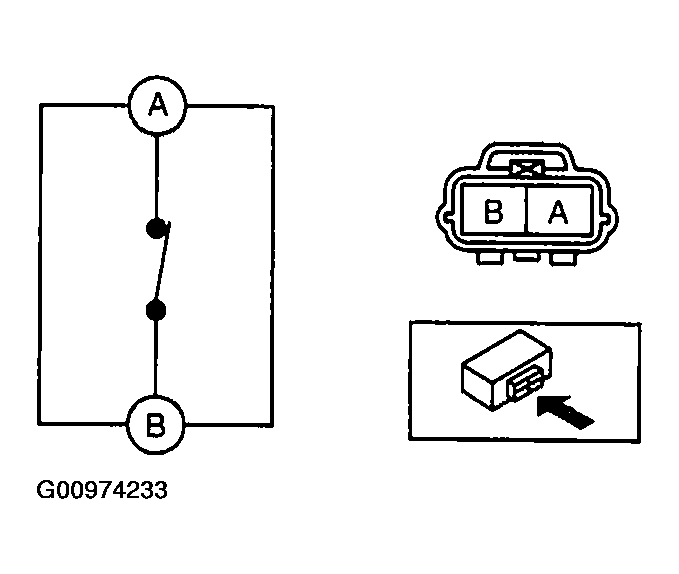

Fig 3: Identifying Hood Latch Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
