Liftgate Lock Actuator Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Apply battery positive voltage and connect ground to the corresponding liftgate lock actuator terminals, and inspect the liftgate lock actuator operation.
- If not as specified, replace the liftgate latch and lock actuator.

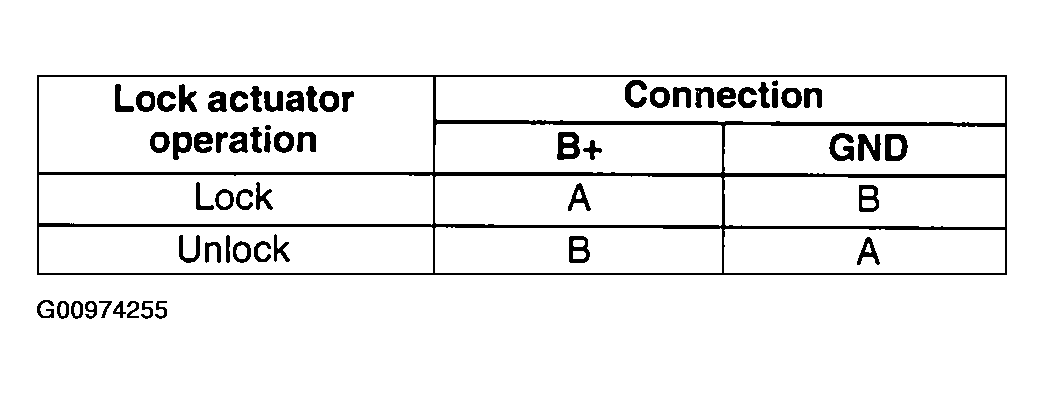

Fig 1: Liftgate Lock Actuator Operation Table
Courtesy of MAZDA MOTORS CORP.

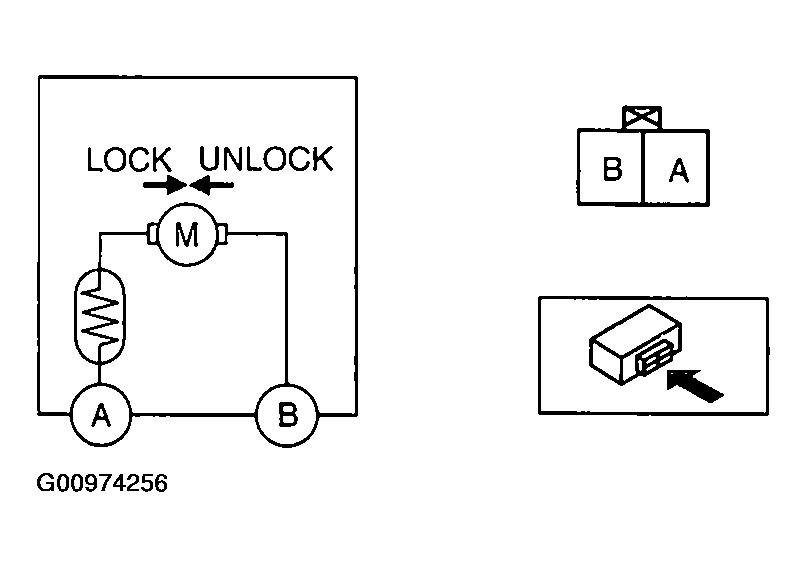

Fig 2: Identifying Liftgate Lock Actuator Connector Terminals
Courtesy of MAZDA MOTORS CORP.
