Liftgate Lock Striker Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
Remove the bolts, then remove the liftgate lock striker.
Install in the reverse order of removal.
Adjust the liftgate. (See LIFTGATE ADJUSTMENT .)

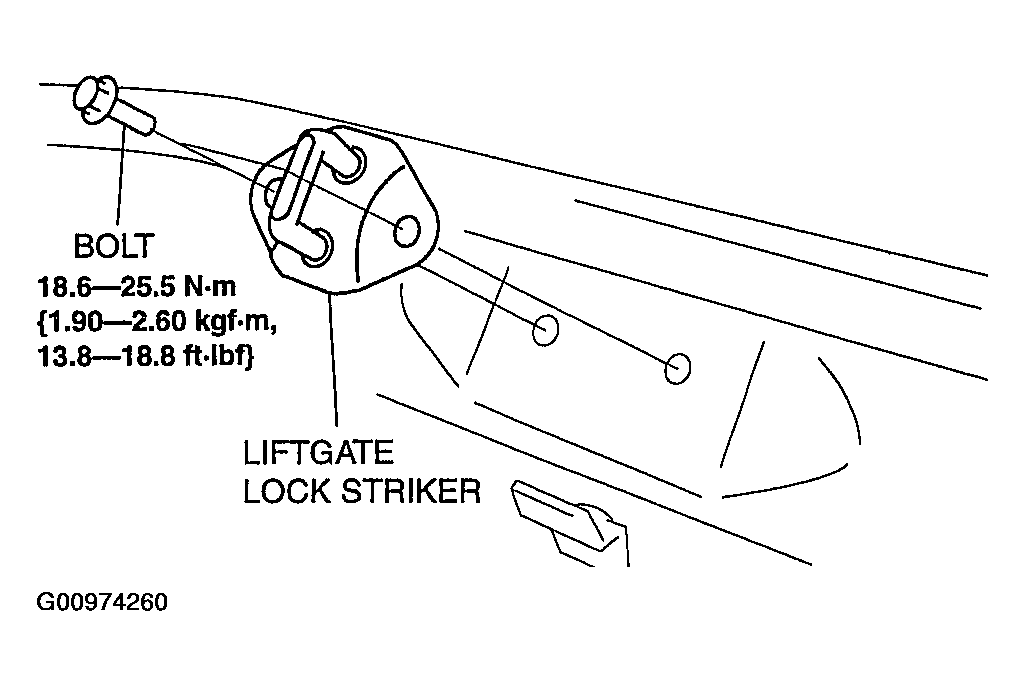

Fig 1: Removing/Installing Liftgate Lock Striker With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
