Rear Outer Handle Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Vehicles with power window system)
  2. Fully roll up the rear door glass.
  3. Remove the sail garnish. (5 door) (See SAIL GARNISH REMOVAL/INSTALLATION .)
  4. Remove the regulator handle. (Vehicles with manual window system) (See REGULATOR HANDLE REMOVAL .) (See REGULATOR HANDLE INSTALLATION .)
  5. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  6. Remove the hole cover.
  7. Remove the hole plug.
  8. Remove the bolt.

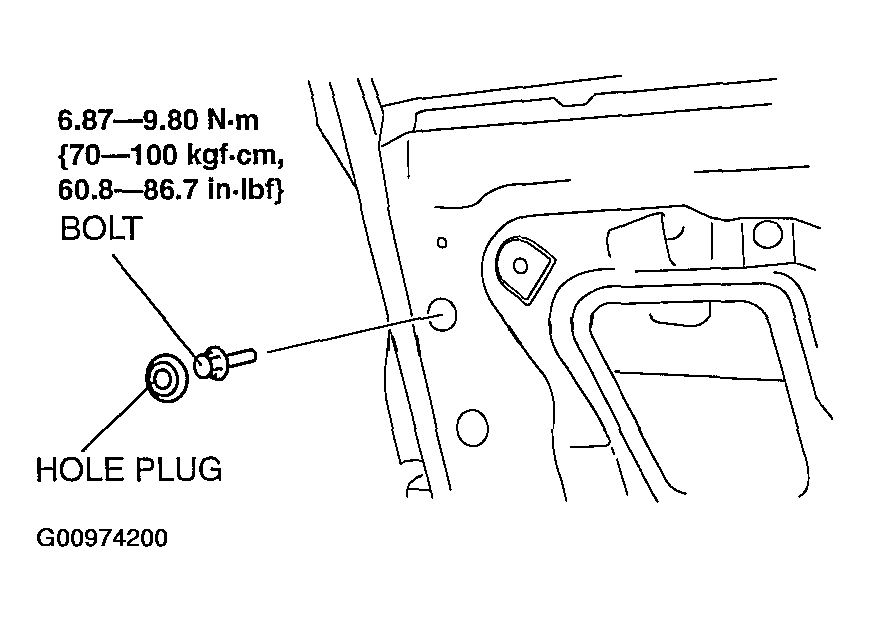

    Fig 1: Removing Hole Plug & Bolt With Torque Specifications
    G00974200Courtesy of MAZDA MOTORS CORP.
  9. Remove the nut, then remove the pad.
  10. Remove the bolt.
  11. Detach the rod from the outer handle.

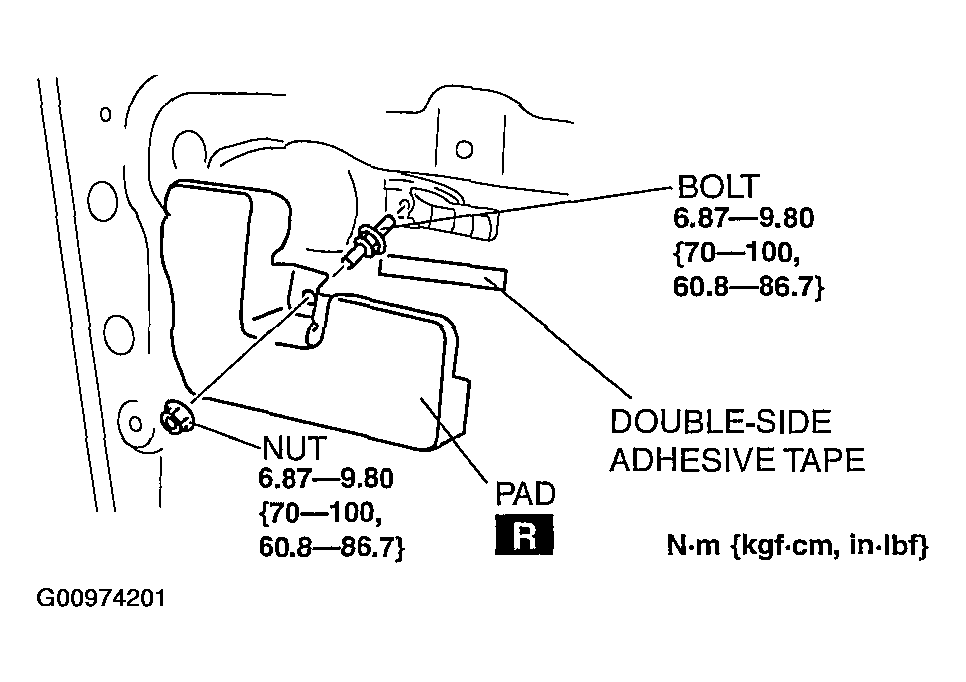

    Fig 2: Removing Pad With Torque Specifications
    G00974201Courtesy of MAZDA MOTORS CORP.
  12. Secure the rear part of the rear outer handle and, with the rear outer handle lever pulled outward (1), remove the rear part of the rear outer handle from the rear door.

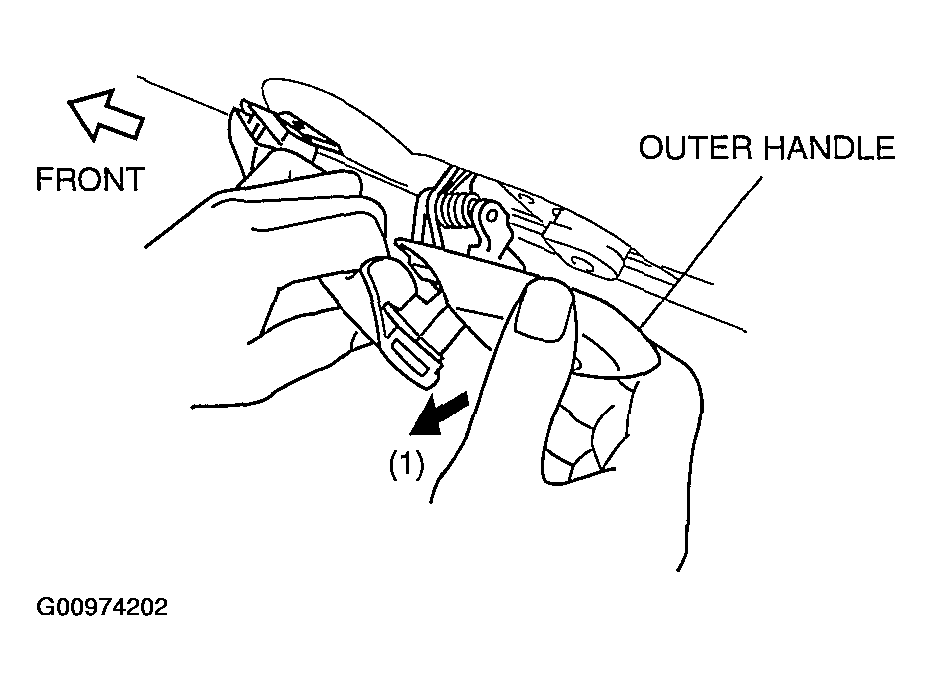

    Fig 3: Removing Outer Handle
    G00974202Courtesy of MAZDA MOTORS CORP.
  13. Install in the reverse order of removal.
