Trunk Lid Key Cylinder Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  3. Detach the rod from the trunk lid key cylinder.
  4. Disconnect the trunk lid key cylinder connector.
  5. Remove the nuts, then remove the trunk lid key cylinder.
  6. Install in the reverse order of removal.

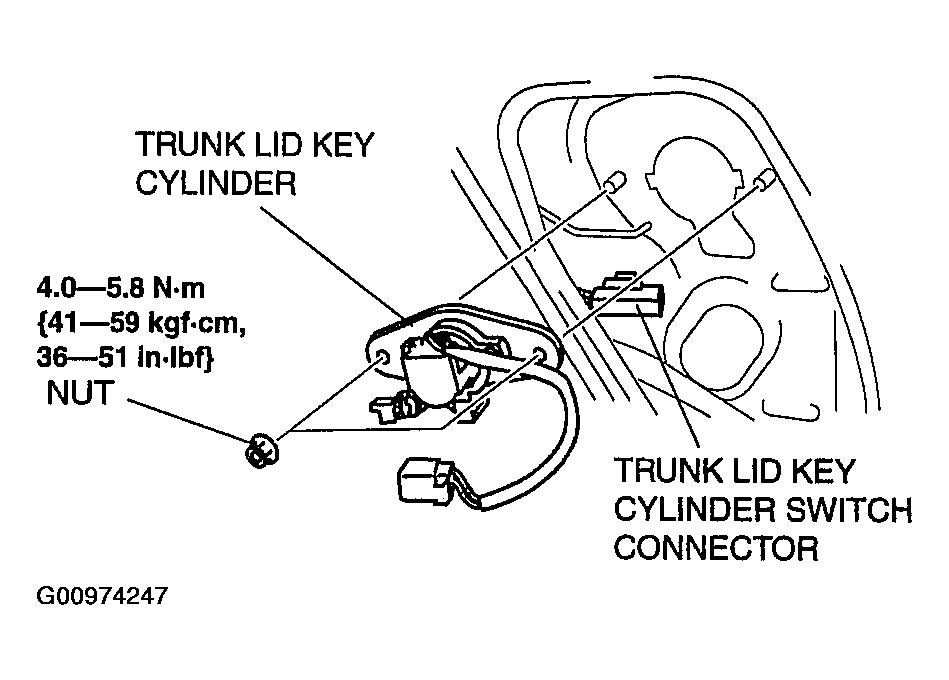

    Fig 1: Removing/Installing Trunk Lid Key Cylinder With Torque Specifications
    G00974247Courtesy of MAZDA MOTORS CORP.
