Trunk Lid Key Cylinder Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Inspect for continuity between the trunk lid key cylinder push switch terminals.
- If not as specified, replace the trunk lid key cylinder.

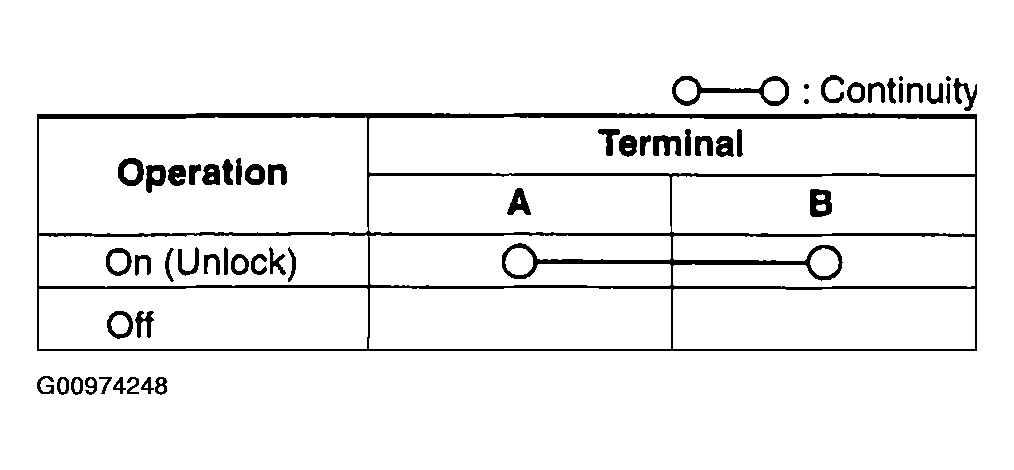

Fig 1: Trunk Lid Key Cylinder Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

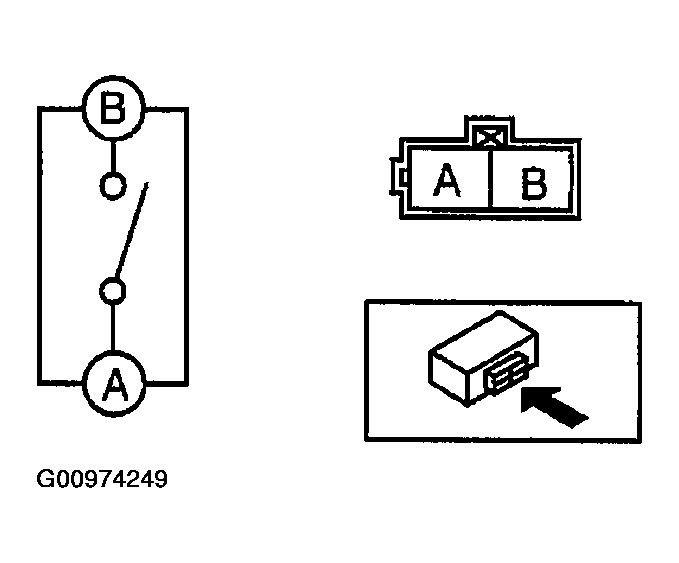

Fig 2: Identifying Trunk Lid Key Cylinder Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
