Trunk Lid Latch Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  3. Detach the rod from the trunk lid key cylinder.
  4. Disconnect the trunk lid latch switch connector.
  5. Remove the bolts, then remove the trunk lid latch and opener.
  6. Install in the reverse order of removal.
  7. Adjust the trunk lid. (See TRUNK LID ADJUSTMENT .)

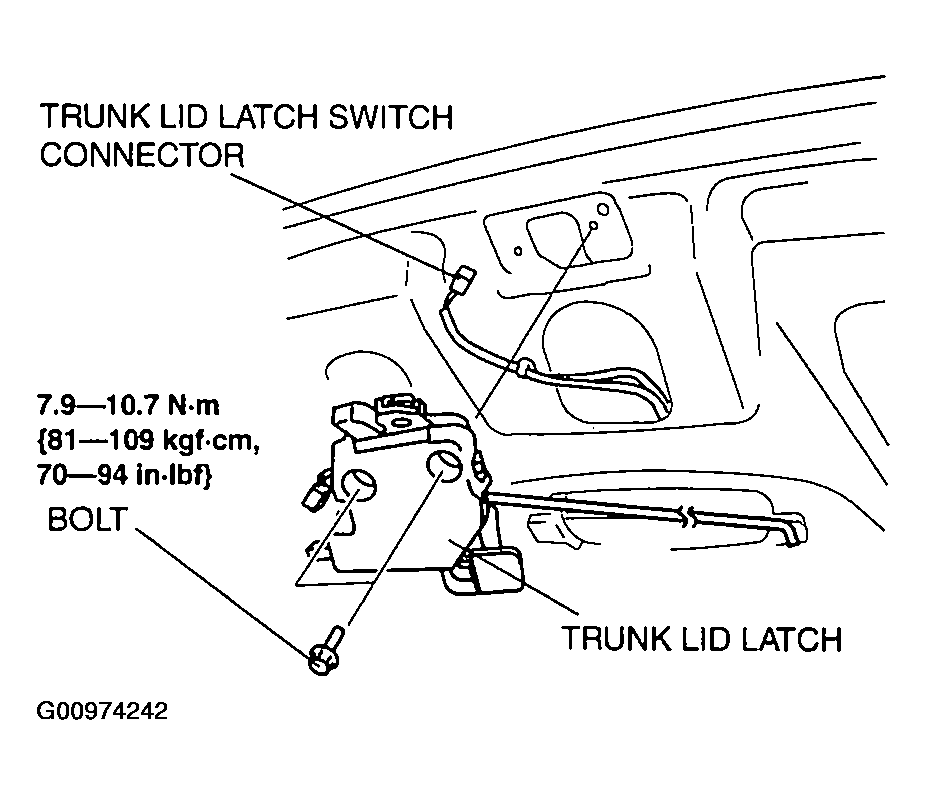

    Fig 1: Trunk Lid Latch With Torque Specifications
    G00974242Courtesy of MAZDA MOTORS CORP.
