Back-Up Light Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity between the back-up light switch terminals is as indicated in the table.
- If not as indicated in the table, replace the back-up light switch.

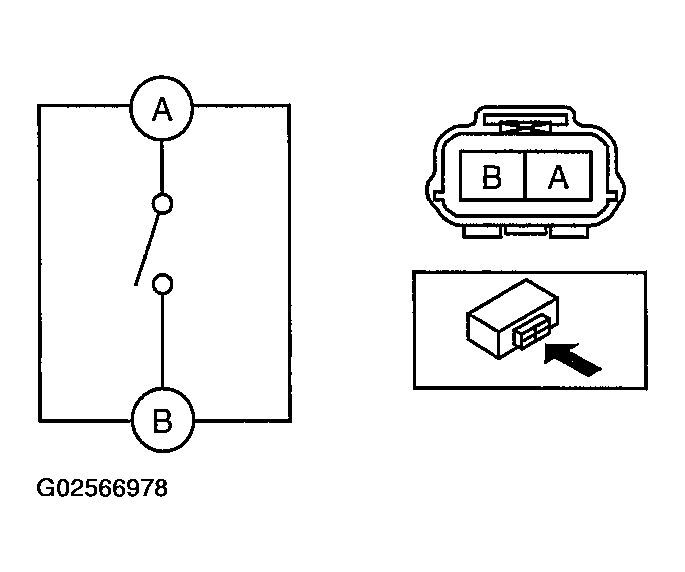

  Fig 1: Identifying Back-Up Light Switch Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
