Front Fog Light Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the under cover.
- Slightly bend back the mudguard.

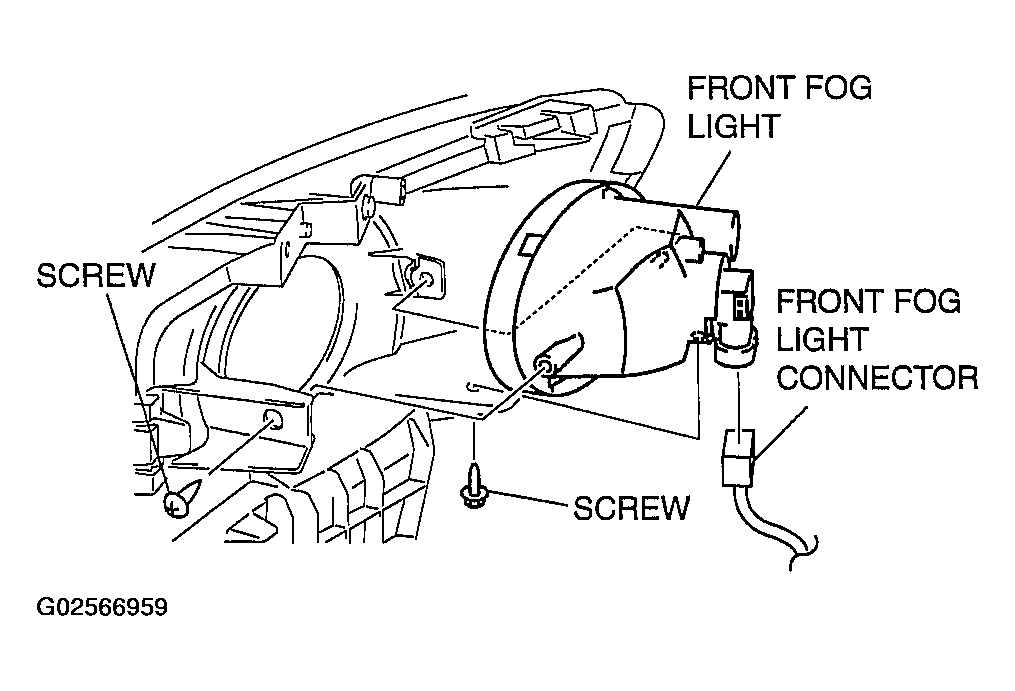

- Disconnect the front fog light connector.
- Remove the screws, then remove the front fog light.
- Install in the reverse order of removal.
- Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING .)
