Entertainment Connector End Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

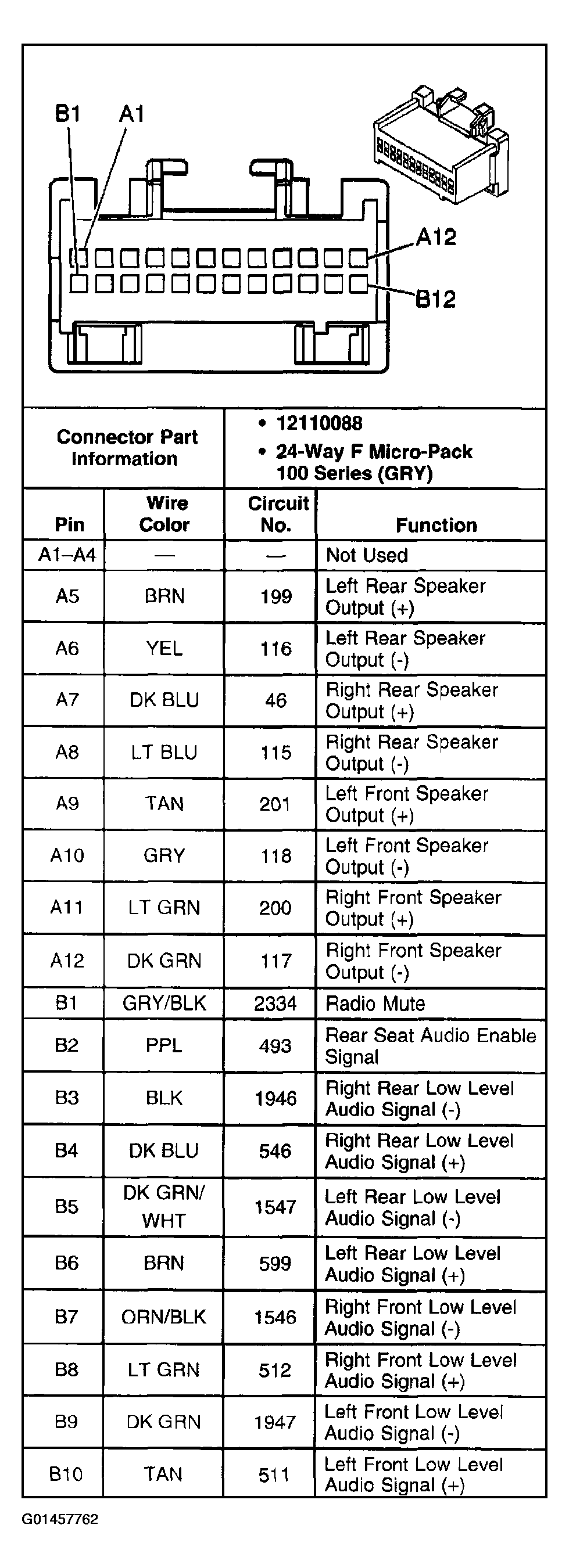

Fig 1: Identifying Audio Amplifier C1 (UQ7 w/o Y91) (1 Of 2)

G01457762

Courtesy of GENERAL MOTORS CORP.

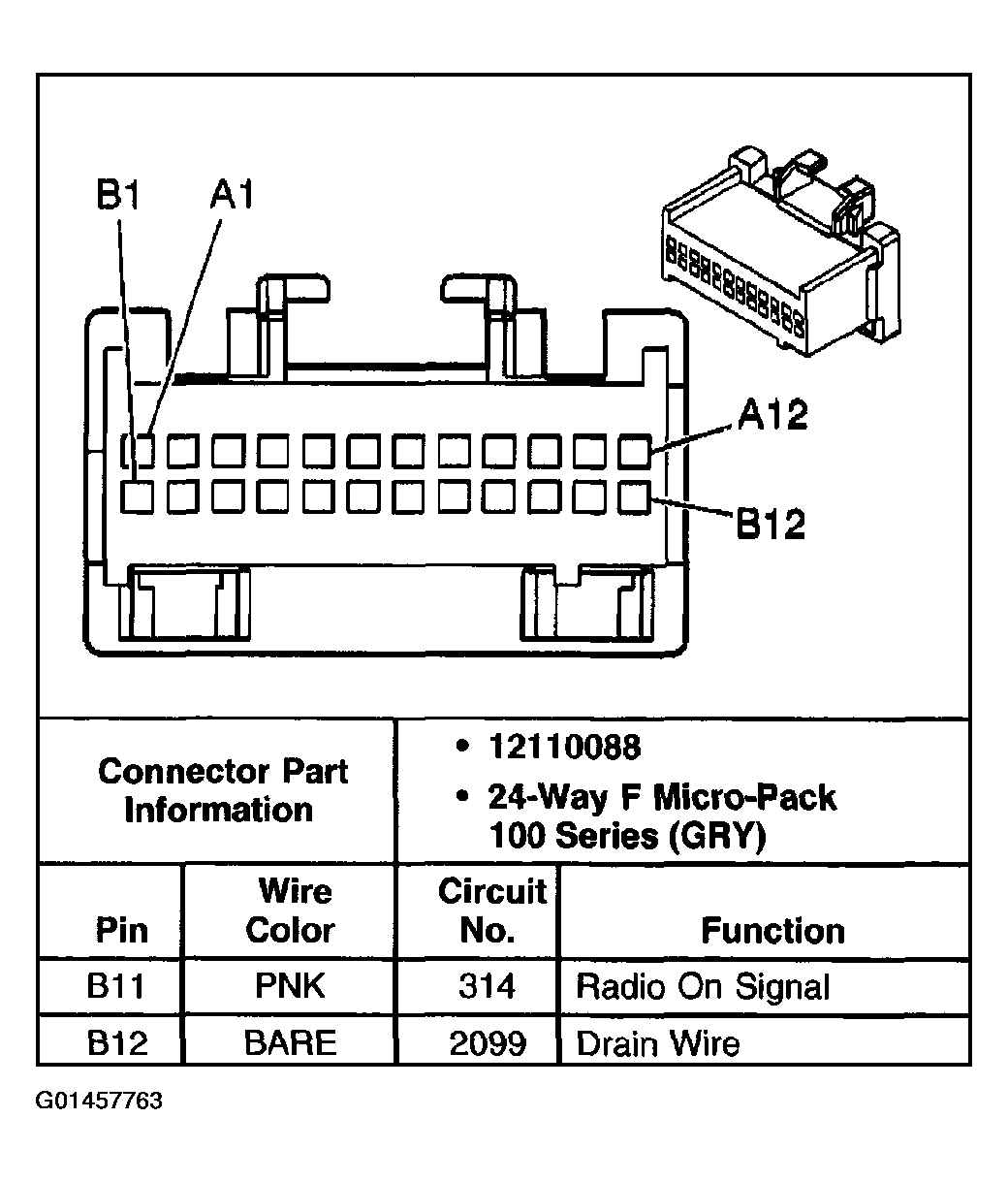

Fig 2: Identifying Audio Amplifier C1 (UQ7 w/o Y91) (2 Of 2)

G01457763

Courtesy of GENERAL MOTORS CORP.

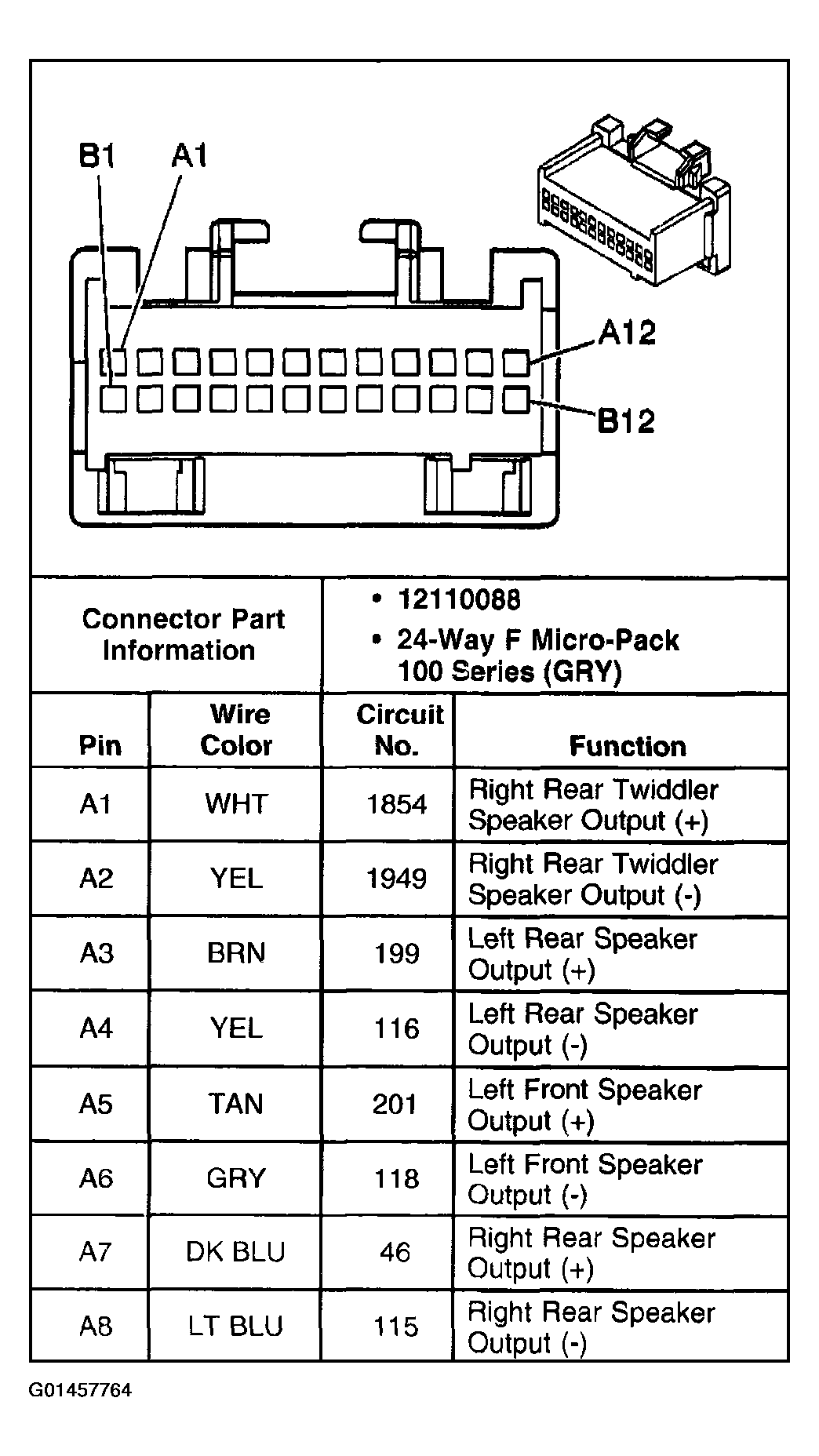

Fig 3: Identifying Audio Amplifier C1 (UQ7 w/Y91) (1 Of 2)

G01457764

Courtesy of GENERAL MOTORS CORP.

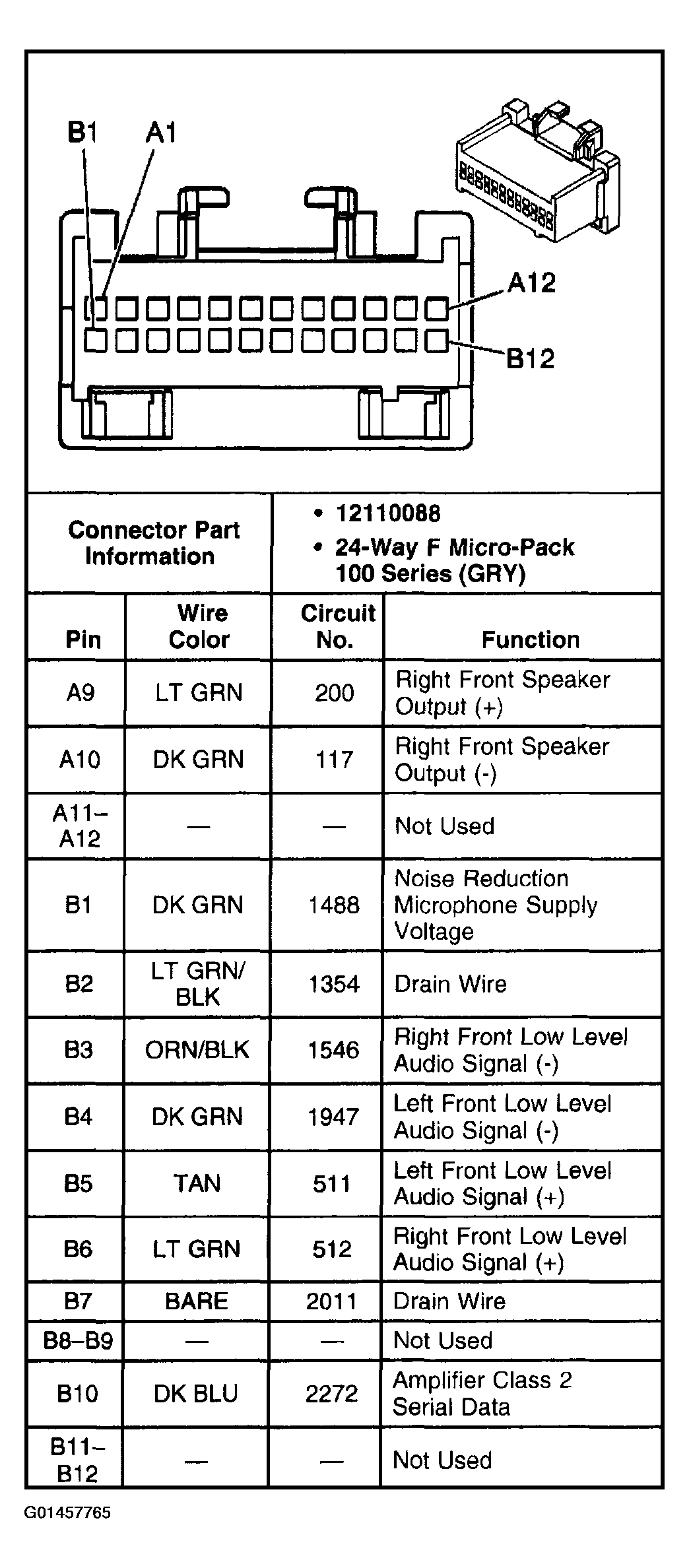

Fig 4: Identifying Audio Amplifier C1 (UQ7 w/Y91) (2 Of 2)

G01457765

Courtesy of GENERAL MOTORS CORP.

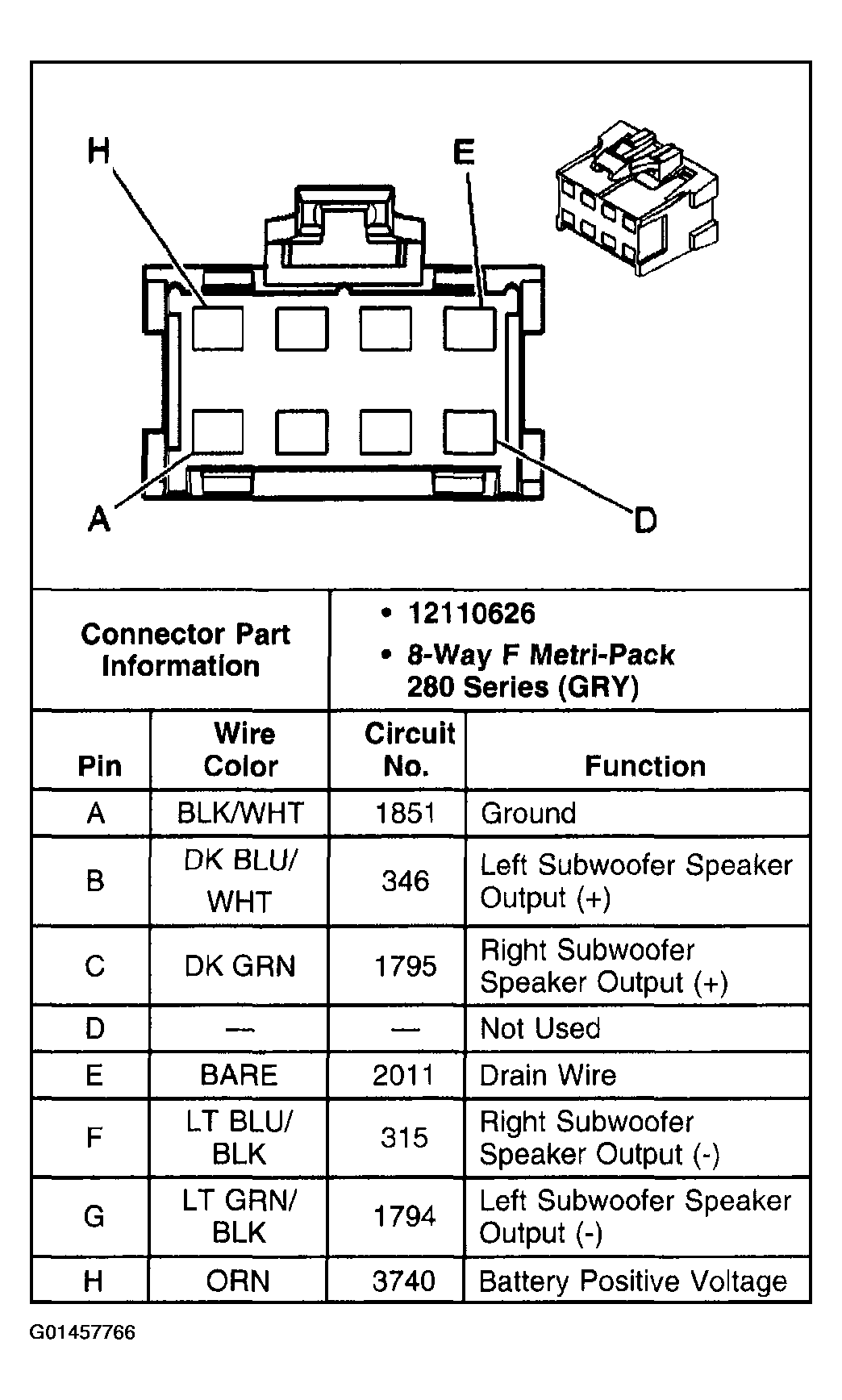

Fig 5: Identifying Audio Amplifier C2 (UQ7 w/o Y91)

G01457766

Courtesy of GENERAL MOTORS CORP.

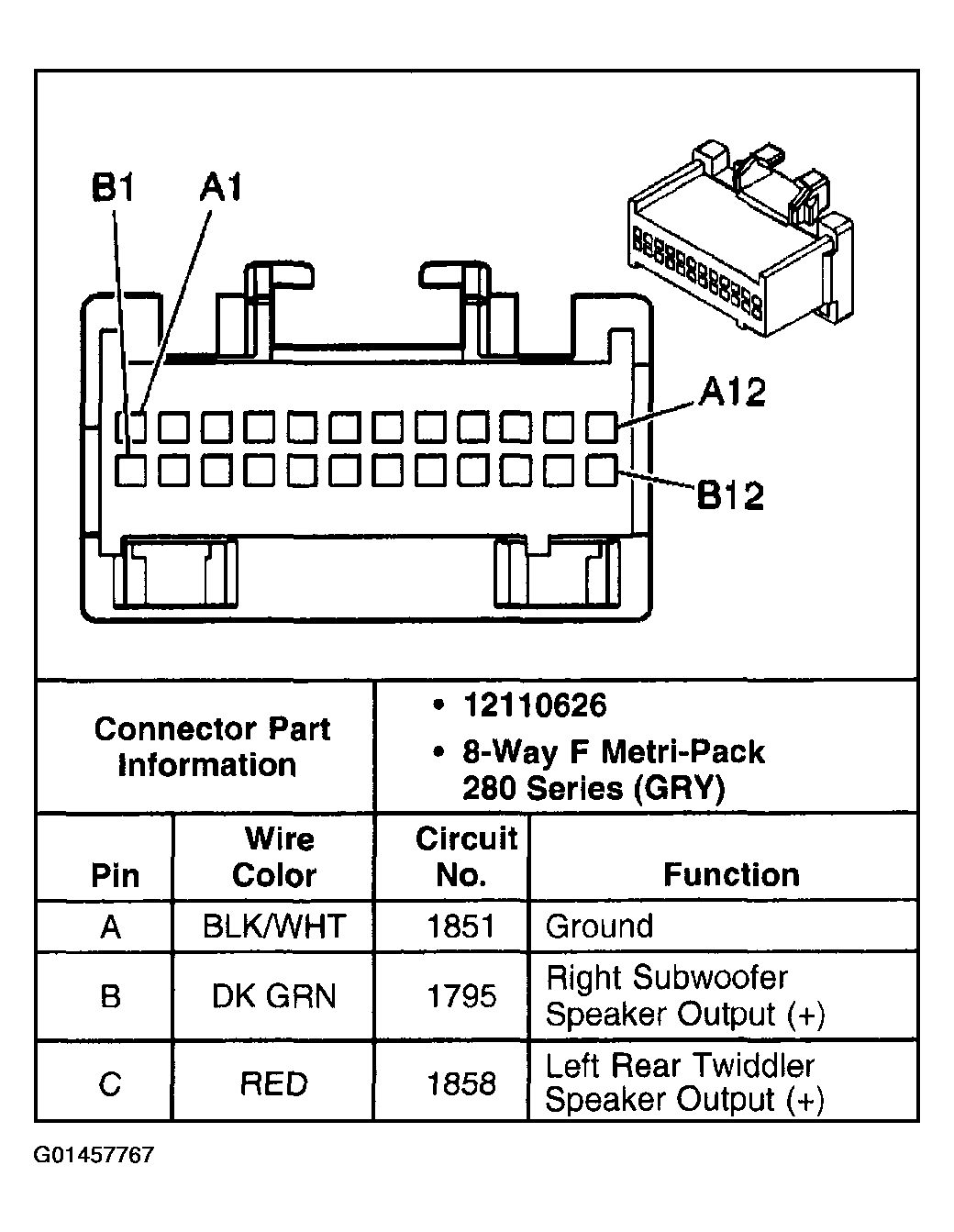

Fig 6: Identifying Audio Amplifier C2 (UQ7 w/Y91) (1 Of 2)

G01457767

Courtesy of GENERAL MOTORS CORP.

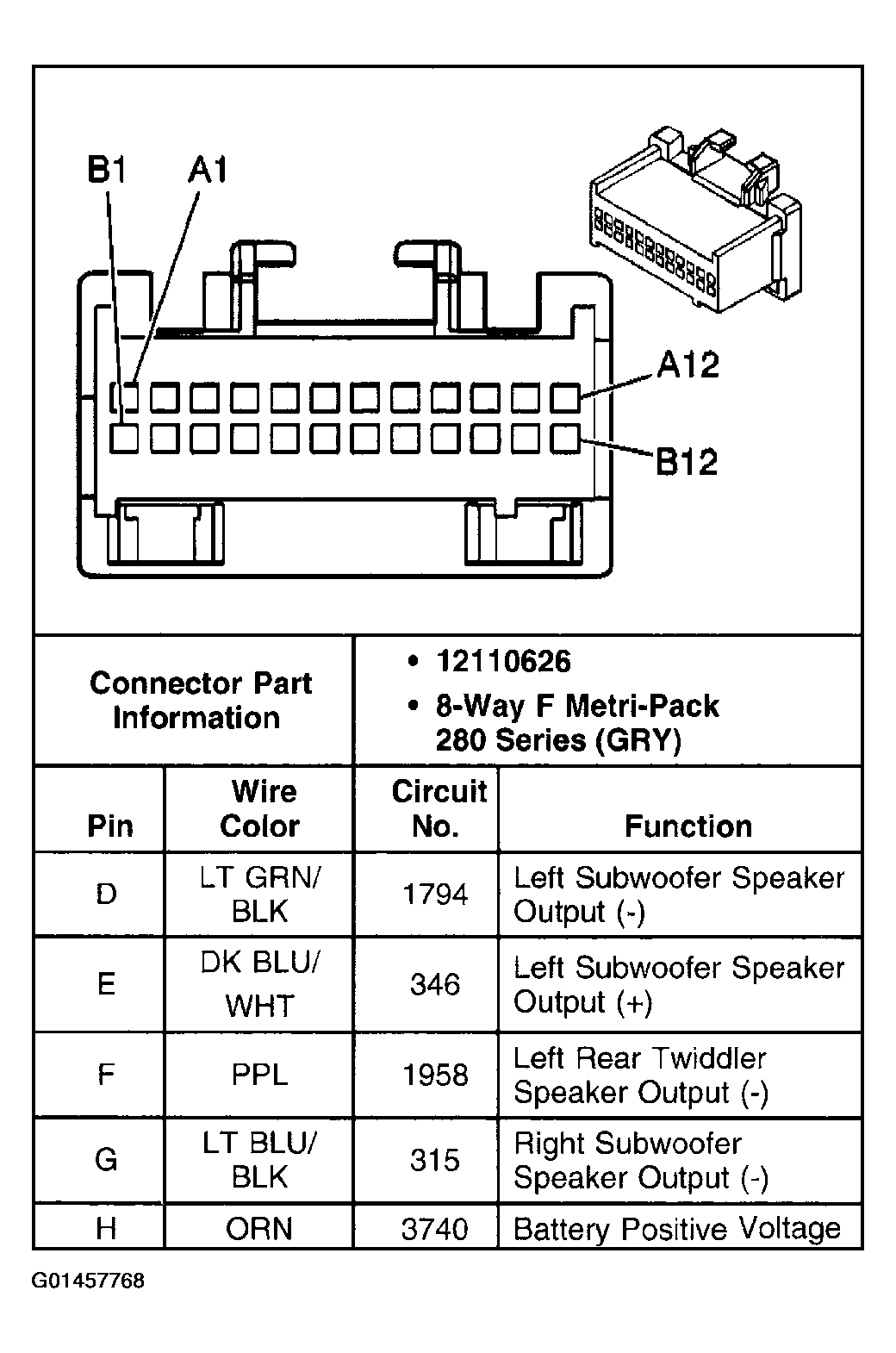

Fig 7: Identifying Audio Amplifier C2 (UQ7 w/Y91) (2 Of 2)

G01457768

Courtesy of GENERAL MOTORS CORP.

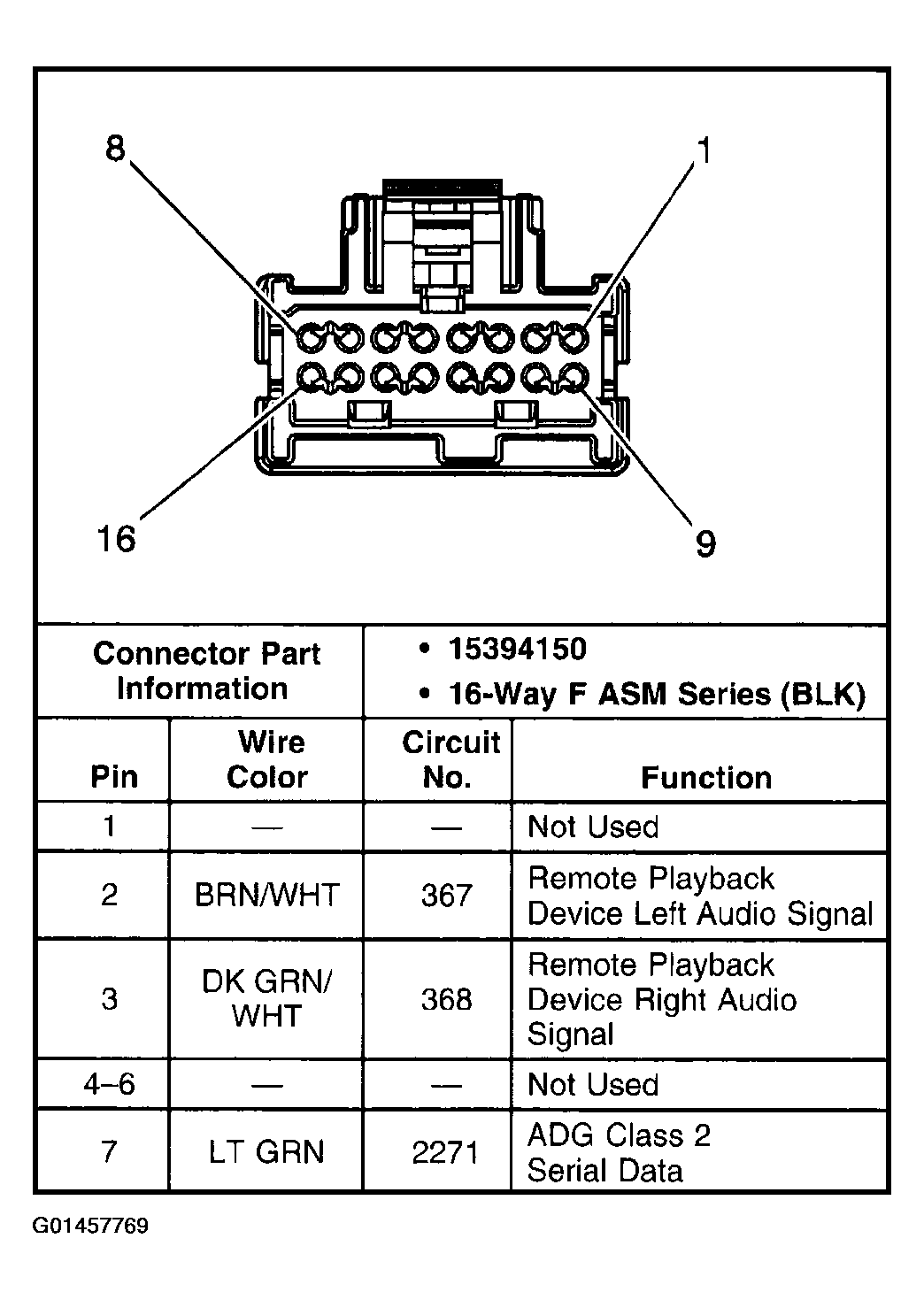

Fig 8: Identifying Digital Radio Receiver - w/U2K/U2L (1 Of 2)

G01457769

Courtesy of GENERAL MOTORS CORP.

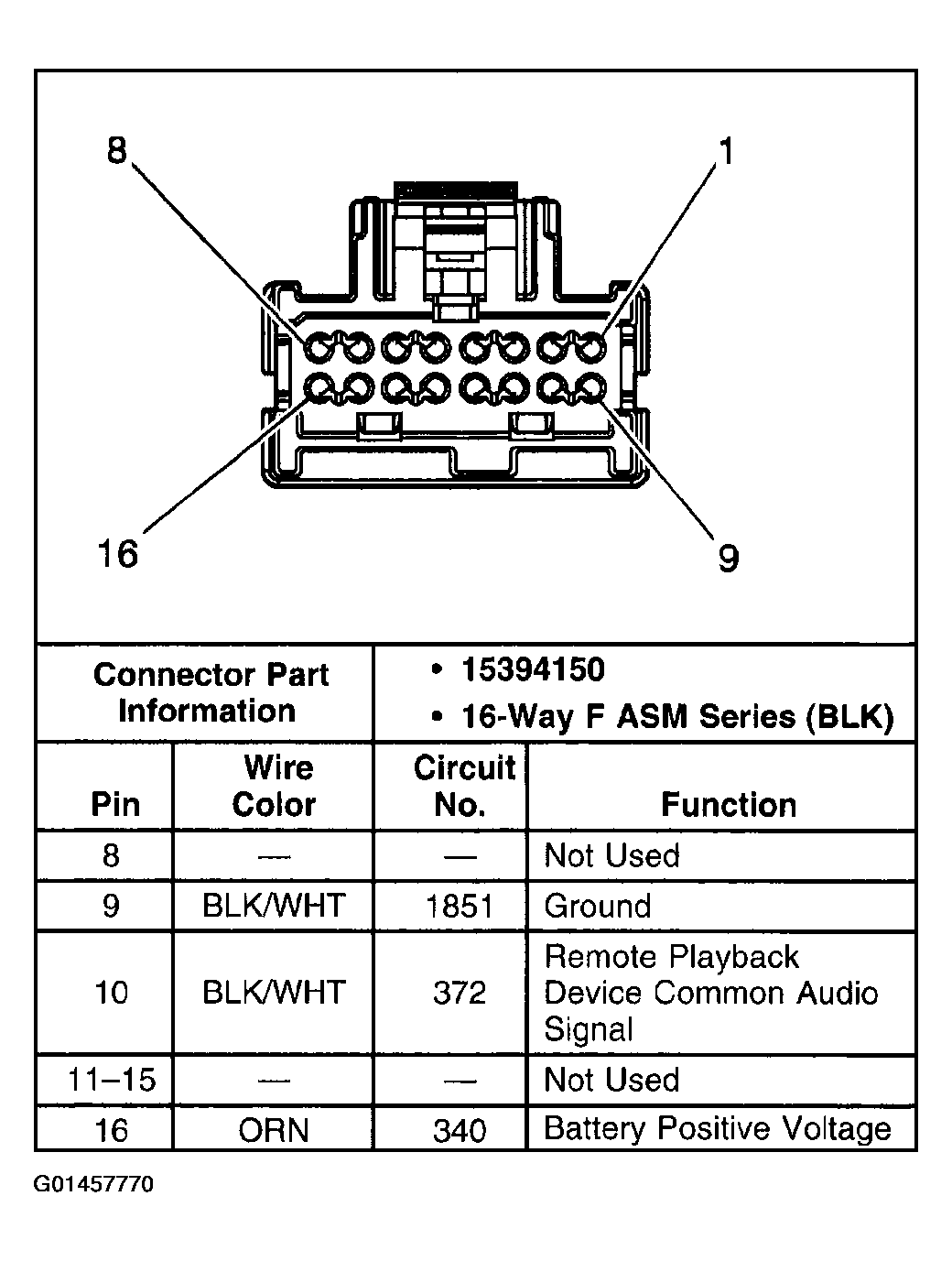

Fig 9: Identifying Digital Radio Receiver - w/U2K/U2L (2 Of 2)

G01457770

Courtesy of GENERAL MOTORS CORP.

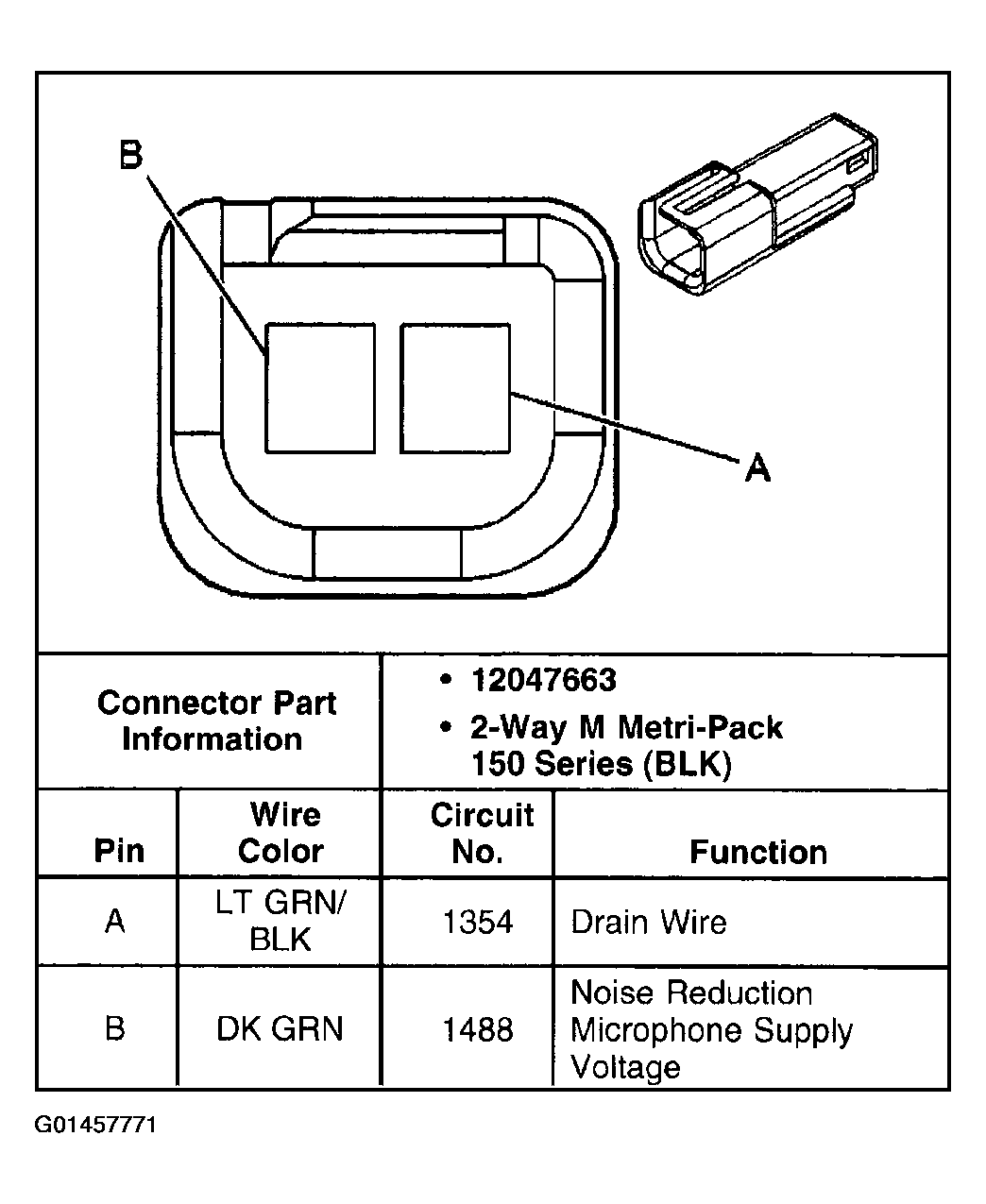

Fig 10: Identifying Noise Compensation Microphone (UQ7 w/Y91)

G01457771

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying Radio Antenna Module

G01457772

Courtesy of GENERAL MOTORS CORP.

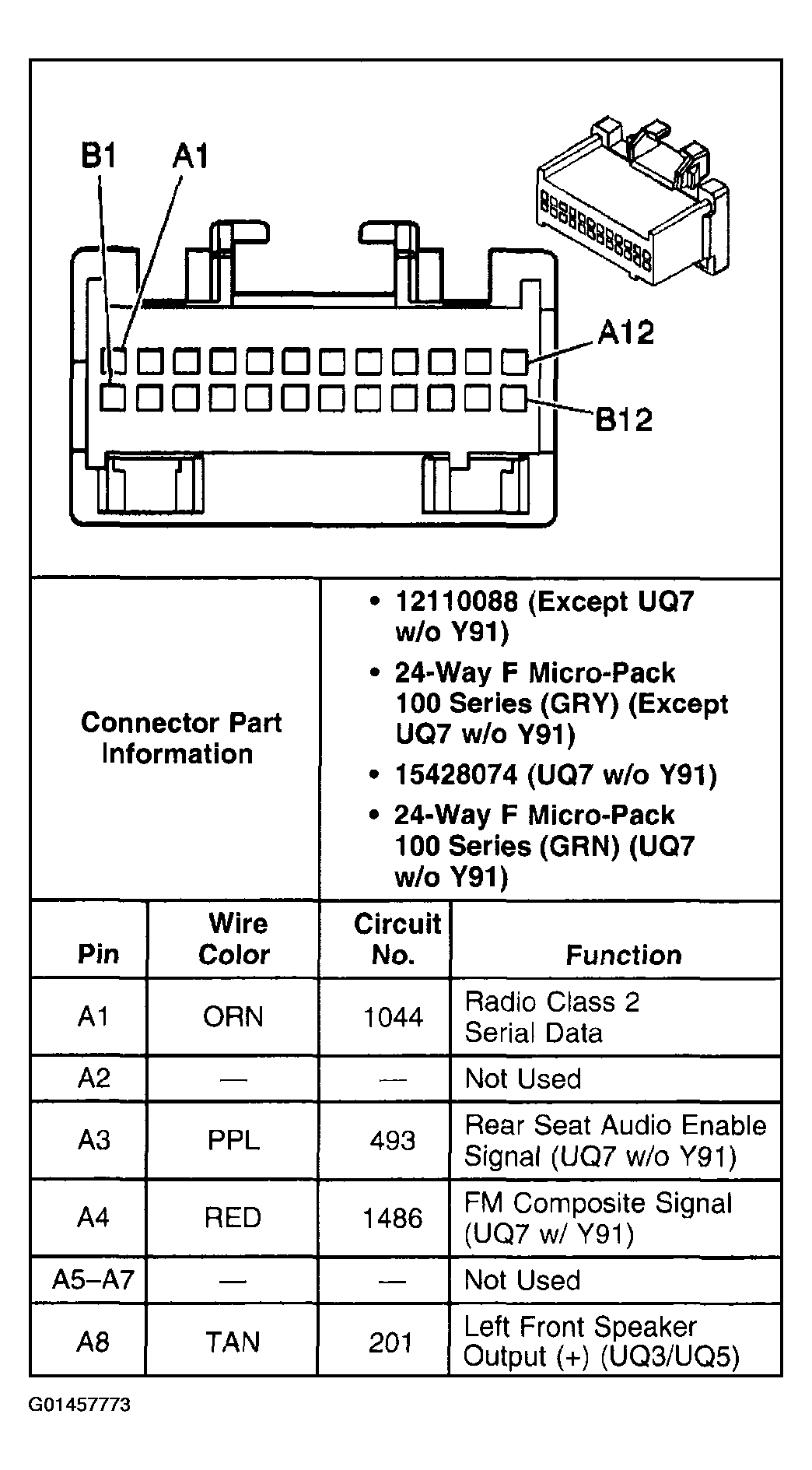

Fig 12: Identifying Radio C1 (1 Of 3)

G01457773

Courtesy of GENERAL MOTORS CORP.

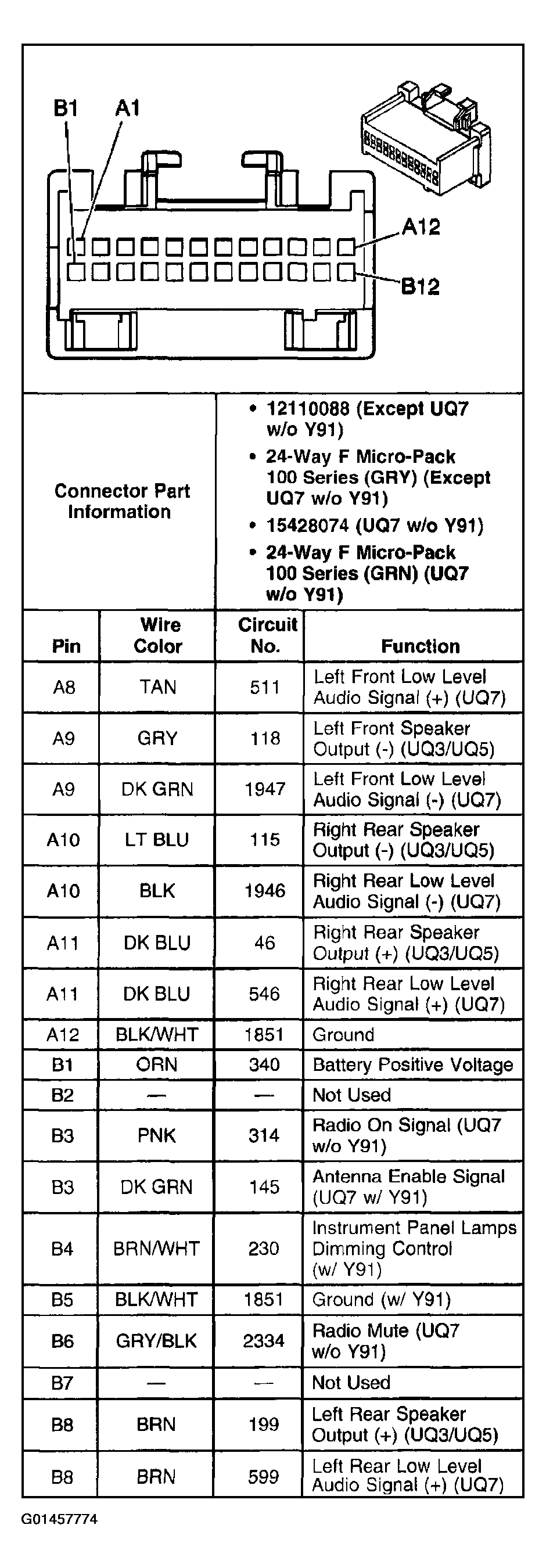

Fig 13: Identifying Radio C1 (2 Of 3)

G01457774

Courtesy of GENERAL MOTORS CORP.

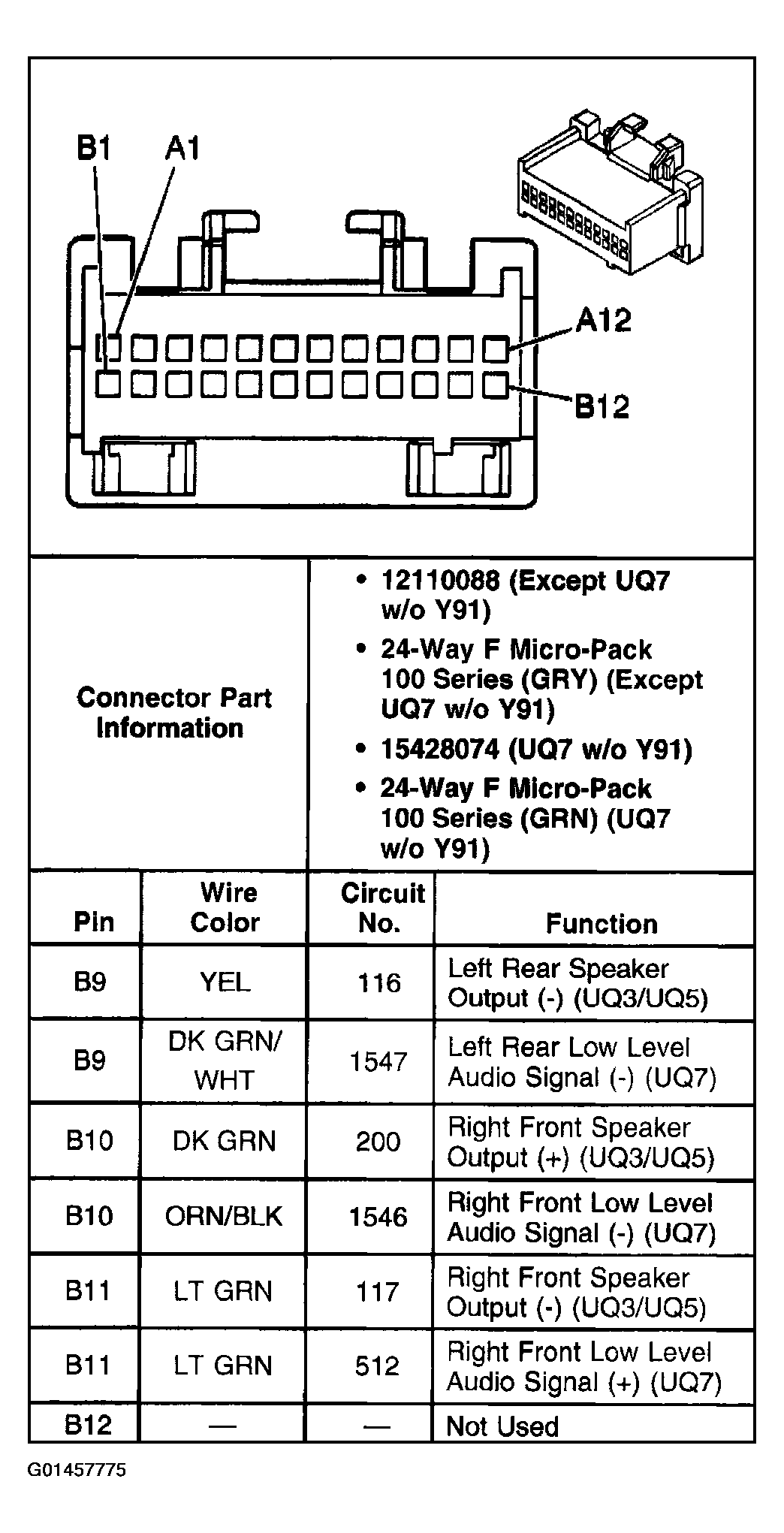

Fig 14: Identifying Radio C1 (3 Of 3)

G01457775

Courtesy of GENERAL MOTORS CORP.

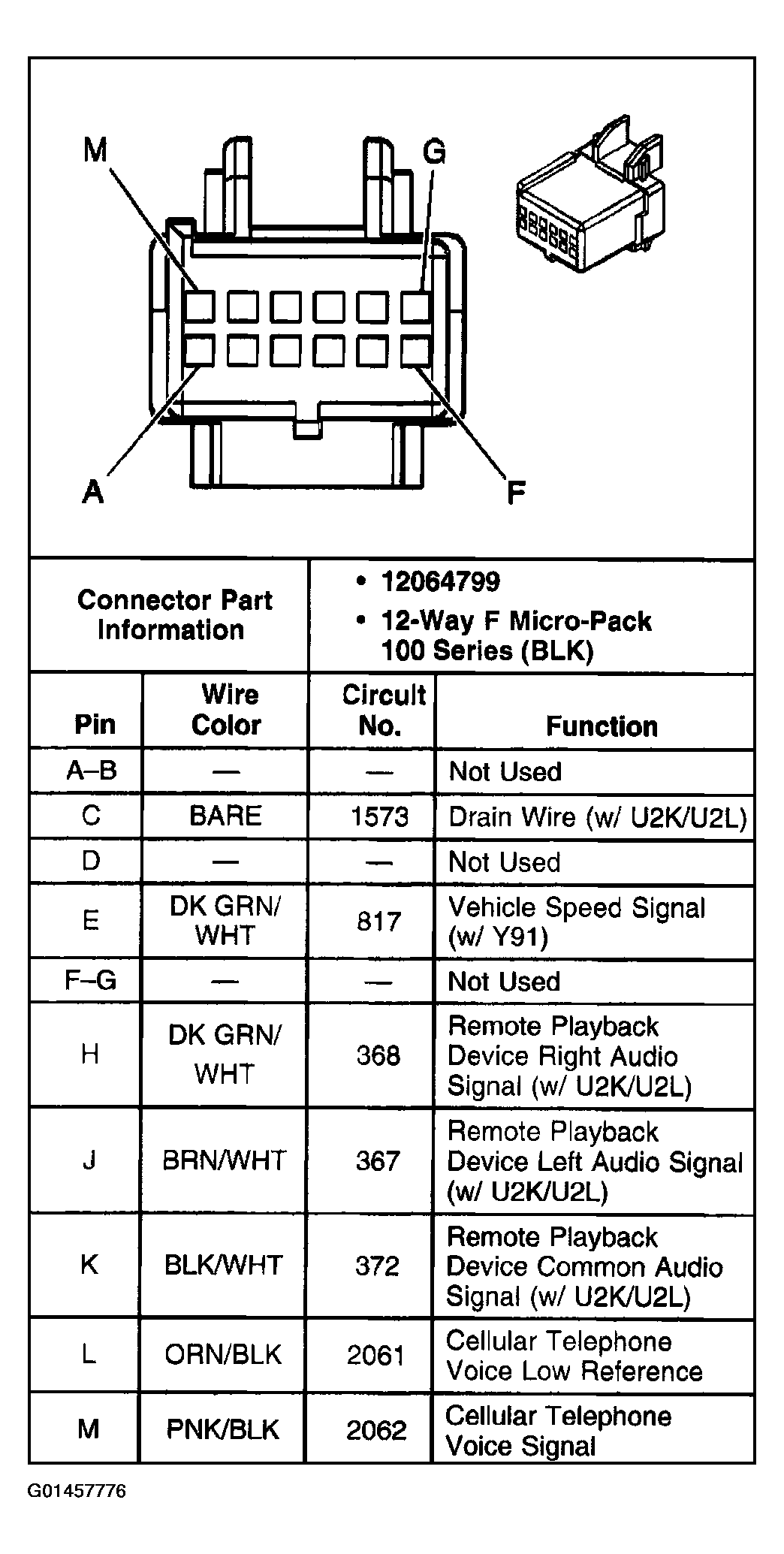

Fig 15: Identifying Radio C2

G01457776

Courtesy of GENERAL MOTORS CORP.

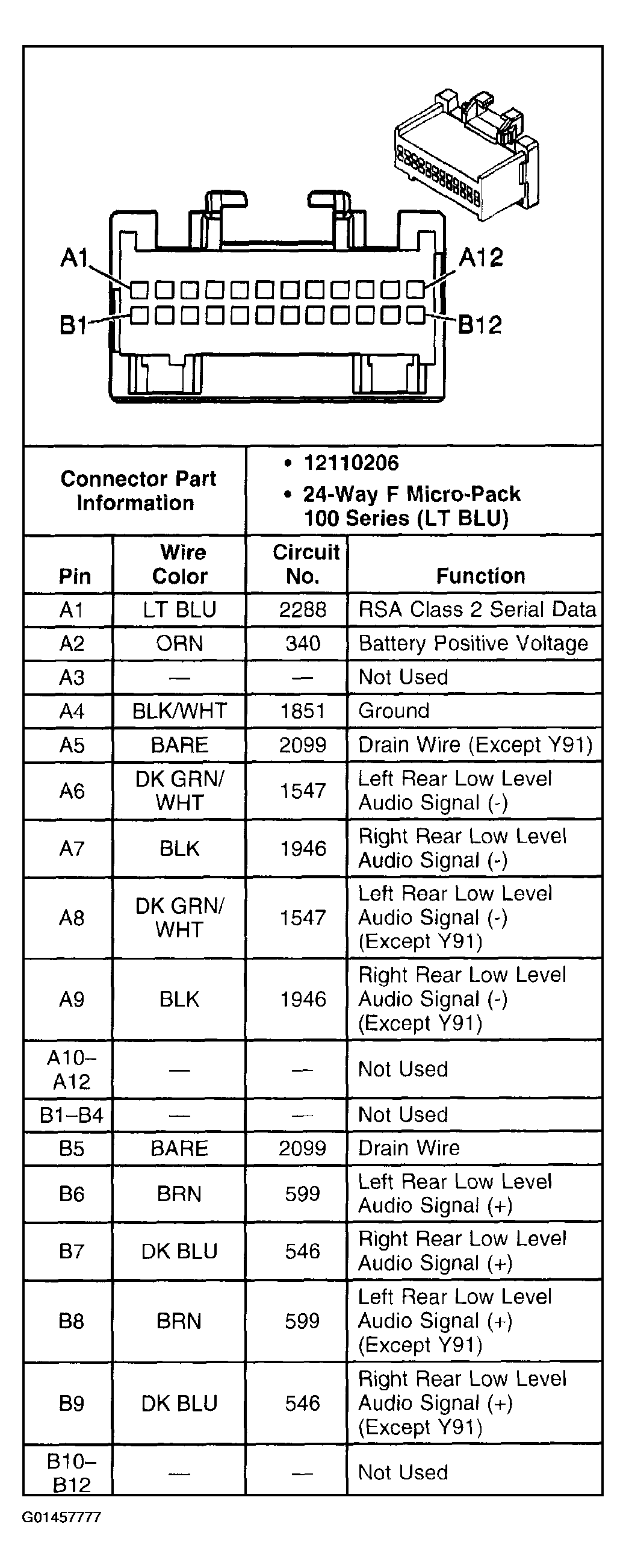

Fig 16: Identifying Rear Seat Audio (RSA) Controller

G01457777

Courtesy of GENERAL MOTORS CORP.

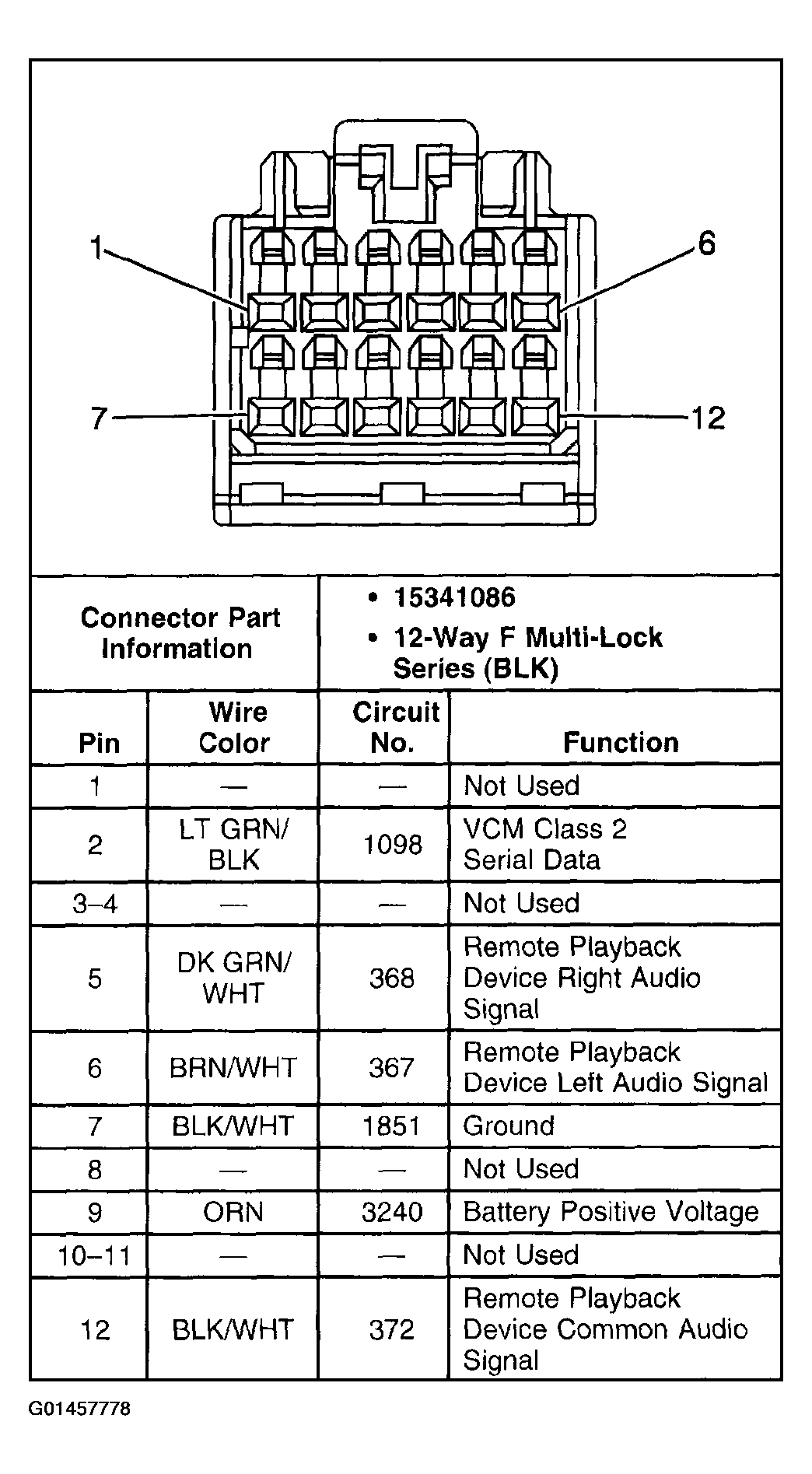

Fig 17: Identifying Rear Seat Entertainment (RSE) Assembly

G01457778

Courtesy of GENERAL MOTORS CORP.

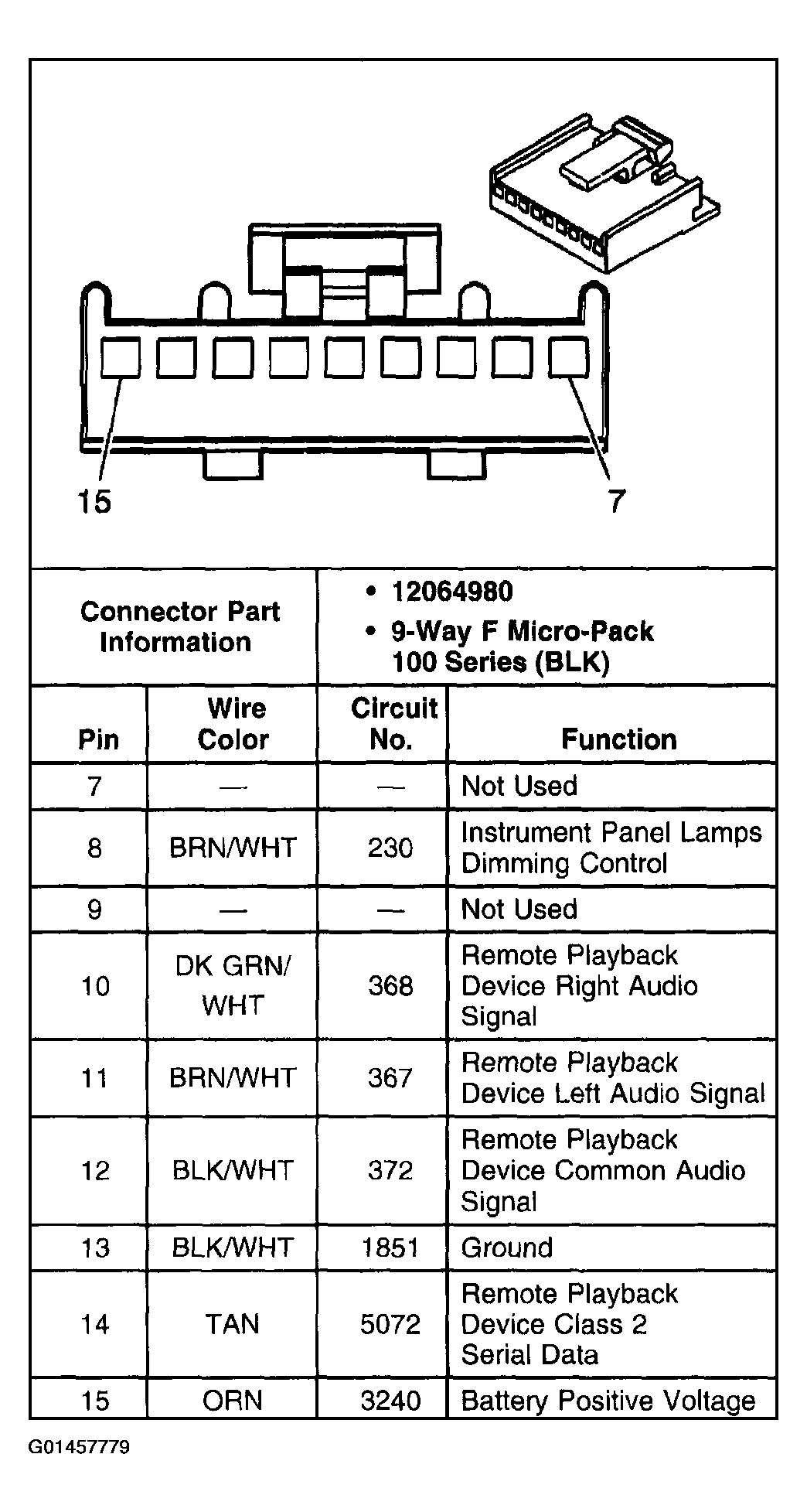

Fig 18: Identifying Remote Playback Device - CD Player

G01457779

Courtesy of GENERAL MOTORS CORP.

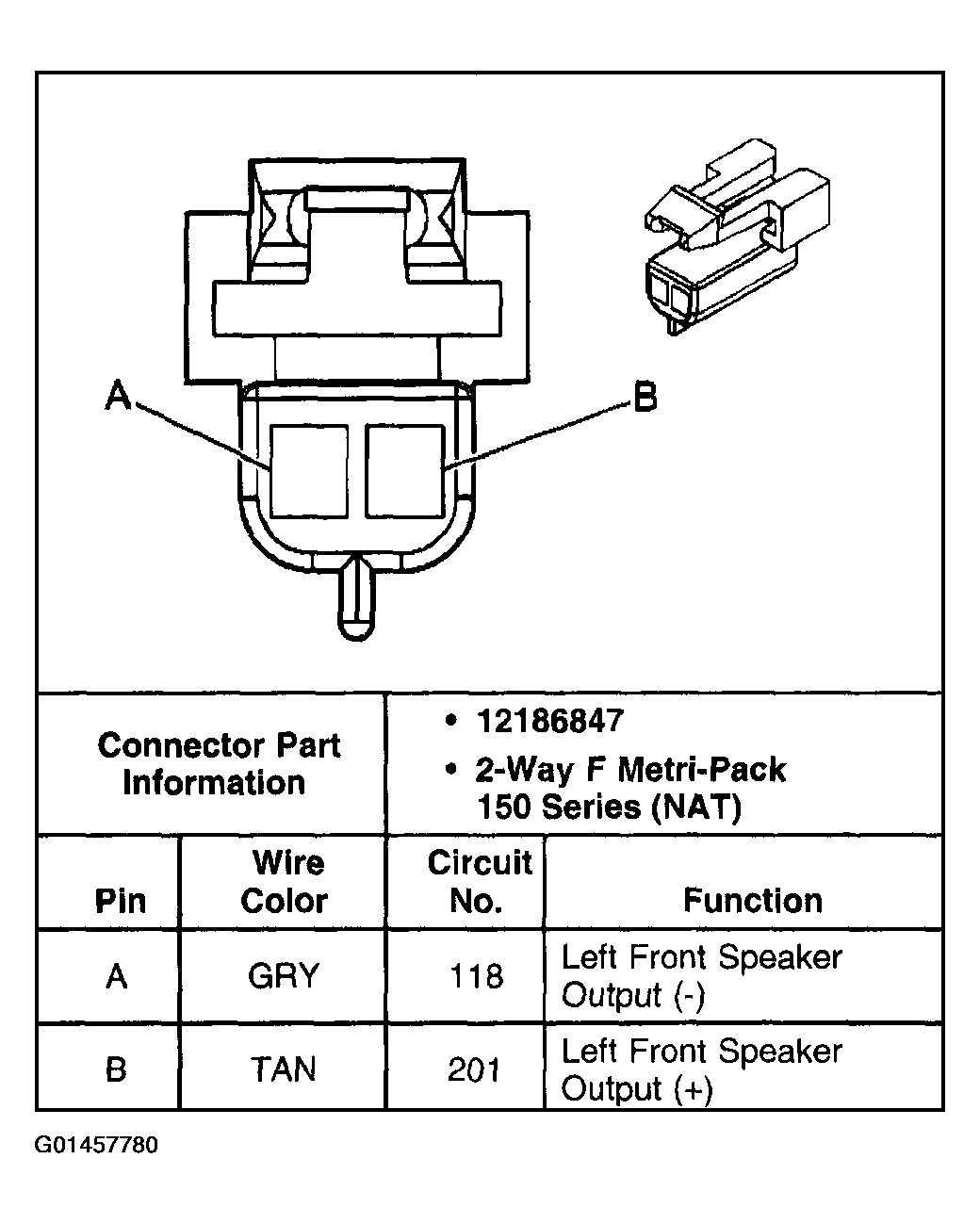

Fig 19: Identifying Speaker - LF Door (UQ5)

G01457780

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying speaker - LF Door (UQ3/UQ7)

G01457781

Courtesy of GENERAL MOTORS CORP.

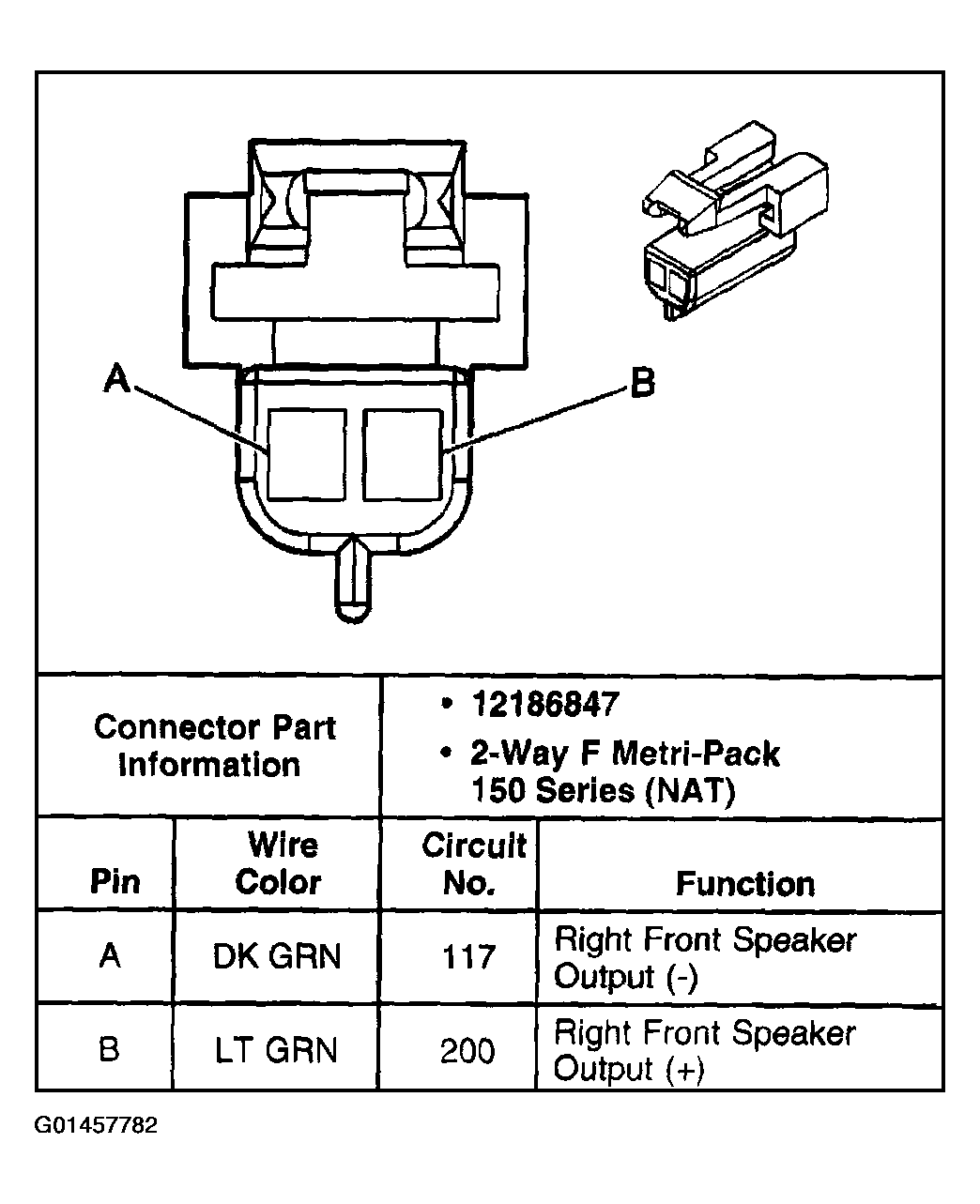

Fig 21: Identifying Speaker - RF Door (UQ5)

G01457782

Courtesy of GENERAL MOTORS CORP.

Fig 22: Identifying Speaker - RF Door (UQ3/UQ7)

G01457783

Courtesy of GENERAL MOTORS CORP.

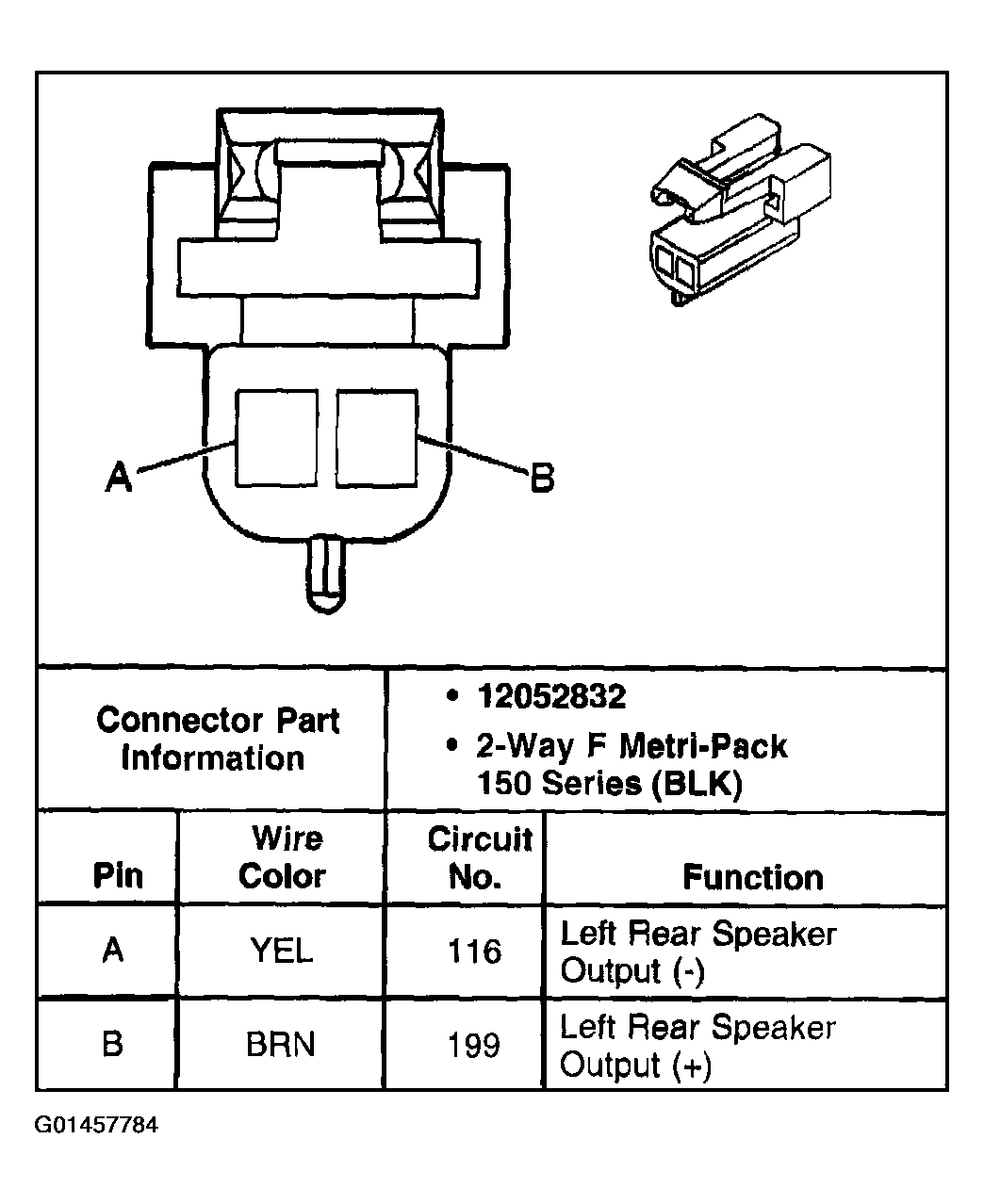

Fig 23: Identifying Speaker - LR Door

G01457784

Courtesy of GENERAL MOTORS CORP.

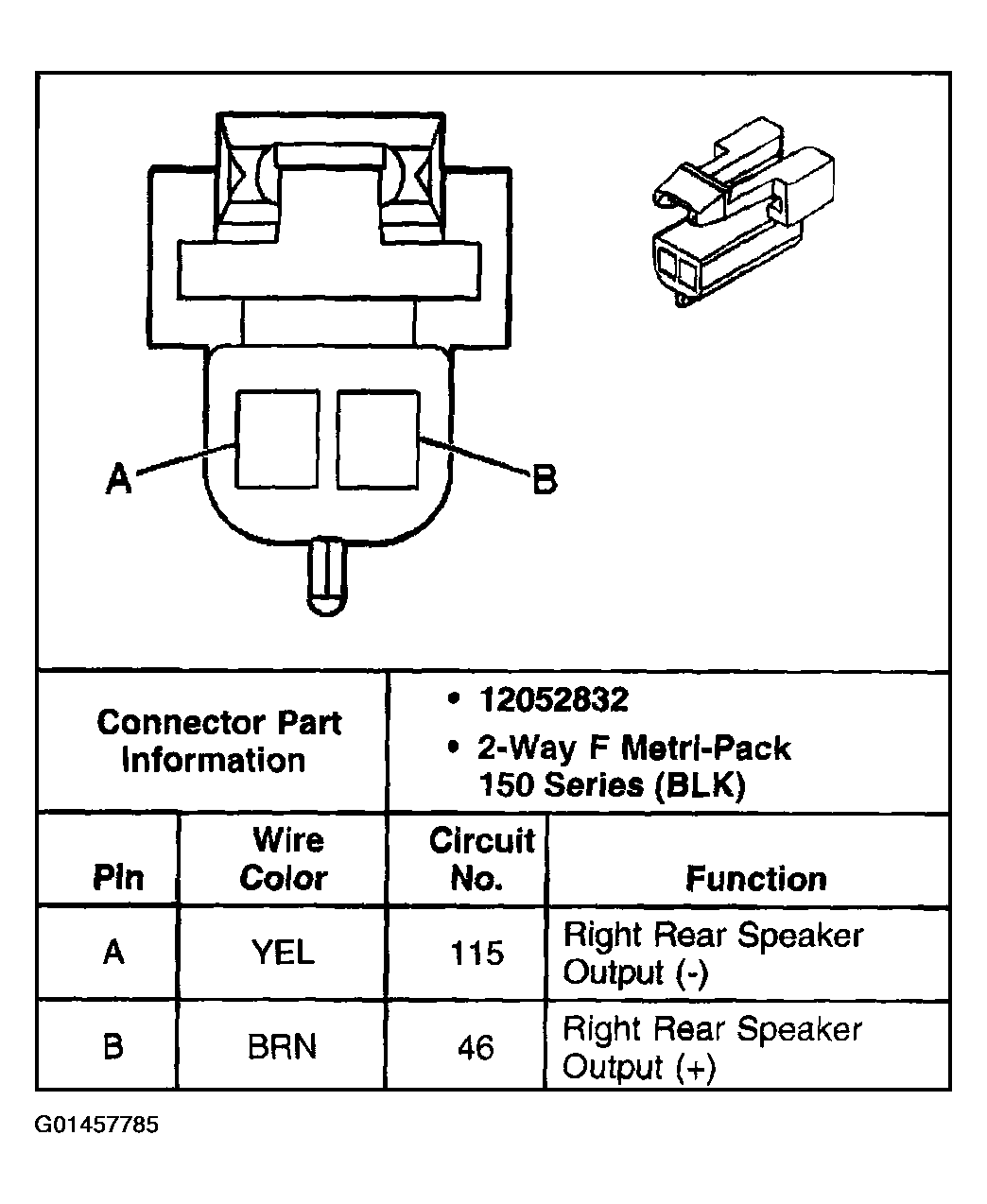

Fig 24: Identifying Speaker - RR Door

G01457785

Courtesy of GENERAL MOTORS CORP.

Fig 25: Identifying Speaker - LF Tweeter (UQ3)

G01457786

Courtesy of GENERAL MOTORS CORP.

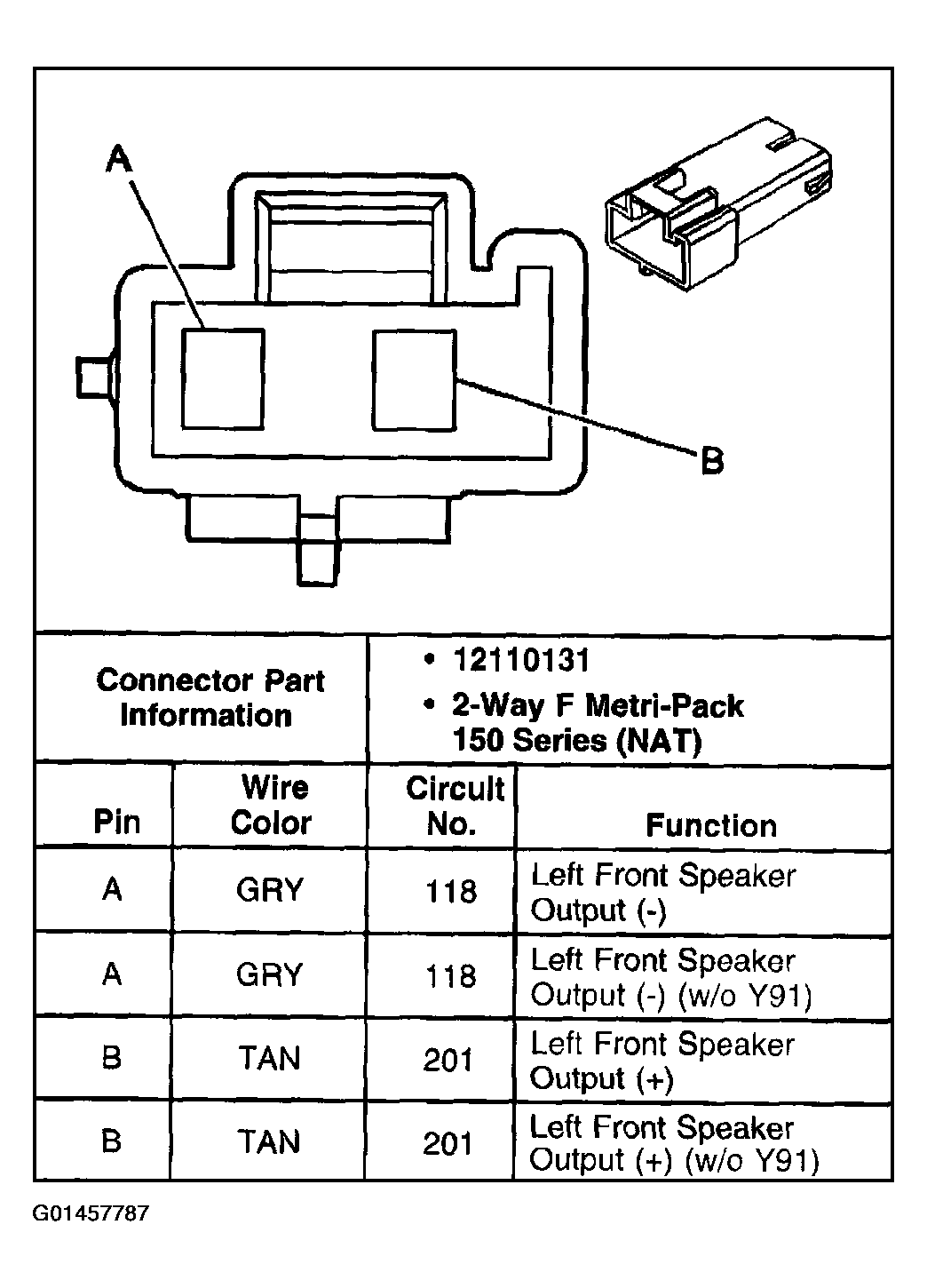

Fig 26: Identifying Speaker - LF Tweeter (UQ7)

G01457787

Courtesy of GENERAL MOTORS CORP.

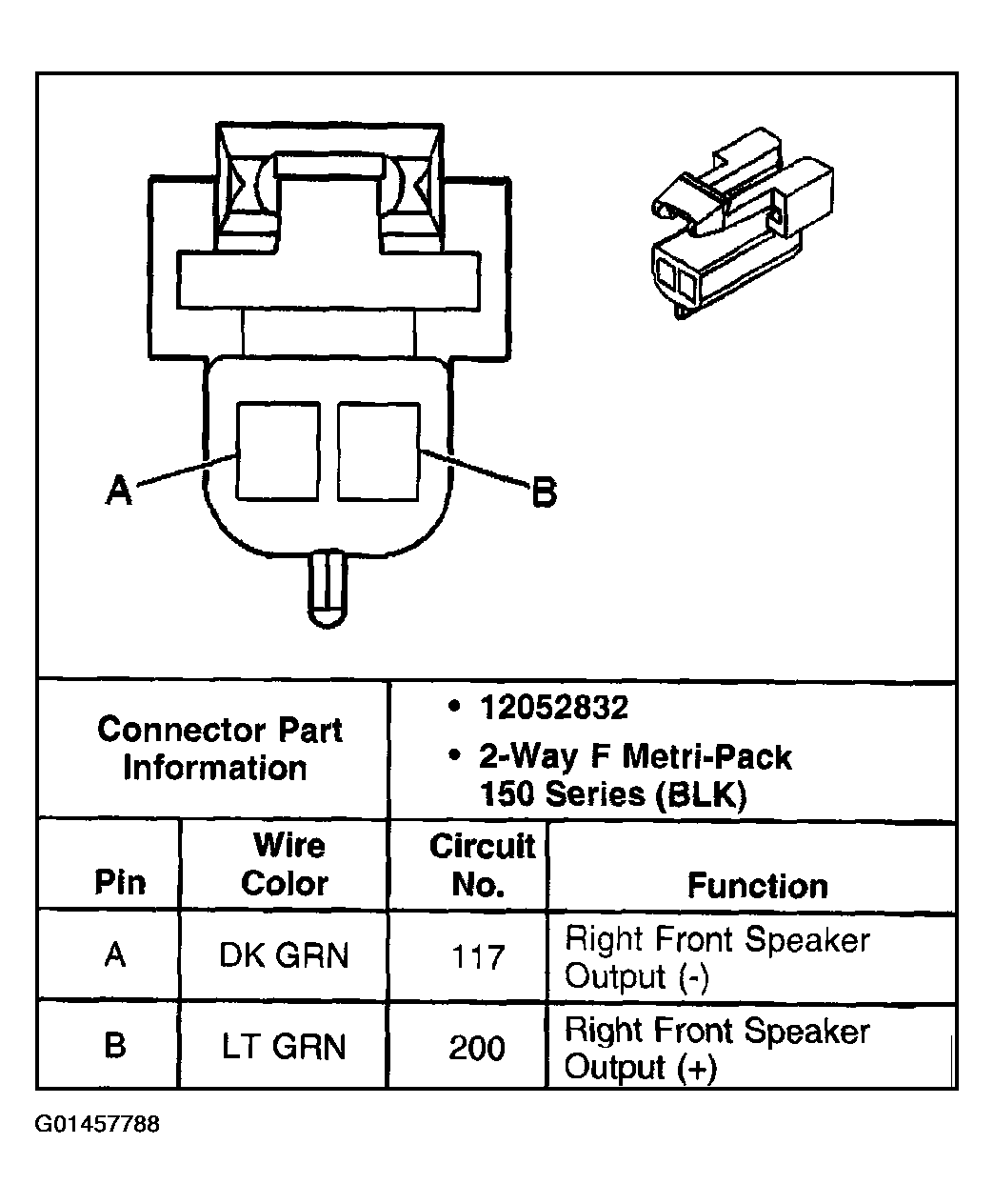

Fig 27: Identifying Speaker - RF Tweeter (UQ3)

G01457788

Courtesy of GENERAL MOTORS CORP.

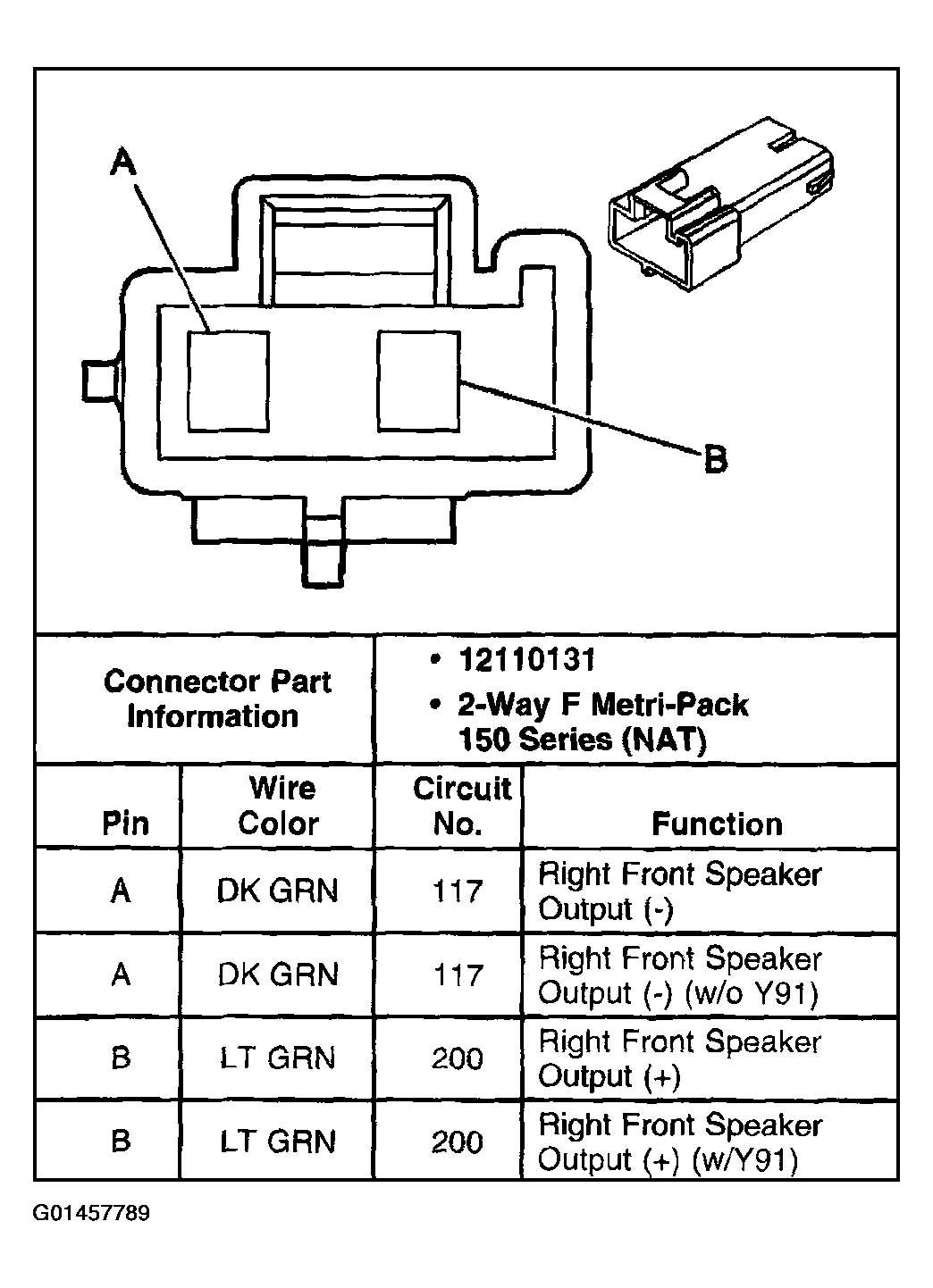

Fig 28: Identifying Speaker - RF Tweeter (UQ7)

G01457789

Courtesy of GENERAL MOTORS CORP.

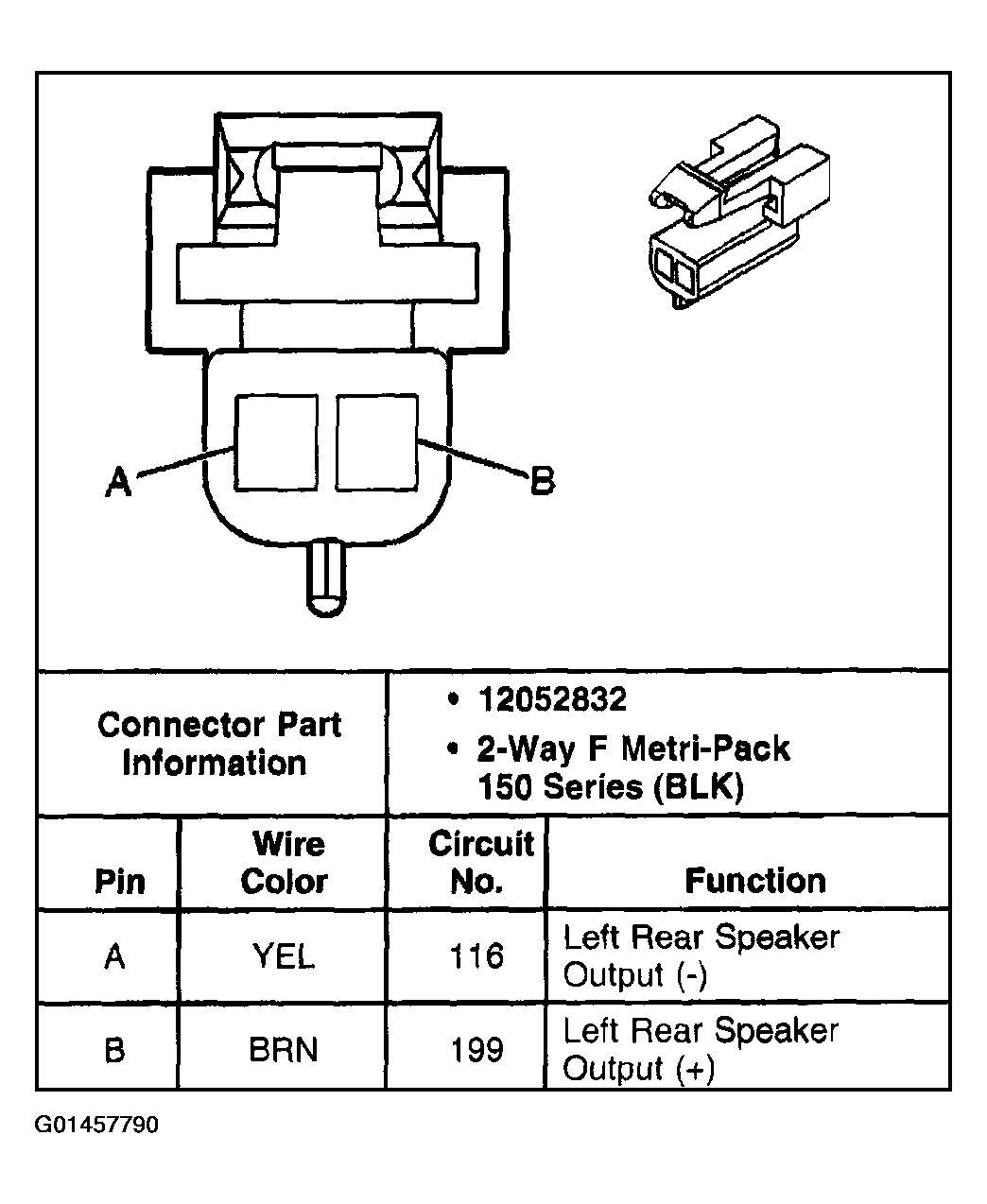

Fig 29: Identifying Speaker - Left D-Pillar (UQ7 w/o Y91)

G01457790

Courtesy of GENERAL MOTORS CORP.

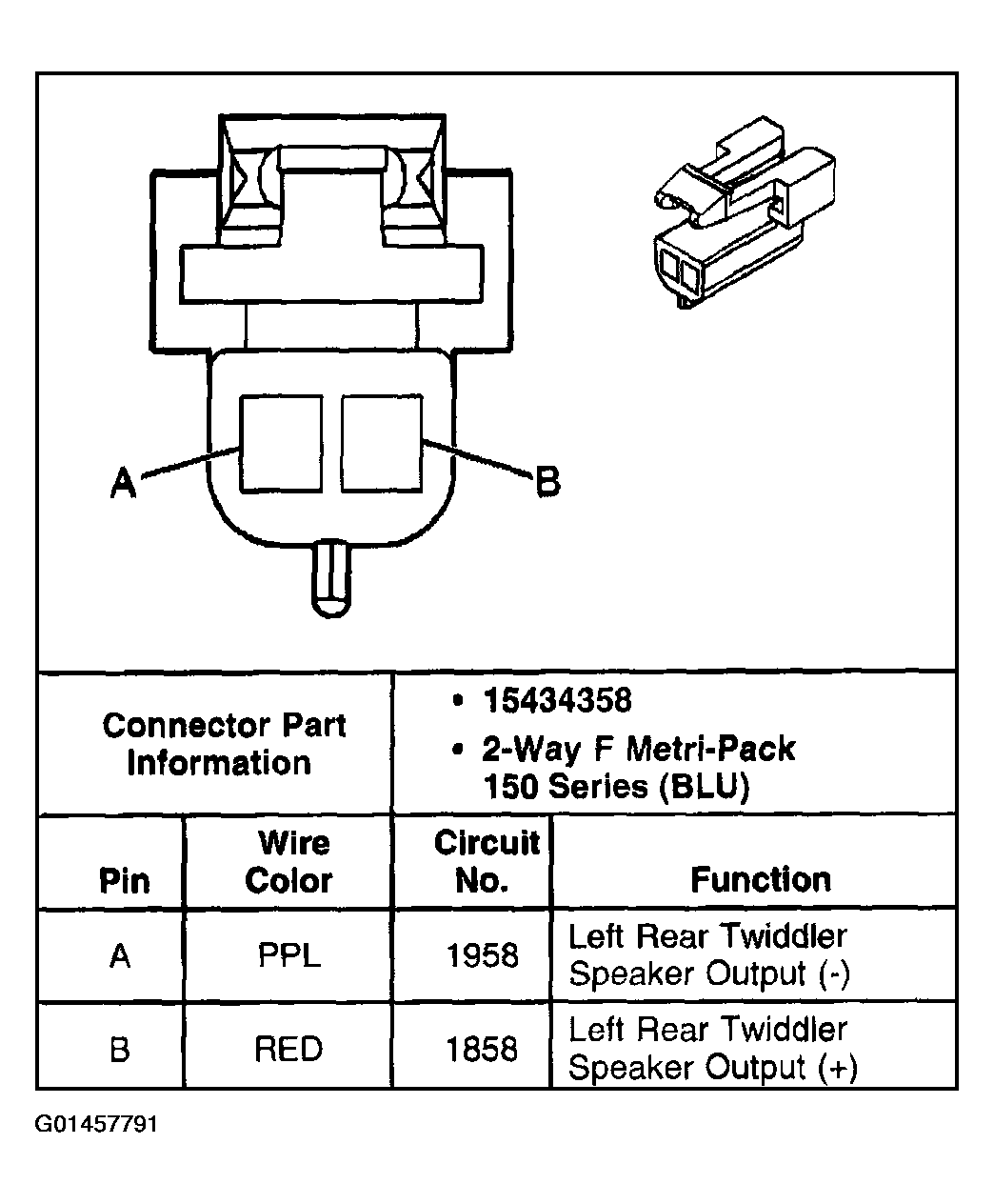

Fig 30: Identifying speaker - Left D-Pillar (w/Y91)

G01457791

Courtesy of GENERAL MOTORS CORP.

Fig 31: Identifying Speaker - Right D-Pillar (UQ7 w/o Y91)

G01457792

Courtesy of GENERAL MOTORS CORP.

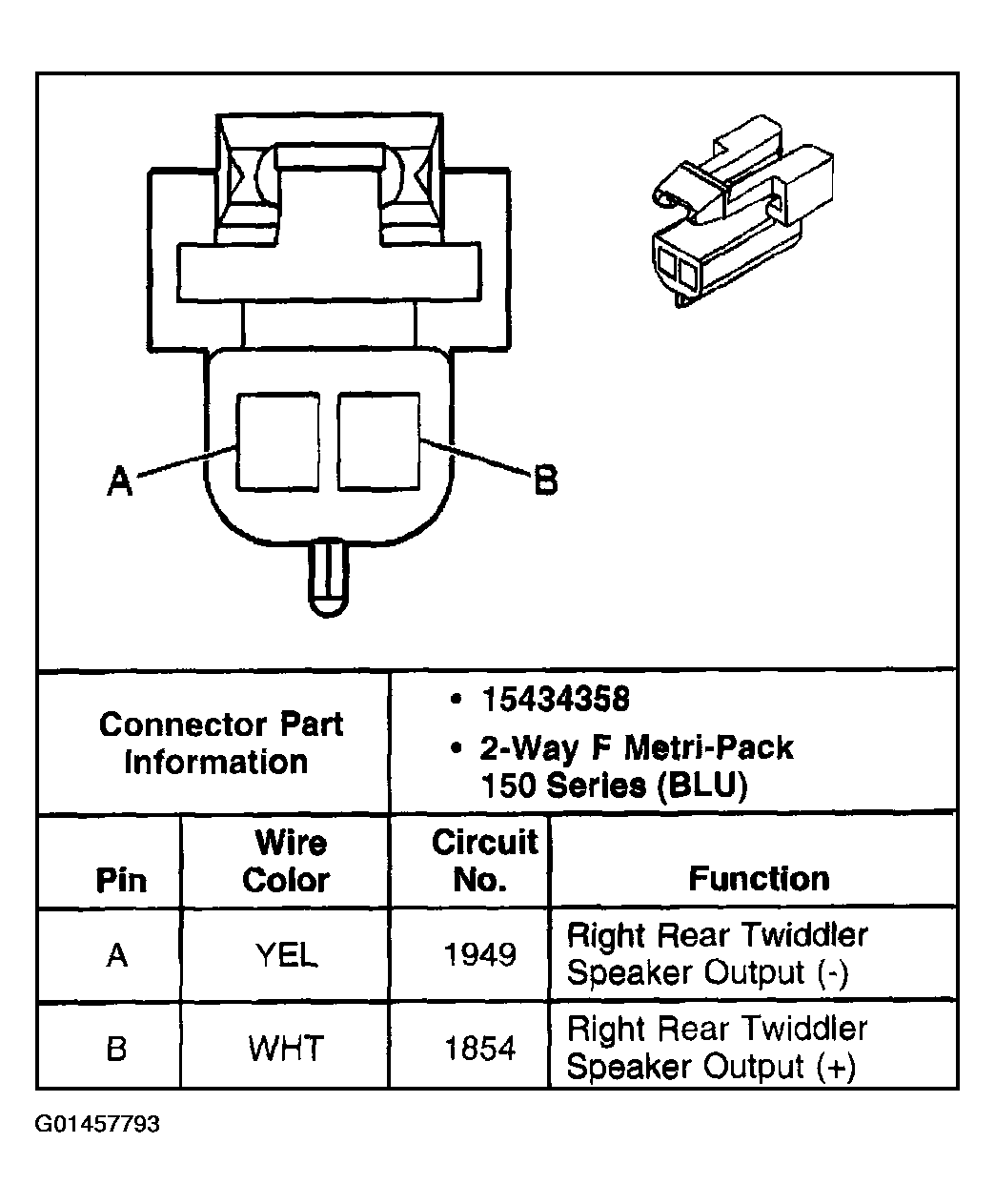

Fig 32: Identifying Speaker - Right D-Pillar (w/Y91)

G01457793

Courtesy of GENERAL MOTORS CORP.

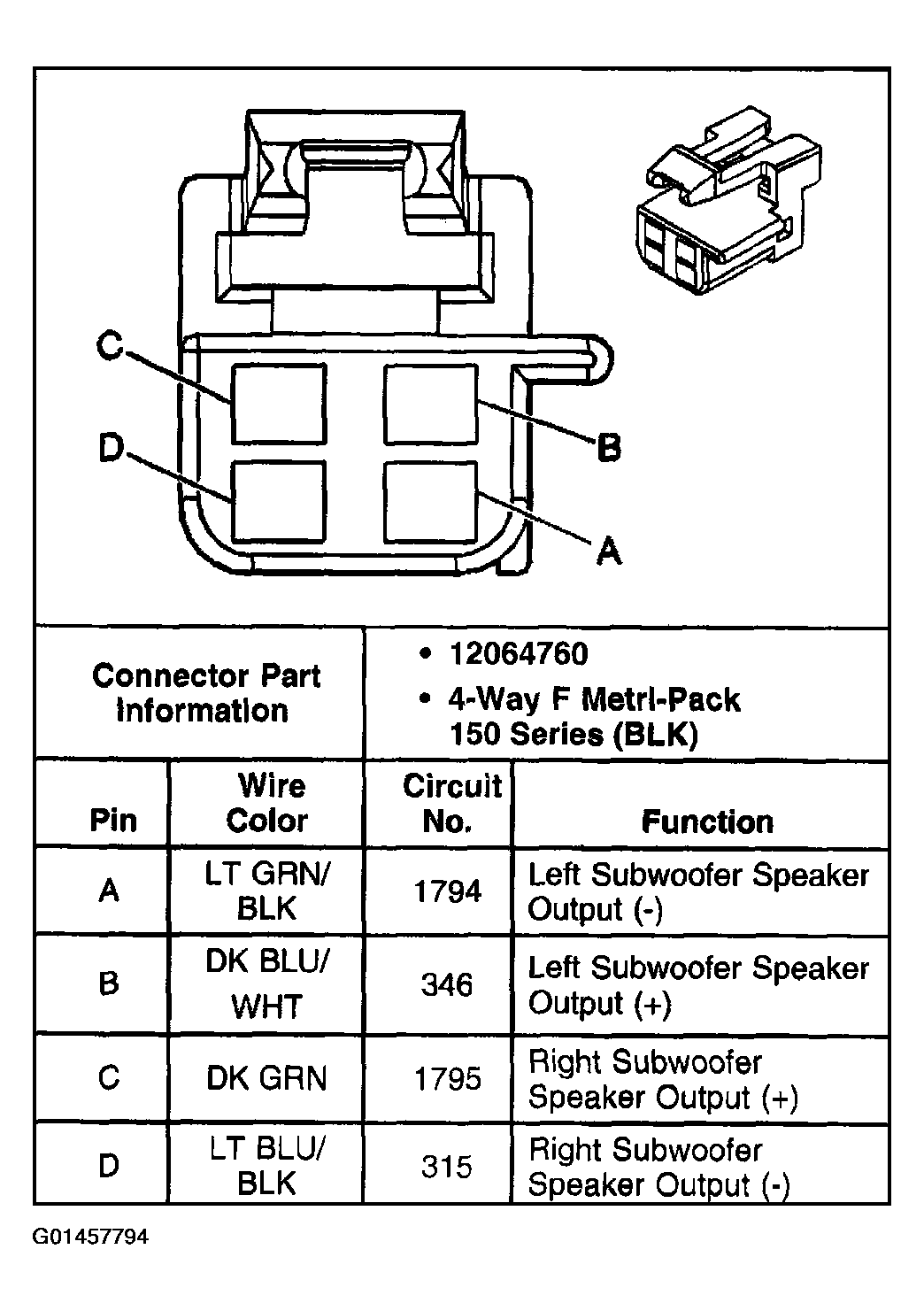

Fig 33: Identifying Speaker - Subwoofer

G01457794

Courtesy of GENERAL MOTORS CORP.

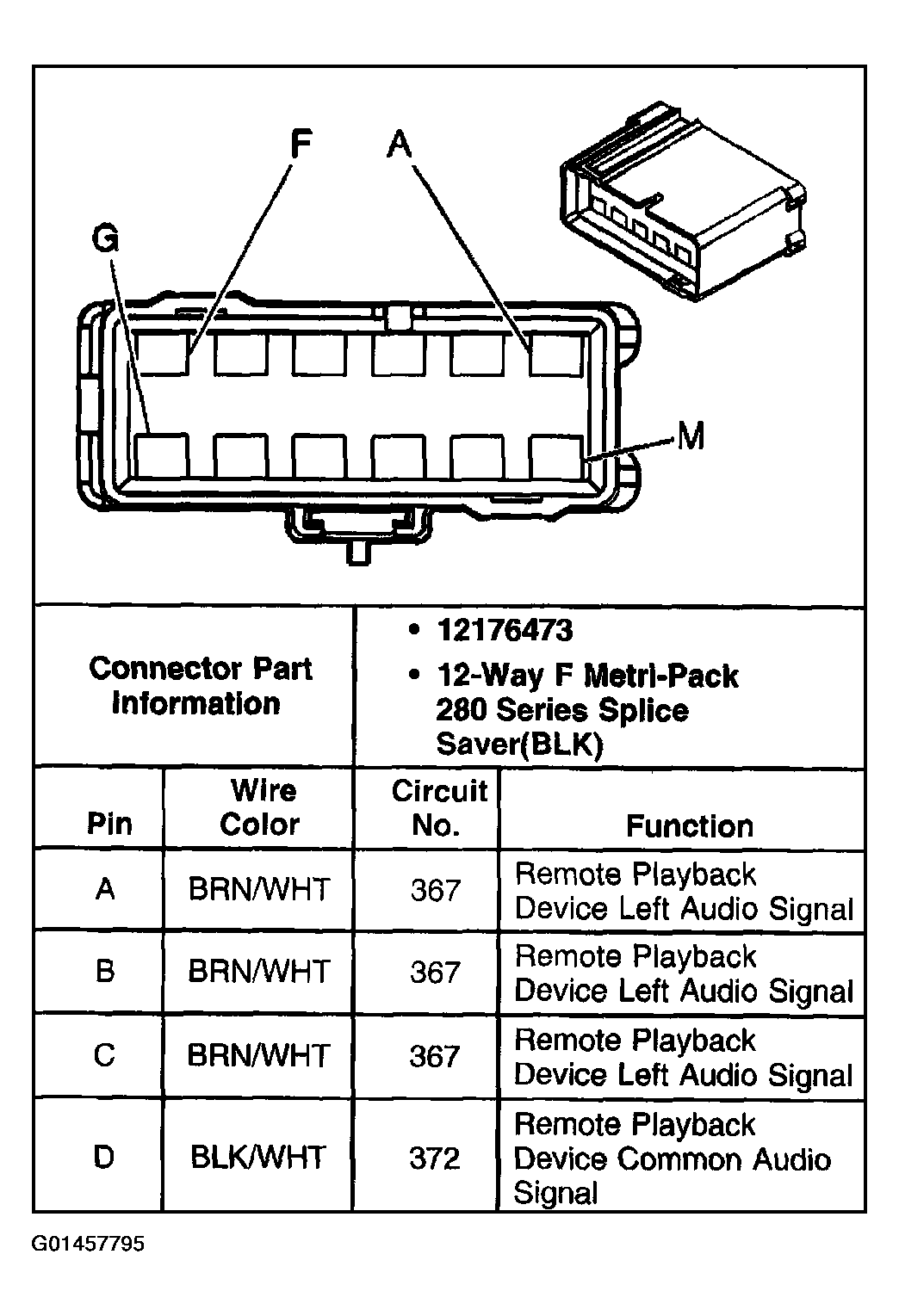

Fig 34: Identifying Splice Pack SP250 (w/UQ7) (1 Of 2)

G01457795

Courtesy of GENERAL MOTORS CORP.

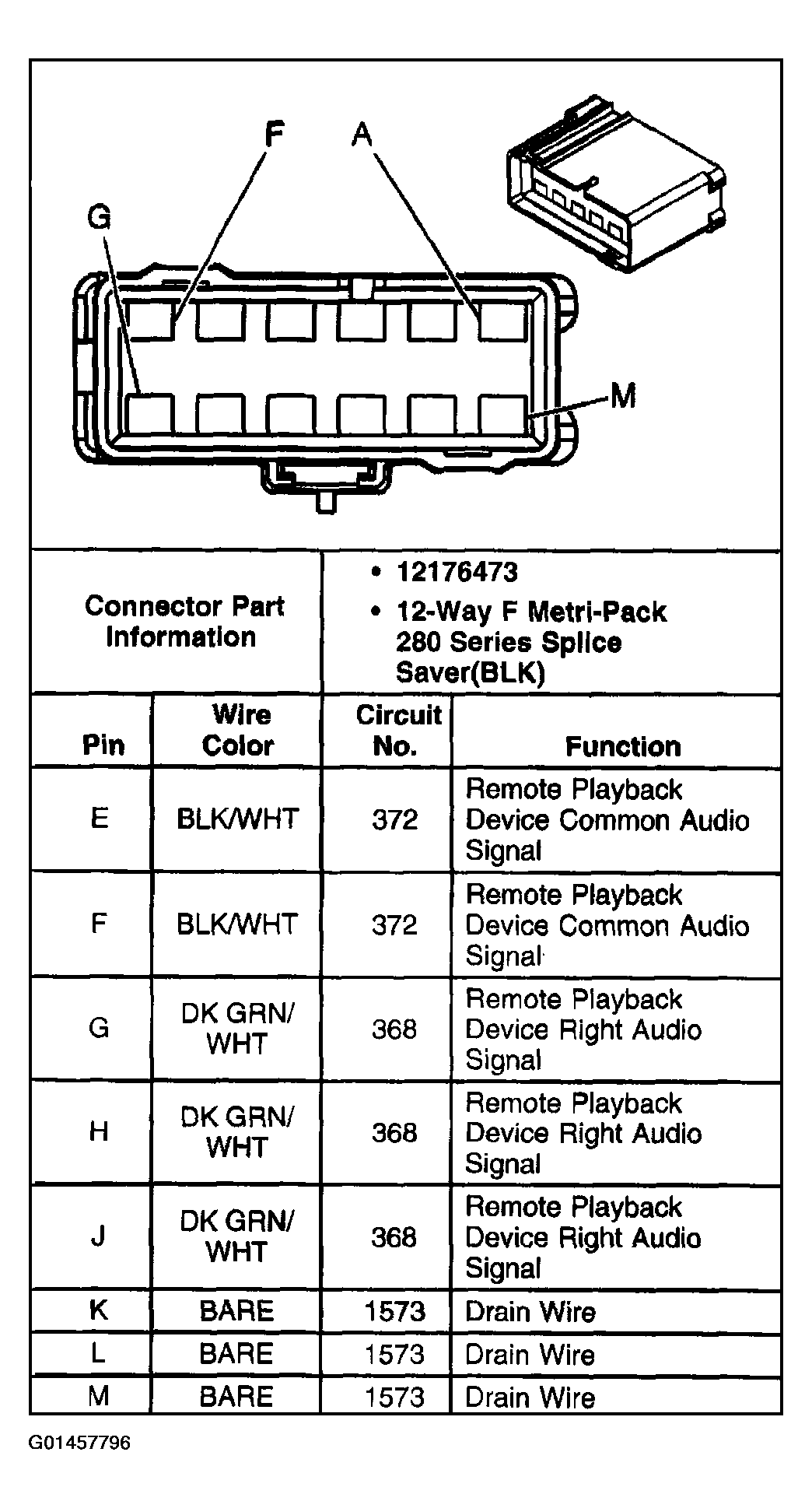

Fig 35: Identifying Splice Pack SP250 (w/UQ7) (2 Of 2)

G01457796

Courtesy of GENERAL MOTORS CORP.
