Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Lower the headliner. Refer to HEADLINER REMOVAL/INSTALLATION in Interior Trim.
  3. Loosen the bolt retaining the radio antenna module in order to disconnect the electrical connector.
  4. Disconnect the cable (2) from the radio antenna module.

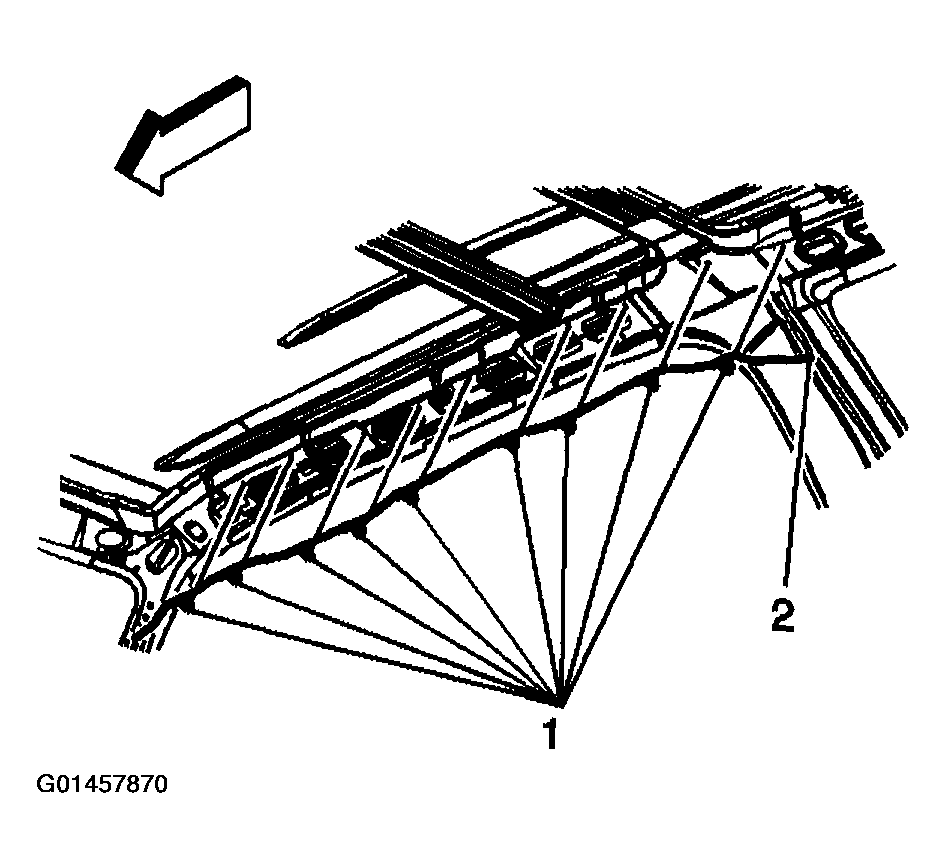

    5. Fig 1: Removing Cable Clips From Roof
    G01457870Courtesy of GENERAL MOTORS CORP.
  5. Remove the cable clips (1) from the roof.
  6. Remove the cable clips (1) from the A-pillar.

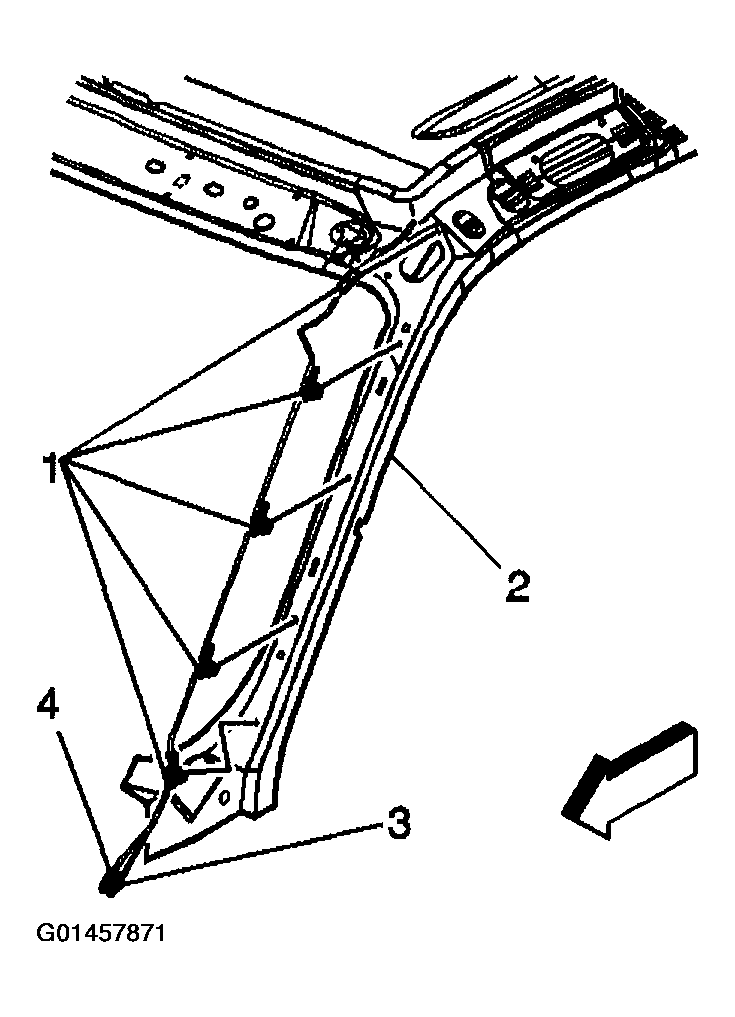

    7. Fig 2: Disconnecting Cable From Radio
    G01457871Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the cable (3) from the radio.
  8. Disconnect the electrical wire connector (4).
  9. Remove the radio cable from the vehicle.
