Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Yukon XL, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

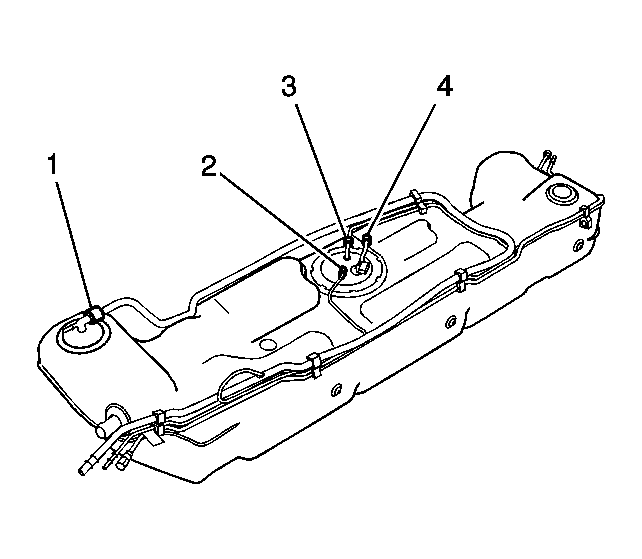

    Fig 1: View Of Fuel Feed Line & Rear Fuel Feed Line
    GM1312082Courtesy of GENERAL MOTORS CORP.
  1. Remove the caps from the fuel feed and EVAP lines.
  2. Install and connect the rear fuel feed line (2) to the module and retaining clips. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
  3. Install and connect the fuel feed (4) line to the module and retaining clips. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
  4. Install the fuel tank. Refer to Fuel Tank Replacement (Front Tank)  or Fuel Tank Replacement (Rear Tank) .
