Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Yukon XL, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

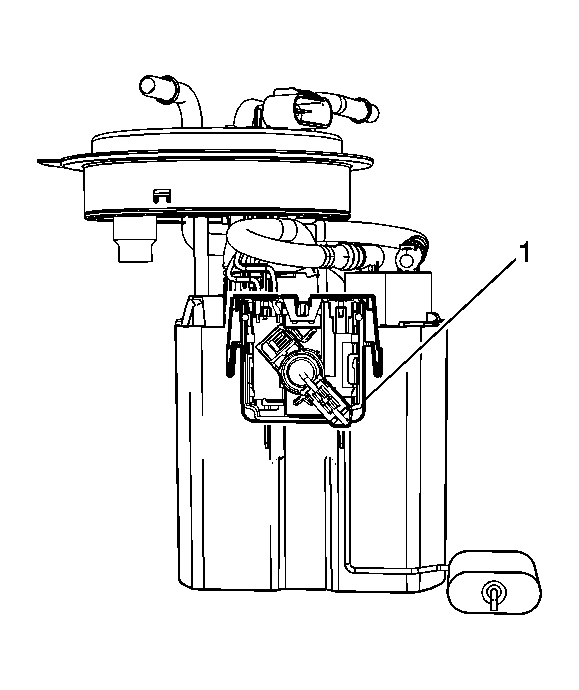

Fig 1: View Of Fuel Level Sensor (Front Tank)

Courtesy of GENERAL MOTORS CORP.

Install the fuel level sensor (1).
Connect the level sensor electrical connector.
Install the sending unit. Refer to Fuel Sender Assembly Replacement (Front Tank) or Fuel Sender Assembly Replacement (Rear Tank) .
