Installation Procedure
WARNING: This page is about a different car, the 2004 GMC Yukon XL, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Lubricate the seal on the fuel pressure sensor.

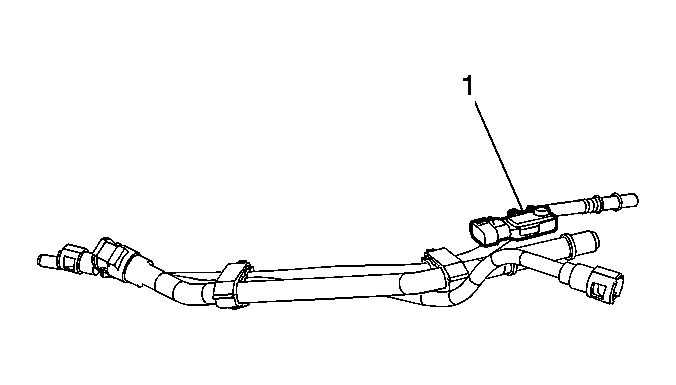

- Press the fuel pressure sensor (1) into the line.
- Install the intermediate fuel/EVAP lines. Refer to Fuel Hose/Pipes Assembly Replacement (Front) or Fuel Hose/Pipes Assembly Replacement (Intermediate) .
