Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Yukon XL, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

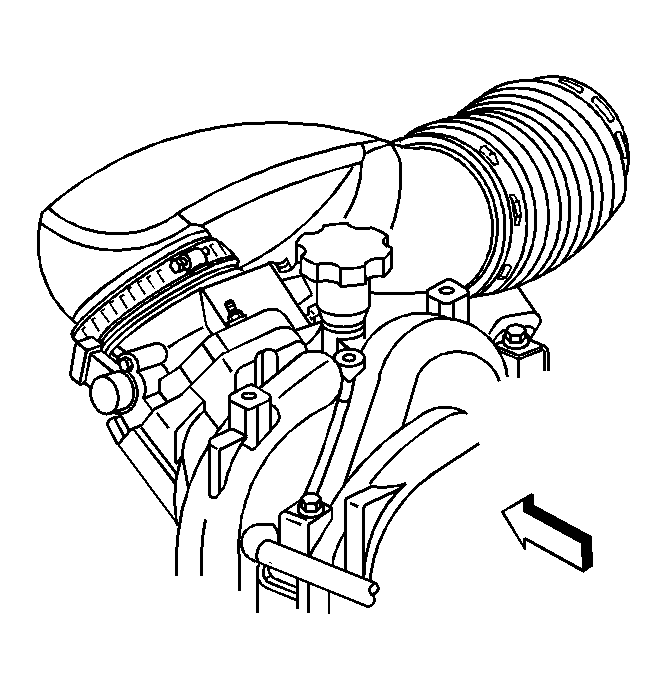

    Fig 1: Installing Air Cleaner Resonator Outlet Duct
    GM858226Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner resonator outlet duct.
  2. Install the air cleaner resonator outlet duct to the throttle body.
  3. Align the stud on the throttle body with the screw on the clamp.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Tighten the air cleaner resonator outlet duct clamp at the throttle body.

    Tighten:  Tighten the clamp to 4 N.m (35 lb in).

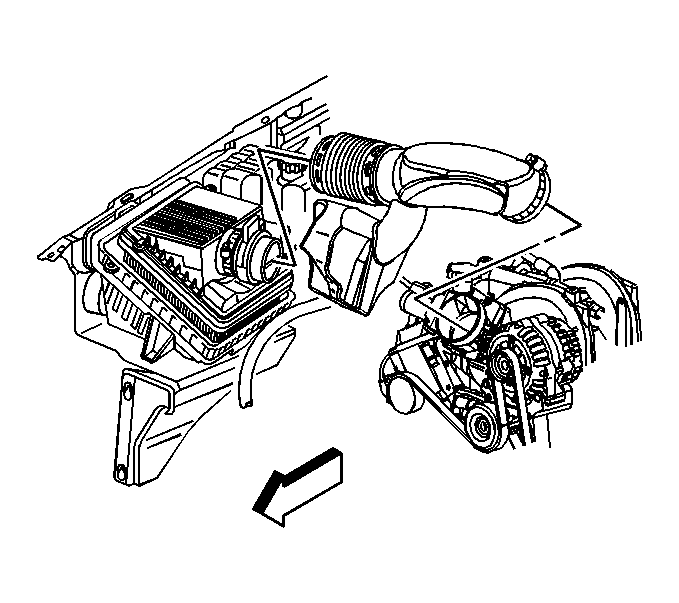

    5. Fig 2: View Of Intake Air Resonator Outlet Duct
    GM858228Courtesy of GENERAL MOTORS CORP.
  5. Install the air cleaner resonator outlet duct to the MAF/IAT sensor.
  6. Tighten the air cleaner resonator outlet duct clamp at the MAF/IAT sensor.

    Tighten:  Tighten the clamp to 4 N.m (35 lb in).
