Transfer Case Control Component Views

WARNING: This page is about a different car, the 2004 GMC Yukon XL and 2004 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.

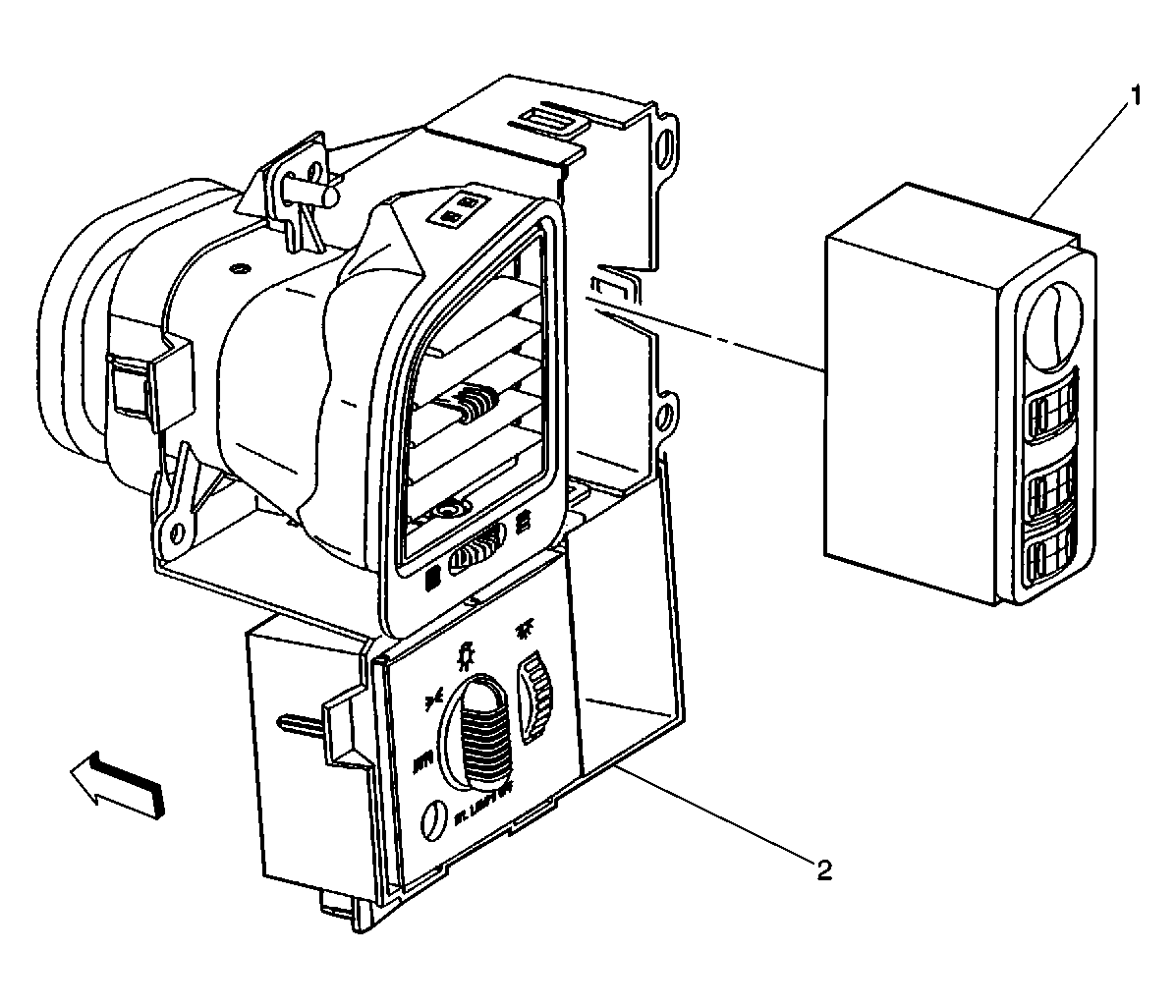

Fig 1: Transfer Case Shift Control Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Switch
2	Instrument Panel Switch and Deflector Housing

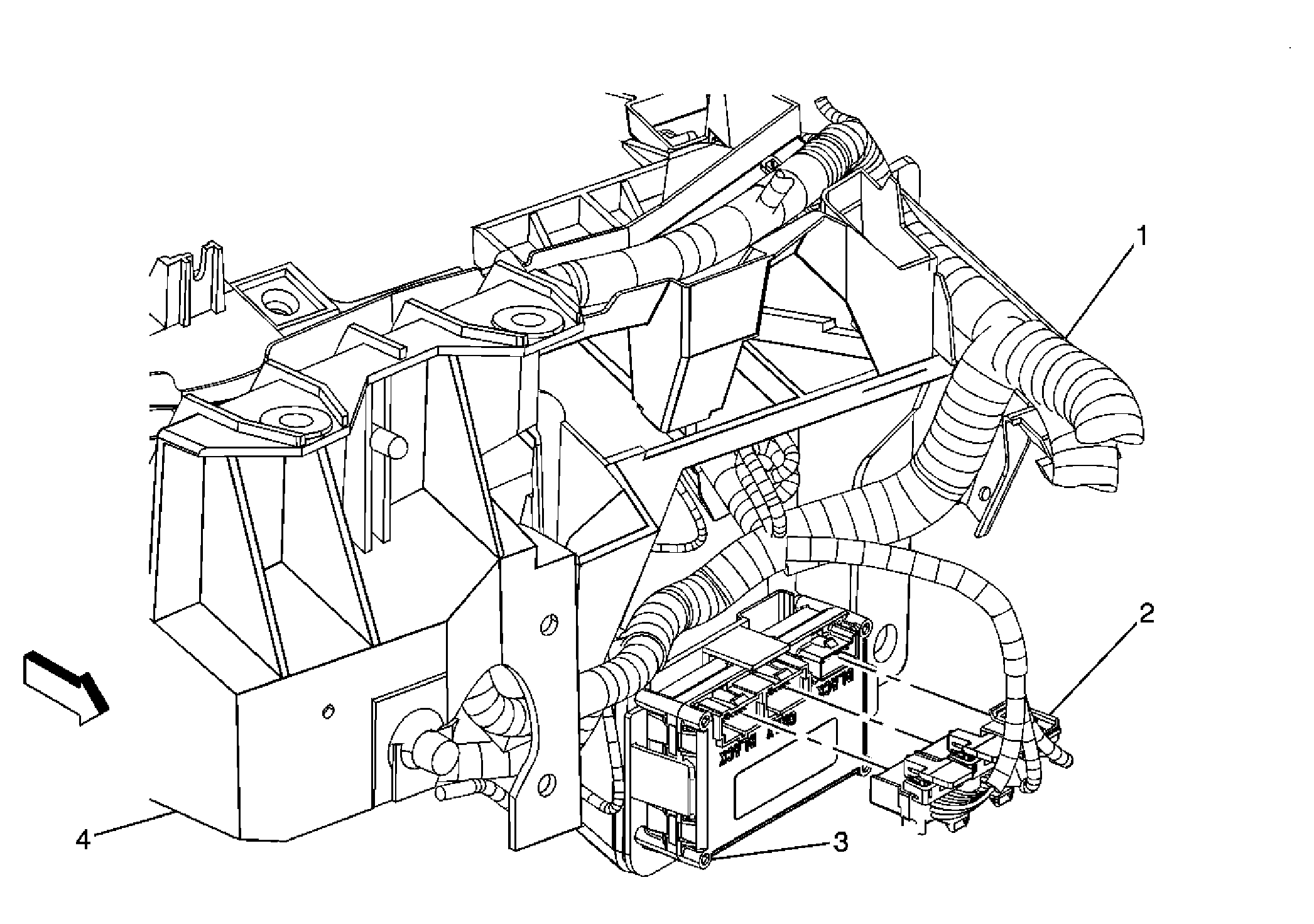

Fig 2: Transfer Case Shift Control Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Harness
2	Transfer Case Shift Control Module Connectors
3	Transfer Case Shift Control Module
4	Instrument Panel

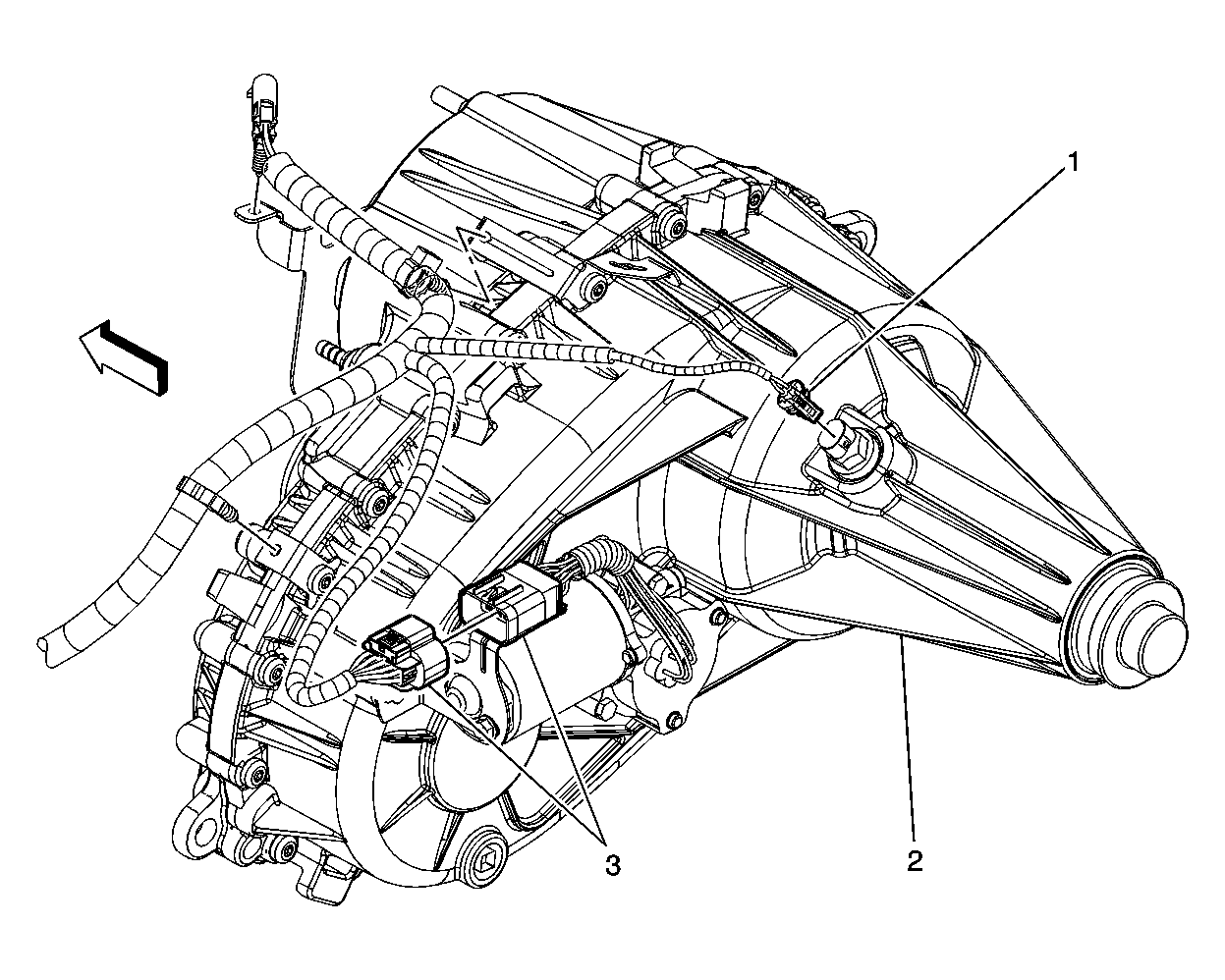

Fig 3: Transfer Case - BW 4482 - NR4 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Speed Sensor (VSS) Connector
2	Transfer Case
3	Encoder Motor Connector
