Transfer Case Control Component Views

WARNING: This page is about a different car, the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 Chevrolet Tahoe, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Transfer Case Shift Control Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Harness
2	Transfer Case Shift Control Module Connectors
3	Transfer Case Shift Control Module
4	Instrument Panel

Fig 2: Transfer Case Shift Control Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Switch
2	Instrument Panel Switch and Deflector Housing

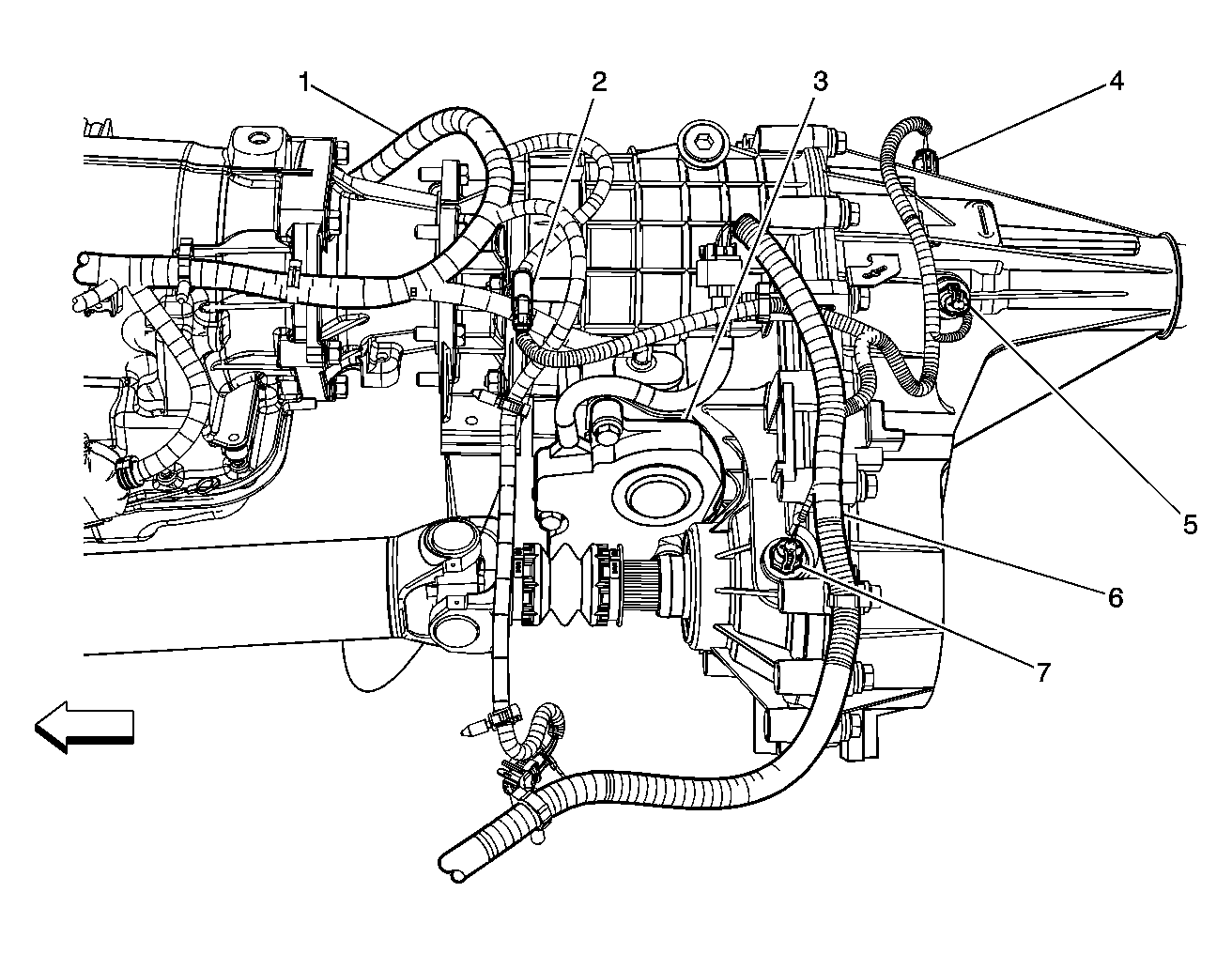

Fig 3: Transfer Case Component View (NVG 236/246 NP8)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Harness
2	C350 Transfer Case Harness to Engine Harness
3	Transfer Case Encoder Motor
4	Vehicle Speed Sensor (VSS)
5	Propshaft Speed Sensor-Rear
6	Transfer Case Harness
7	Propshaft Speed Sensor-Front

Fig 4: Front Drive Axle Harness Routing Component View (K25 Series)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ground 110 (G110)
2	Vent Tube
3	Vent Tube Connection
4	Front Axle Actuator
5	Front Axle Actuator Connector
6	Left Inner Fender

Fig 5: Front Drive Axle Harness Routing Component View (K15 Series)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vent Tube
2	Vent Tube Connection
3	Front Axle Actuator
4	Front Axle Actuator Connector
5	Front Drive Axle Assembly (Mount)
6	Ground 110 (G110)
7	Left Inner Fender
