Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent level sensor to the washer solvent container, pressing in until fully seated.

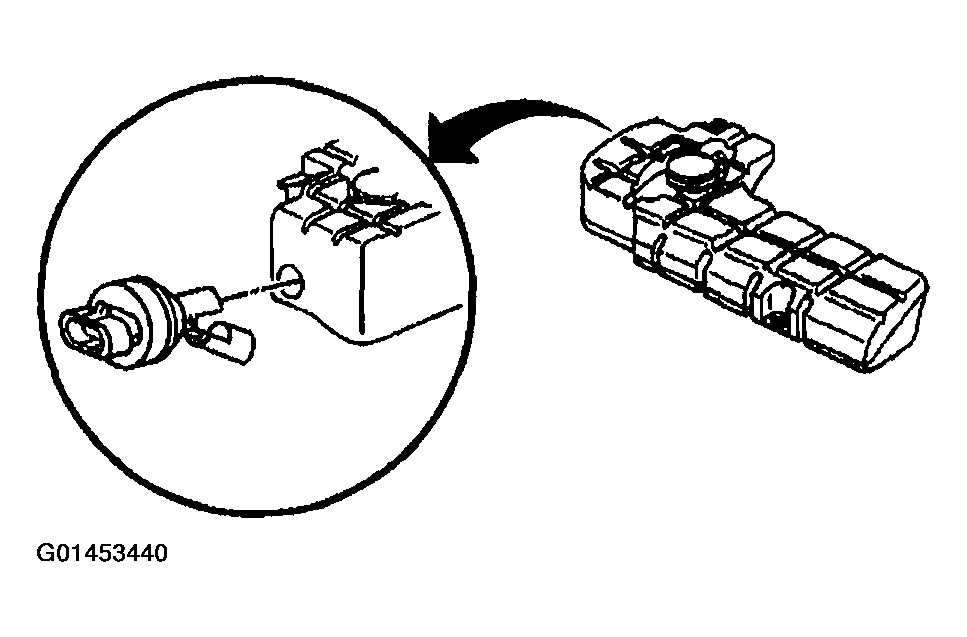

    Fig 1: Installing Washer Solvent Level Sensor To Washer Solvent Container
    G01453440Courtesy of GENERAL MOTORS CORP.
  2. Connect the washer solvent level sensor electrical connector.
  3. Fill the washer solvent container with washer solvent.
  4. Close the hood.

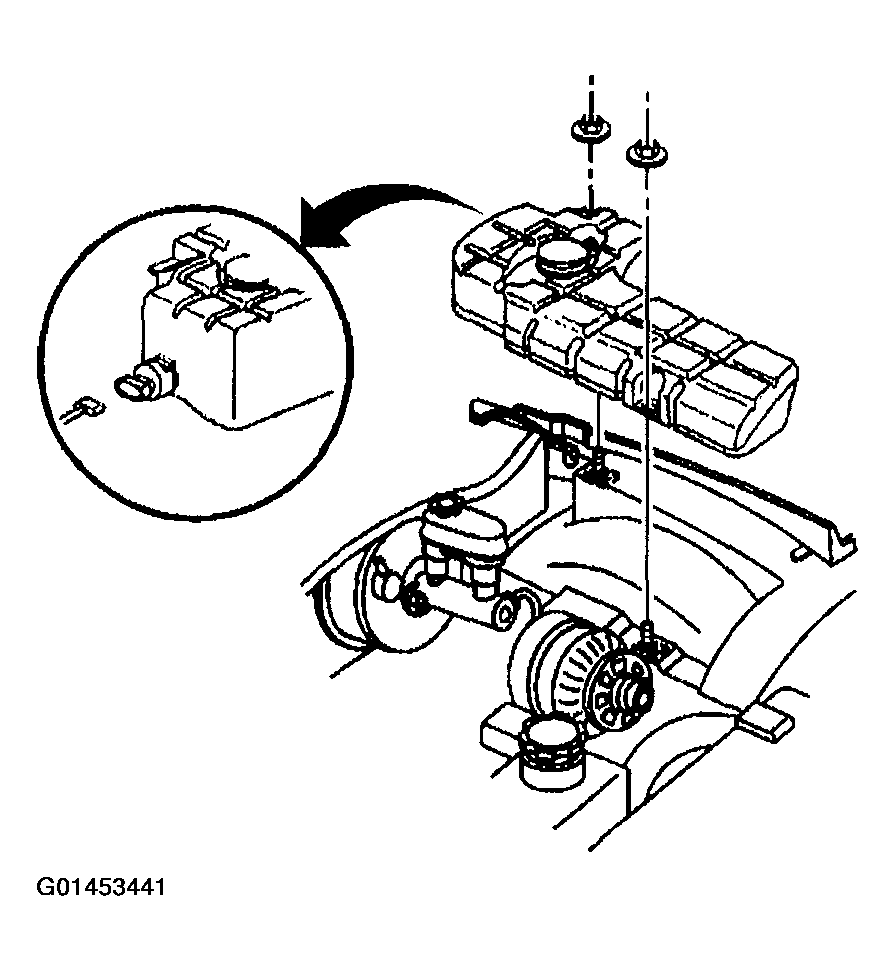

    Fig 2: Connecting Washer Solvent Level Sensor Electrical Connector
    G01453441Courtesy of GENERAL MOTORS CORP.
