Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood.
Drain the washer solvent from the washer solvent container.
Disconnect the washer solvent level sensor electrical connector.

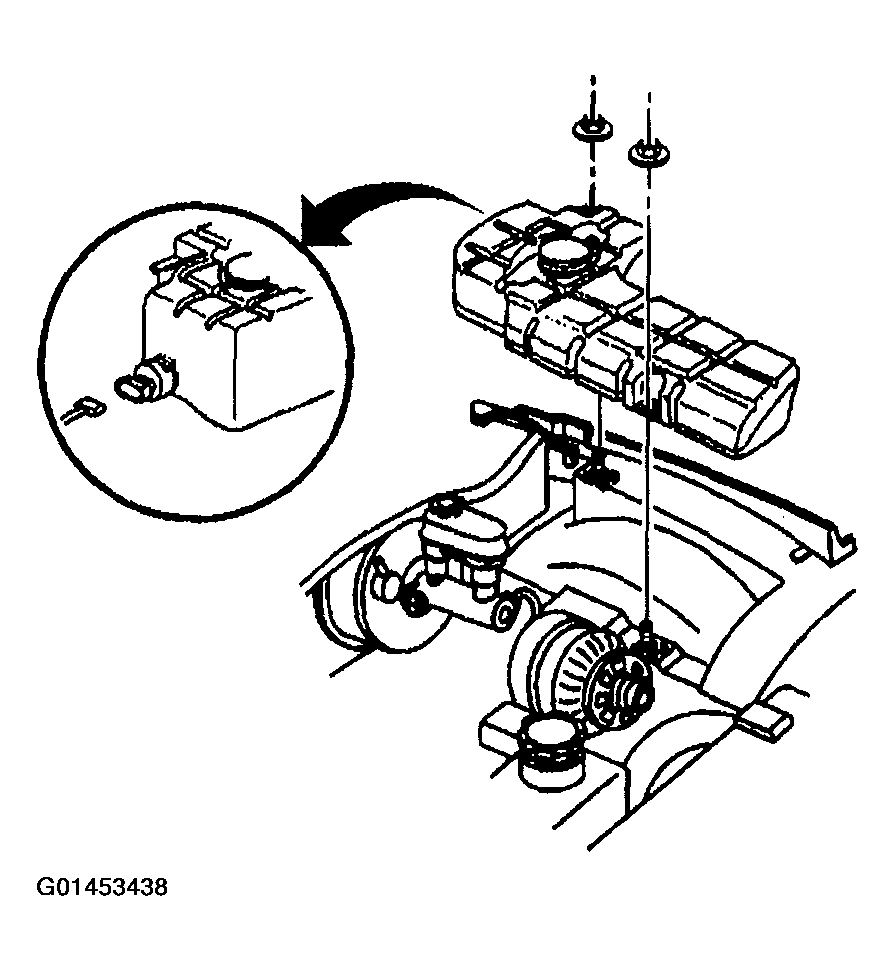

Fig 1: Washer Solvent Level Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Using a small flat-bladed tool, remove the washer solvent level sensor from the washer solvent container.

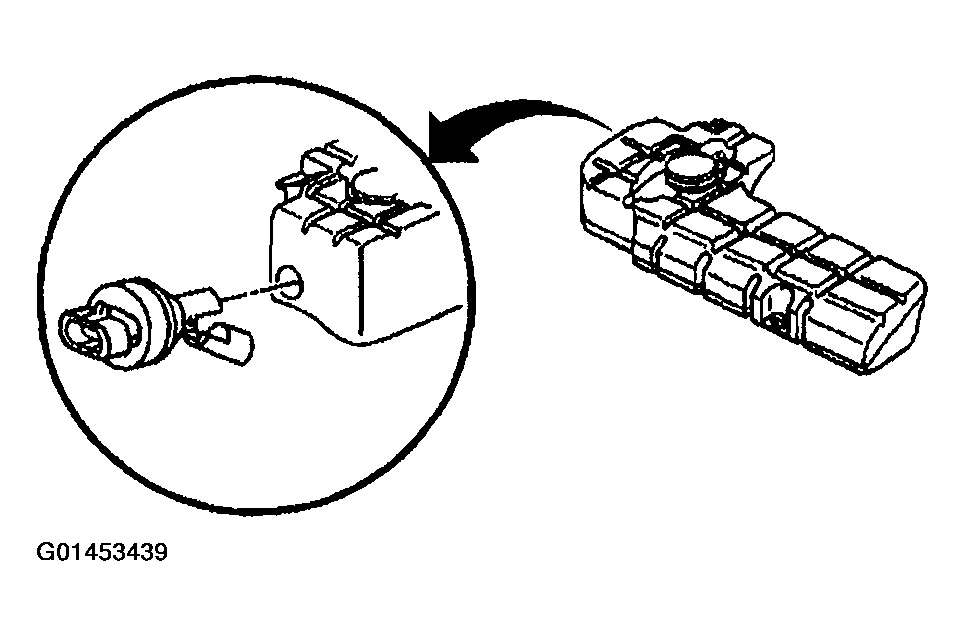

Fig 2: Removing Washer Solvent Level Sensor From Washer Solvent Container
Courtesy of GENERAL MOTORS CORP.
