Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the wiper/washer switch into the steering column lock module until the upper and lower retaining clips snap into place.
  2. Connect the electrical connector into the wiring harness.

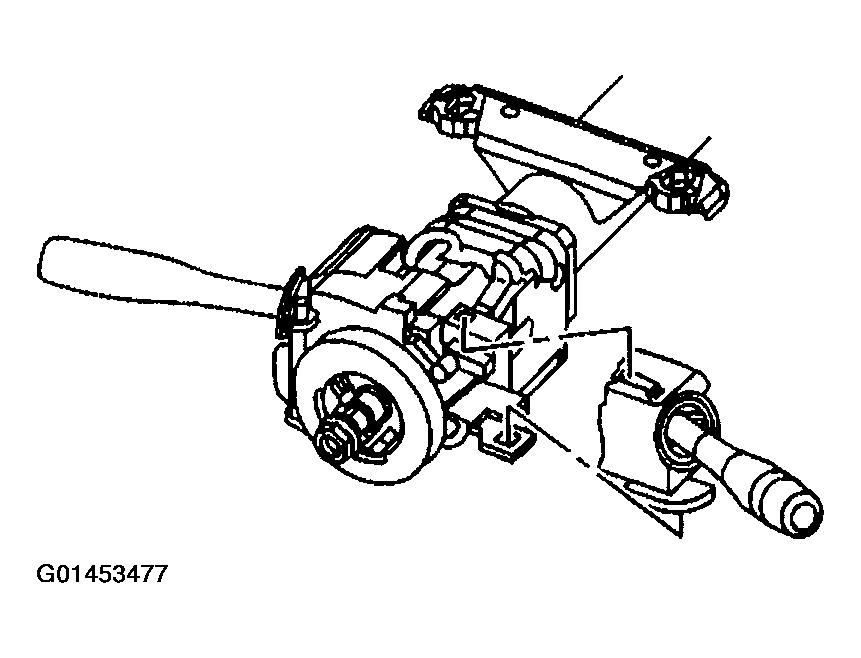

    Fig 1: Installing Wiper/Washer Switch Into Steering Column Lock Module
    G01453477Courtesy of GENERAL MOTORS CORP.
  3. Install the upper (1) and the lower (3) steering column covers.
  4. Install the tilt wheel lever (4). Refer to TILT LEVER REPLACEMENT in Steering Wheel and Column.
  5. Install the driver knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER in Instrument Panel, Gages and Console.

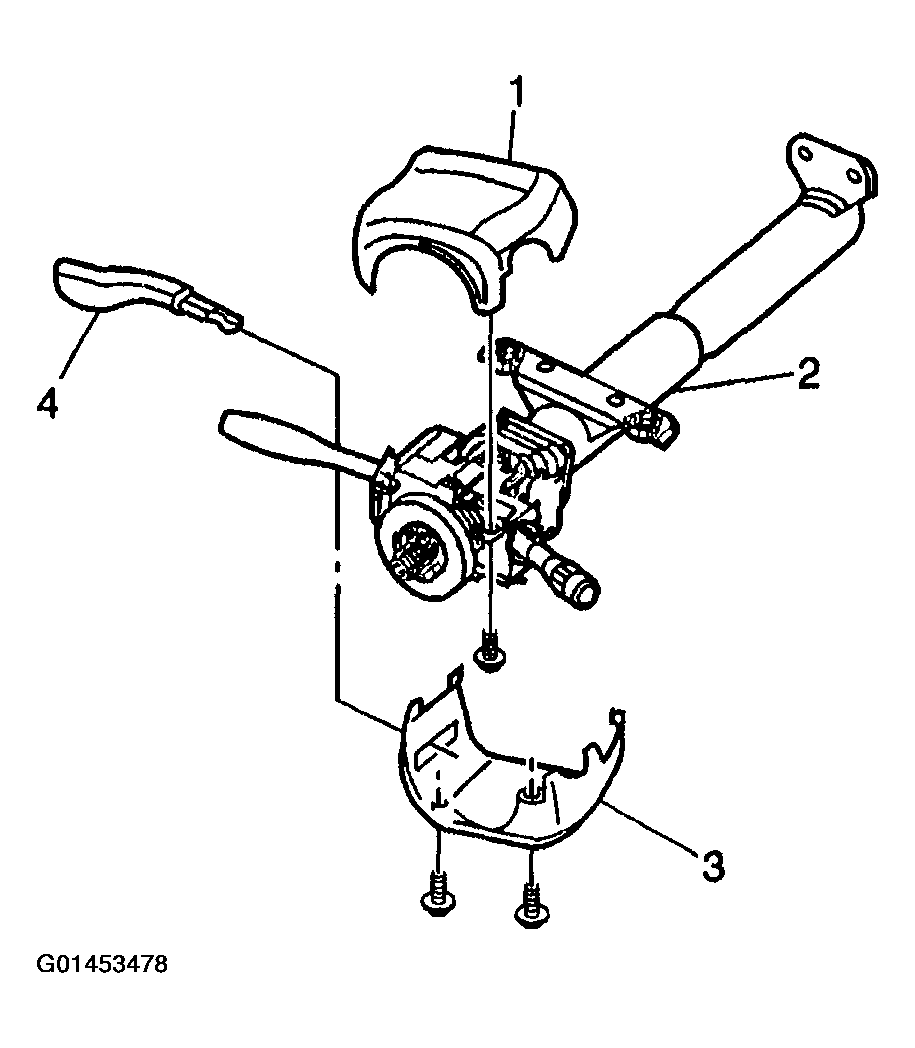

    Fig 2: Upper & Lower Steering Column Covers
    G01453478Courtesy of GENERAL MOTORS CORP.
