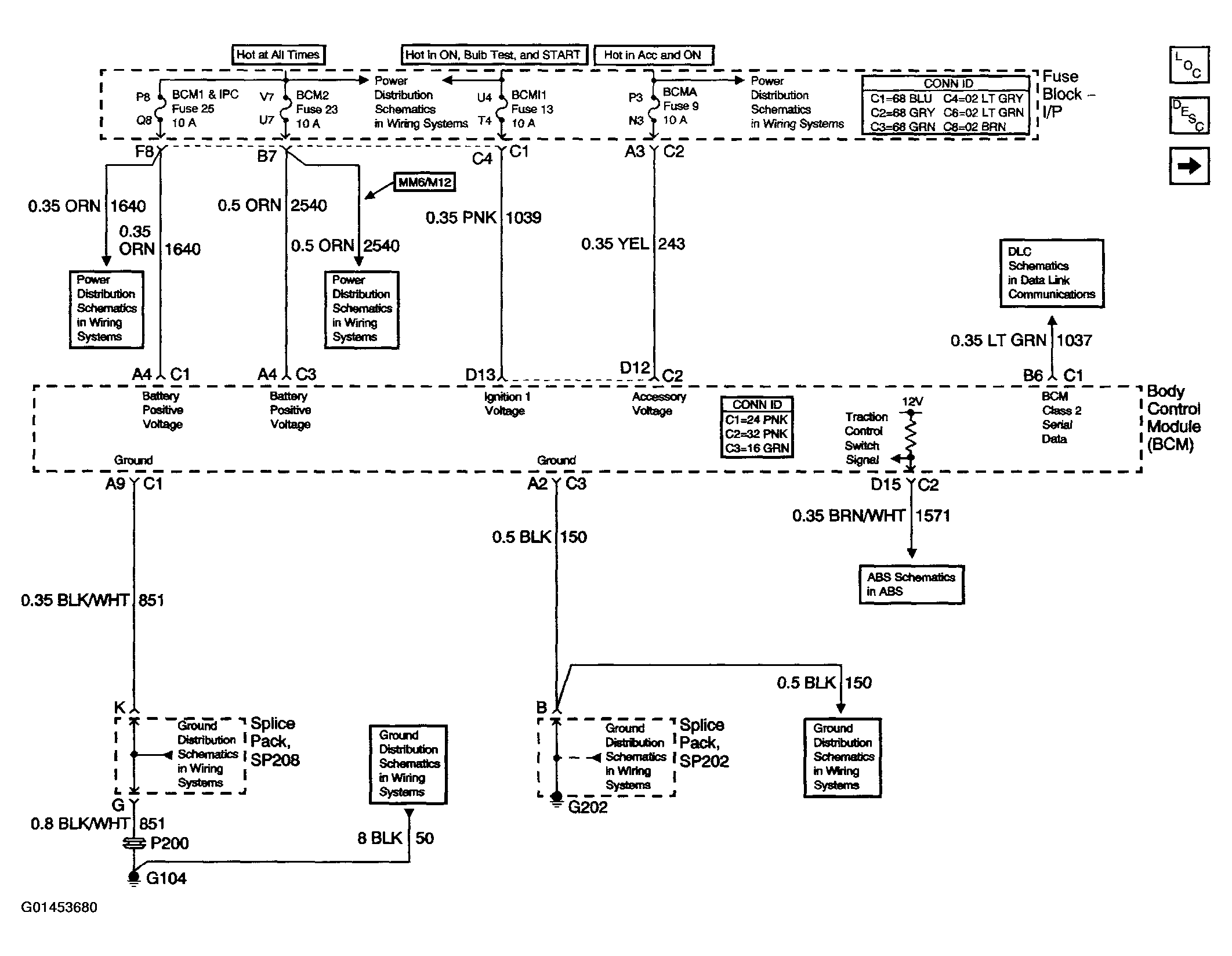

Fig 1: Body Control System Schematics (Power, Ground & DLC)
Courtesy of GENERAL MOTORS CORP.

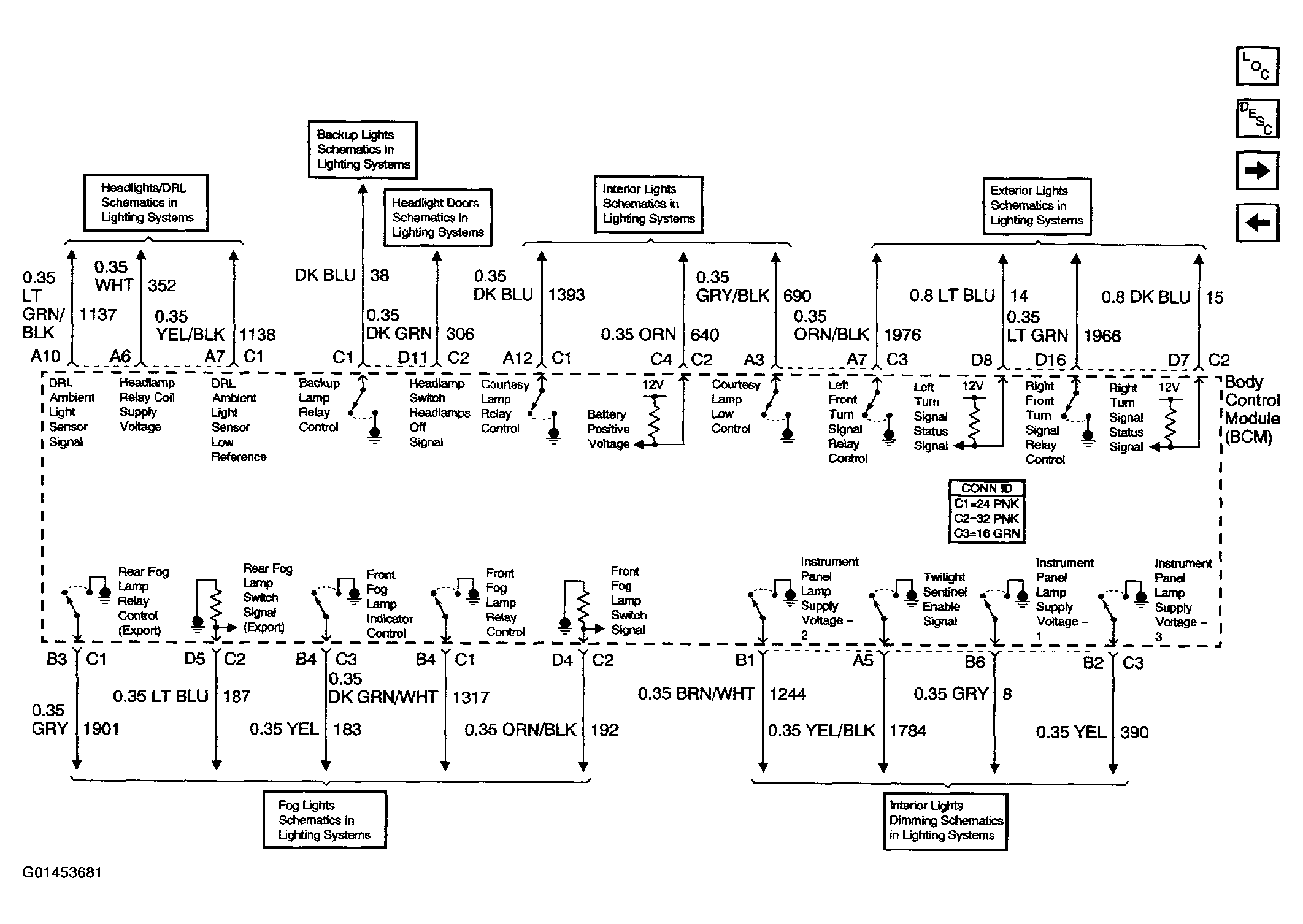

Fig 2: Body Control System Schematics (Lighting References)
Courtesy of GENERAL MOTORS CORP.

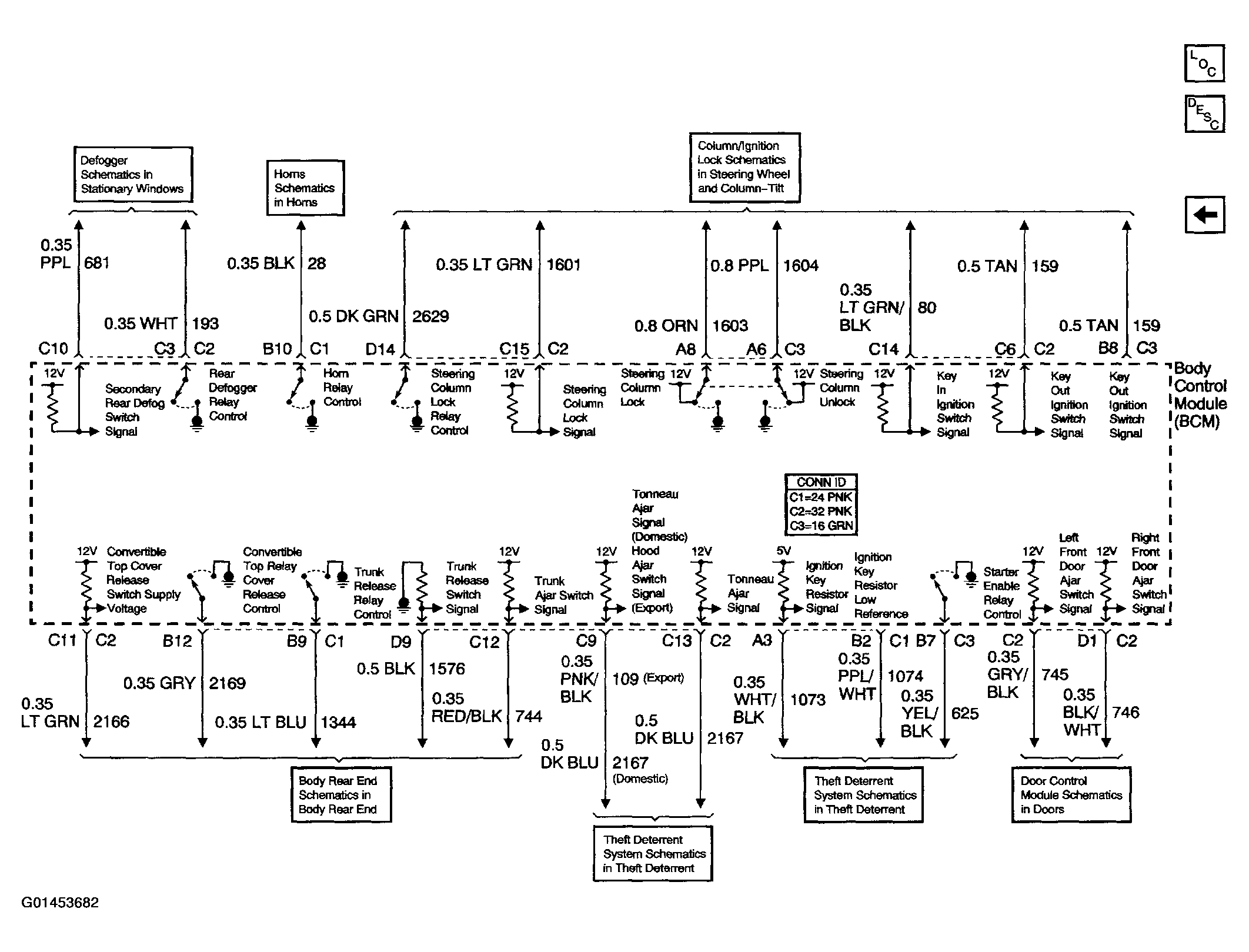

Fig 3: Body Control System Schematics (Subsystem References)
