Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the switches in the assembly
  2. Install the accessory switch assembly into the IP till it snaps into place.
  3. Install the IP trim bezel. Refer to Bezel Replacement-Instrument Panel (I/P) Cluster

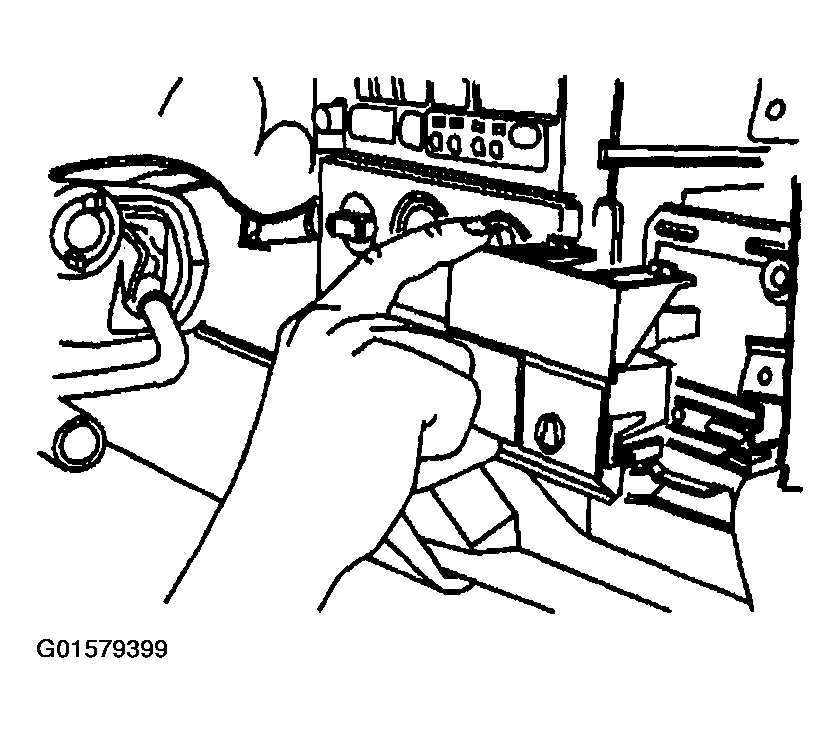

    Fig 1: Accessory Switch
    G01579399Courtesy of GENERAL MOTORS CORP.
