Fuel Level Specifications

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The values in the table are approximate values based on information obtained from properly operating vehicles. Actual results may vary slightly.

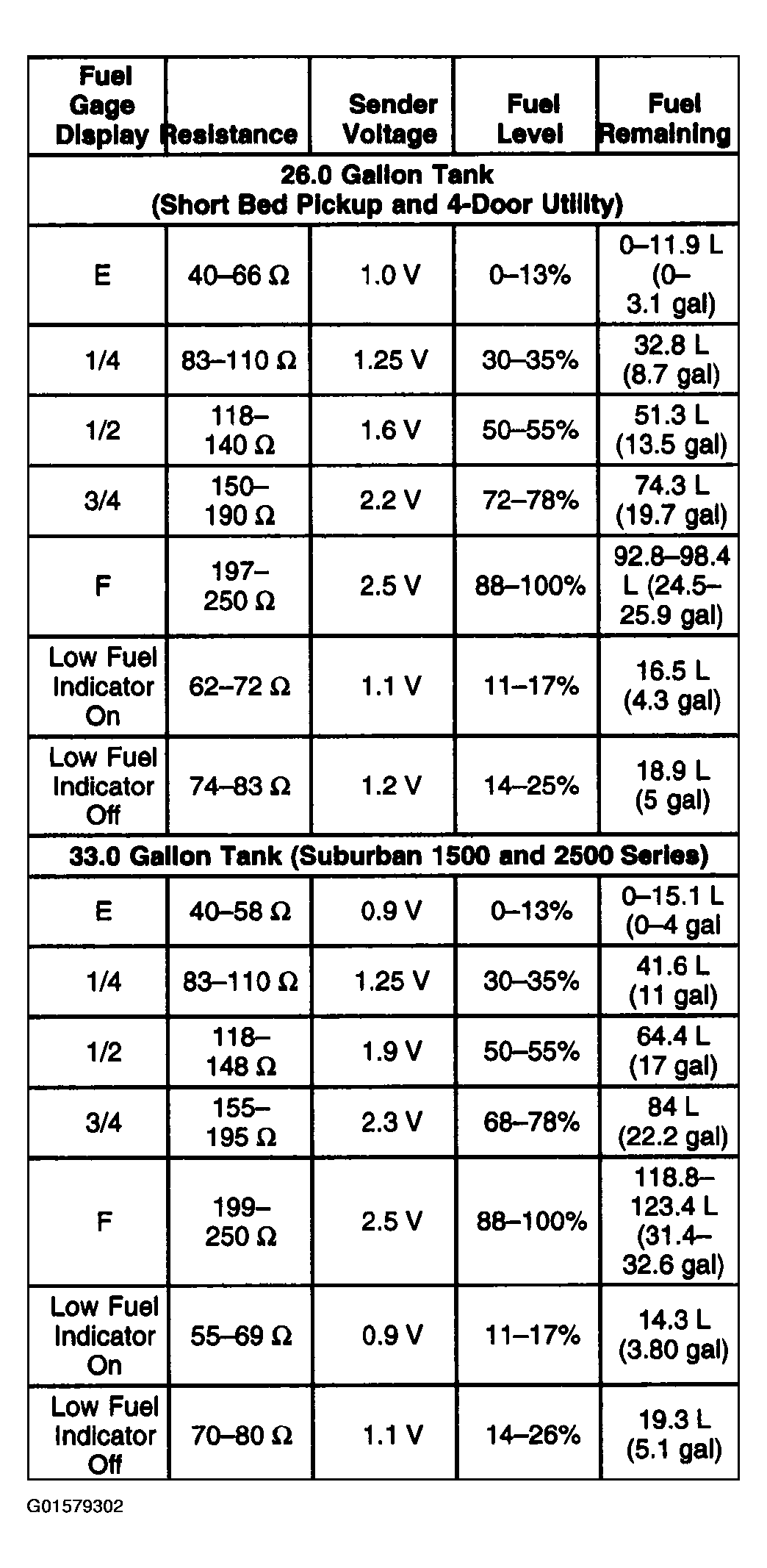

Fig 1: Fuel Level Specifications (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

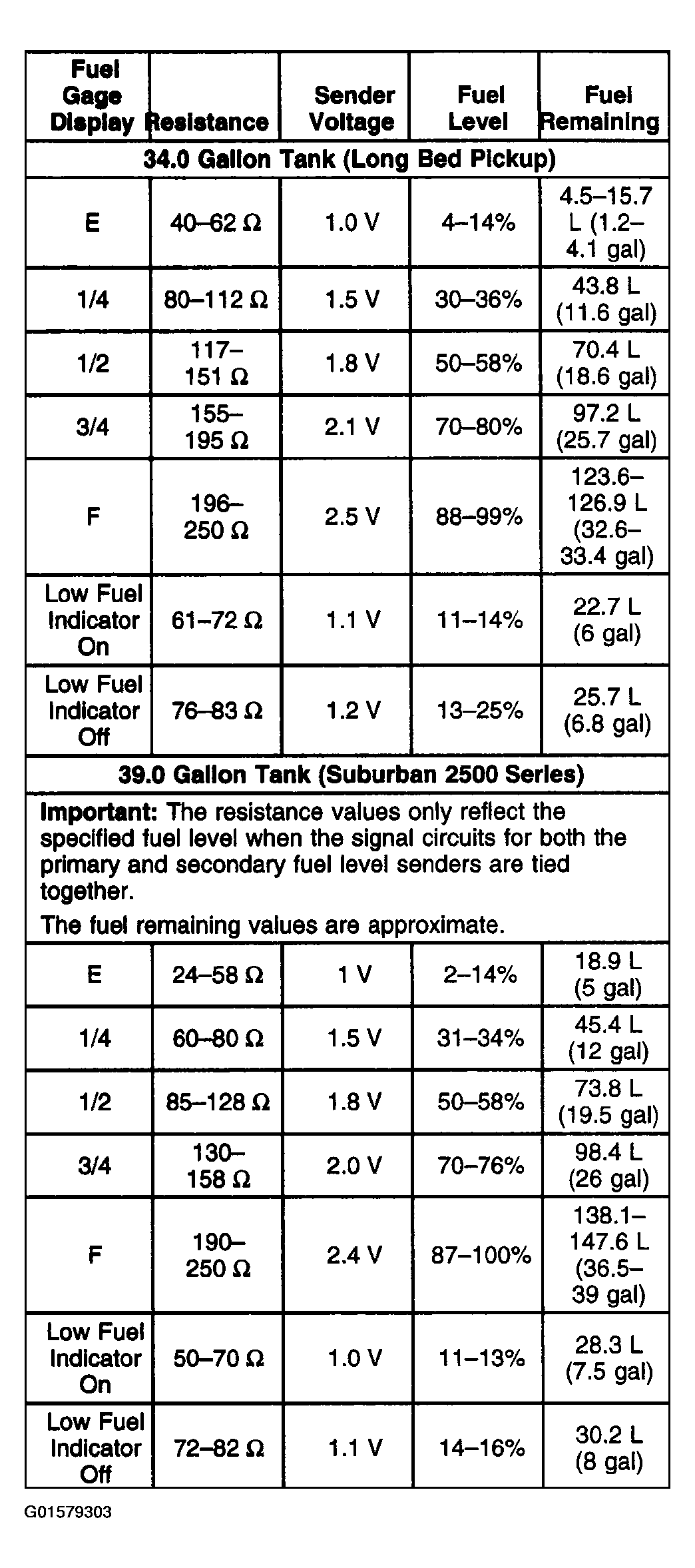

Fig 2: Fuel Level Specifications (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
