Power Seat Systems Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Driver Door Module (DDM)-C5 (Memory/Heated Seat Switch)

G01579107

Courtesy of GENERAL MOTORS CORP.

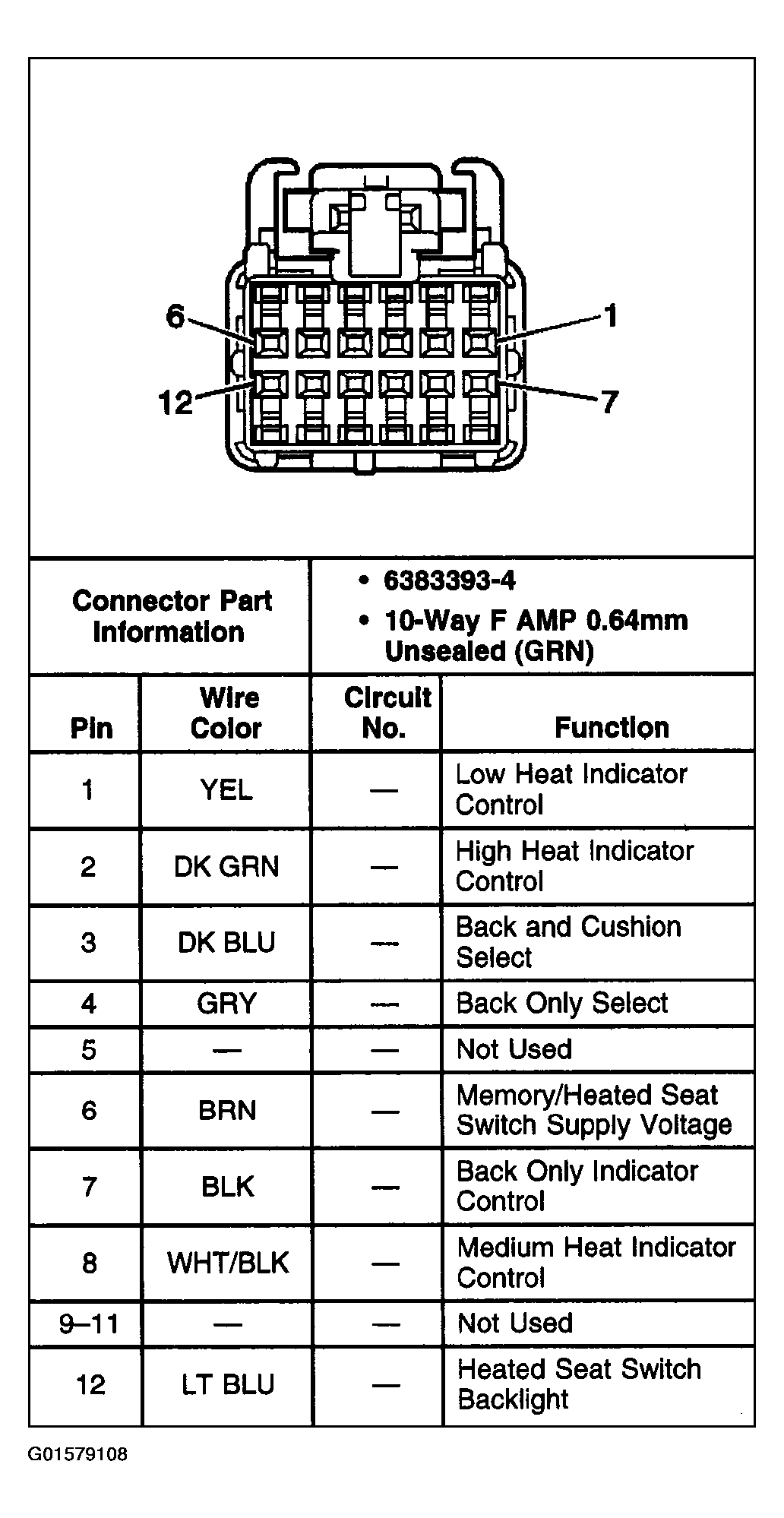

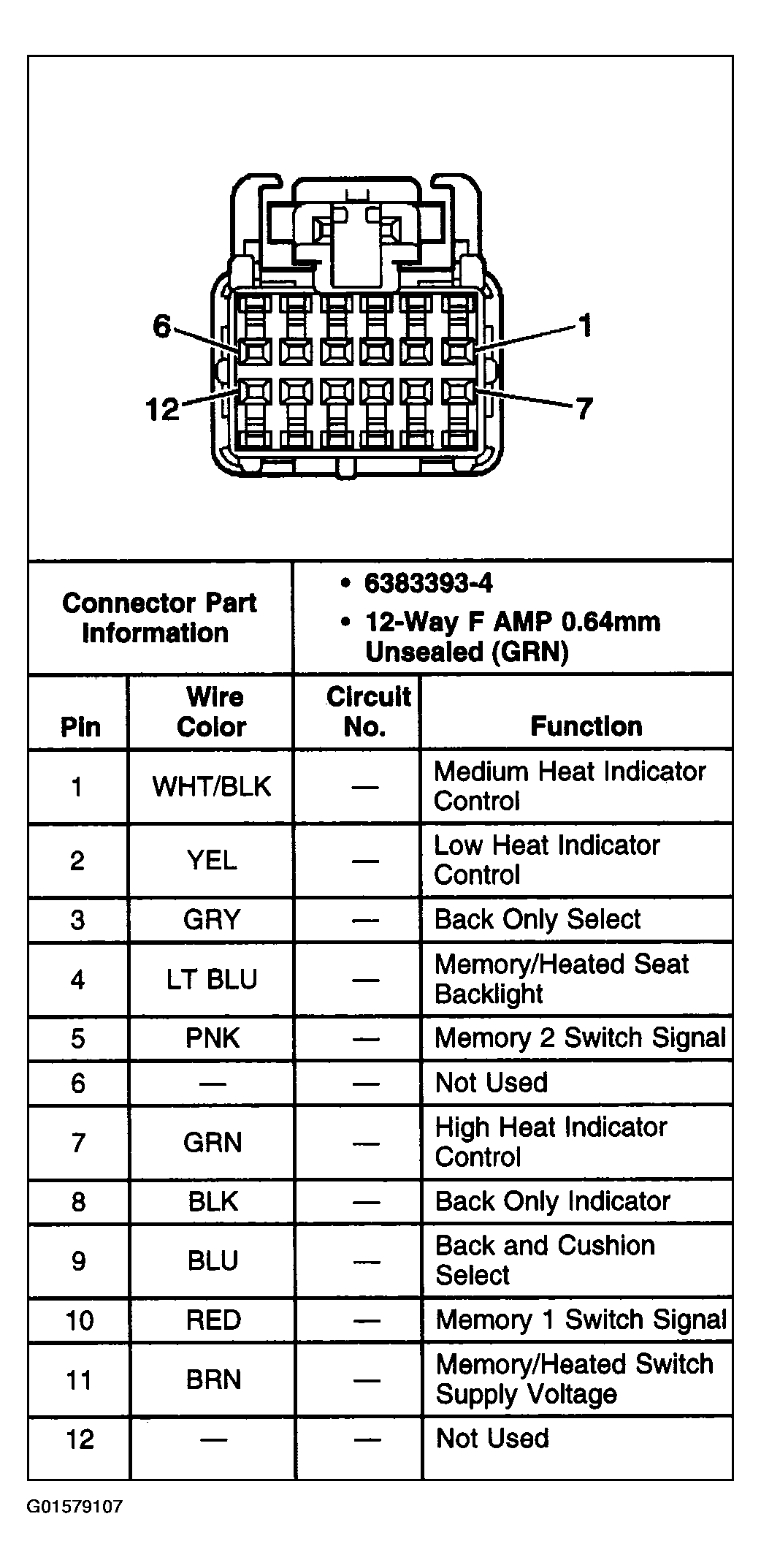

Fig 2: Front Passenger Door Module (FPDM)-C5 (Heated Seat Switch)

G01579108

Courtesy of GENERAL MOTORS CORP.

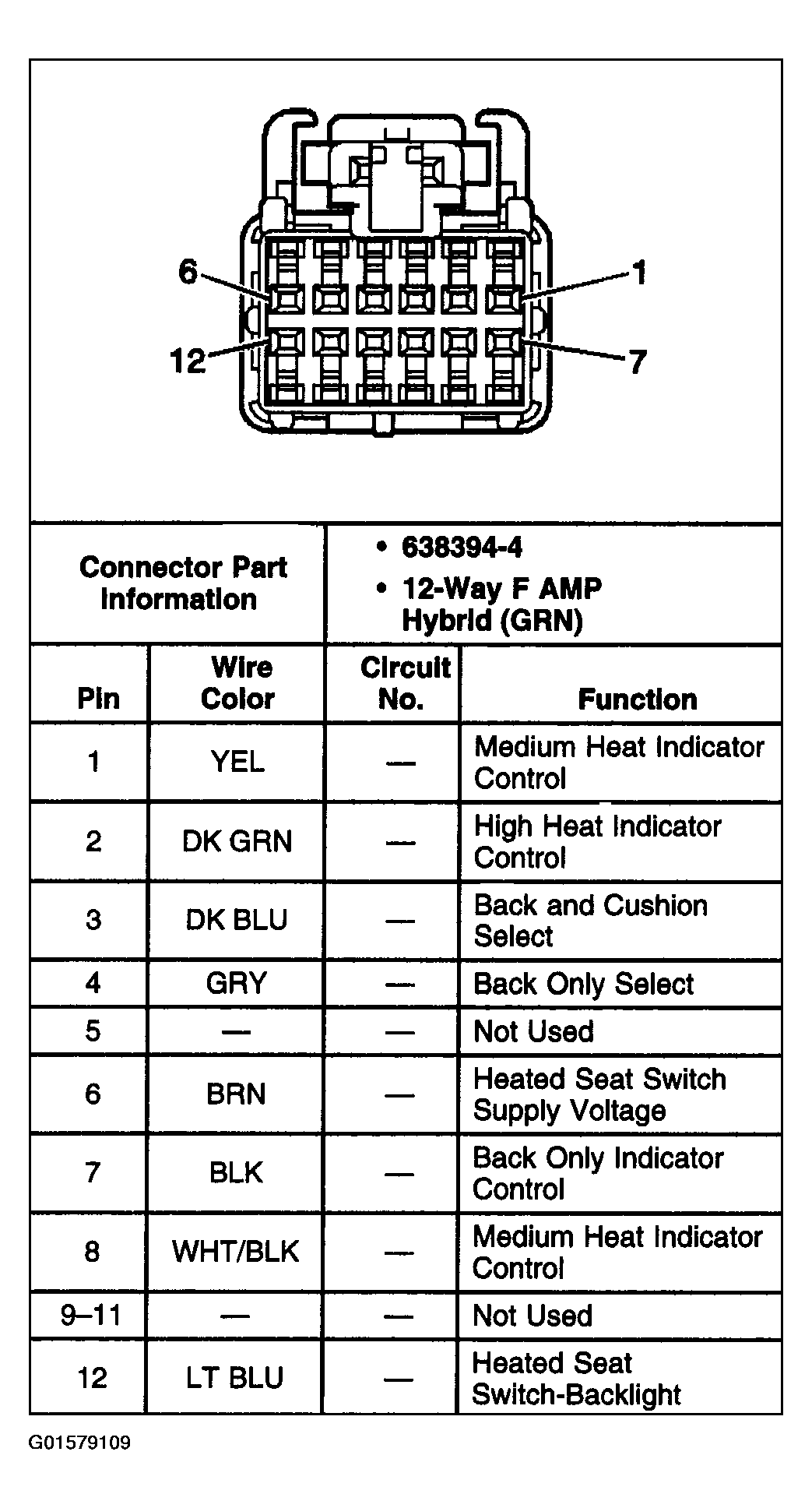

Fig 3: Heated Seat Switch-Front Passenger (FPDM C5)

G01579109

Courtesy of GENERAL MOTORS CORP.

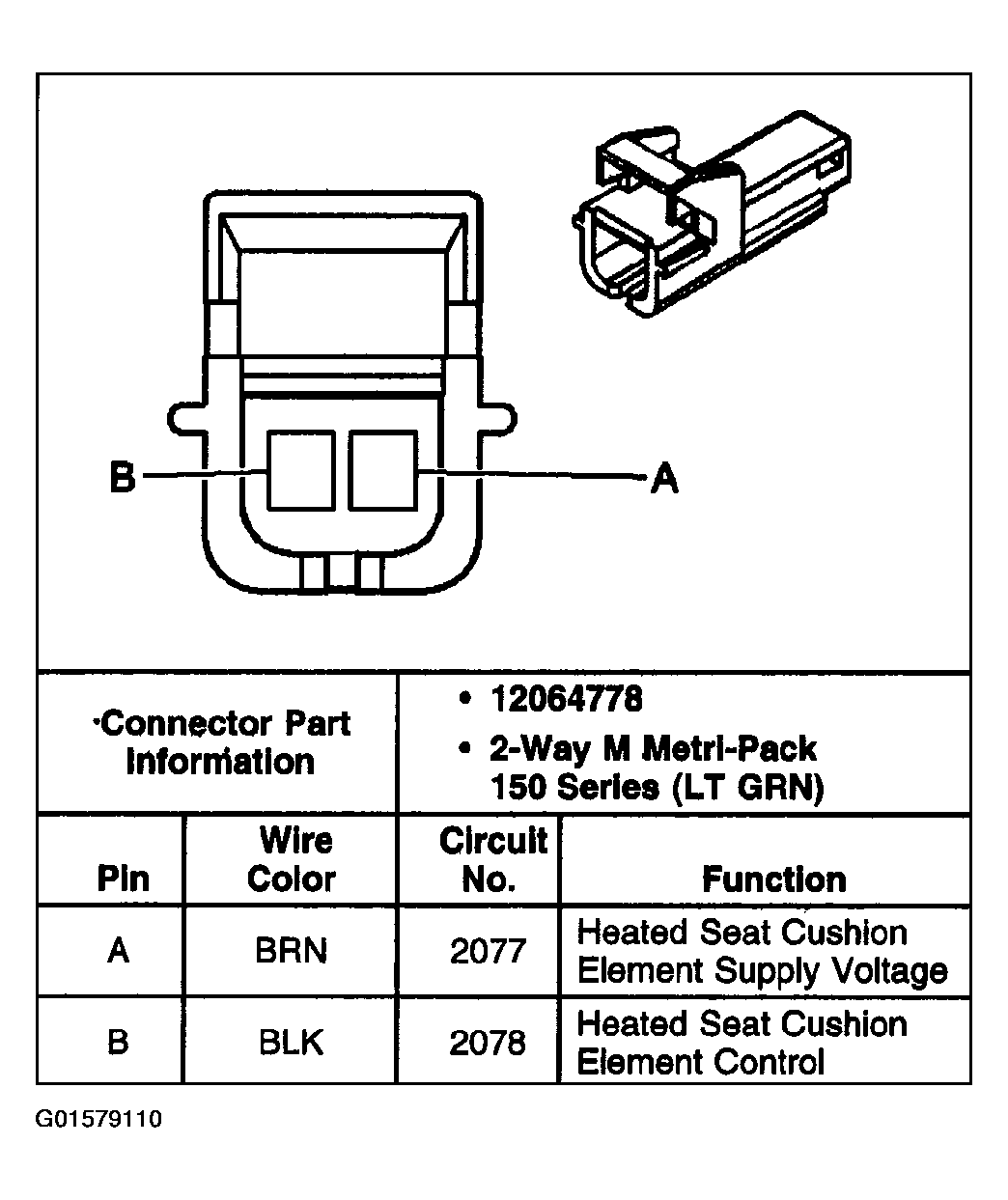

Fig 4: Heated Seat Element-Driver Cushion

G01579110

Courtesy of GENERAL MOTORS CORP.

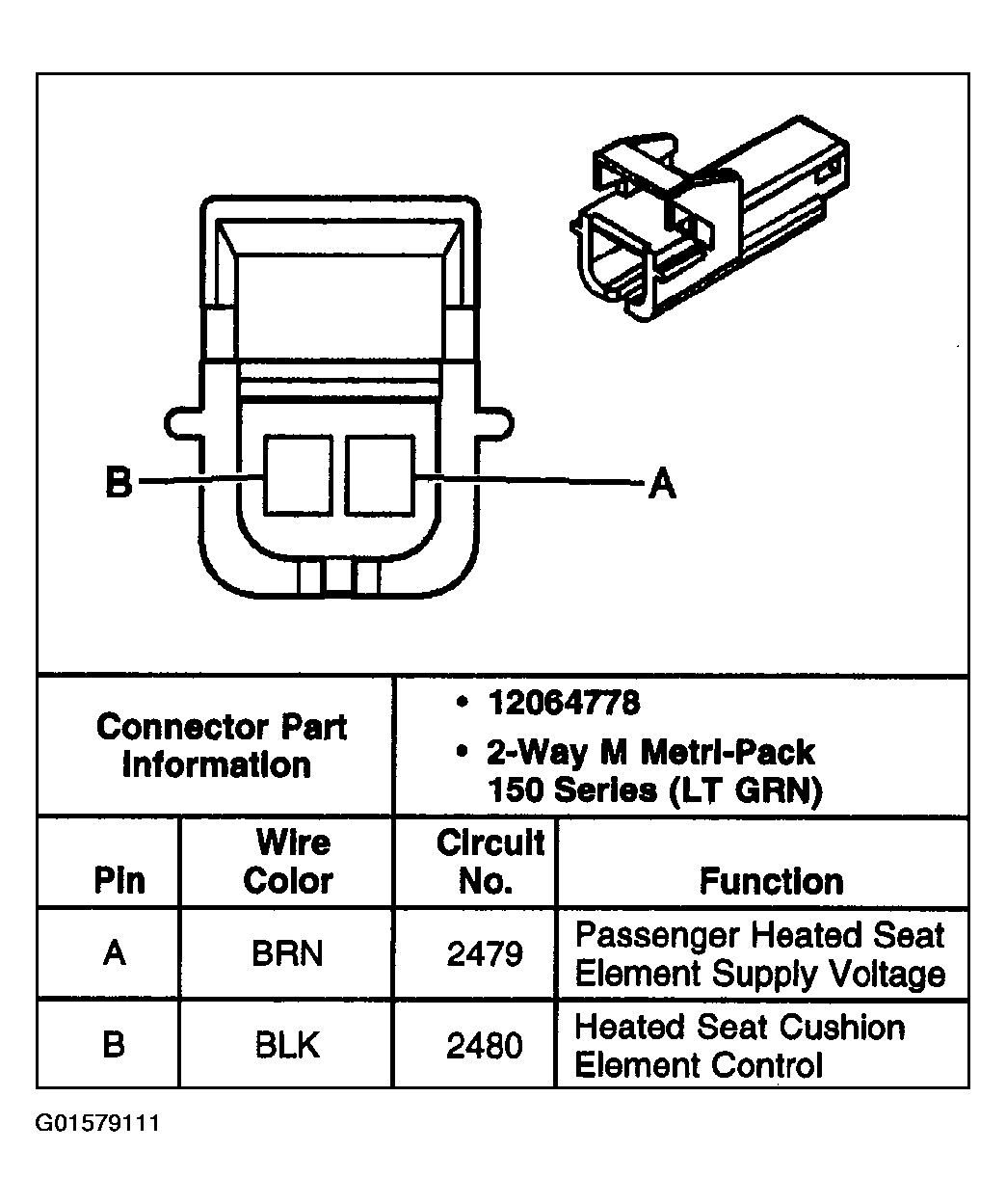

Fig 5: Heated Seat Element-Front Passenger Cushion

G01579111

Courtesy of GENERAL MOTORS CORP.

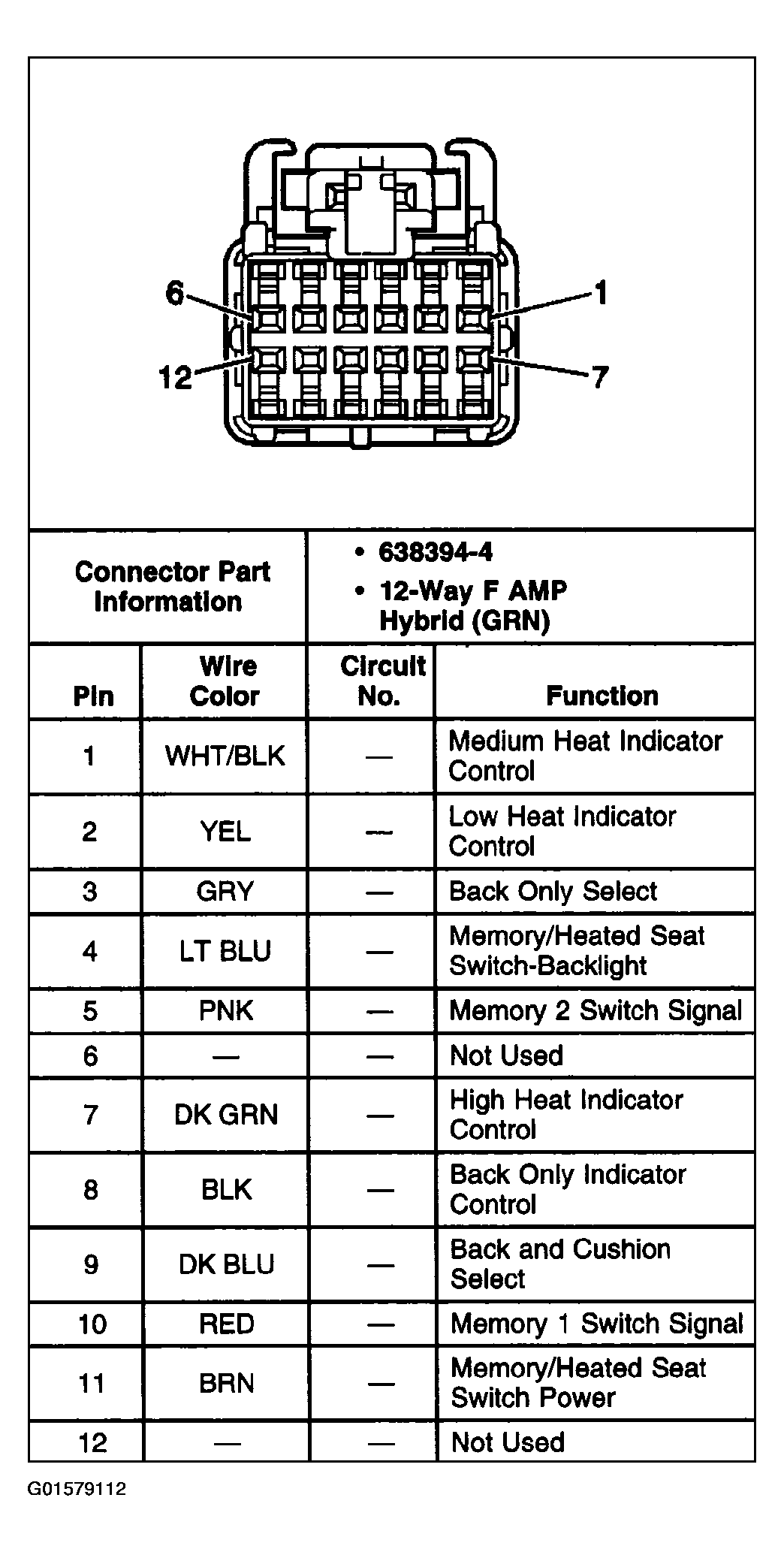

Fig 6: Memory/Heated Seat Switch-Driver (DDM C5)

G01579112

Courtesy of GENERAL MOTORS CORP.

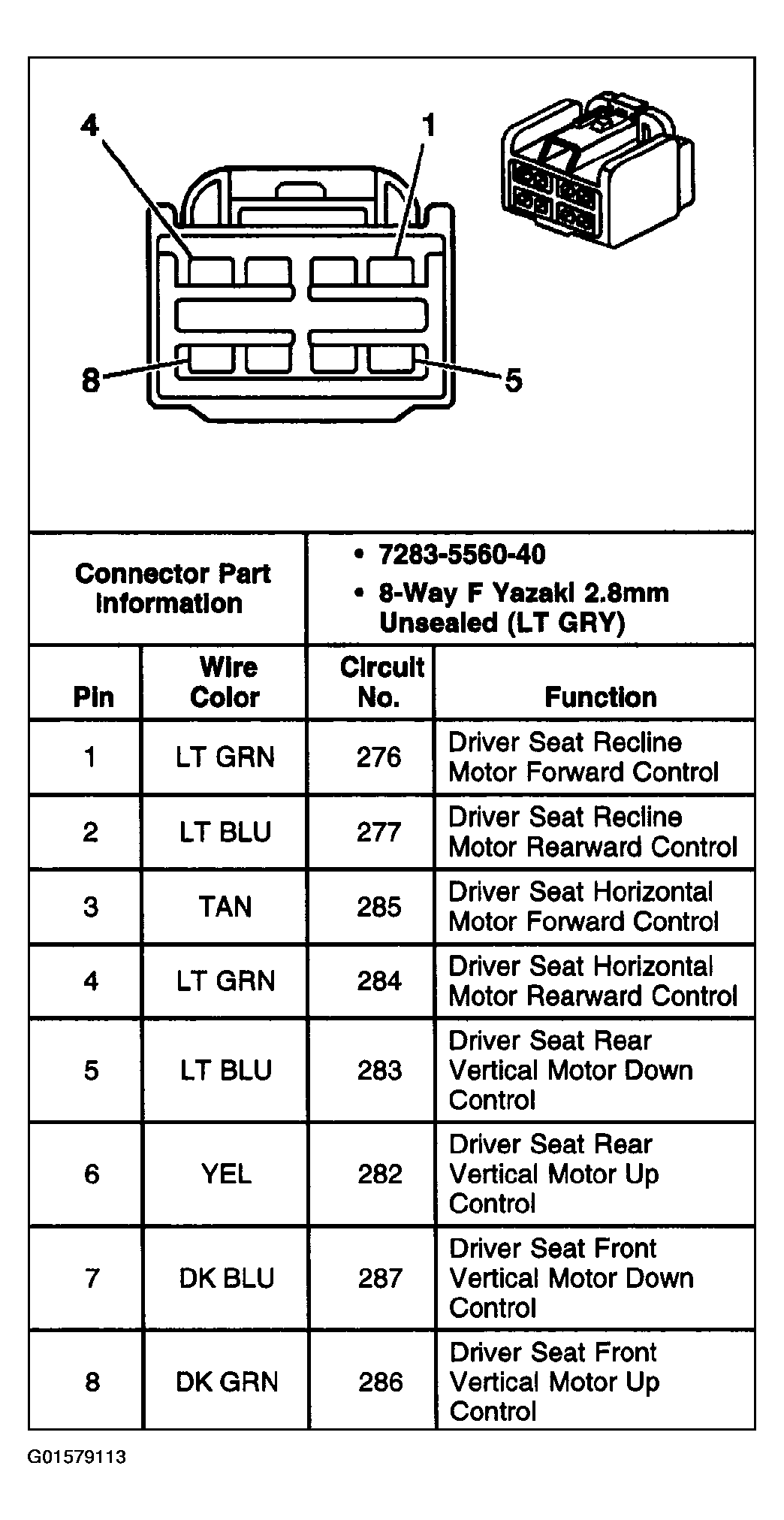

Fig 7: Memory Seat Module-C1

G01579113

Courtesy of GENERAL MOTORS CORP.

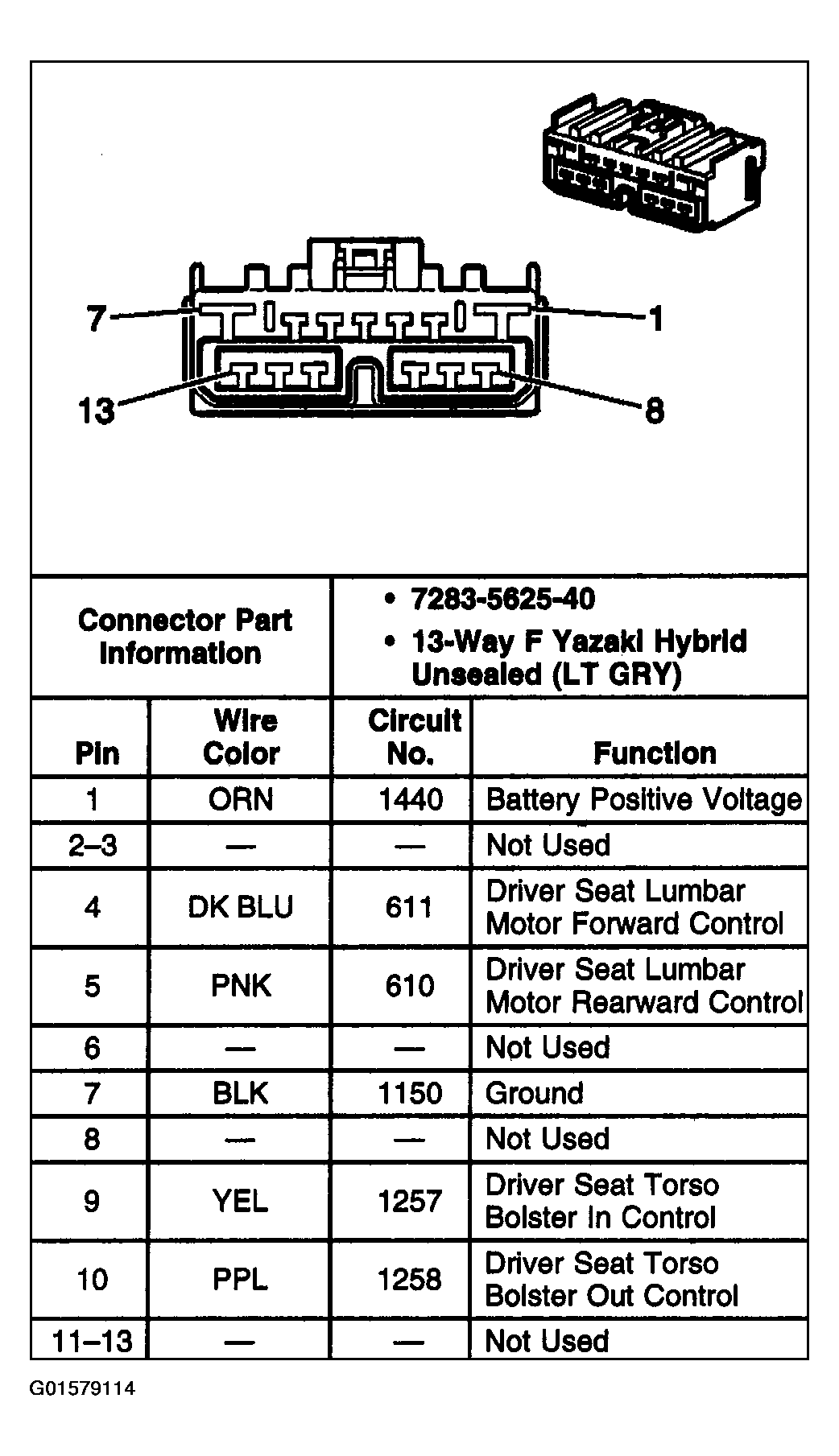

Fig 8: Memory Seat Module-C2

G01579114

Courtesy of GENERAL MOTORS CORP.

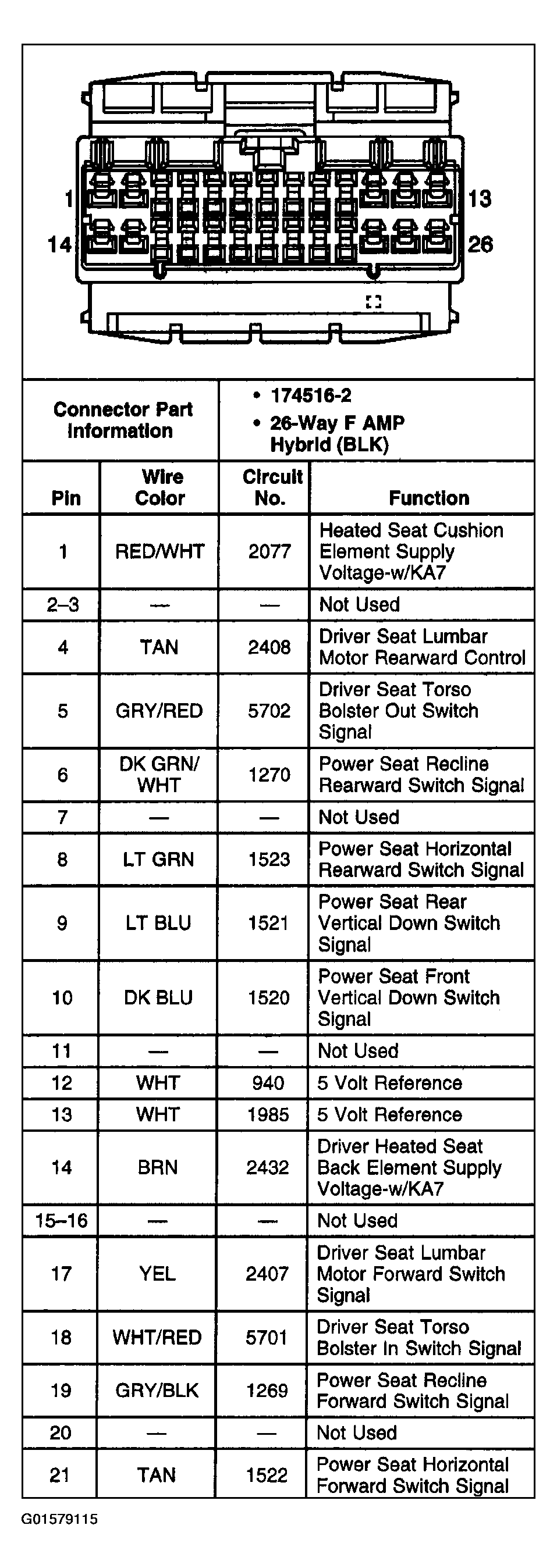

Fig 9: Memory Seat Module-C3 (1 Of 2)

G01579115

Courtesy of GENERAL MOTORS CORP.

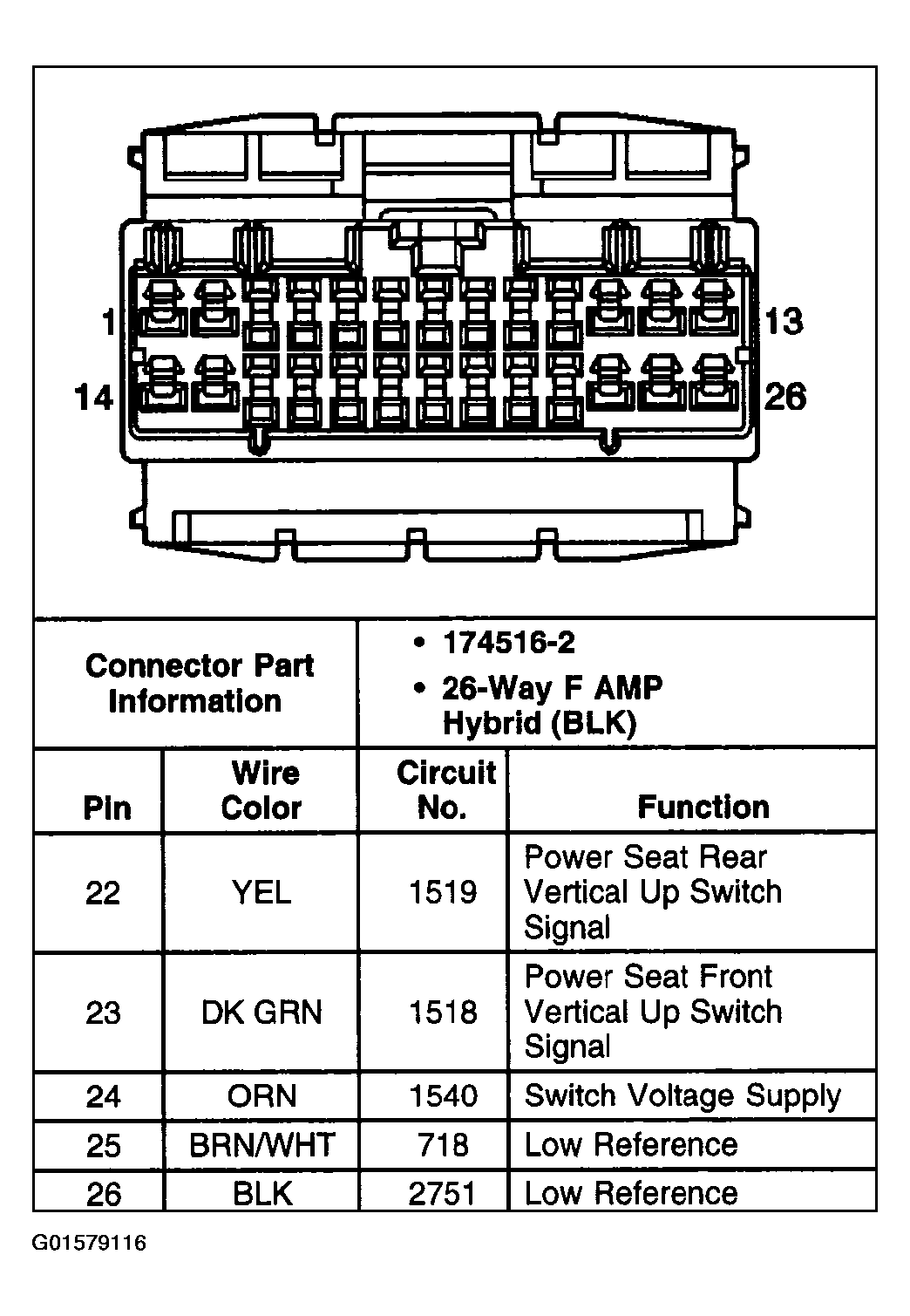

Fig 10: Memory Seat Module-C3 (2 Of 2)

G01579116

Courtesy of GENERAL MOTORS CORP.

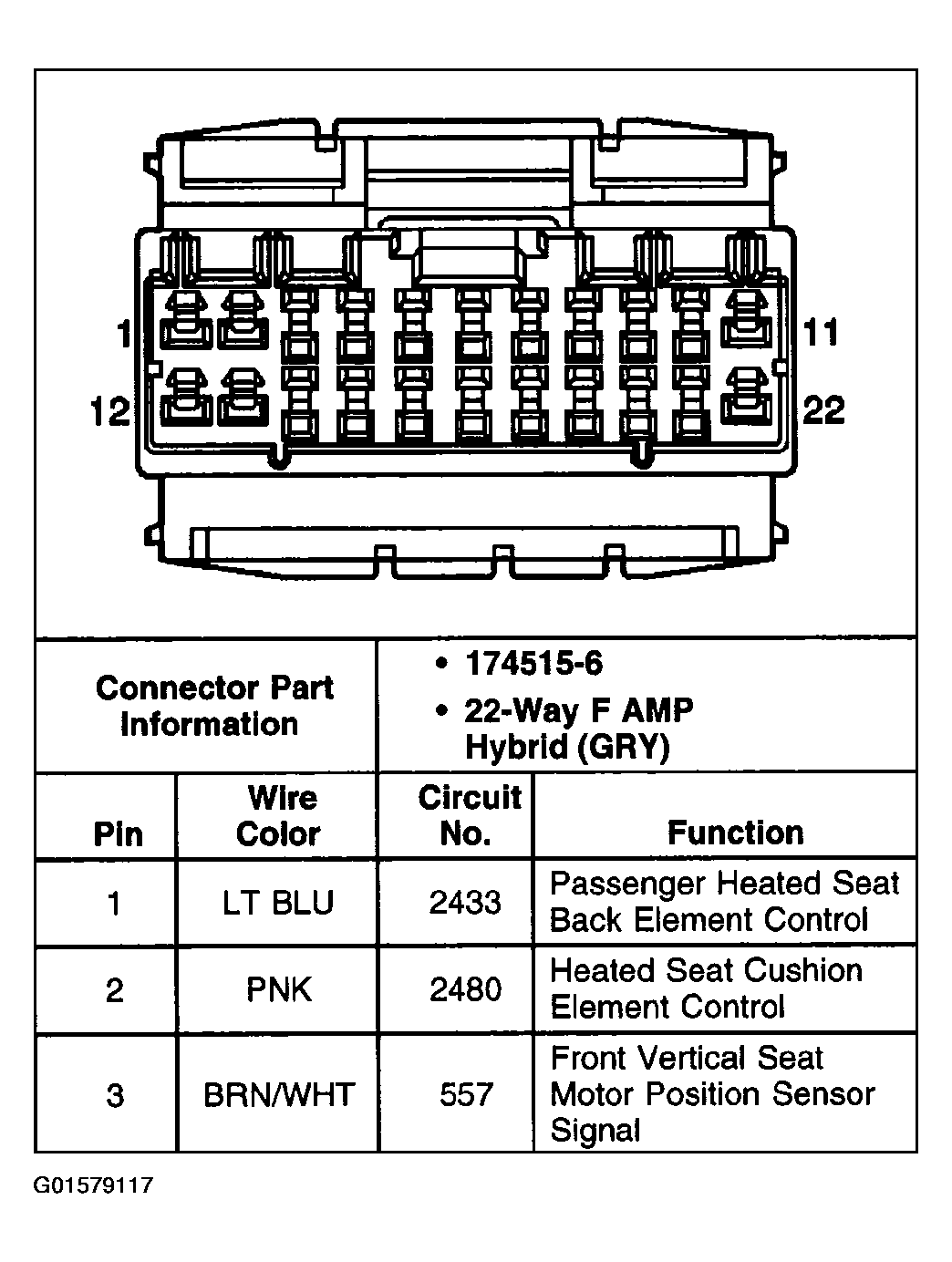

Fig 11: Memory Seat Module-C4 (1 Of 2)

G01579117

Courtesy of GENERAL MOTORS CORP.

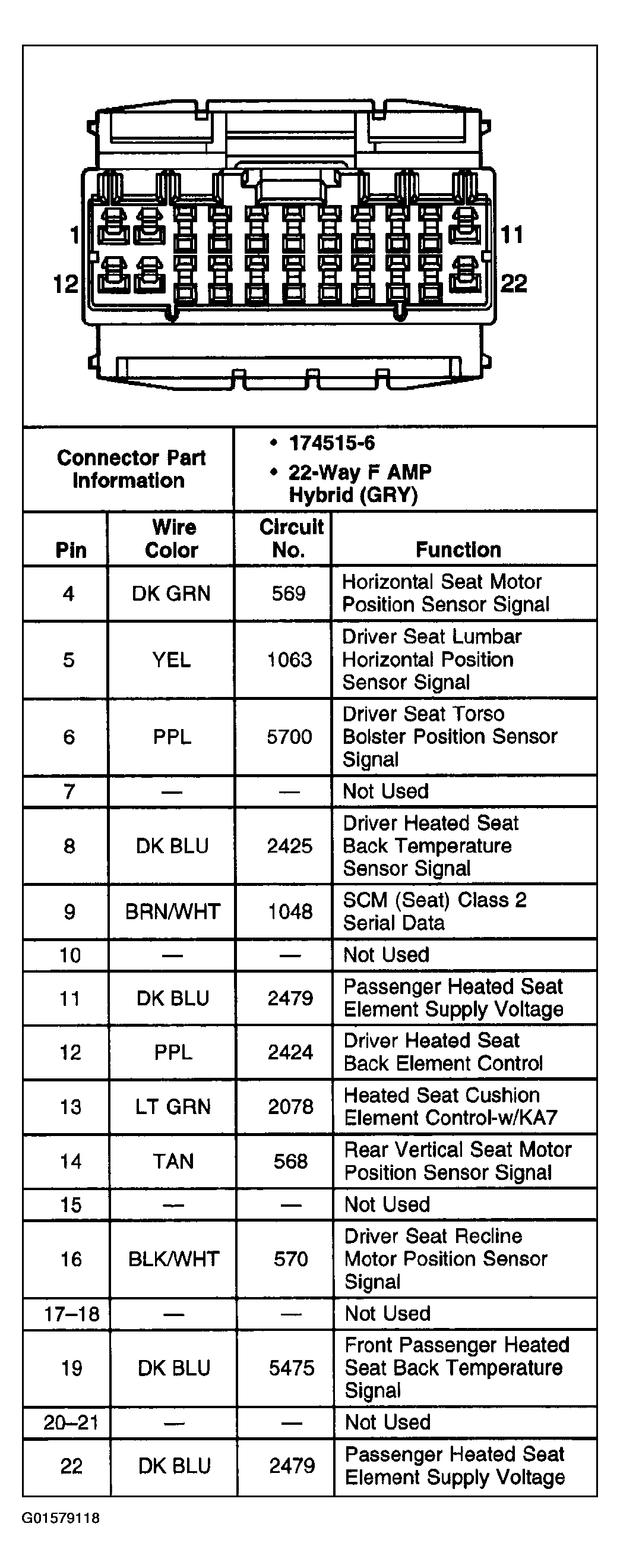

Fig 12: Memory Seat Module-C4 (2 Of 2)

G01579118

Courtesy of GENERAL MOTORS CORP.

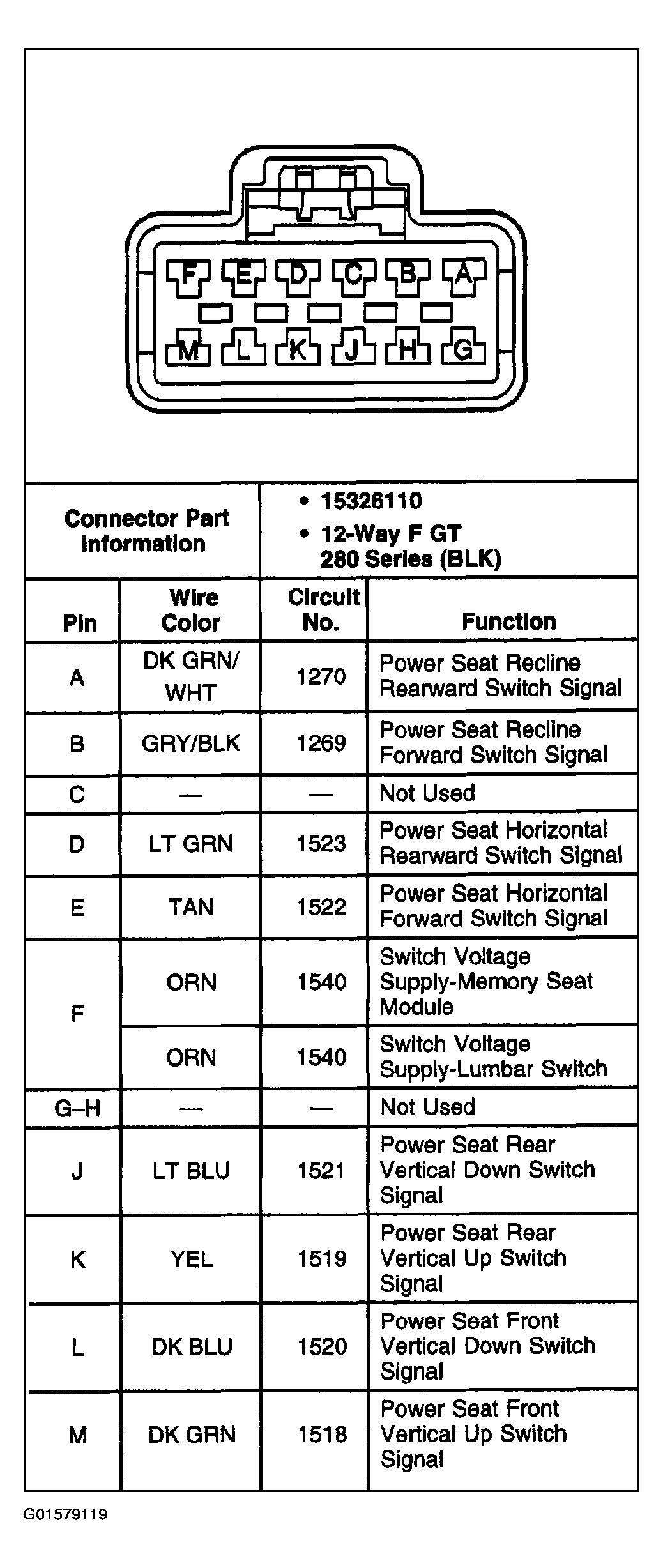

Fig 13: Seat Adjuster Switch-Driver (W/ AN3)

G01579119

Courtesy of GENERAL MOTORS CORP.

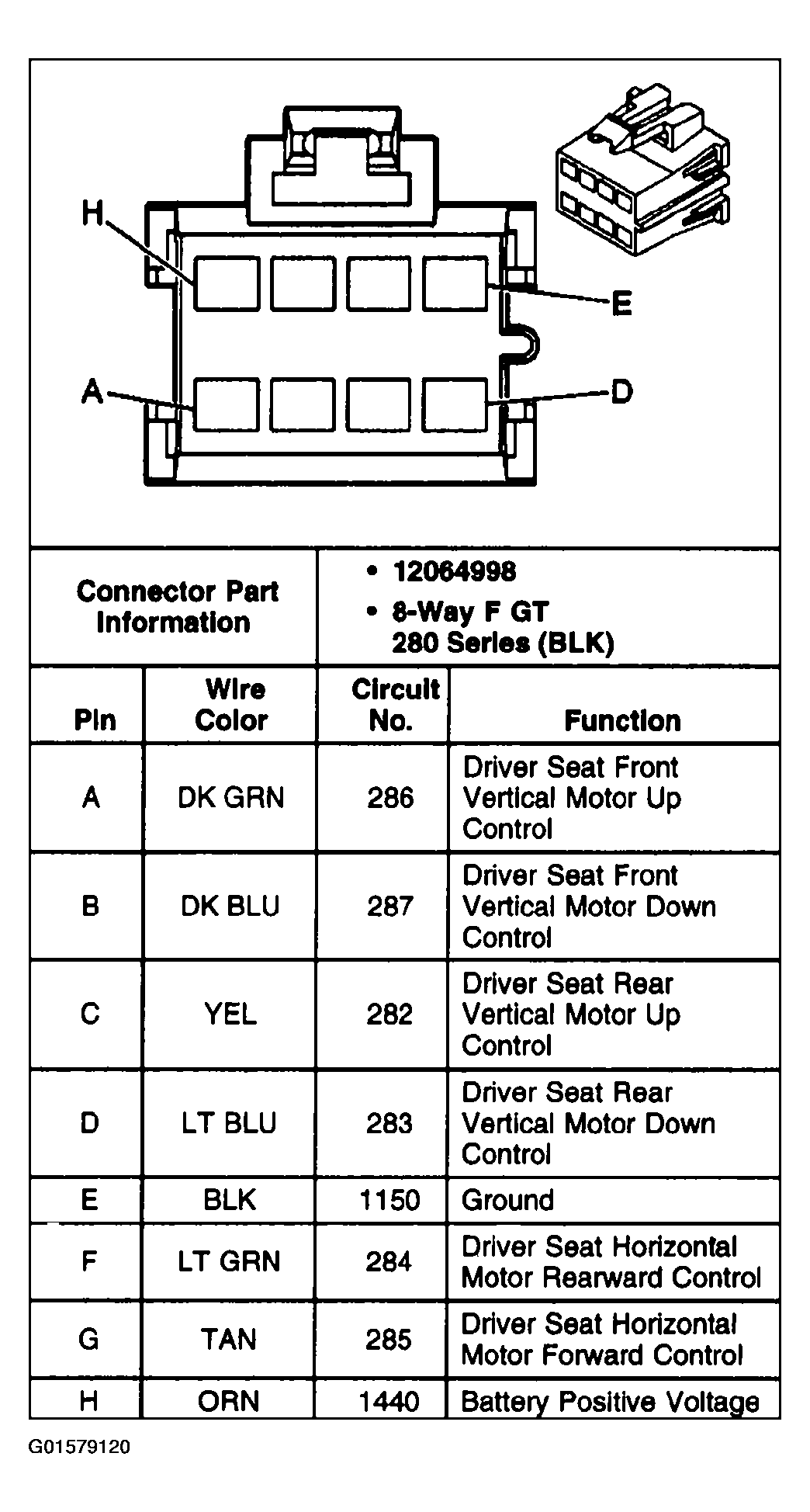

Fig 14: Seat Adjuster Switch-Driver (W/AG1)

G01579120

Courtesy of GENERAL MOTORS CORP.

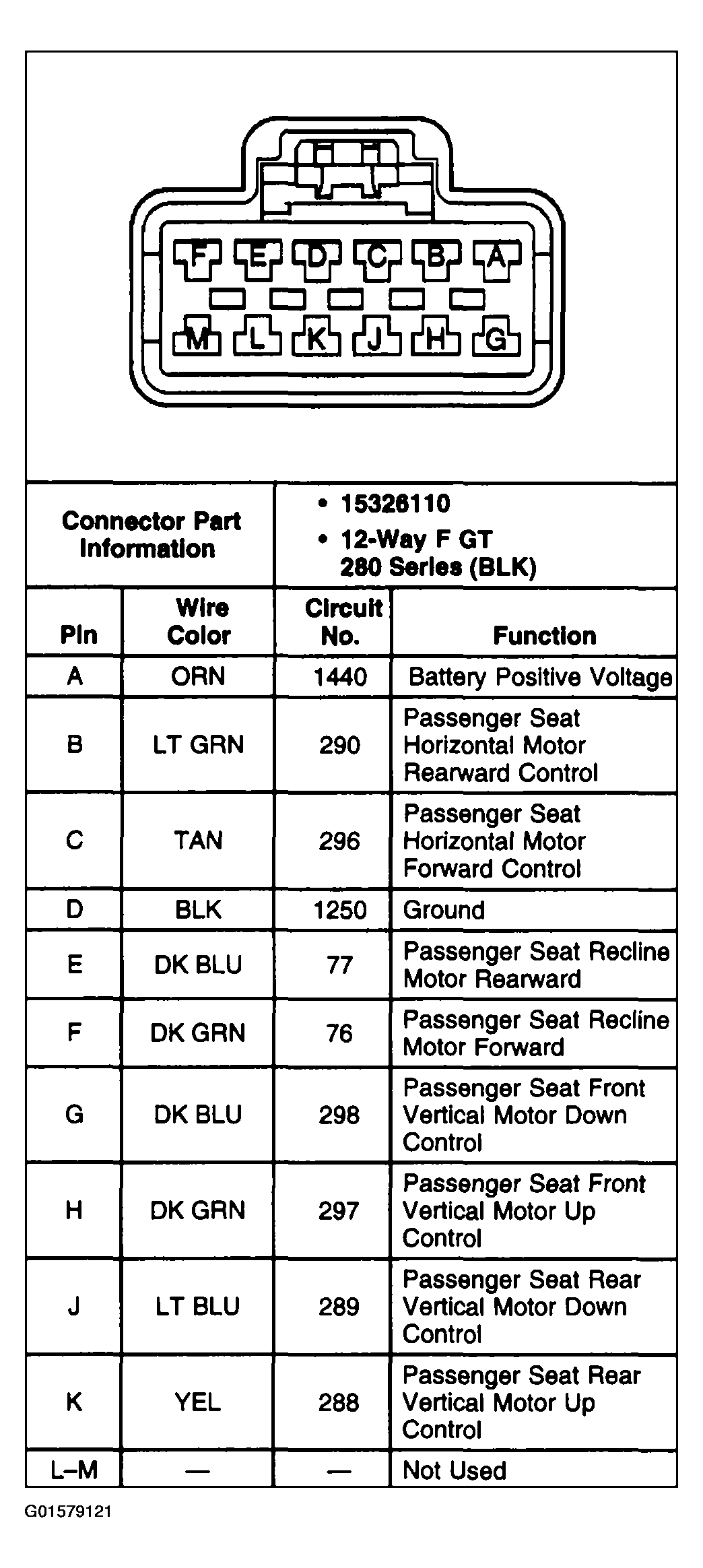

Fig 15: Seat Adjuster Switch-Front Passenger (W/ AN3)

G01579121

Courtesy of GENERAL MOTORS CORP.

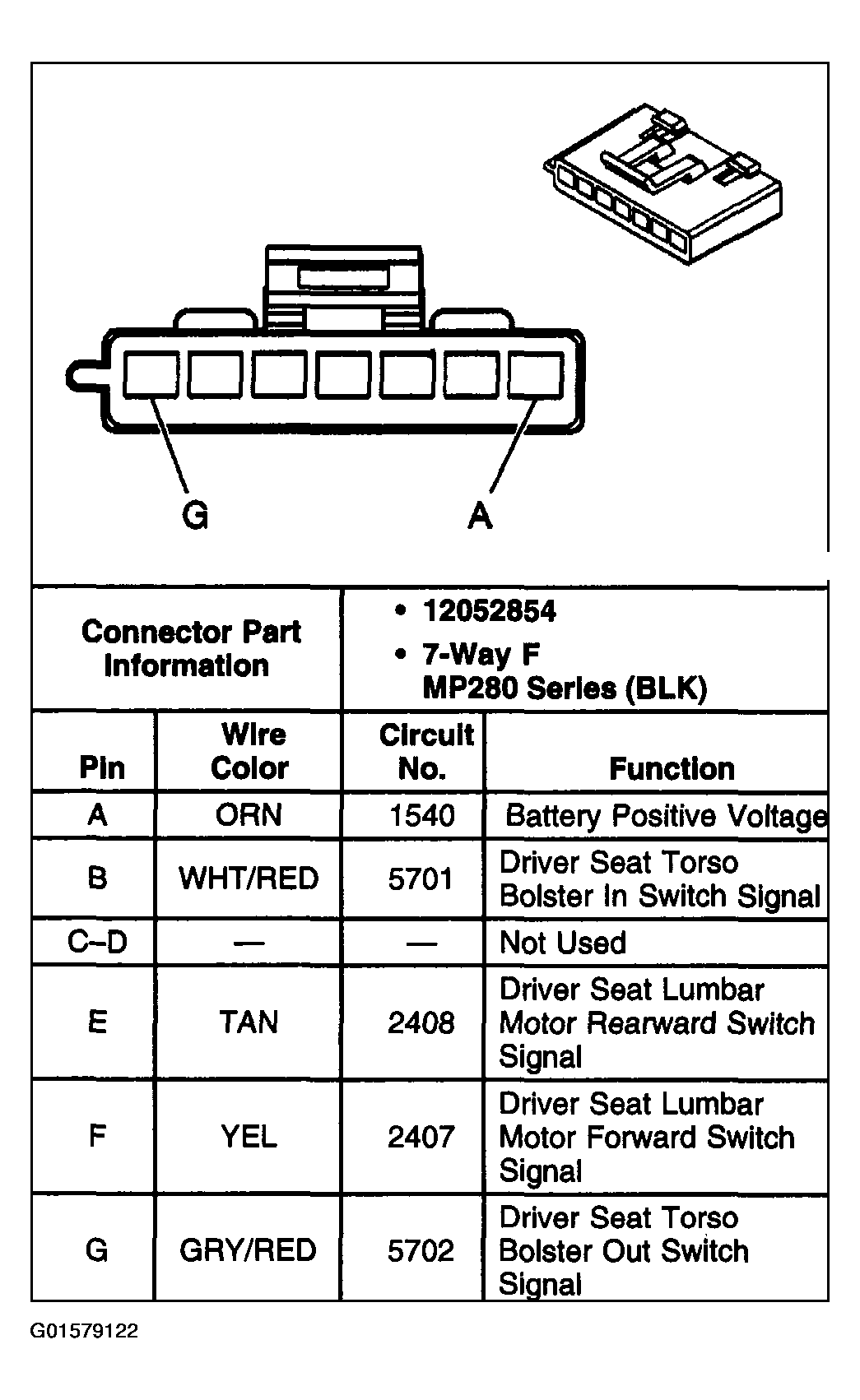

Fig 16: Seat Bolster/Lumber Switch-Driver (W/ AN3)

G01579122

Courtesy of GENERAL MOTORS CORP.

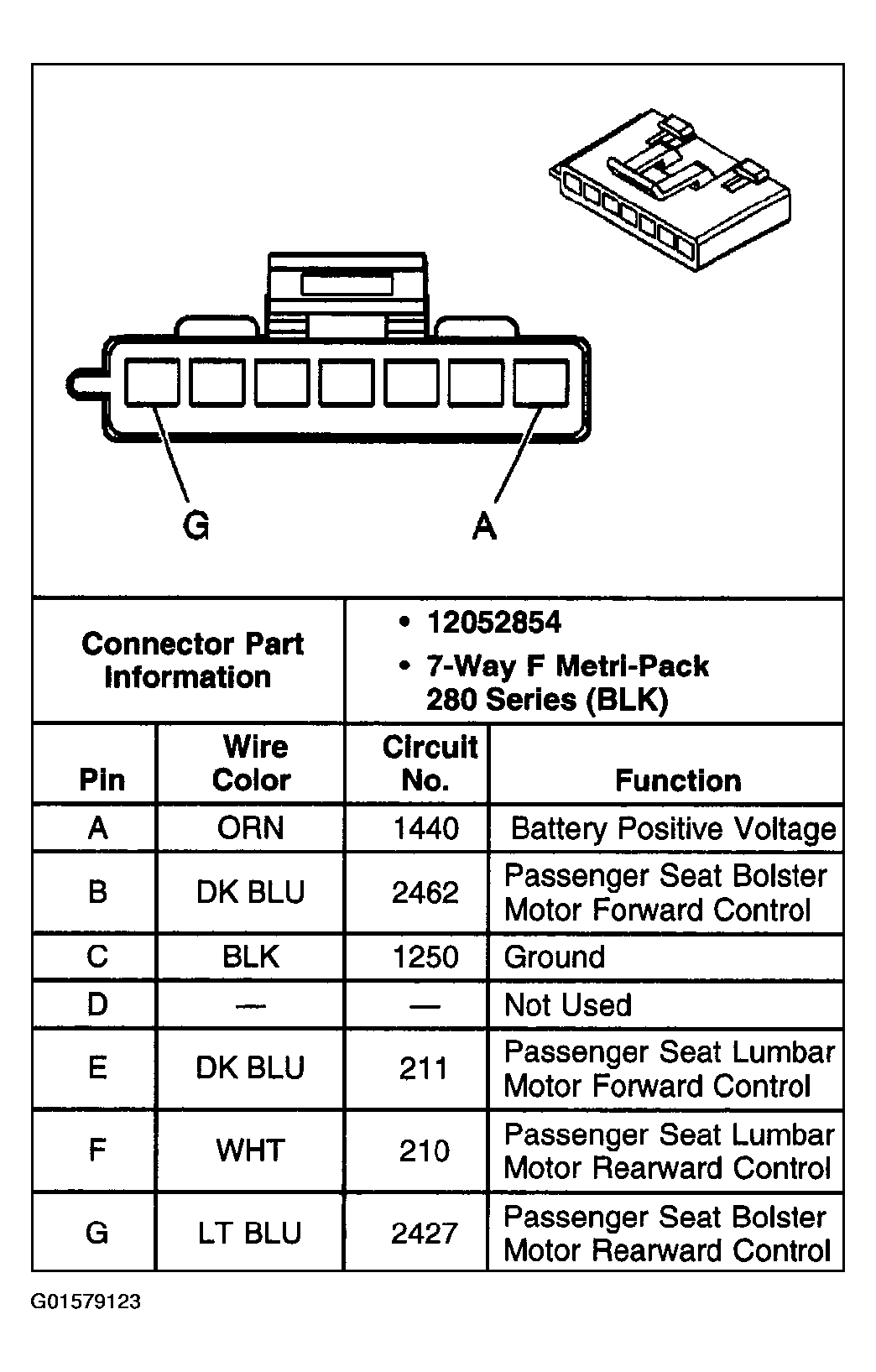

Fig 17: Seat Bolster/Lumbar Switch-Front Passenger (W/ AN3)

G01579123

Courtesy of GENERAL MOTORS CORP.

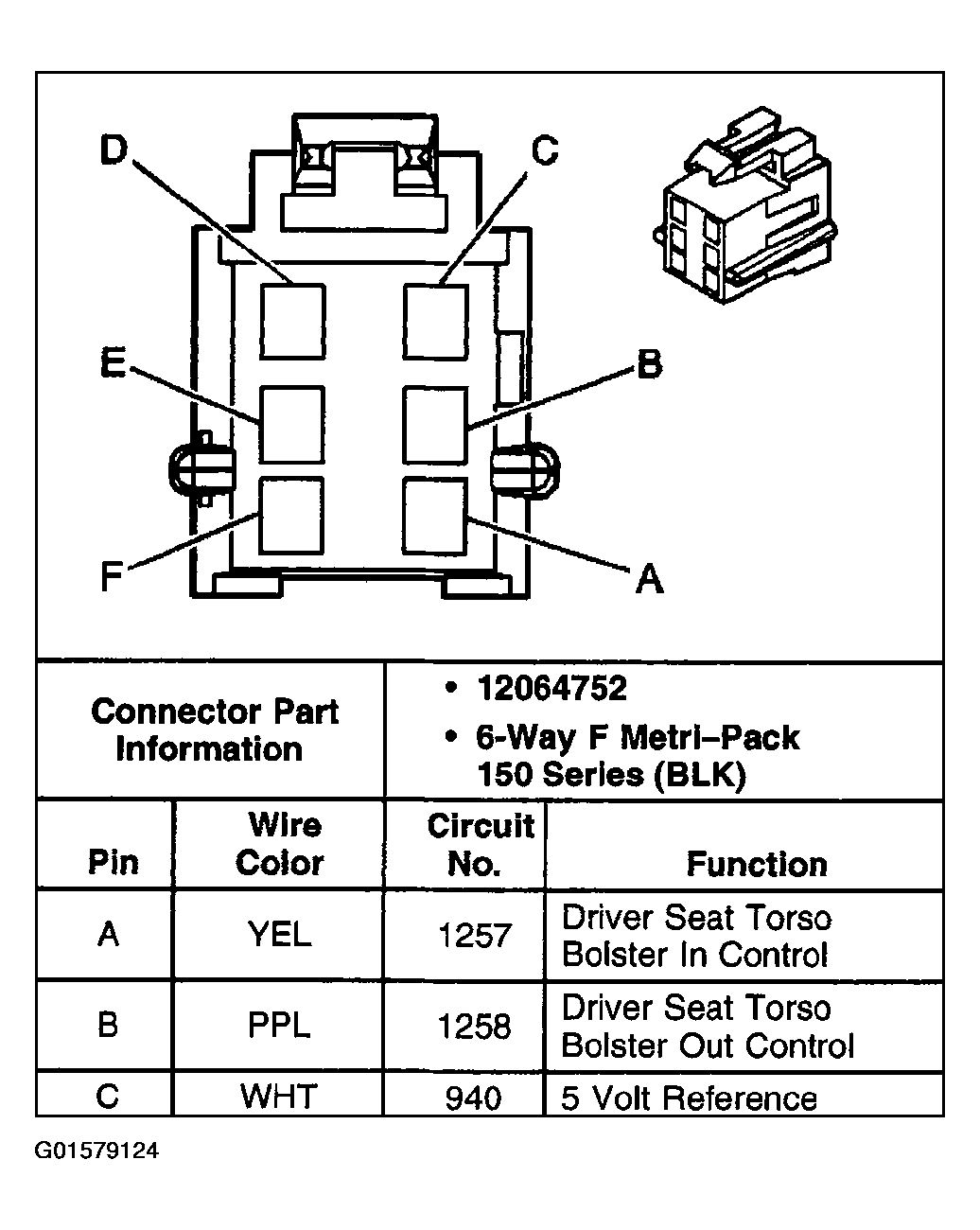

Fig 18: Seat Bolster Motor/Position Sensor-Driver (W/ AN3) (1 Of 2)

G01579124

Courtesy of GENERAL MOTORS CORP.

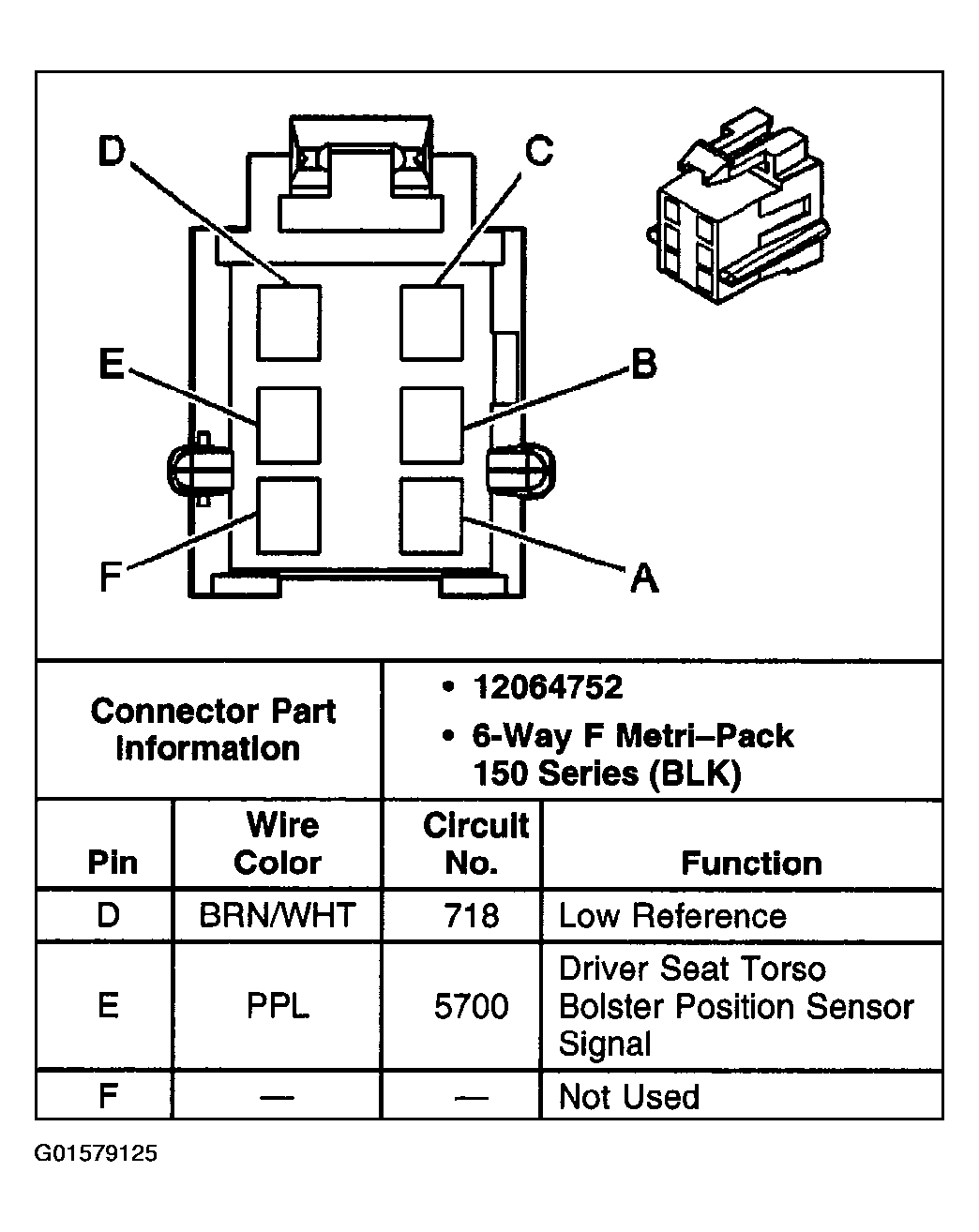

Fig 19: Seat Bolster Motor/Position Sensor-Driver (W/ AN3) (2 Of 2)

G01579125

Courtesy of GENERAL MOTORS CORP.

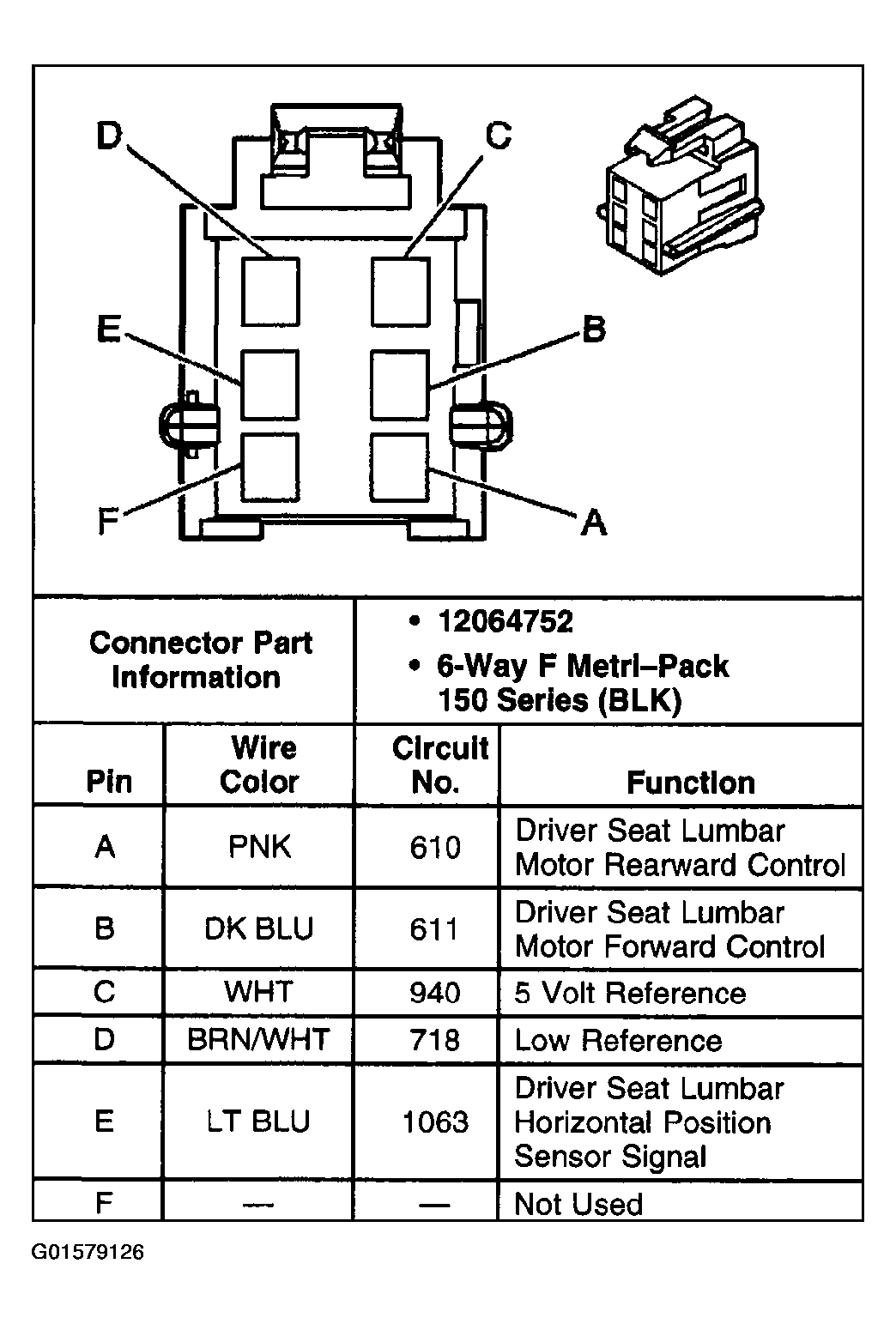

Fig 20: Seat Lumbar Motor/Position Sensor-Drive (W/AN3)

G01579126

Courtesy of GENERAL MOTORS CORP.

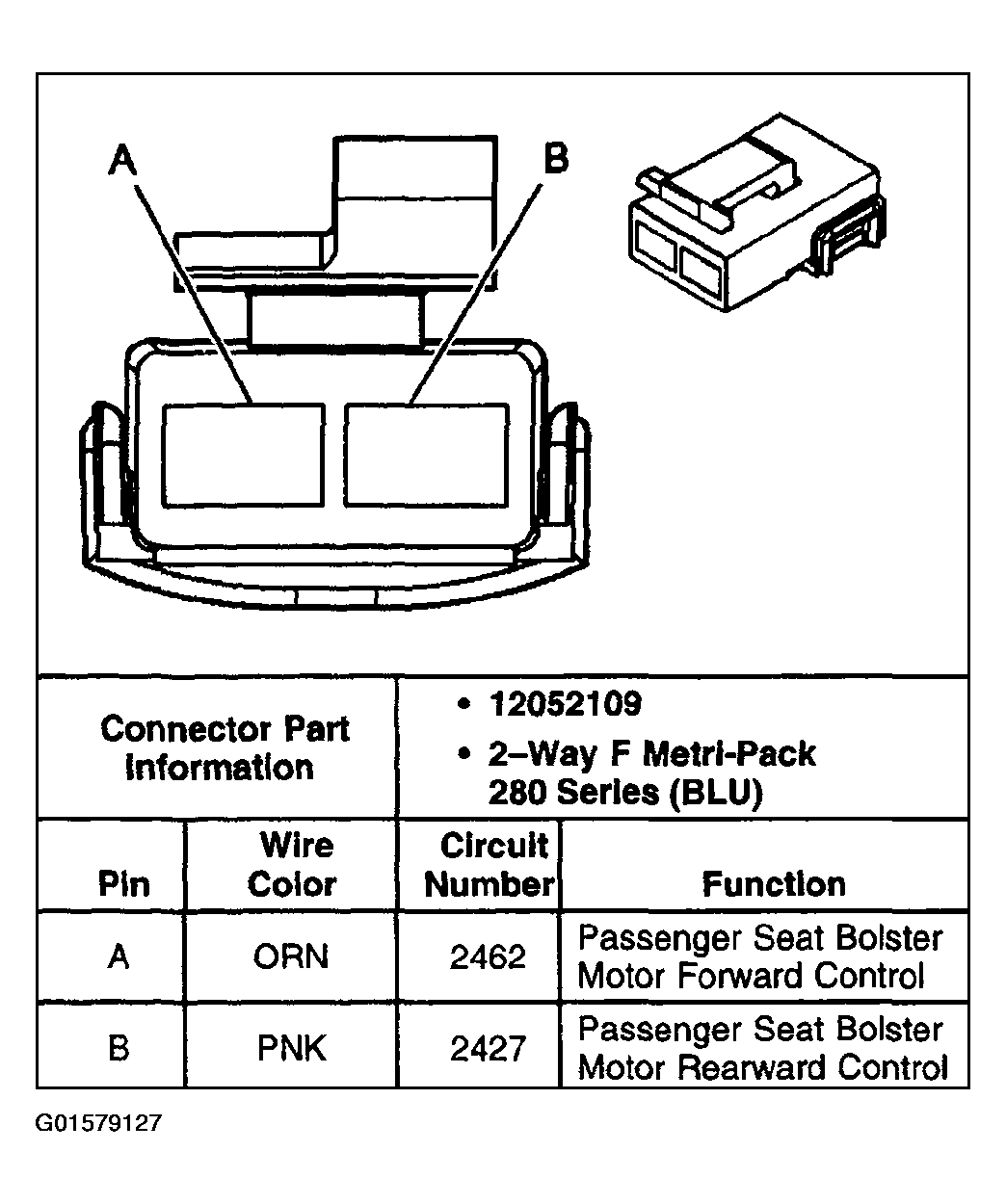

Fig 21: Seat Bolster Motor-Front Passenger (W/AN3)

G01579127

Courtesy of GENERAL MOTORS CORP.

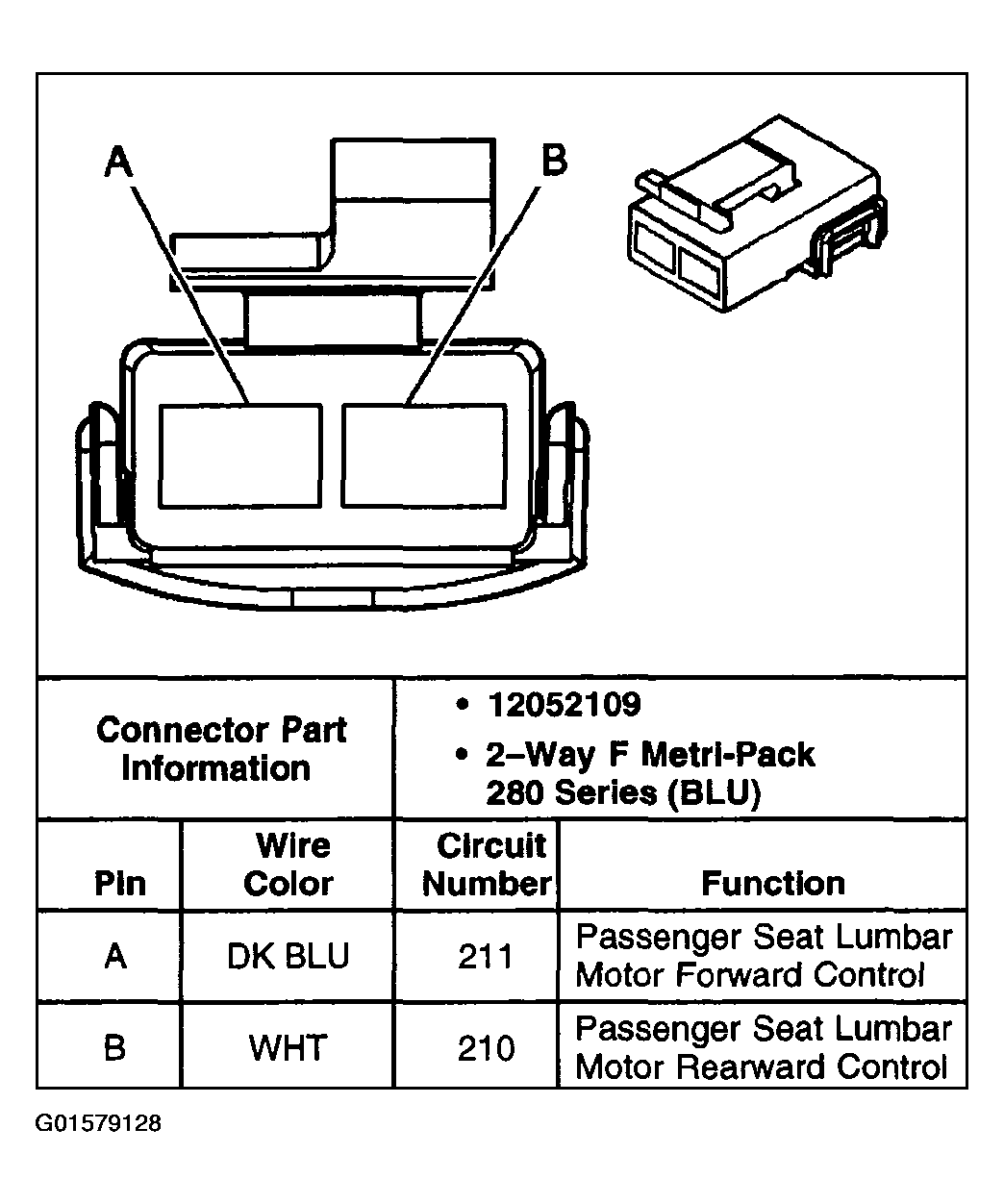

Fig 22: Seat Lumbar Motor-Front Passenger (W/ AN3)

G01579128

Courtesy of GENERAL MOTORS CORP.

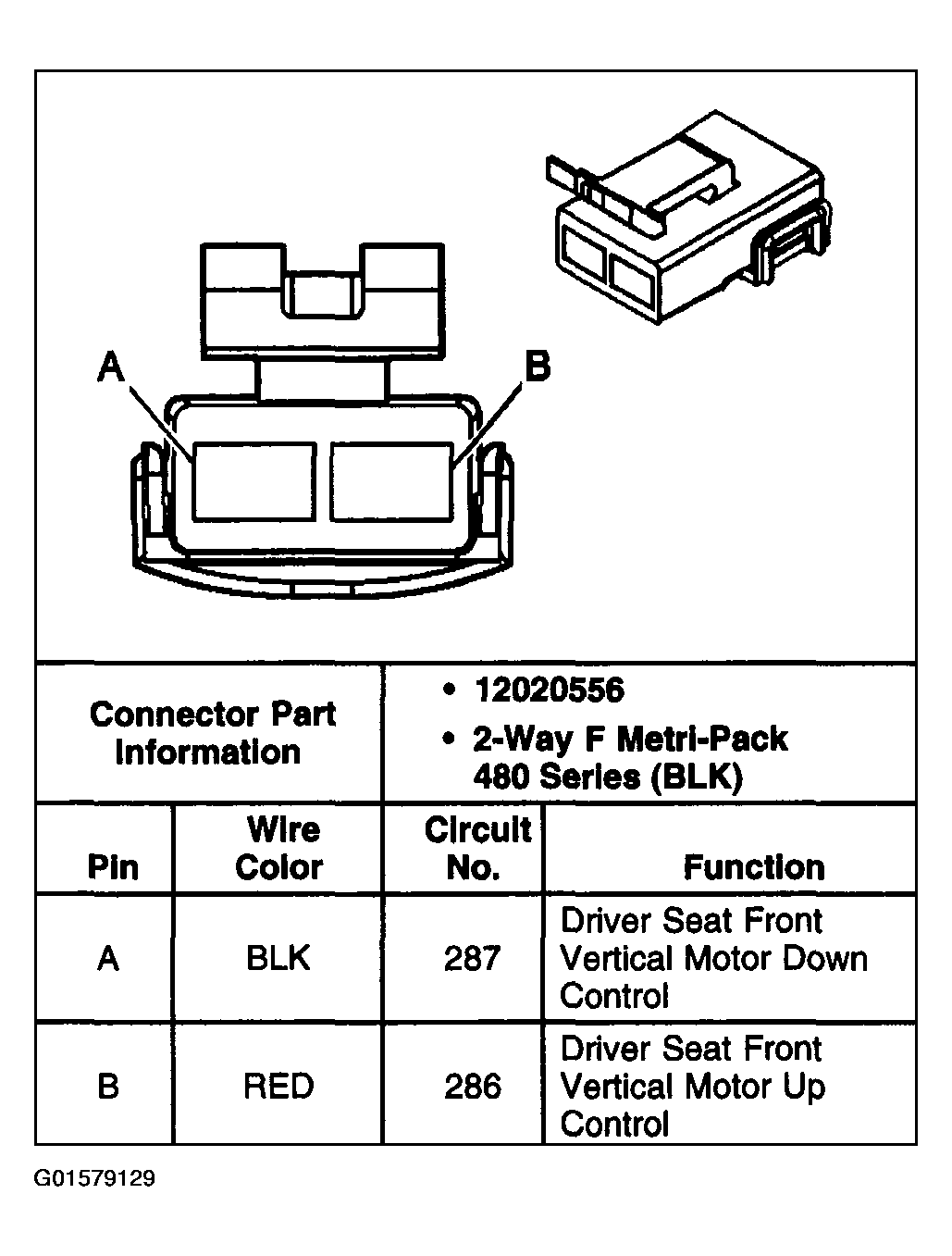

Fig 23: Seat Front Vertical Motor-Driver

G01579129

Courtesy of GENERAL MOTORS CORP.

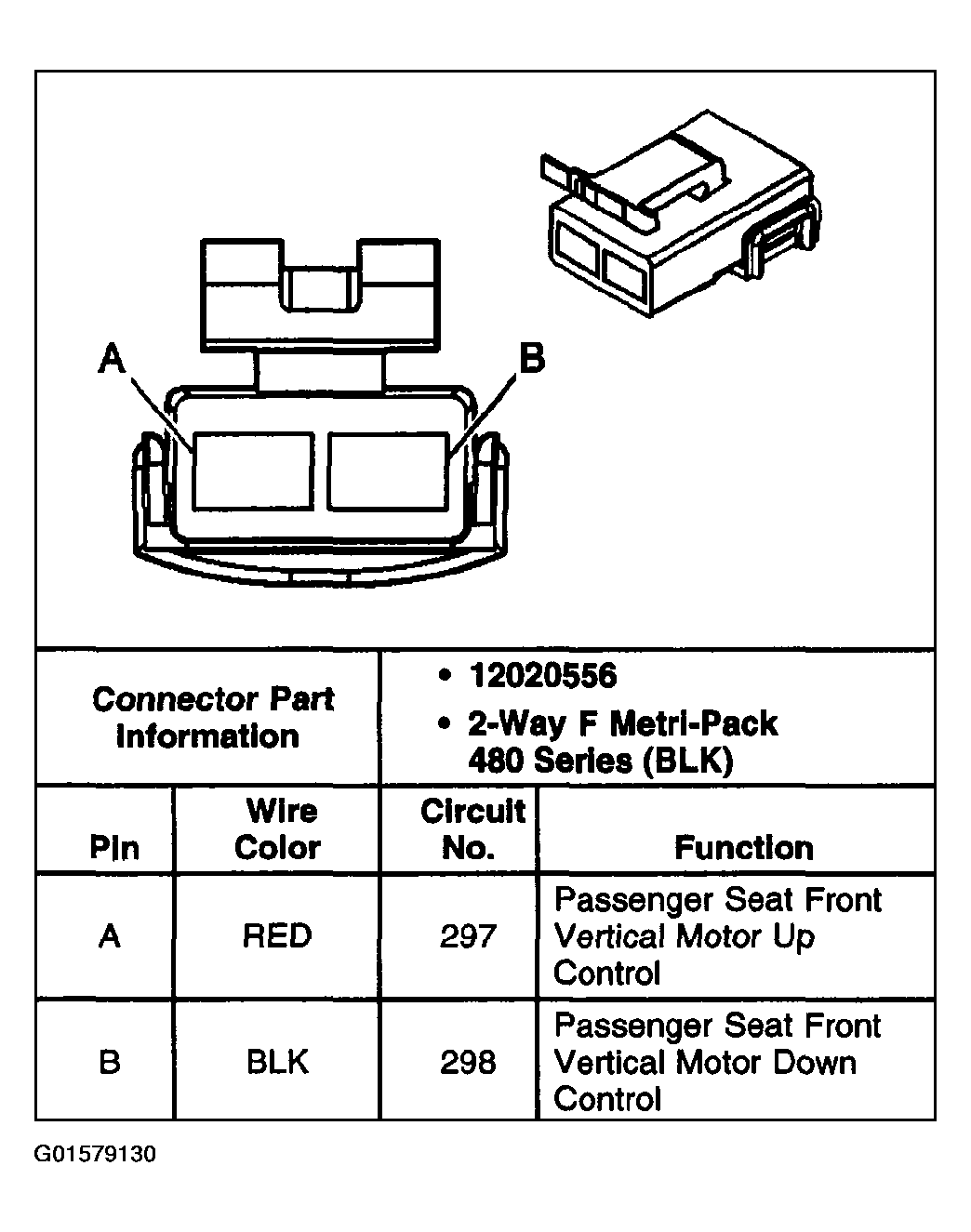

Fig 24: Seat Front Vertical Motor-Front Passenger

G01579130

Courtesy of GENERAL MOTORS CORP.

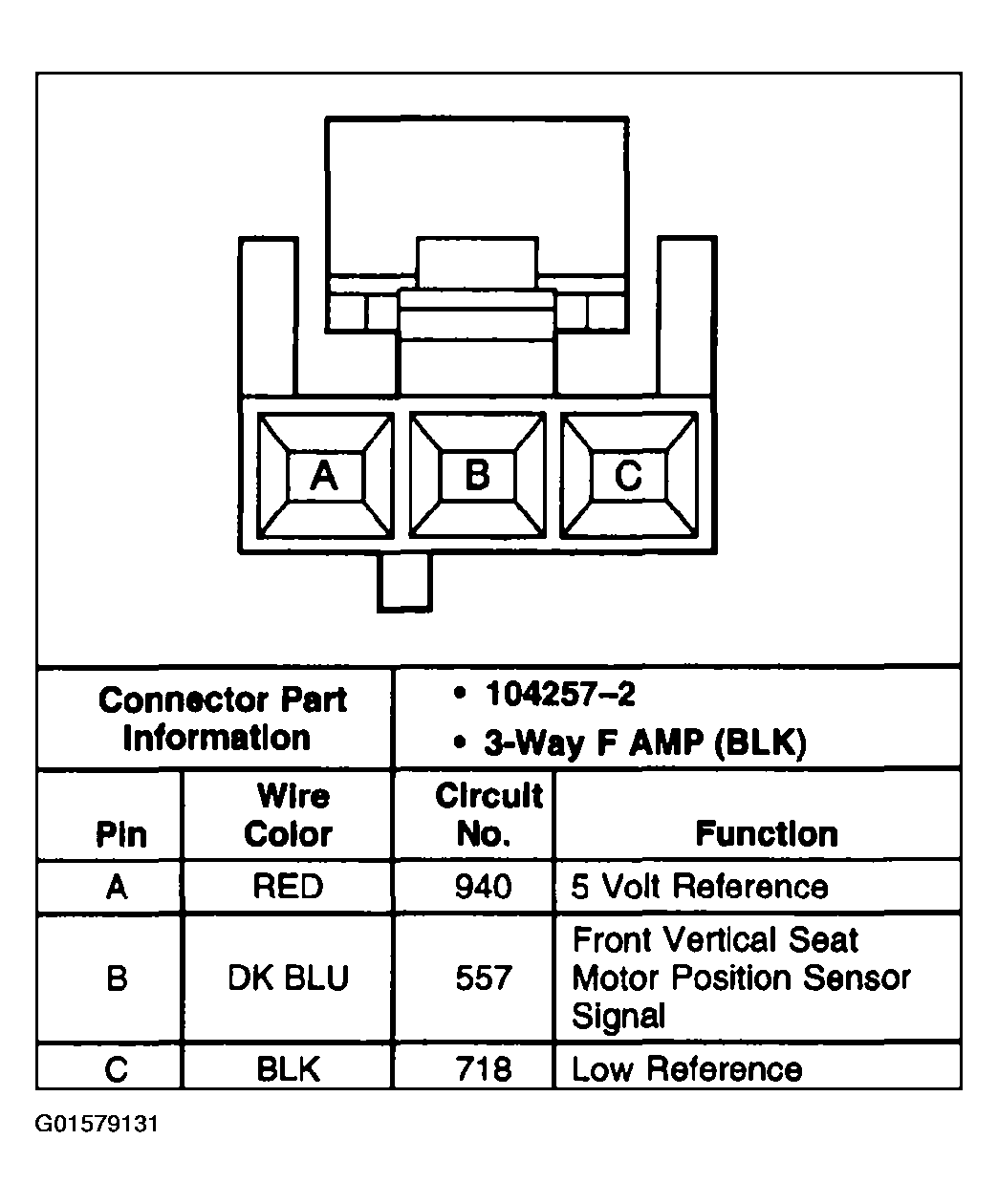

Fig 25: Seat Front Vertical Position Sensor-Driver (W/ AN3)

G01579131

Courtesy of GENERAL MOTORS CORP.

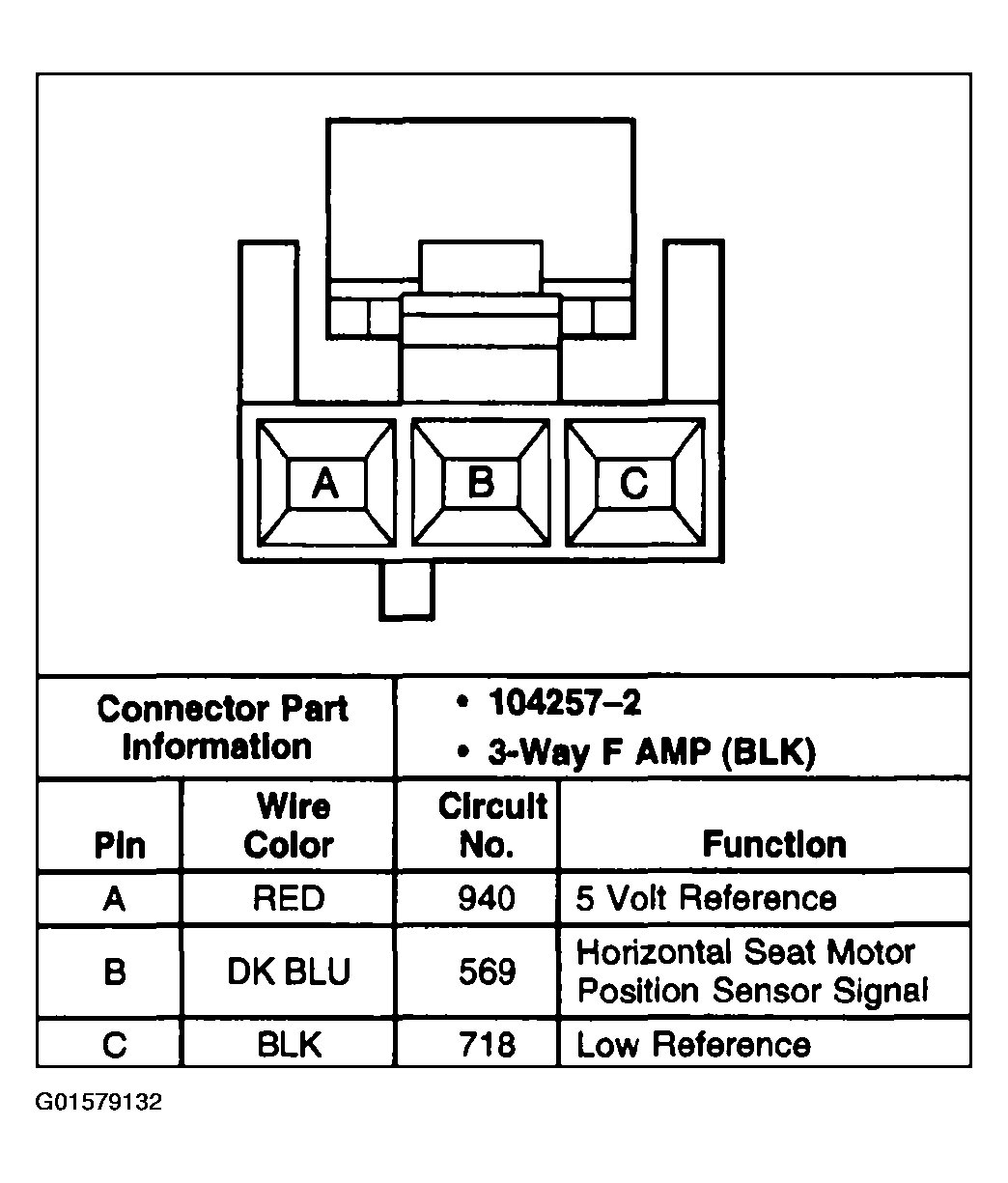

Fig 26: Seat Horizontal Position Sensor-Driver (W/ AN3)

G01579132

Courtesy of GENERAL MOTORS CORP.

Fig 27: Seat Rear Vertical Motor-Driver

G01579133

Courtesy of GENERAL MOTORS CORP.

Fig 28: Seat Rear Vertical Motor-Front Passenger

G01579134

Courtesy of GENERAL MOTORS CORP.

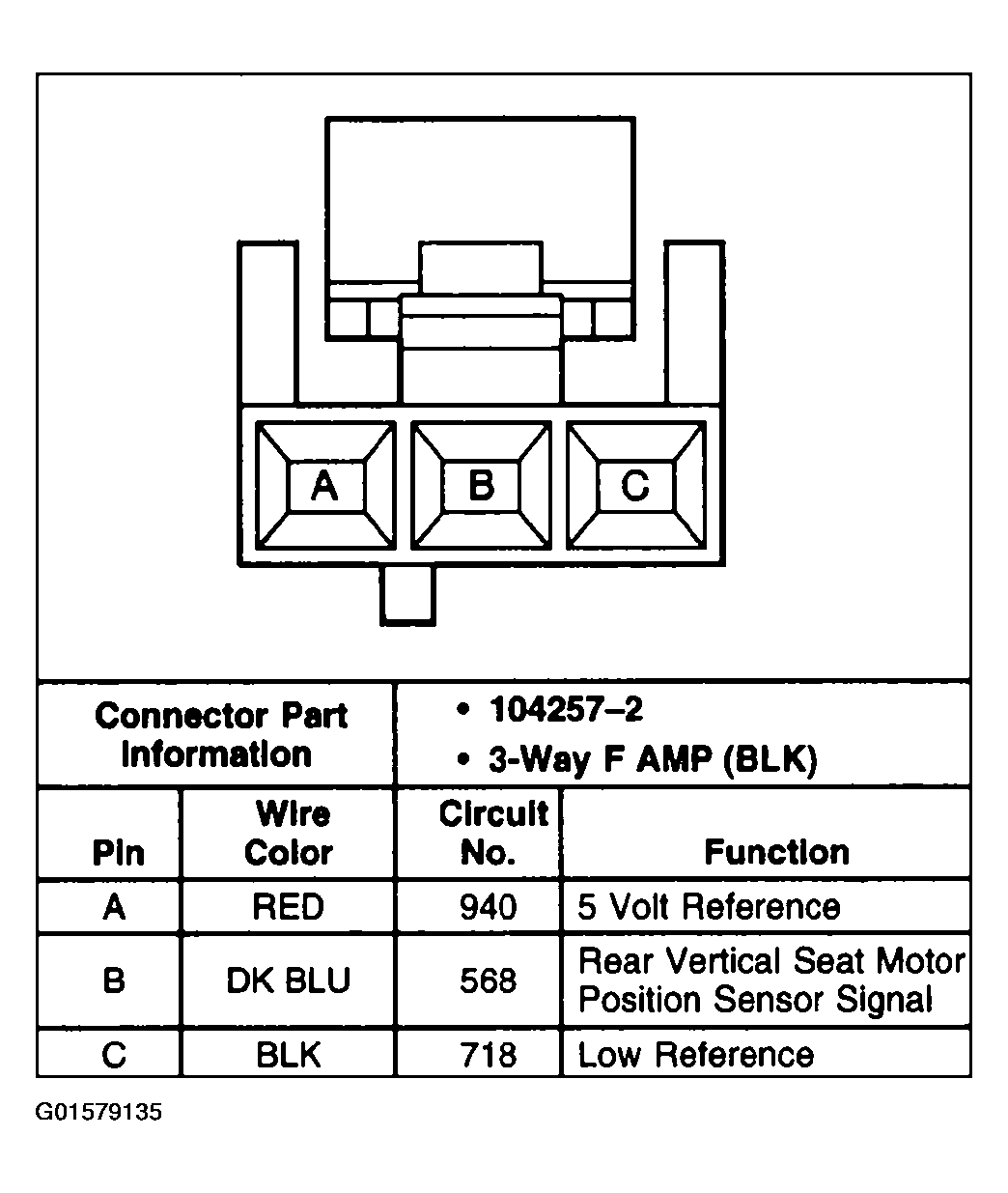

Fig 29: Seat Rear Vertical Position Sensor-Driver (W/ AN3)

G01579135

Courtesy of GENERAL MOTORS CORP.

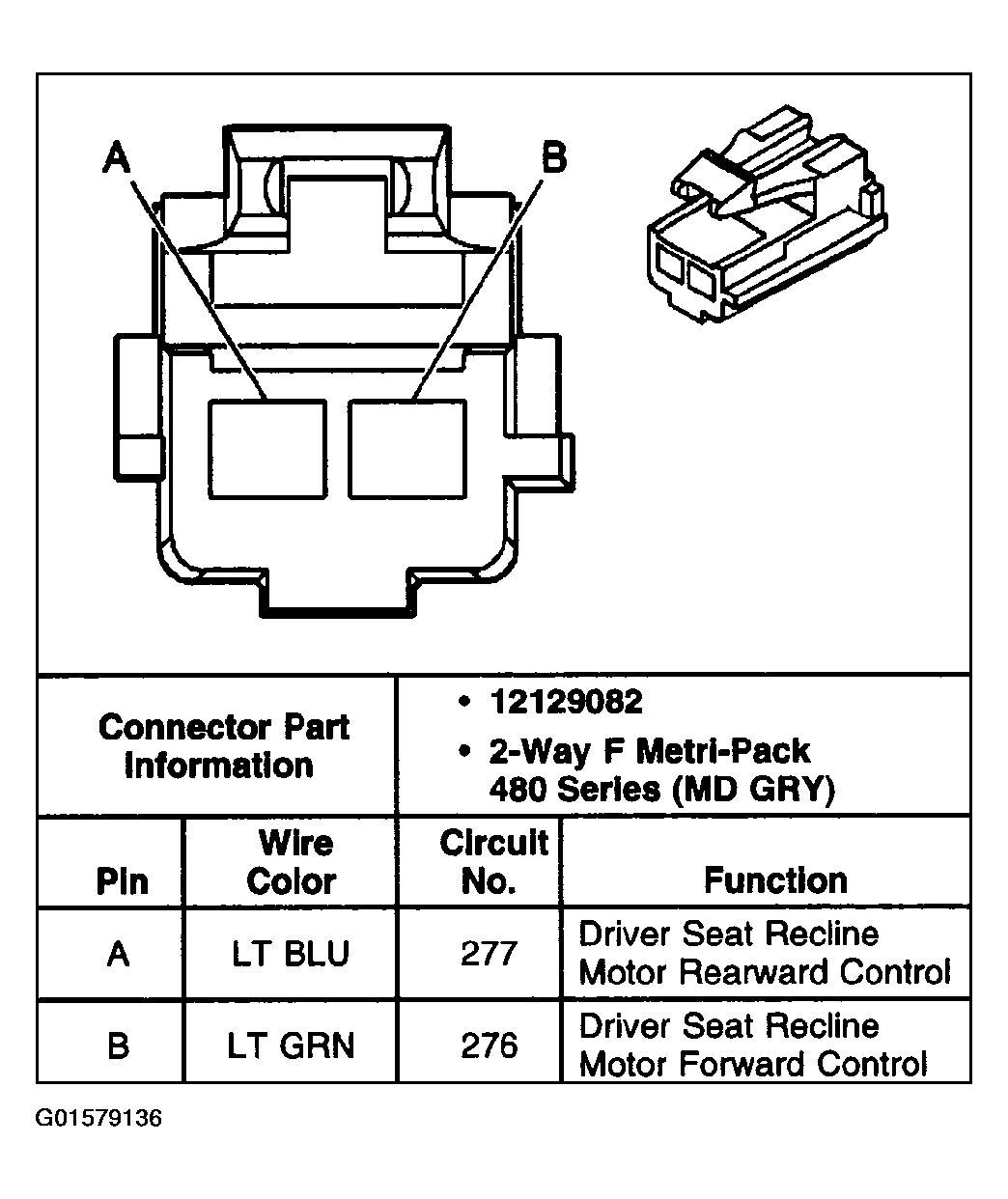

Fig 30: Seat Recliner Motor-Driver (W/ AN3)

G01579136

Courtesy of GENERAL MOTORS CORP.

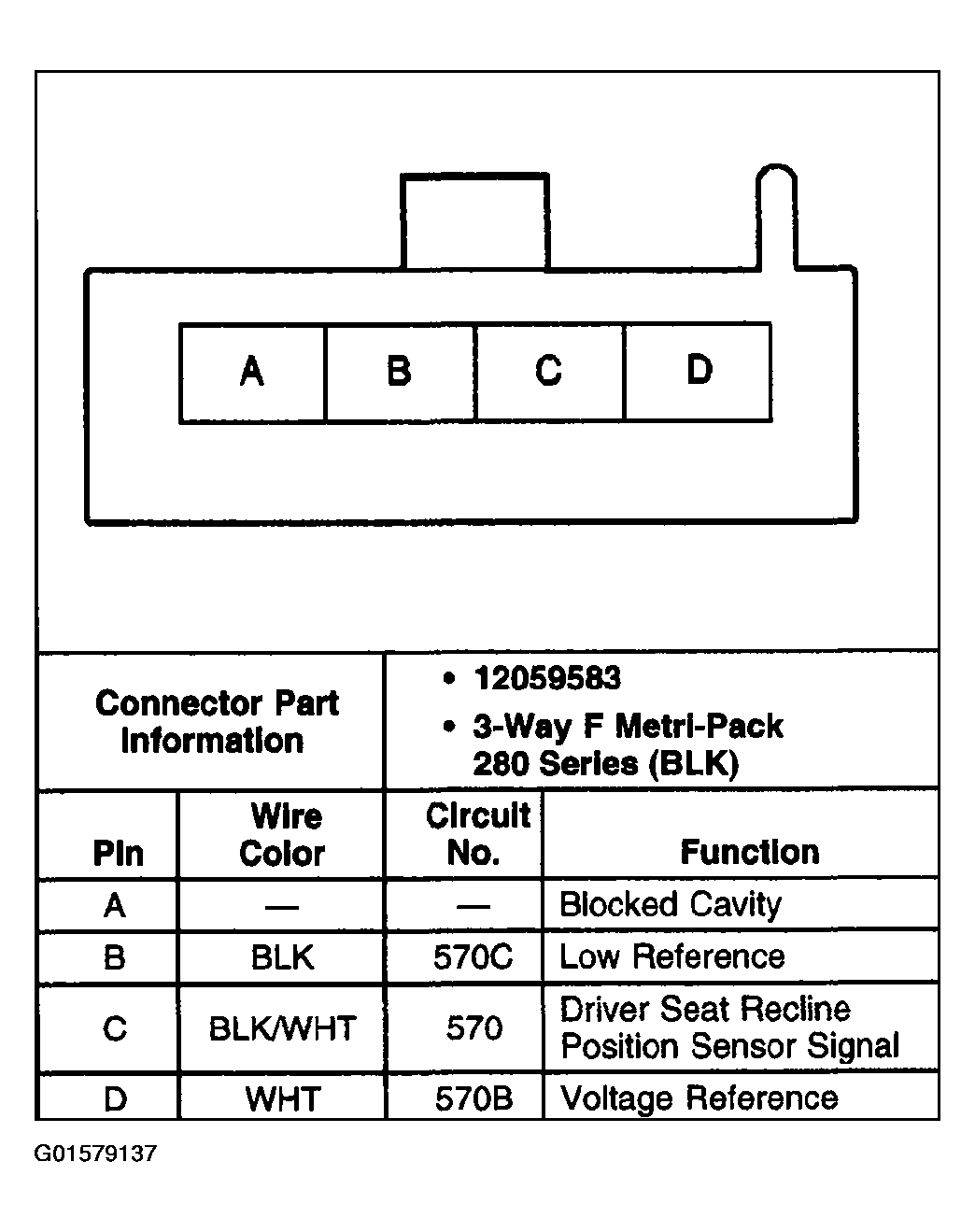

Fig 31: Seat Recliner Motor Position Sensor-Driver (W/ AN3)

G01579137

Courtesy of GENERAL MOTORS CORP.

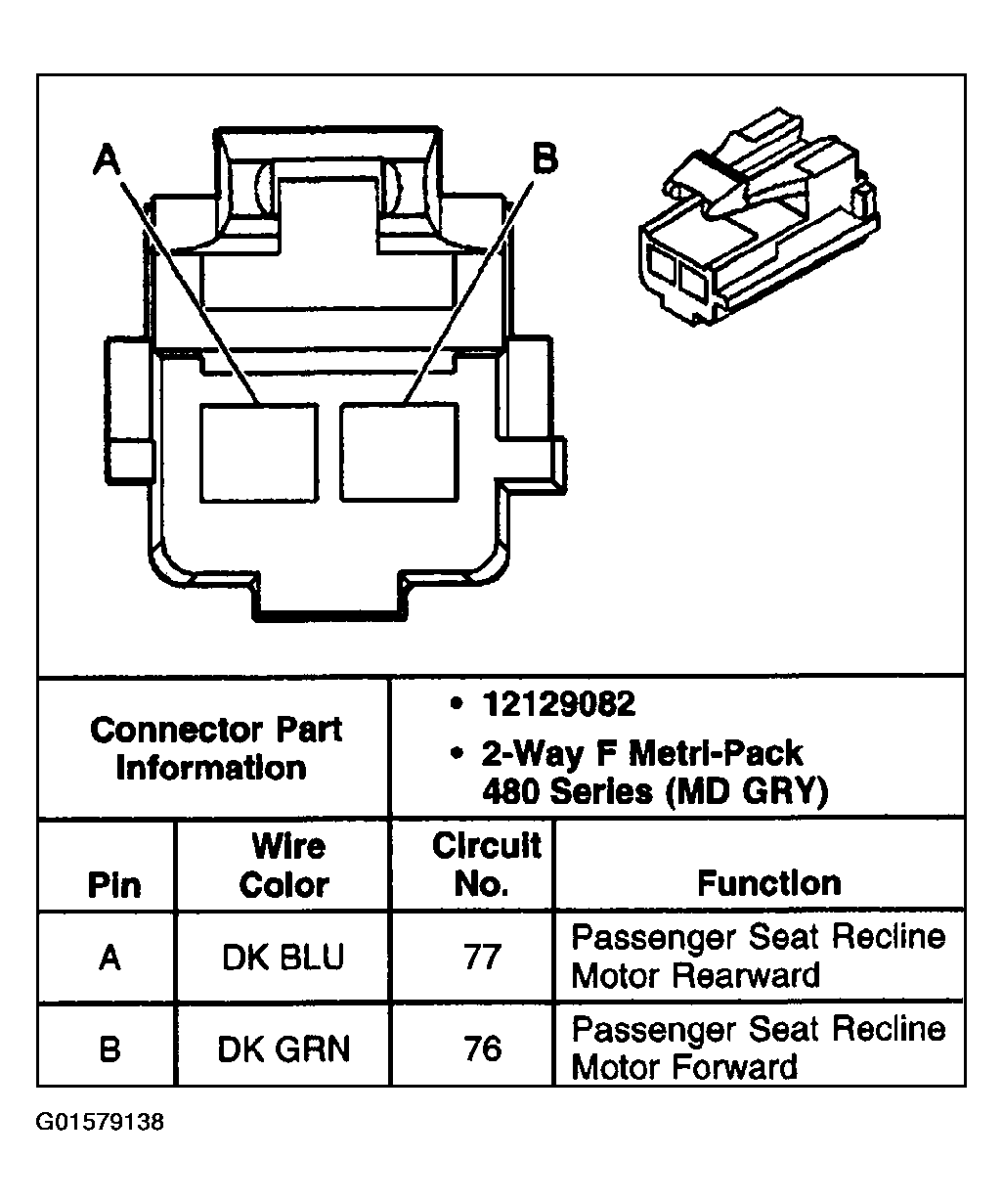

Fig 32: Seat Recliner Motor-Front Passenger (W/ AN3)

G01579138

Courtesy of GENERAL MOTORS CORP.
