Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front seat memory switch assembly to the front trim panel by pressing into place until fully seated.
  2. Connect the electrical connector to the front seat memory switch assembly.
  3. Install the front trim panel. Refer to TRIM PANEL REPLACEMENT-SIDE FRONT DOOR .

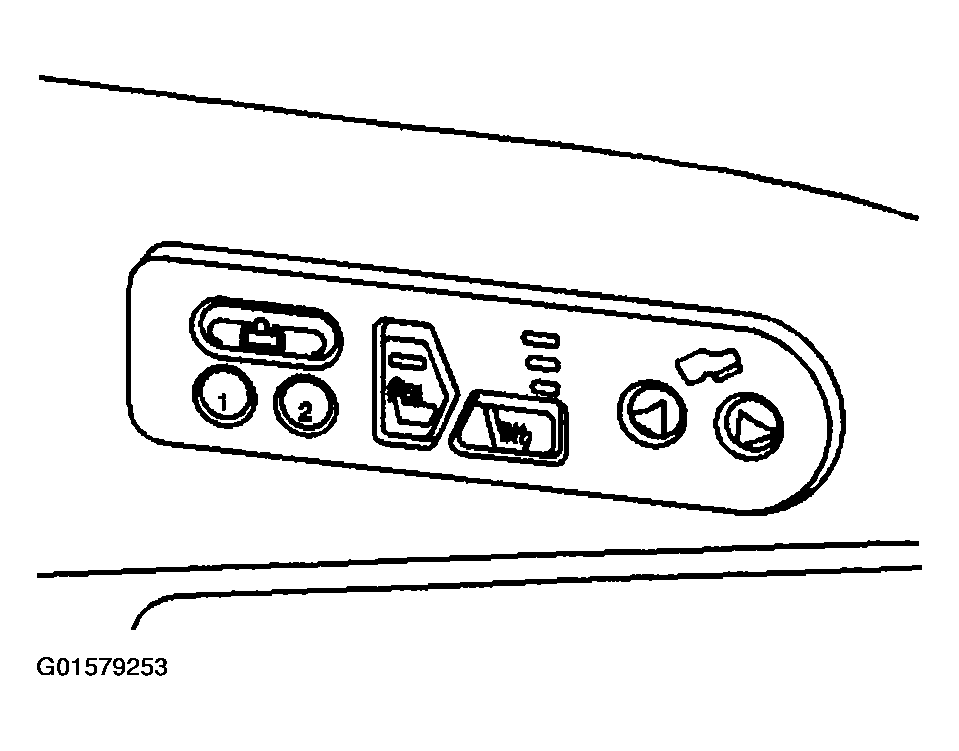

    Fig 1: Memory Seat Switch
    G01579253Courtesy of GENERAL MOTORS CORP.
