Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back latch assembly to the seat frame.
  2. Attach the recliner cables to the folding mechanism.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts (1,2) that retain the latch assembly to the seat frame.

    Tighten

    Tighten the bolts to 45 N.m (33 lb ft).

  4. Install the seat back cover. Refer to Seat Back Cover And Pad Replacement-Rear   .
  5. Install the armrest, if equipped. Refer to Armrest Replacement-Rear Seat (60/40 Split)   .
  6. Install the rear seat to the vehicle. Refer to Seat Replacement-Rear (Extended Cab W/4Th Door)   or Seat Replacement-Rear (Extended Cab)   or Seat Replacement-Rear (60/40 Split)   .

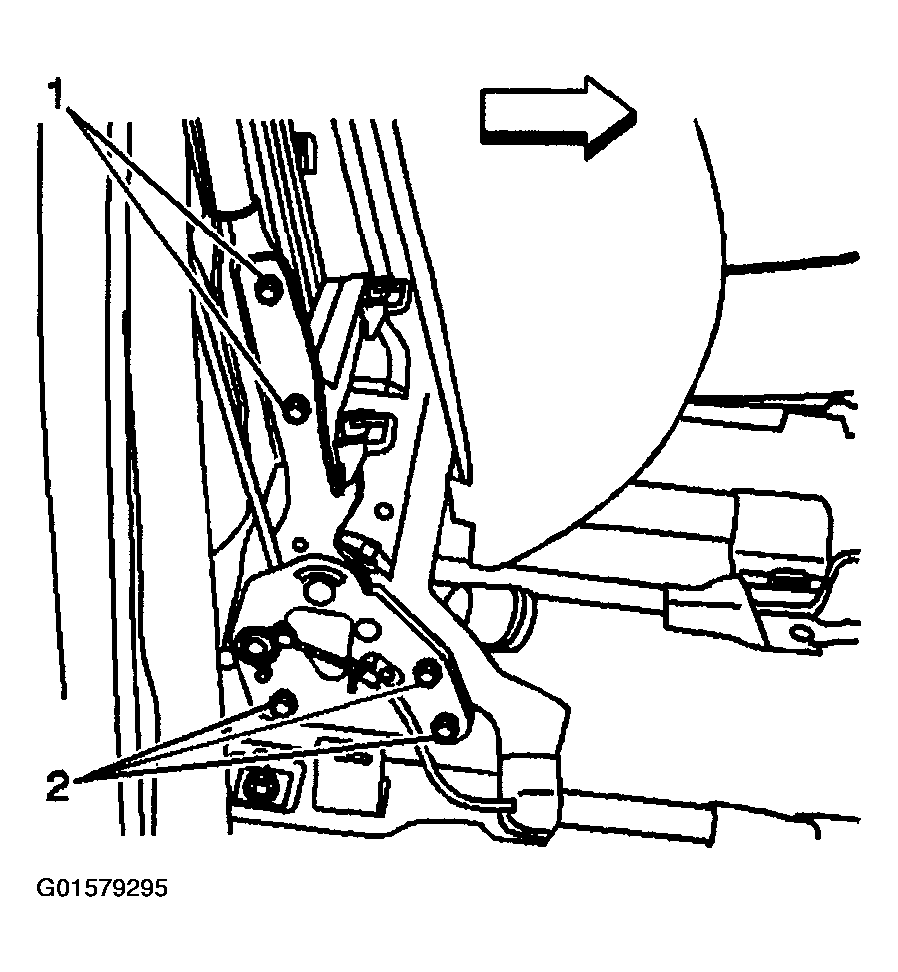

    Fig 1: Rear Seat Back Latch
    G01579295Courtesy of GENERAL MOTORS CORP.
