Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the seat cushion frame (5).

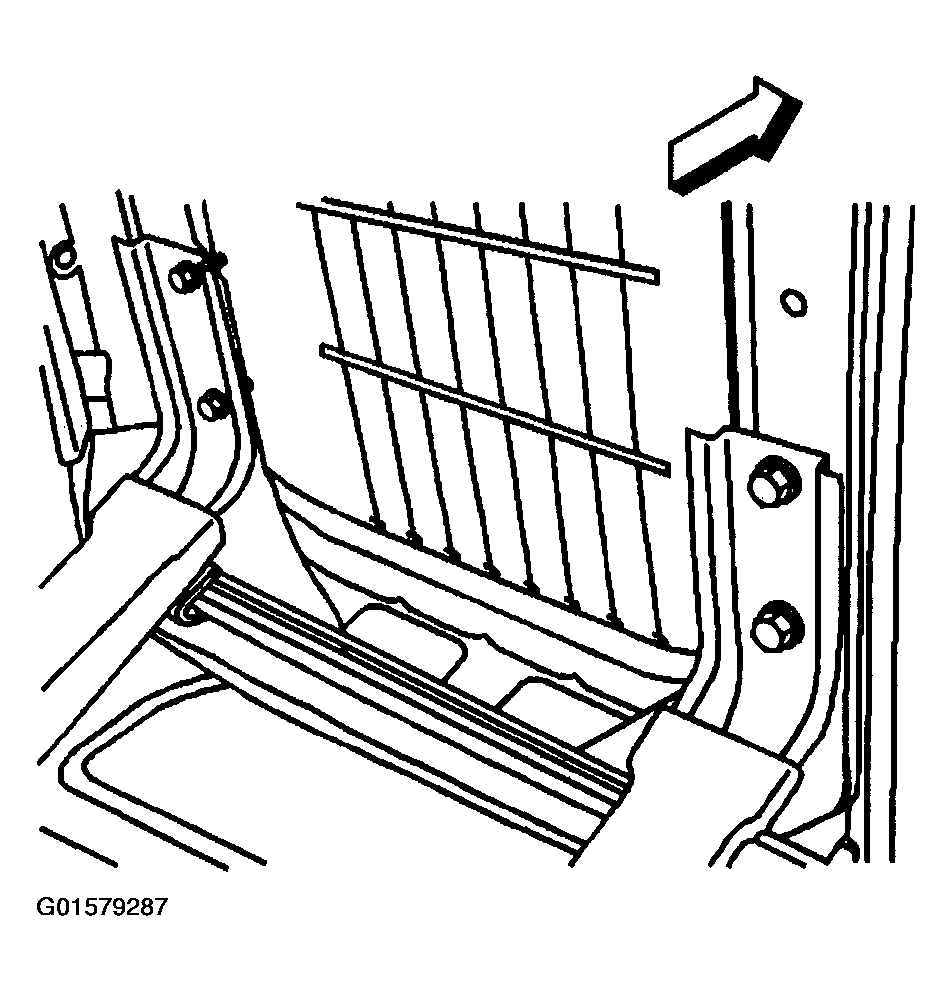

Fig 1: Installing Seat Cushion Frame
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the bolts to the hinge assembly, if removed.
Tighten

Tighten the bolts to 35 N.m (26 lb ft).
Install the seat cushion trim cover (8) and the pad (7). Refer to Seat Cushion Cover And Pad Replacement-Rear .

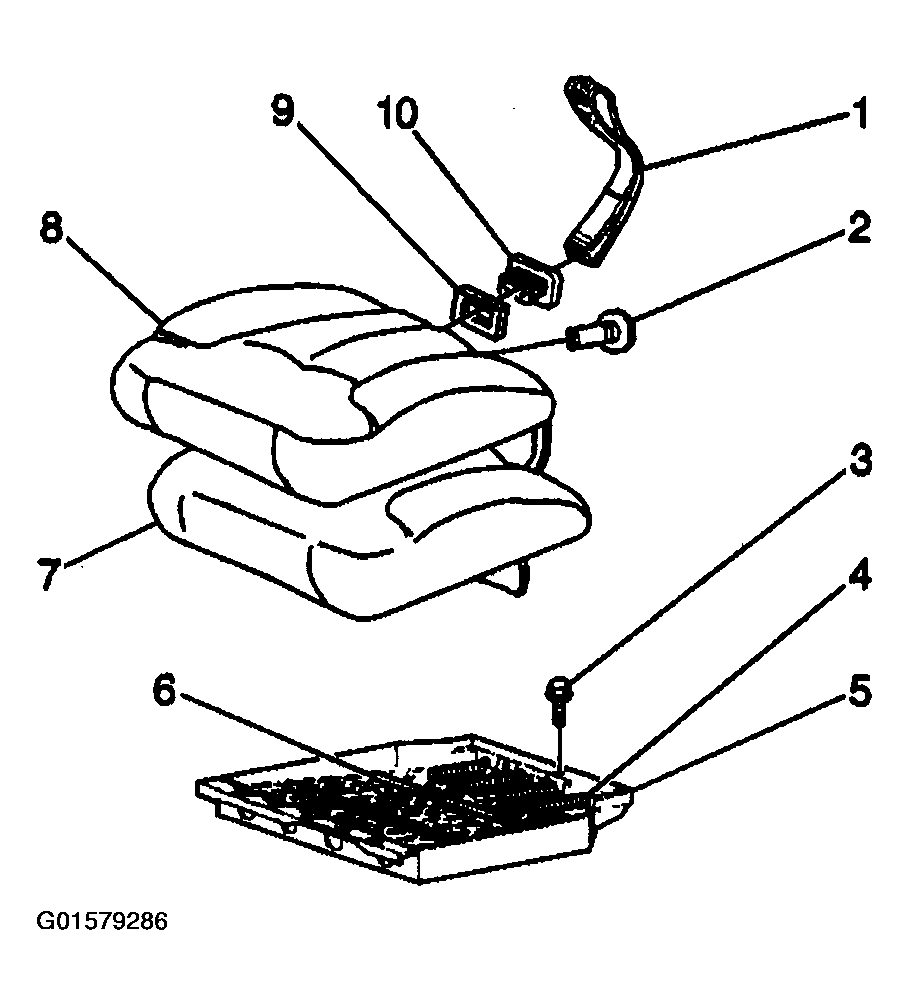

Fig 2: Installing Seat Cushion Cover & Pad
Courtesy of GENERAL MOTORS CORP.
