Dimmer Switch (Dash Illumination)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

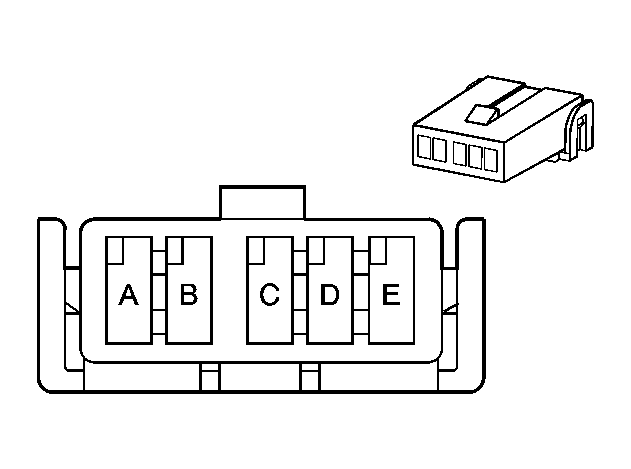

Fig 1: Dimmer Switch (Dash Illumination) Connector End Views

Courtesy of GENERAL MOTORS CORP.

Dimmer Switch (Dash Illumination) Connector Parts Information

Connector Part Information

OEM: 12020299
Service: See Catalog
Description: 5-Way F P/C Edgeboard - Standard (NA)

Dimmer Switch (Dash Illumination) Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
A	-	-	Not Used
B	BN/WH	230	I/P Lamps Dimmer Control
C	TN	470	Low Reference
D-E	-	-	Not Used
