Liftgate Lamp - Right
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Liftgate Lamp - Right Connector Parts Information
Connector Part Information
|

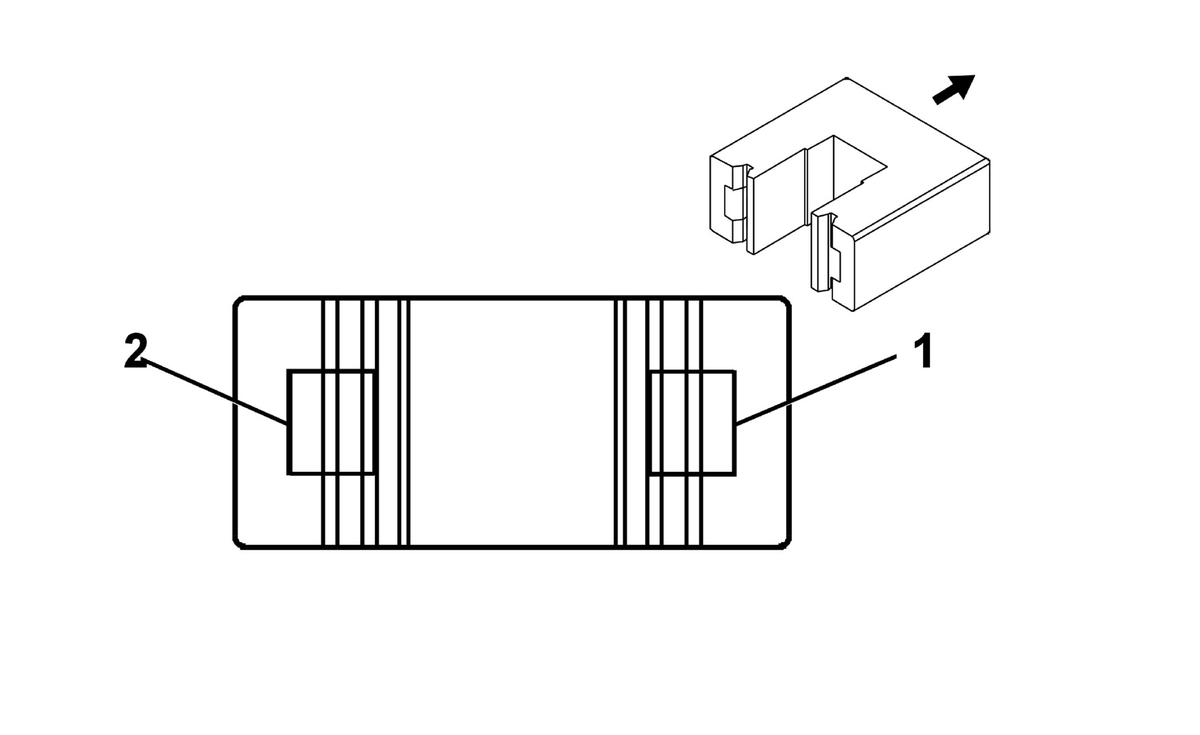

Liftgate Lamp - Right Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | OG | 1732 | Courtesy Lamps Supply Voltage |
| 2 | GY | 157 | Courtesy Lamp Control |
