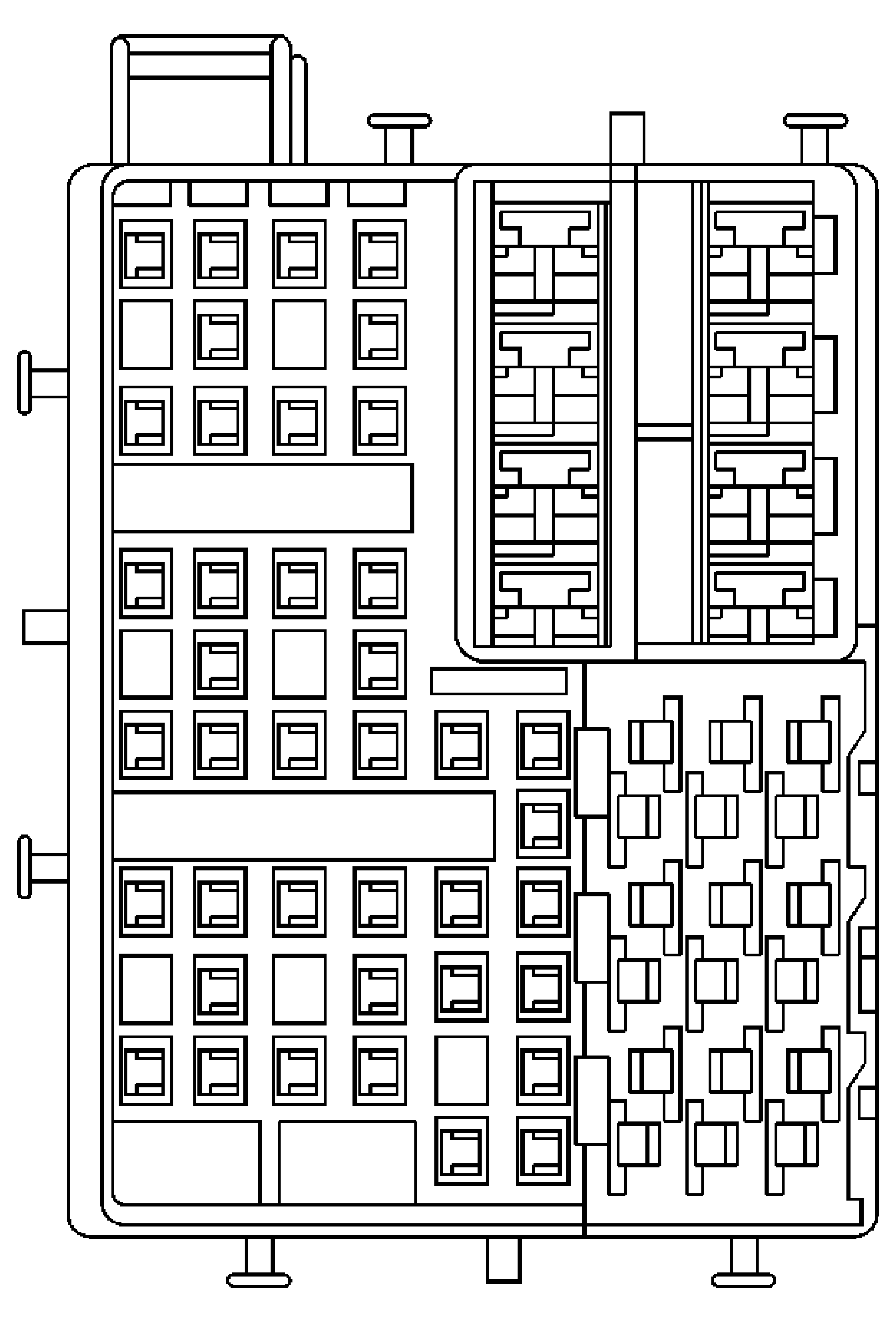

Auxiliary Fuse Block Bottom View (HP7)
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Auxiliary Fuse Block Parts Information
Connector Part Information
|
Auxiliary Fuse Block (HP7) Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A1 | GY | 990 | Hill Hold Valve Relay Control |
| A2 | - | - | Not Used |
| A3 | D-GN | 909 | Hill Hold Valve Brake Relay Contact Output Voltage |
| D-GN | 909 | Hill Hold Valve Brake Relay Contact Output Voltage | |
| A4-A10 | - | - | Not Used |
| B1 | OG | 9000 | Battery Positive Voltage |
| B2 | - | - | Not Used |
| B3 | PK | 239 | Ignition 1 Voltage |
| B4-B10 | - | - | Not Used |
| C1-C3 | - | - | Not Used |
| C4 | OG | - | Not Used |
| C5 | - | - | Not Used |
| C6 | YE | 5259 | Transmission Pump Switch Control |
| C7 | - | - | Not Used |
| C8 | PK | 639 | Ignition 1 Voltage |
| C10 | PU | 2 | Battery Positive Voltage |
| D1-D3 | - | - | Not Used |
| D4 | OG | 3140 | Battery Positive Voltage |
| D5 | - | - | Not Used |
| D6 | PK/WH | 5537 | Transmission Pump Relay Control |
| D7 | - | - | Not Used |
| D8 | OG | 3340 | Battery Positive Voltage |
| D9 | - | - | Not Used |
| D10 | YE | 447 | Starter Relay Coil Control |
| E6-E10 | - | - | Not Used |
| F6-F11 | - | - | Not Used |
| G6-G11 | - | - | Not Used |
| H6-H11 | - | - | Not Used |
| J6-J11 | - | - | Not Used |
| K1 | OG | 2940 | Battery Positive Voltage |
| K2 | OG | 3240 | Battery Positive Voltage |
| K3 | OG | 3140 | Battery Positive Voltage |
| K4 | - | 3340 | Battery Positive Voltage |
| L1 | RD | 2 | Battery Positive Voltage |
| L2 | RD | 2 | Battery Positive Voltage |
| L3 | RD | 2 | Battery Positive Voltage |
| L4 | RD | 2 | Battery Positive Voltage |
