Fuse Block - I/P C2

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

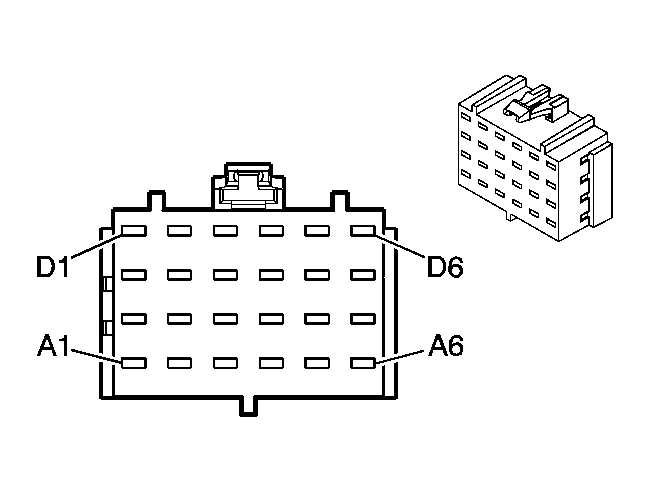

Fig 1: Fuse Block - I/P C2 Connector End View
GM1282870Courtesy of GENERAL MOTORS CORP.
Fuse Block - I/P C2 Connector Parts Information

Connector Part Information
  • OEM: 12129535
  • Service: 12129535
  • Description: 24-Way F ACT 280 Series (BK)
Fuse Block - I/P C2 Connector Terminal Identification

Pin Wire Color Circuit No. Function
A1-A2 - - Not Used
A3 GY 8 Instrument Panel Lamp Supply Voltage
GY 8 Instrument Panel Lamp Supply Voltage
A4 GY 8 Instrument Panel Lamp Supply Voltage
GY 8 Instrument Panel Lamp Supply Voltage
A5 GY 8 Instrument Panel Lamp Supply Voltage
GY 8 Instrument Panel Lamp Supply Voltage
A6 GY 8 Instrument Panel Lamp Supply Voltage
GY 8 Instrument Panel Lamp Supply Voltage
B1-B6 - - Not Used
C1 - - Not Used
C2 BN 9 Park Lamp Supply Voltage
BN 9 Park Lamp Supply Voltage (w/o T82)
C3 BN 9 Park Lamp Supply Voltage
C4 OG 1732 Inadvertent Power Supply Voltage
C5 BN/WH 1571 Traction Control Switch Signal (NW9)
C6 L-BU 195 Door Lock Control
D1-D6 - - Not Used


Fig 1: Fuse Block - I/P C2 Connector End Views
GM1282870Courtesy of GENERAL MOTORS CORP.
Fuse Block - I/P C2 Connector Parts Information

Connector Part Information
  • OEM: 12129535
  • Service: 12129535
  • Description: 24-Way F ACT 280 Series (BK)
Fuse Block - I/P C2 Connector Terminal Identification

Pin Wire Color Circuit No. Function
A1-A2 - - Not Used
A3 GY 8 Instrument Panel Lamp Supply Voltage
GY 8 Instrument Panel Lamp Supply Voltage
A4 GY 8 Instrument Panel Lamp Supply Voltage
GY 8 Instrument Panel Lamp Supply Voltage
A5 GY 8 Instrument Panel Lamp Supply Voltage
GY 8 Instrument Panel Lamp Supply Voltage
A6 GY 8 Instrument Panel Lamp Supply Voltage
GY 8 Instrument Panel Lamp Supply Voltage
B1-B6 - - Not Used
C1 - - Not Used
C2 BN 9 Park Lamp Supply Voltage
BN 9 Park Lamp Supply Voltage (w/o T82)
C3 BN 9 Park Lamp Supply Voltage
C4 OG 1732 Inadvertent Power Supply Voltage
C5 BN/WH 1571 Traction Control Switch Signal (NW9) (Except HP7)
C6 L-BU 195 Door Lock Control
D1-D6 - - Not Used
