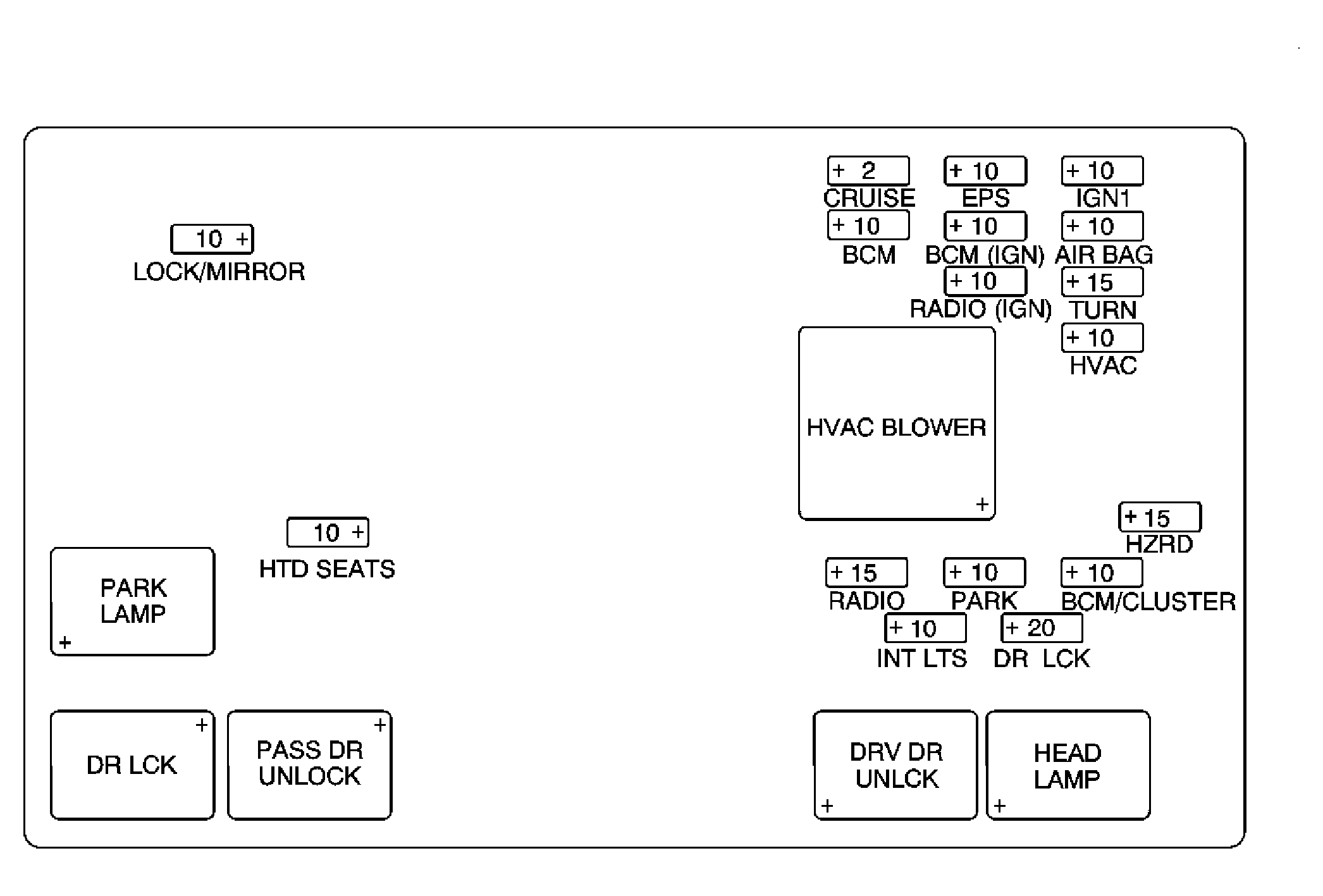

I/P Fuse Block Label
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
I/P Fuse Block Label Usage
| Device | Rating | Description |
|---|---|---|
| AIR BAG Fuse | 10 A | SDM |
| BCM Fuse | 10 A | BCM, PWR WDW Relay - Underhood Fuse Bock, WIPER SYSTEM Relay - Underhood Fuse Block |
| BCM/CLUSTER Fuse | 10 A | BCM, IPC |
| BCM (IGN) Fuse | 10 A | BCM |
| CRUISE Fuse | 2 A | Cruise Control Switch(es), Cruise/Brake Switch |
| DR LCK Fuse | 20 A | DR LCK, PASS DR UNLOCK, and DRV DR UNLCK Relays |
| DR LCK Relay | - | BCM, Door Lock Actuators |
| DRV DR UNLCK Relay | - | BCM, Driver Door Lock Actuator |
| EPS Fuse | 10 A | PSCM |
| HEAD LAMP Relay | - | BCM |
| HTD SEATS | 10 A | Heated Seat Switches |
| HVAC BLOWER Relay | - | HVAC Control Module |
| HVAC Fuse | 10 A | HVAC Control Module |
| HZRD Fuse | 15 A | Hazard Switch |
| IGN 1 Fuse | 10 A | A/T Shift Lock Solenoid, IPC, Traction Control Switch |
| INT LTS Fuse | 10 A | BCM, VCIM (UE1) |
| LOCK/MIRROR | 10 A | Door Lock Switches, Outside Rearview Mirror Switch |
| PARK Fuse | 15 A | Headlamp Switch |
| PARK LAMP Relay | - | BCM |
| PASS DR UNLOCK Relay | - | BCM, Front Passenger Door Lock Actuator, Rear Door Lock Actuators, and the Liftgate Lock Actuator/ Ajar Switch |
| RADIO Fuse | 10 A | Radio |
| RADIO (IGN) Fuse | 10 A | Inside Rearview Mirror, Radio |
| TURN Fuse | 15 A | Hazard Switch |
