Power and Grounding Component Views

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

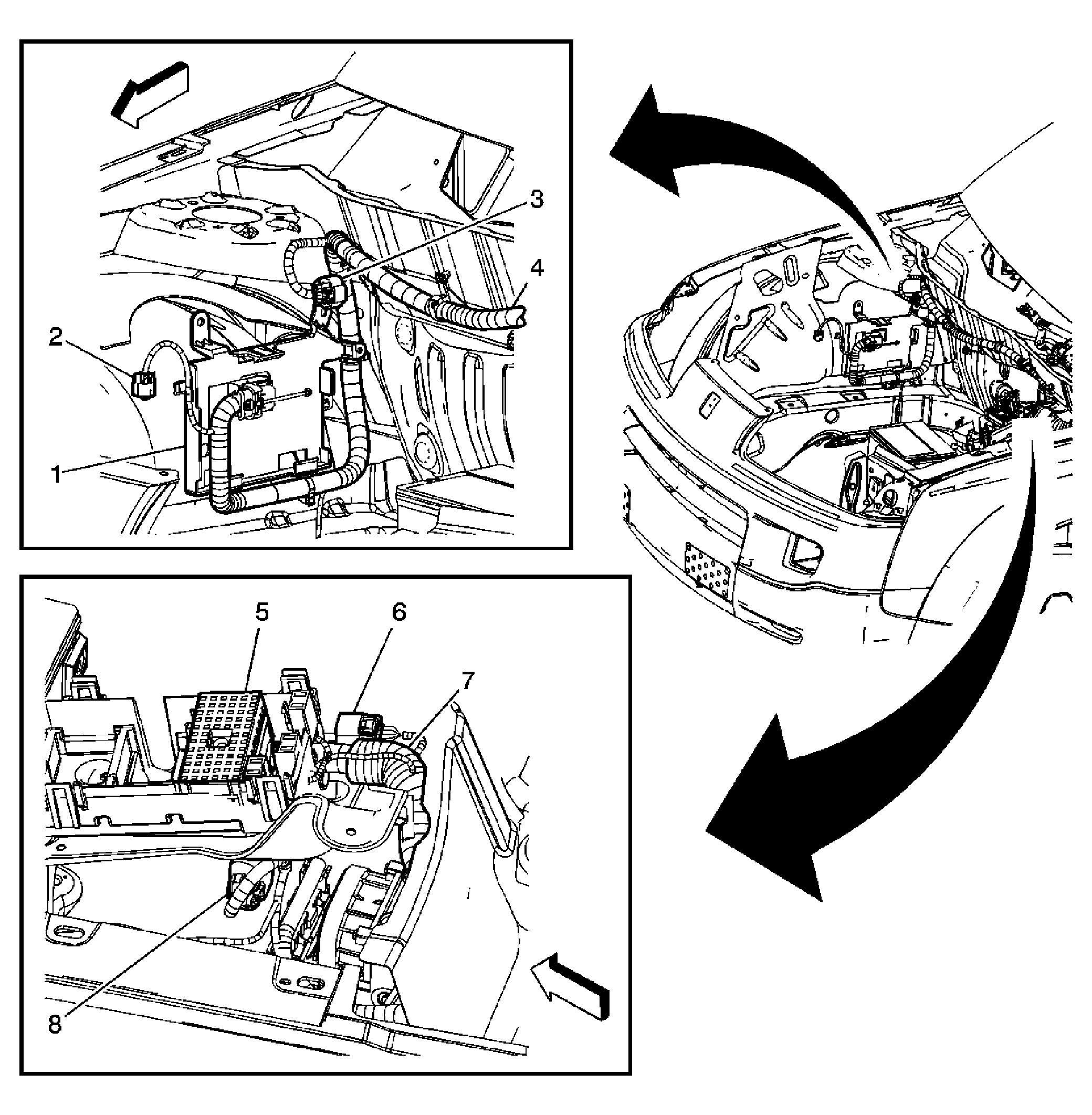

Fig 1: Body Harness Routing - Front Engine Compartment (L66)
GM1776197Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Powertrain Control Module (PCM) Bracket
2 C105
3 C102 (L66)
4 Body Harness
5 Fuse Block-Underhood
6 C106
7 Body Harness
8 C108

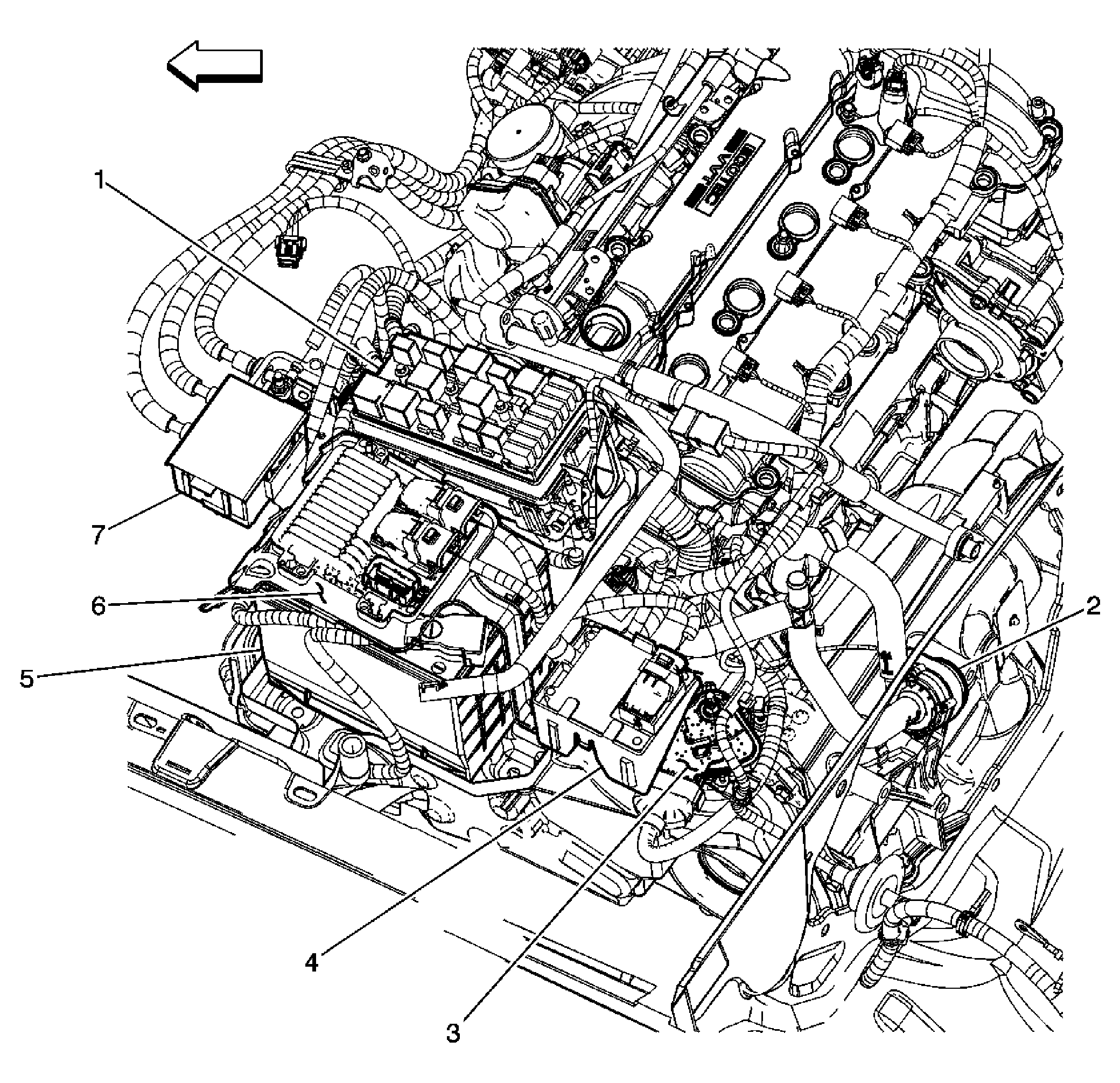

Fig 2: Left Side of Engine Compartment (LAT)
GM1760313Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Heater Core Pump
3 Park Neutral Position (PNP) Switch
4 Transmission Control Module (TCM)
5 Battery - 12V
6 Electronic Control Module (ECM)
7 Fuse Block - Underhood - Auxiliary

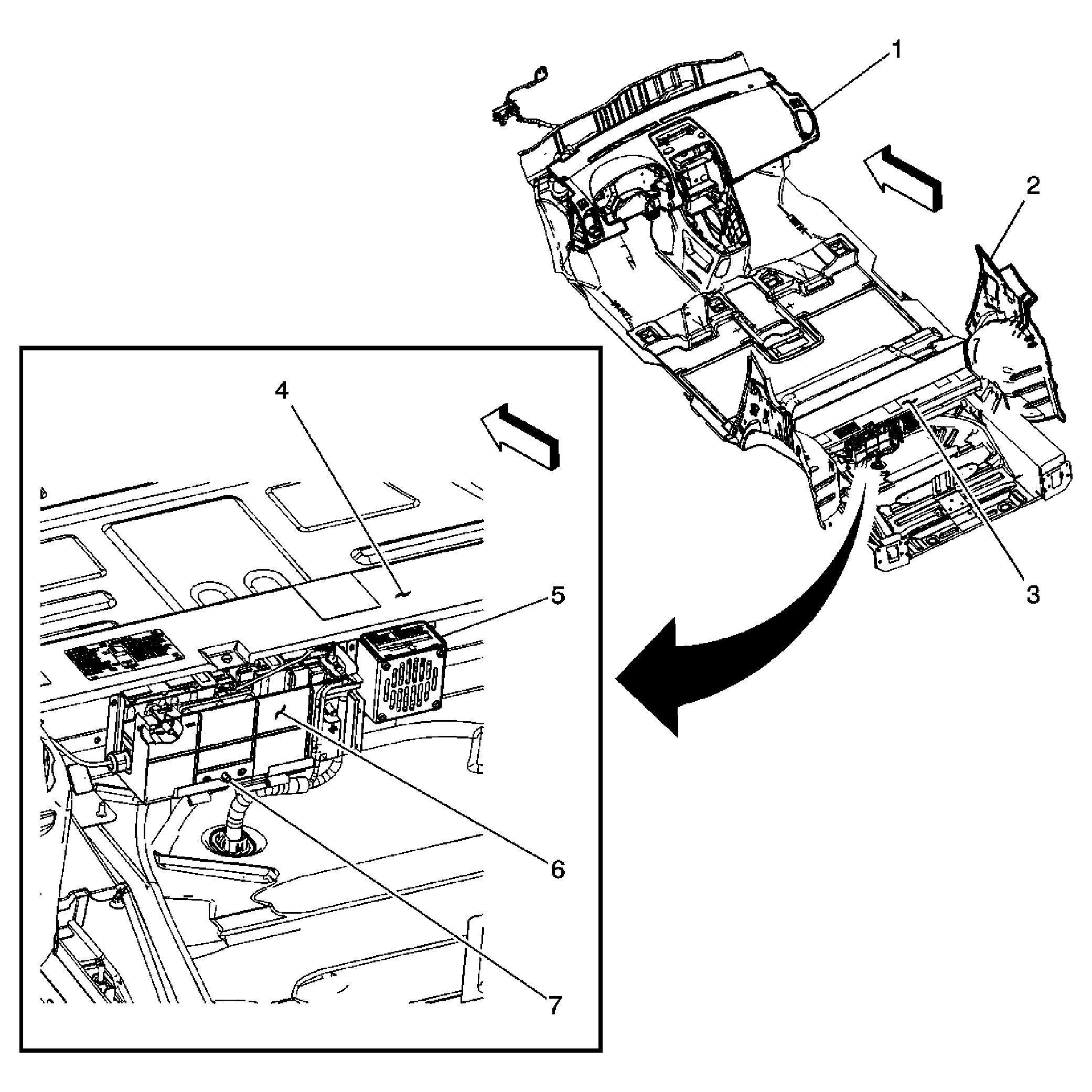

Fig 3: Above the Spare Tire
GM1760395Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 Wheel Well - RR
3 Generator Battery - 36V
4 Generator Battery - 36V
5 Generator Battery Vent Fan
6 Generator Battery Disconnect Control Module
7 Generator Battery Service Disconnect Switch

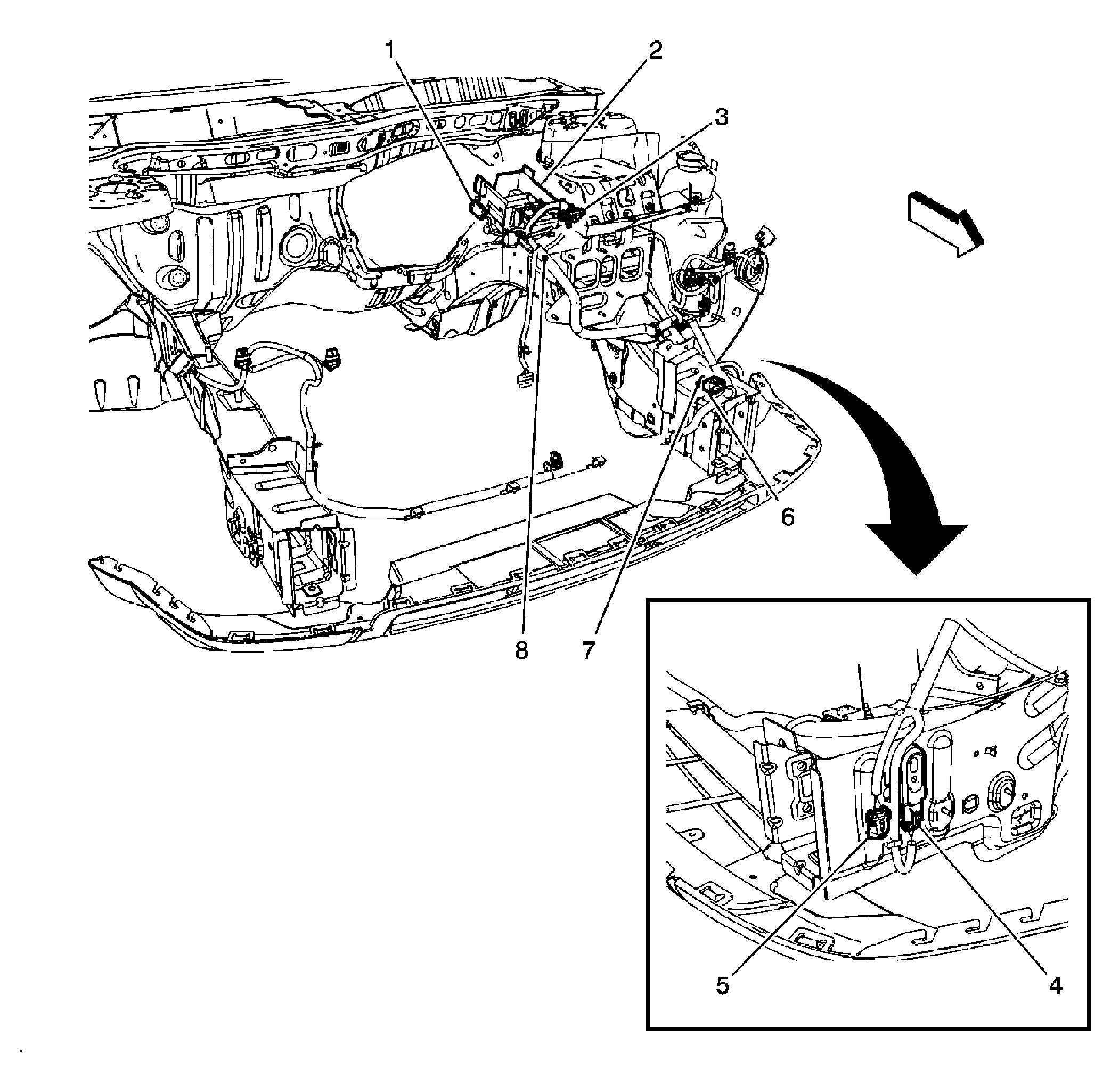

Fig 4: Forward Lamp Harness Routing (LAT)
GM1778648Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C106
2 Fuse Block - Underhood
3 C122
4 Daytime Running Lamp (DRL) Resistor
5 Cooling Fan Resistor
6 Splice Pack SP101
7 G101
8 S111
9 Hood Ajar Switch Connector

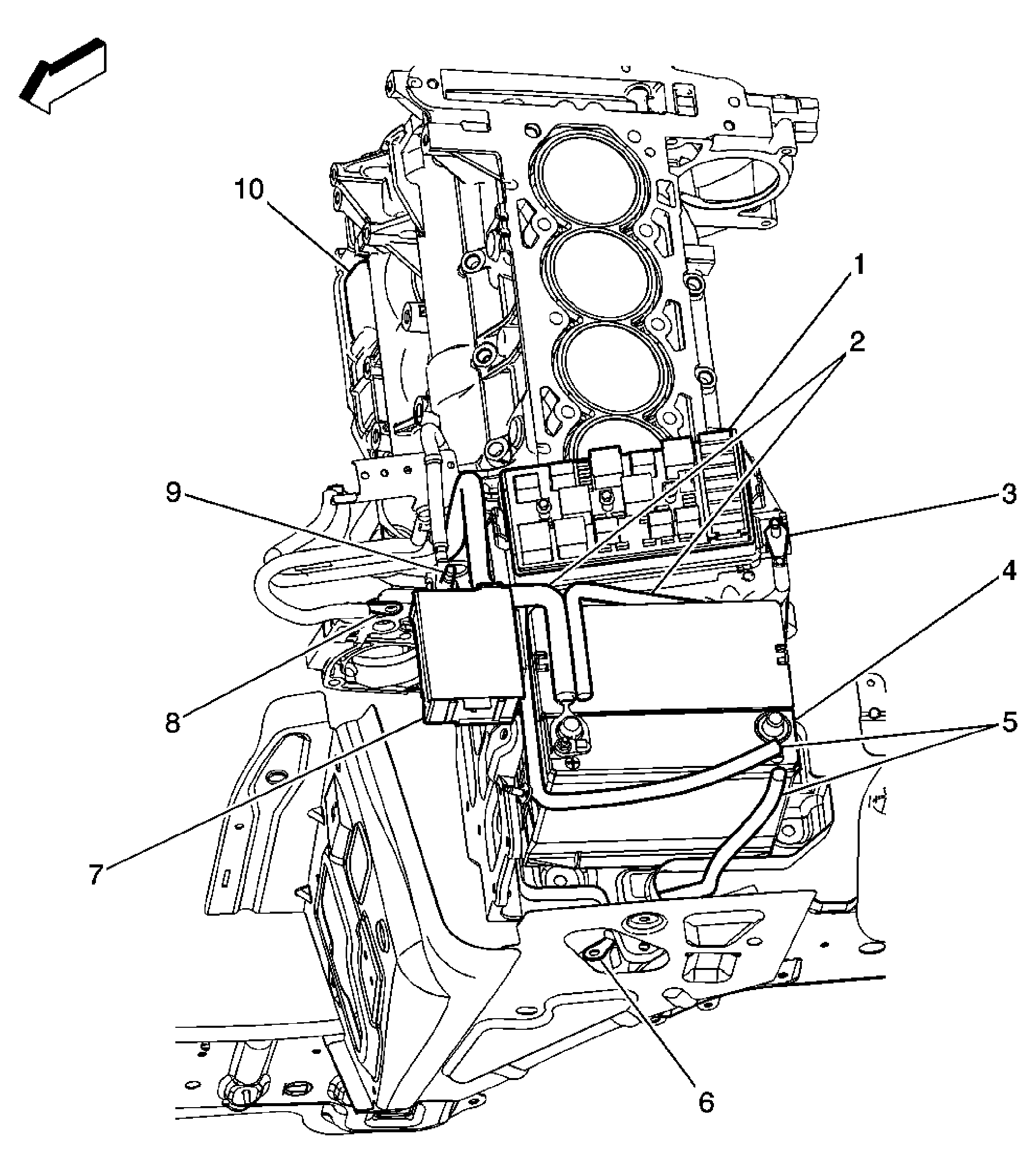

Fig 5: Left Side of Engine Compartment
GM1760371Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Battery Positive Cables (12V)
3 Positive Battery Voltage
4 Battery - 12V
5 Negative Battery Cables
6 G103
7 Fuse Block - Underhood - Auxiliary
8 G105
9 Positive Battery Voltage
10 Engine Block

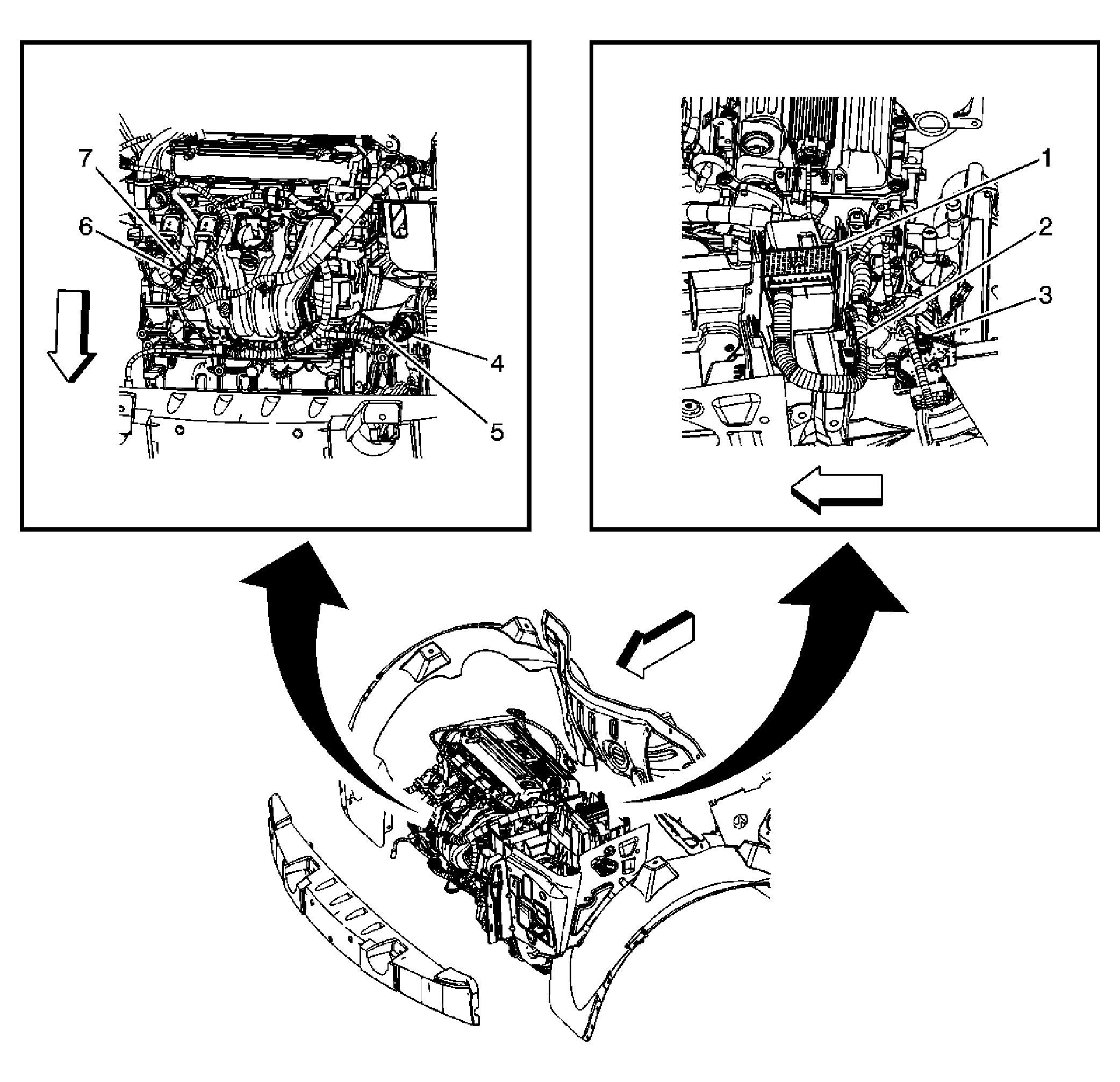

Fig 6: Front of Engine Compartment (L61)
GM1760296Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood C2
2 C102 Engine Harness to Body Harness
3 Park Neutral Position (PNP) Switch
4 C100 Engine Harness to Transmission Harness
5 G105
6 C150 Engine to Fuel Injector Harness
7 G107

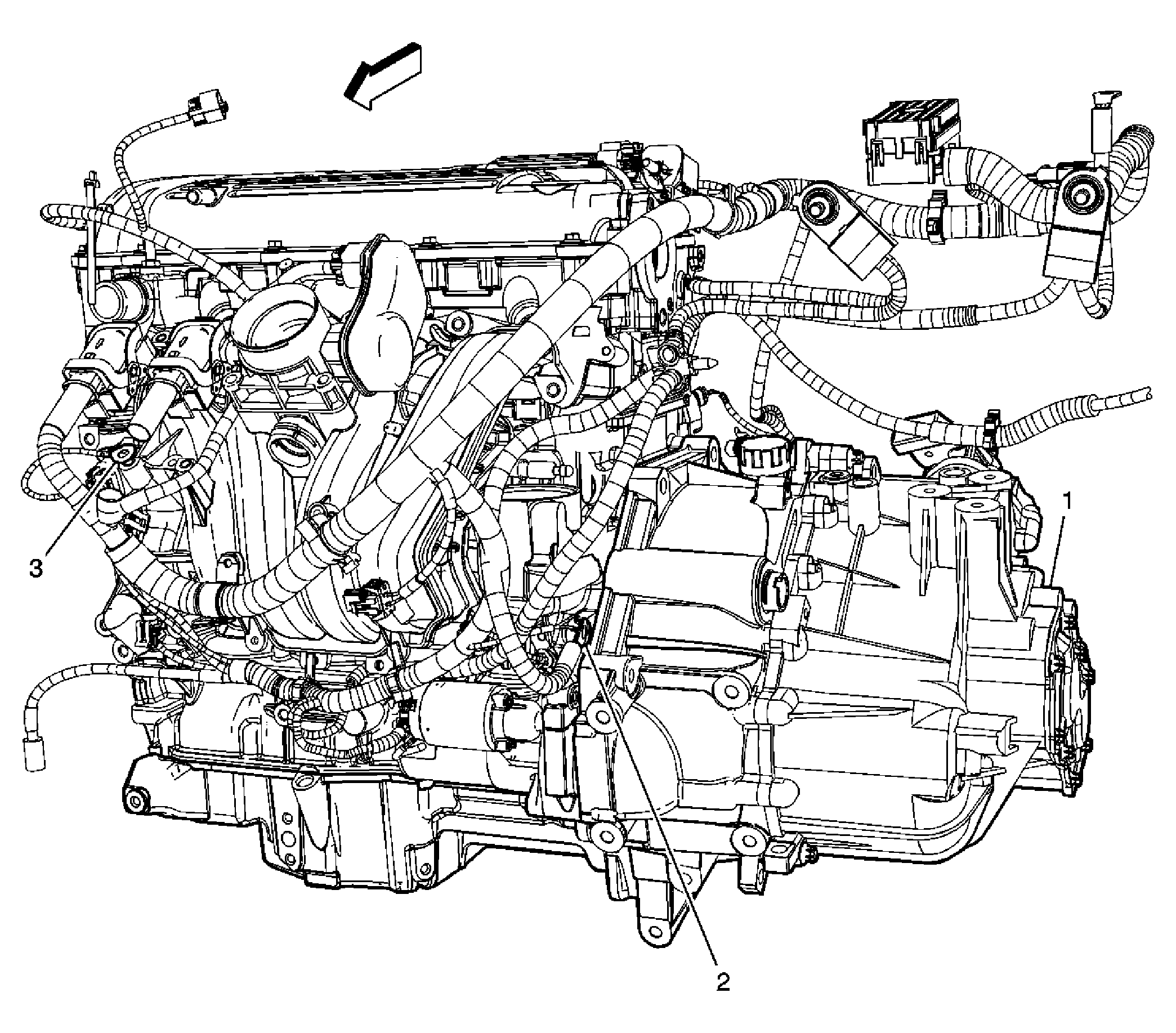

Fig 7: Front of Engine - L61 (w/MG3)
GM1810911Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Manual Transmission (MG3)
2 G105
3 G107

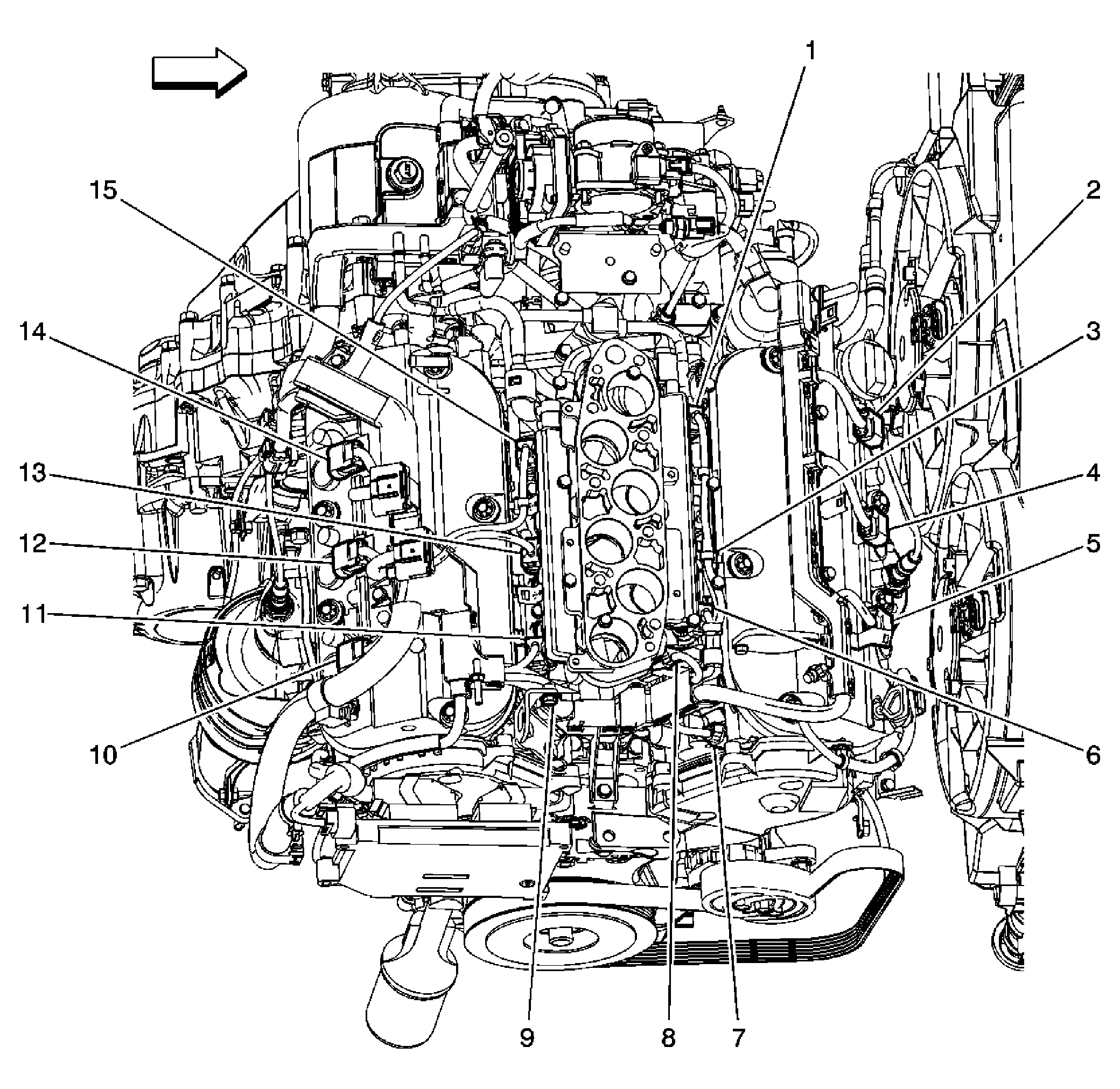

Fig 8: Engine Components - Top View
GM1760276Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injector 6
2 Ignition Coil 6
3 Fuel Injector 5
4 Ignition Coil 5
5 Ignition Coil 4
6 Fuel Injector 4
7 Camshaft Position (CMP) Sensor
8 Knock Sensor (KS)
9 G109
10 Ignition Coil 1
11 Fuel Injector 1
12 Ignition Coil 2
13 Fuel Injector 2
14 Ignition Coil 3
15 Fuel Injector 3

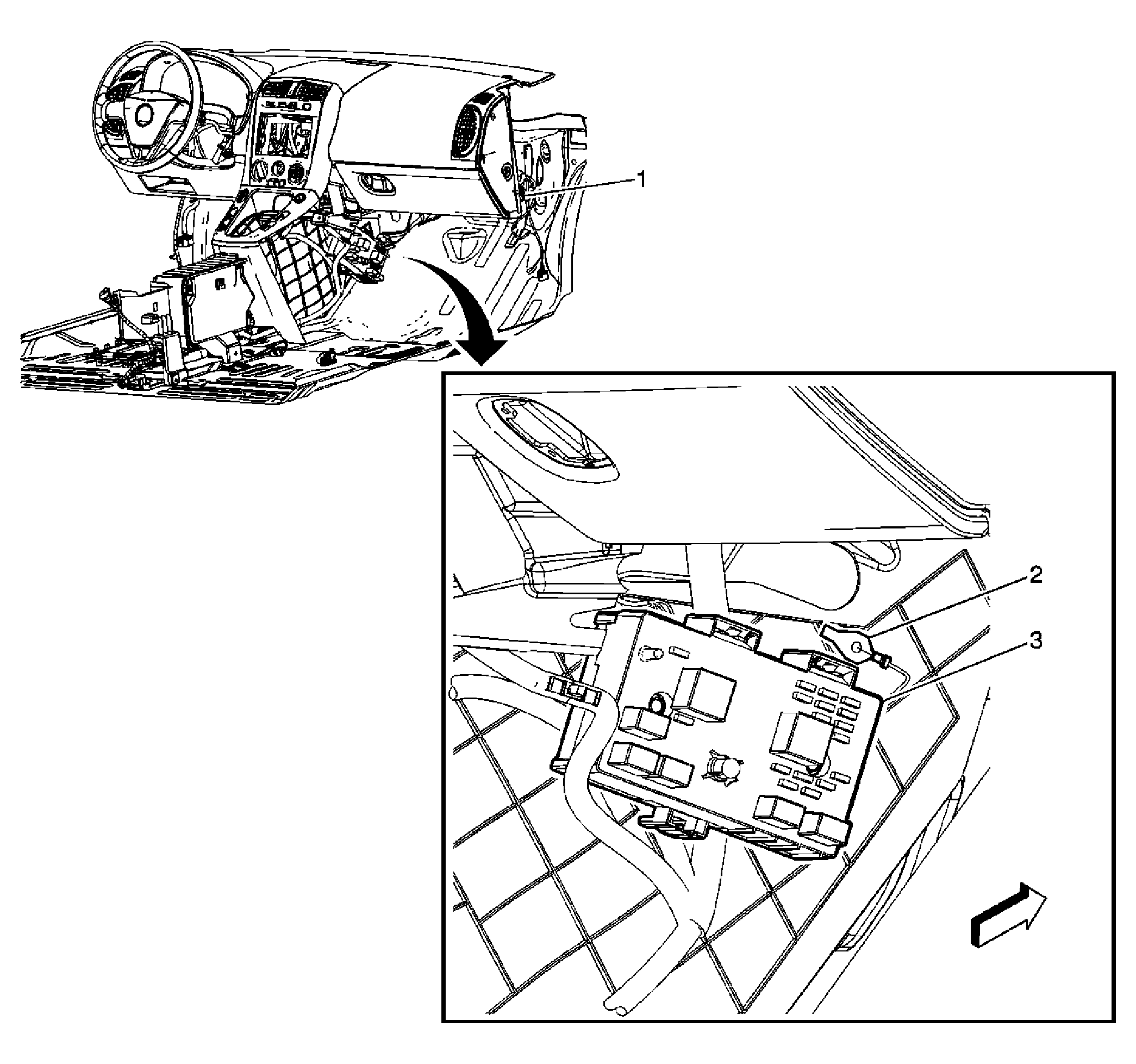

Fig 9: Lower Center of the I/P
GM1779072Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G203
2 Fuse Block - I/P

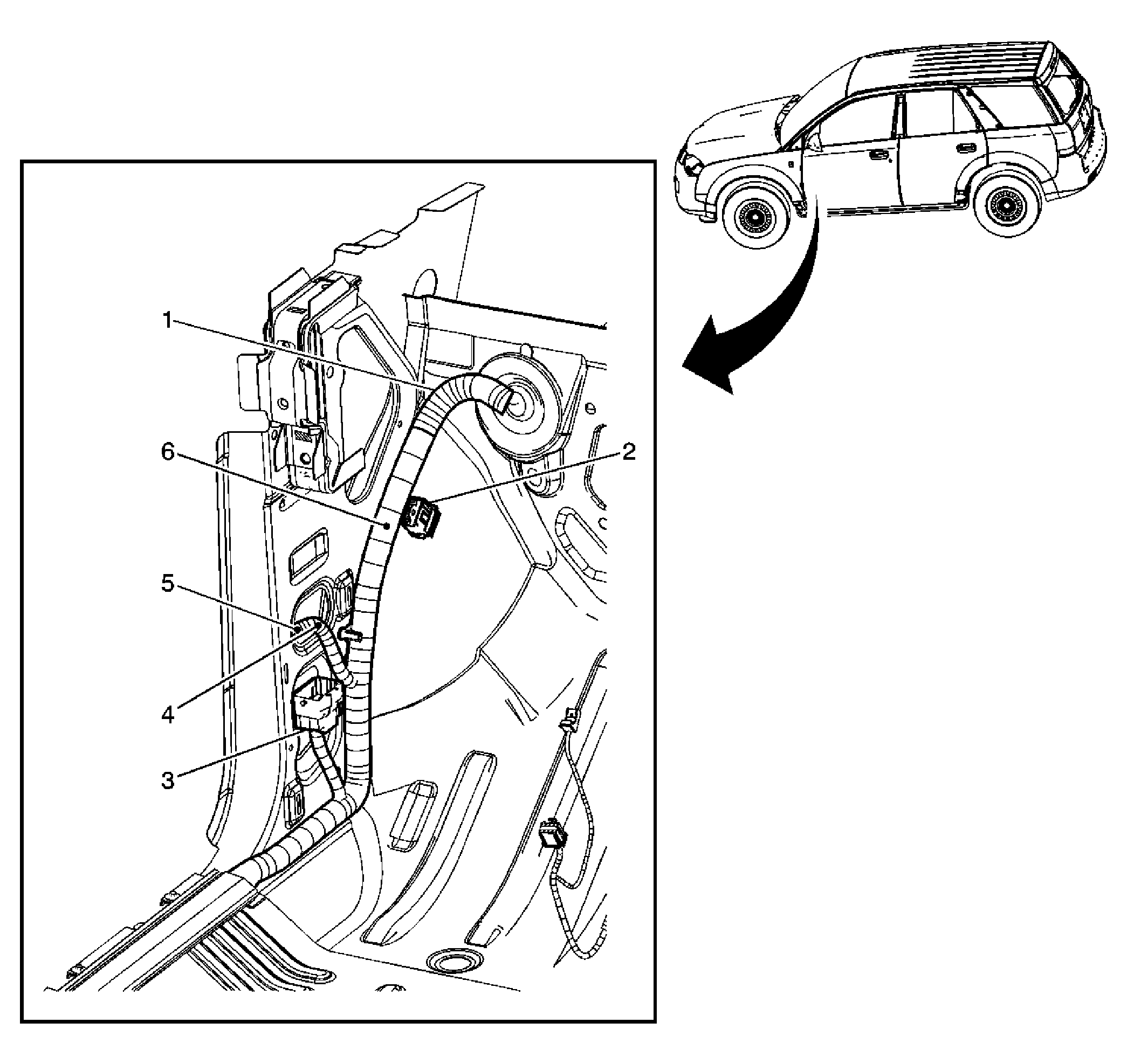

Fig 10: Body Harness Routing - Lower Left Side of I/P
GM1776826Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Harness
2 G205/Splice Pack (SP205) (JM4)
3 C200
4 S501
5 S500
6 S204

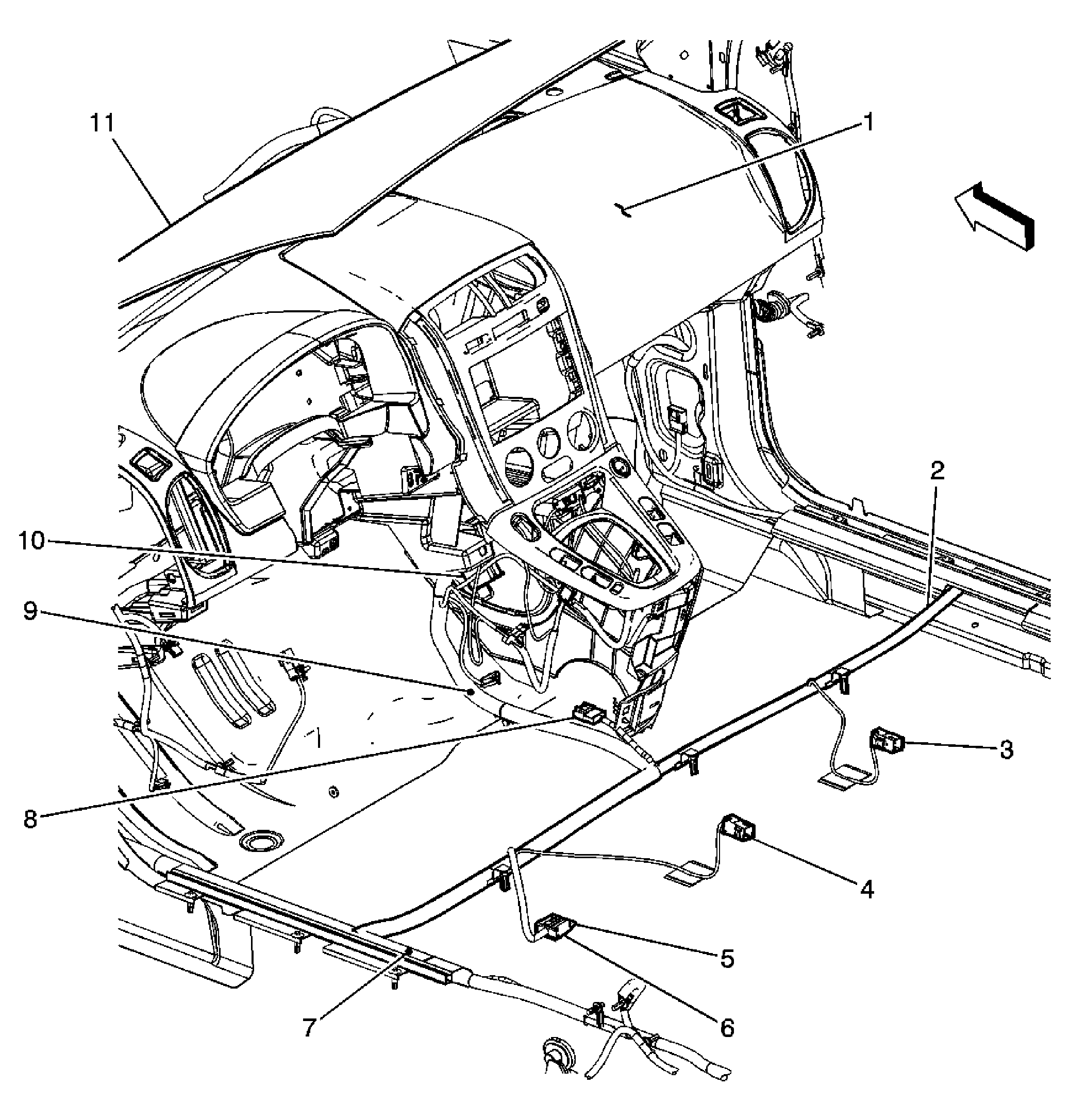

Fig 11: Body Harness Routing - Passenger Compartment
GM1776896Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel (I/P) Trim
2 Body Harness
3 C306 (AG1/KA1)
4 C305 (AG1/KA1)
5 G301
6 Splice Pack SP301
7 S304
8 C204 (U2K)
9 S209
10 Front Windshield

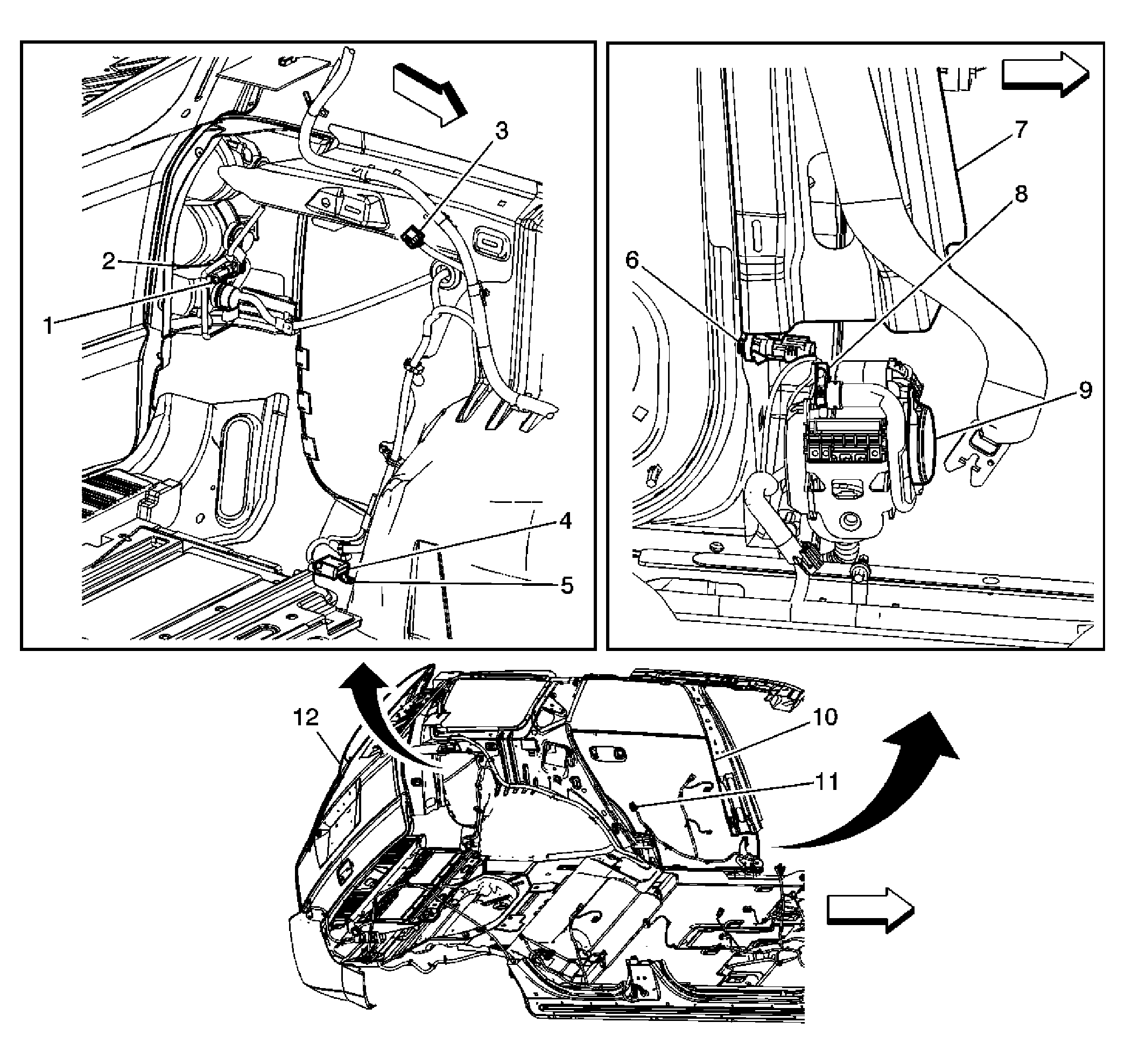

Fig 12: Body Harness Routing - Left Side of Passenger Compartment
GM1777178Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C400
2 Tail Lamp - LR
3 C300
4 Splice Pack SP401
5 G401
6 Door Jamb Switch - LR
7 Left C Pillar
8 C309
9 Seat Belt Pretensioner - Left
10 Door Panel - LR
11 C700
12 Liftgate

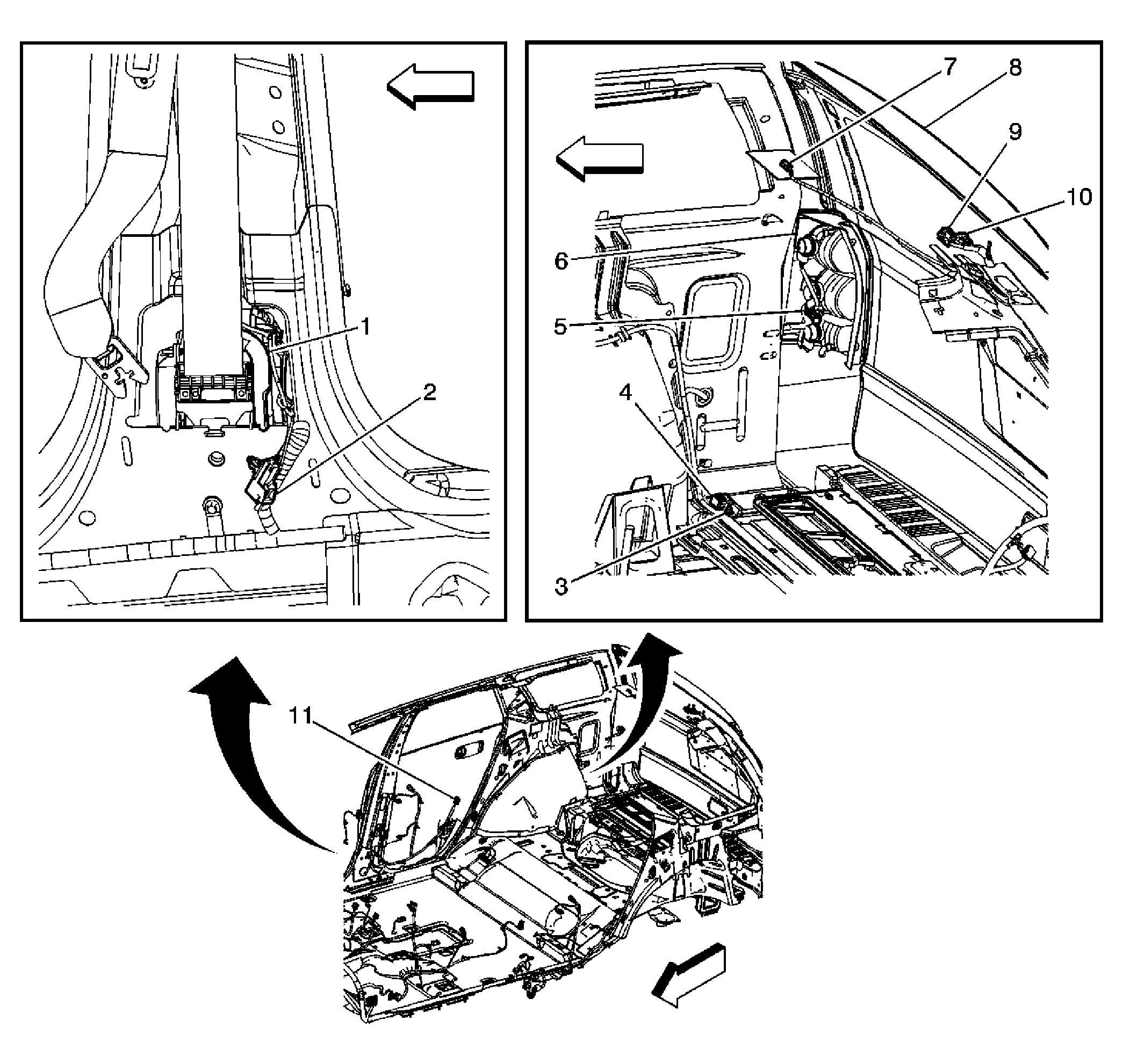

Fig 13: Body Harness Routing - Rear Compartment Area
GM1777205Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Pretensioner - Right
2 C310
3 G403
4 Splice Pack SP403
5 C401
6 Tail Lamp - RR
7 Cellular/Navigational/Digital Antenna
8 Liftgate
9 C403
10 C402
11 C800
