Repair and Diagnosis
>>
Quick Lookups
>>
Electrical Component Locations
>>
Wiring Systems - Electrical Component Locator Views
>>
Component Locator
>>
Electrical Center Identification Views
>>
Fuse Block - Underhood Top View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuse Block - Underhood Top View

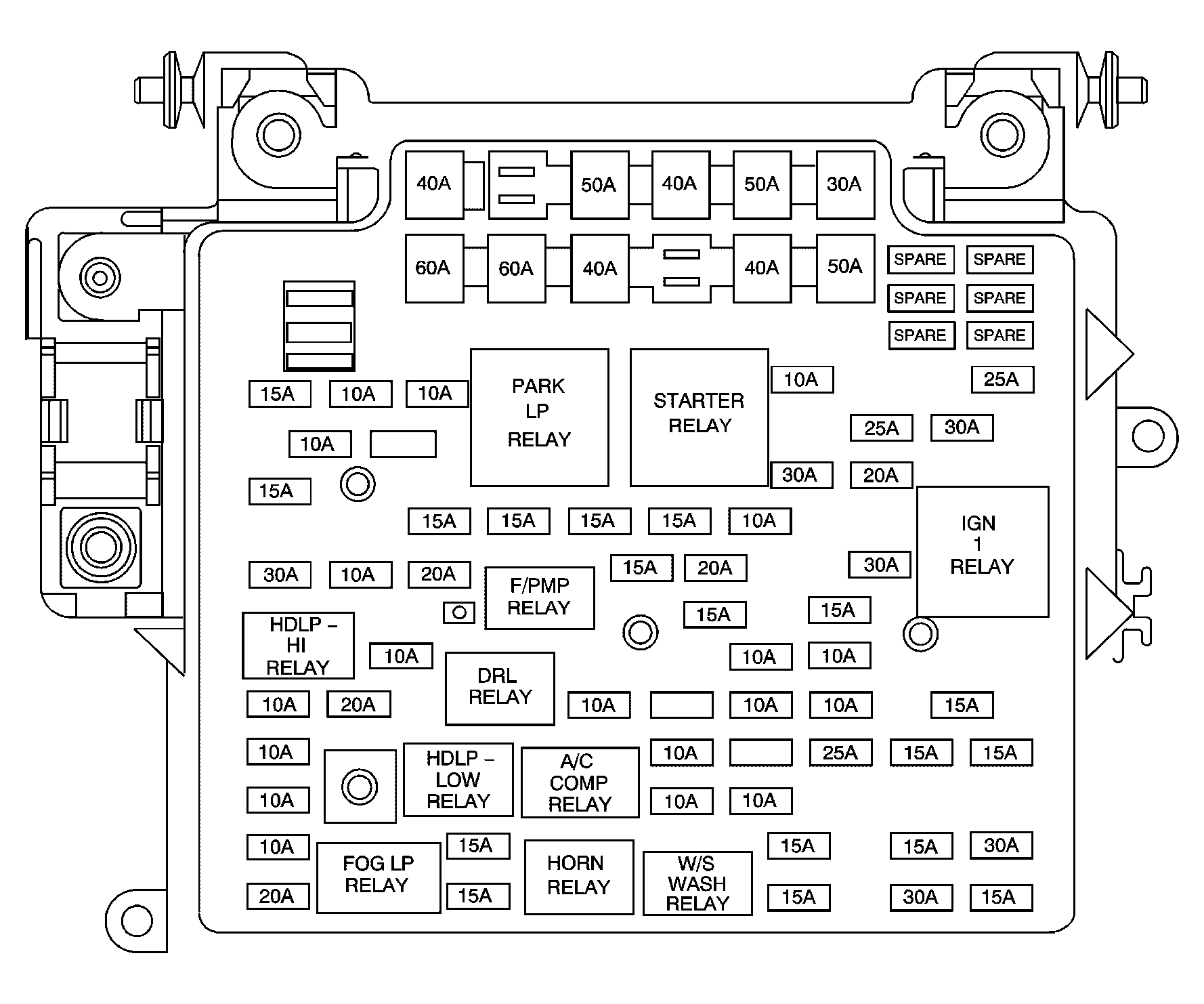

Fig 1: Fuse Block - Underhood Top View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
