Torque Converter Clutch (TCC) Solenoid Valve Connector End View, Wiring Harness Side

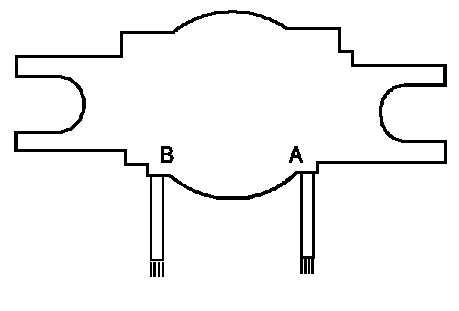

Torque Converter Clutch (TCC) Solenoid Valve, Wiring Harness Side

GM168419Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 10478128
  • CBL Solenoid Valve
Pin Wire Color Circuit No. Function
A RED 839D Ignition 1 Voltage
B BLK 422 Torque Converter Clutch Solenoid Valve Control
